Wiring harness routing & packaging Rules Week 3 Challenge

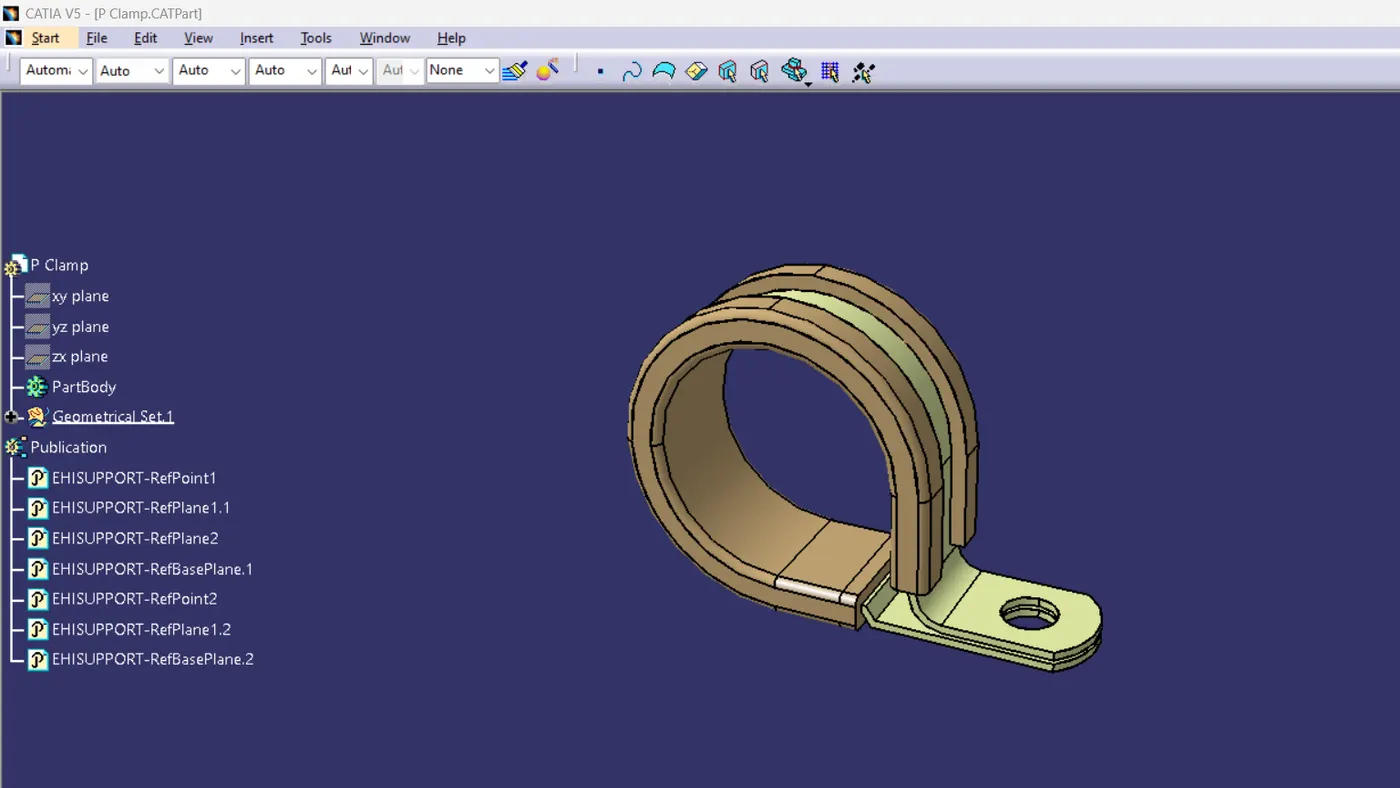

p clamp

• The given clip was downloaded and opened
• By define two points, that will be used as entry and exit points.
• Then planes has to be defined at the points.
• A base plane has to be defined at a distance of 2 to 3 mm from the clip.
• again we define the exit point at the first definition as the entry point.
• hence I have two entry and two exit points.

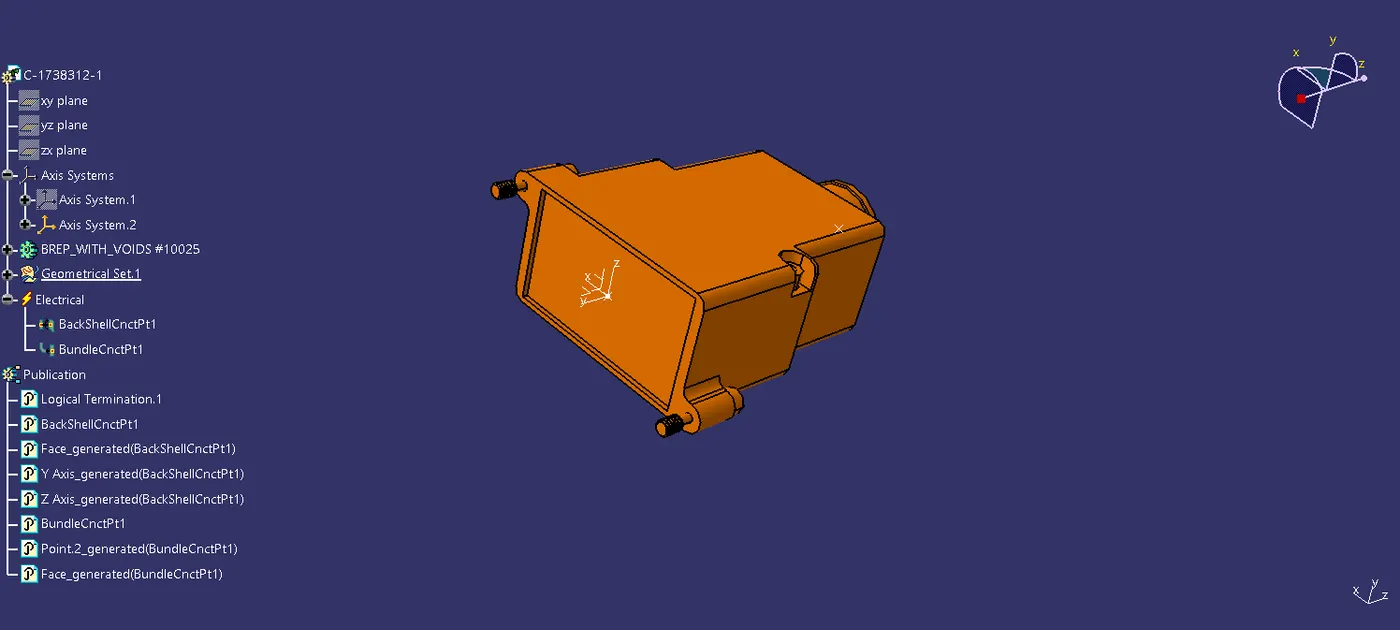

backshell

• The backshell data was downloaded
• We define the points in the part workbench.
• An Axis system with the correct axis orientation is placed at the backshell connection point.
• The points have to be defined as the backshell connection and bundle connection points.

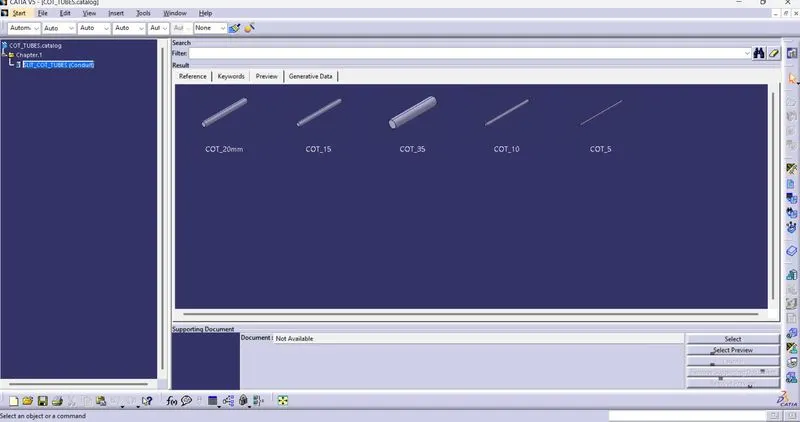

catalogue for cot tubes

• made the catalogue for the cot tubes with a family name
• then added all the cot tube under the family name

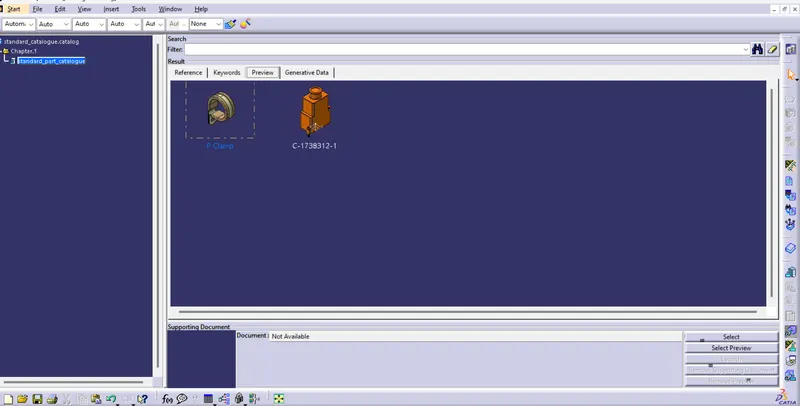

catalogue for back shell and p clamp
