Wiring harness routing & packaging Rules Week 3 Challenge

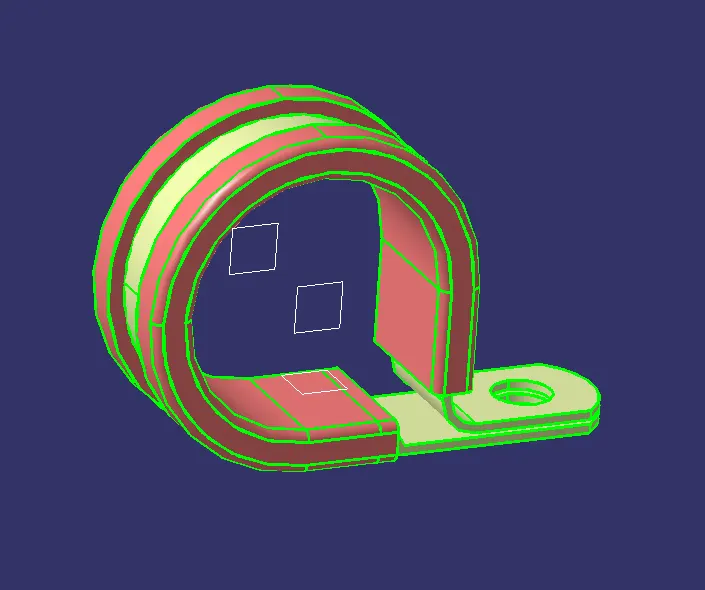

P Clamp :
They are used to ptovide the support for channels. The inner part is covered with rubber so that to provide non conductivity with the support thust increasing safety.
The outer part is amde of steel or metal to provide required strength to the housing.
The part is elecytically and mechanically defined.

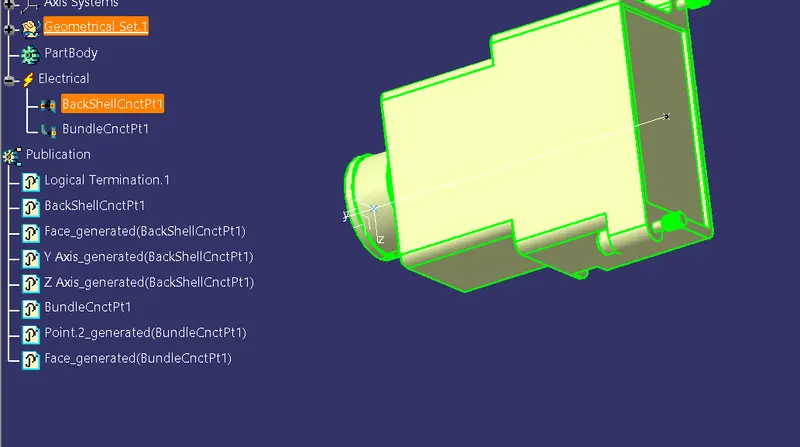

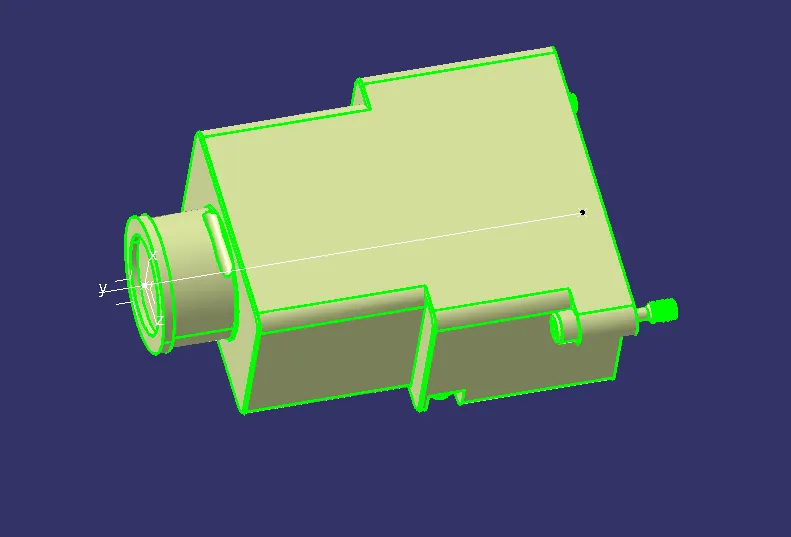

2. Backlash (Tyco 1738312-1) :
As we know that backlashes are the parts wich are not electrically live. They provide just housing for the live parts or just to provide the proper engagement betweeen them.
They are also defined properly.
3. Cot Tubes :
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
All the data was provided in the question section:

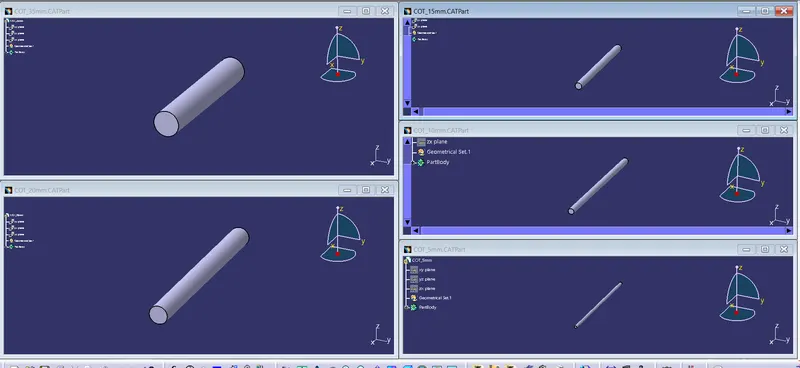

Here is the snapshot of the different parts.

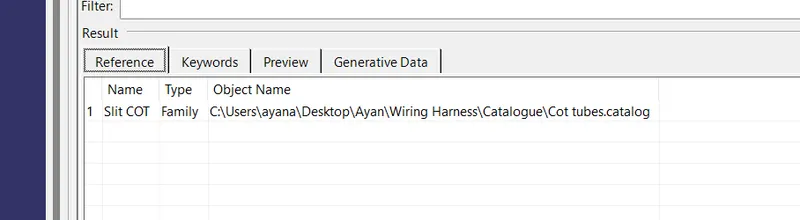

Also a catalogue has been made for the cots to save them in a family for future references.
All the files and parts and catalogue files are submitted in the "File" option.
