Week 8 - Challenge 3 - Coin Holder Design

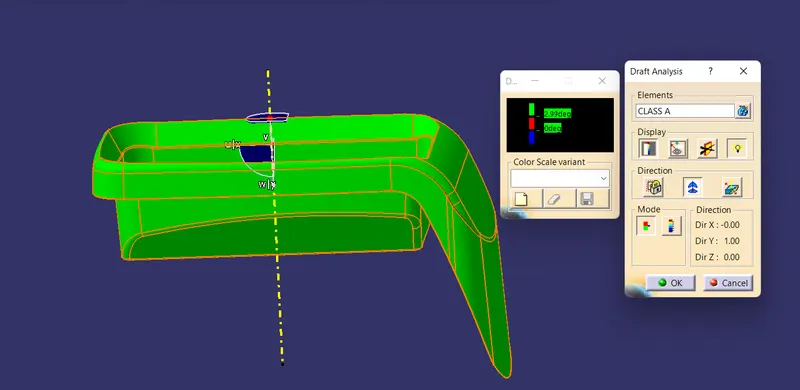

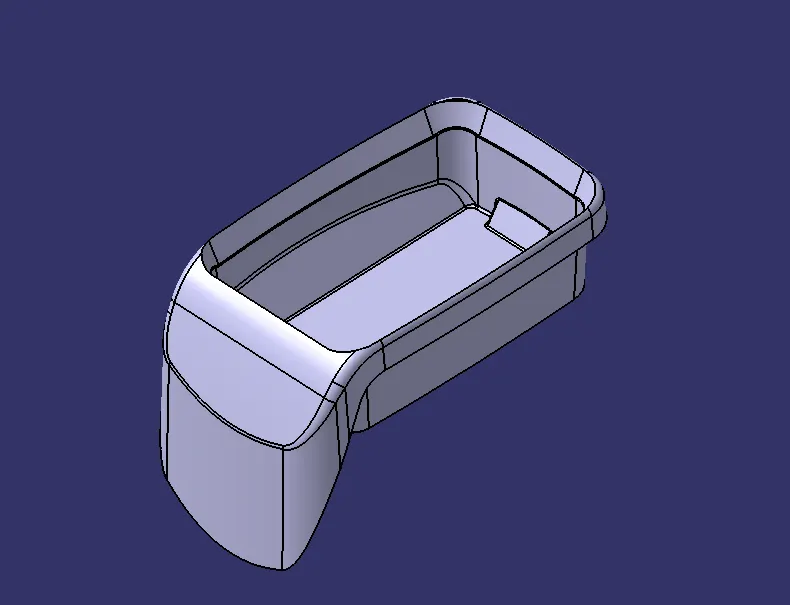

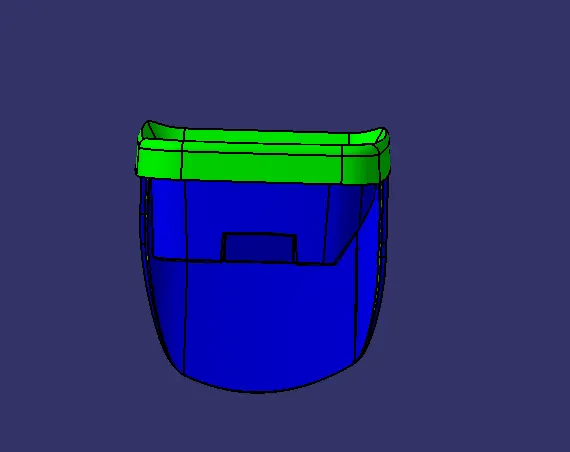

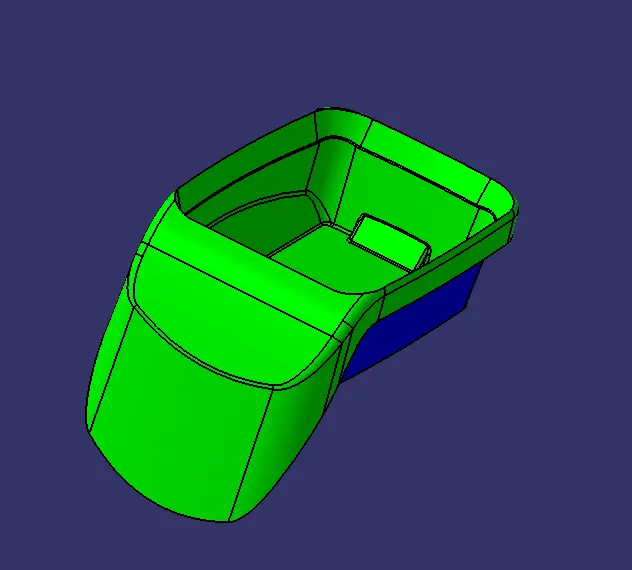

Draft Analysis report for the class A surface:

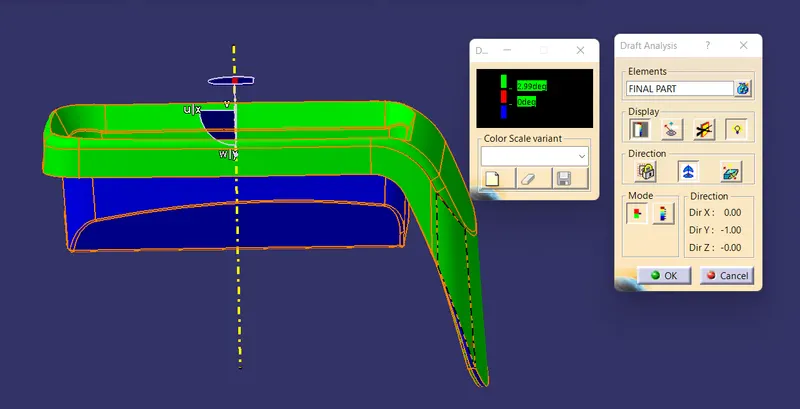

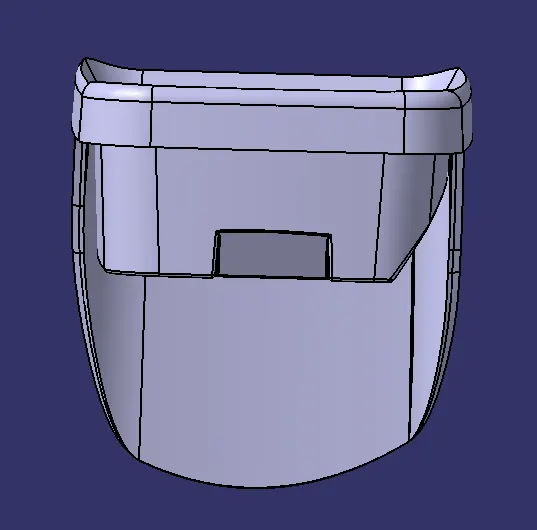

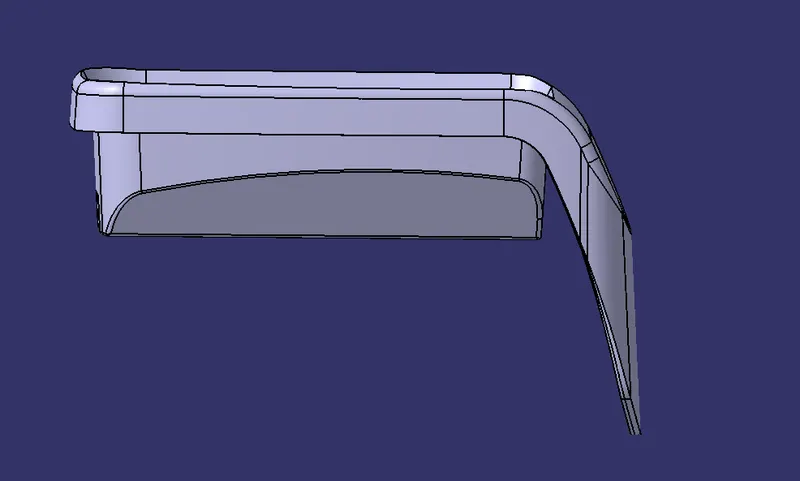

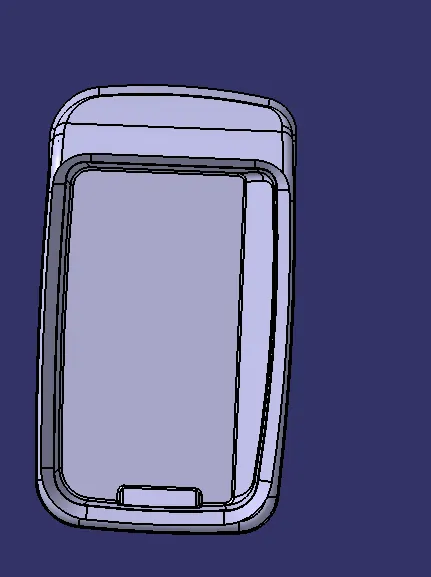

Draft Analysis report for my final part:

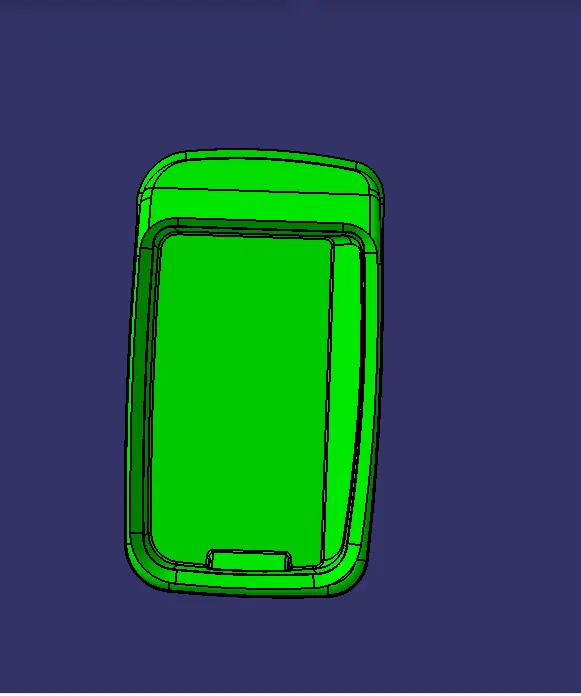

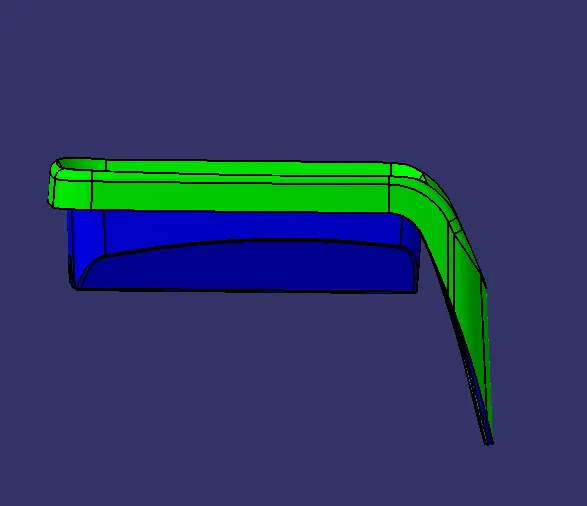

Screenshots for the final product:









Report:

As we've discussed in previous examples that draft analysis is performed on the component for checking wethere the draft we created is easily manufacturable or not.

In this particular product, there was no draft performed by the class A engineer. All the walls were perpendicular to each other. This shoudn't be happend in the first place but now this can not be changed. So that's why we had to put the class C at 90 degree.

Tooling Axis:

So, again as I mentioned previously. There's no draft in this component. So we just selected the base, Created a point in between. Made a line perpendicular to that suraface. That line was our tooling axis. In such products, where there is no draft performed on class A, the tooling axis in generlly created like this.
