Wiring harness routing & packaging Rules Week 3 Challenge

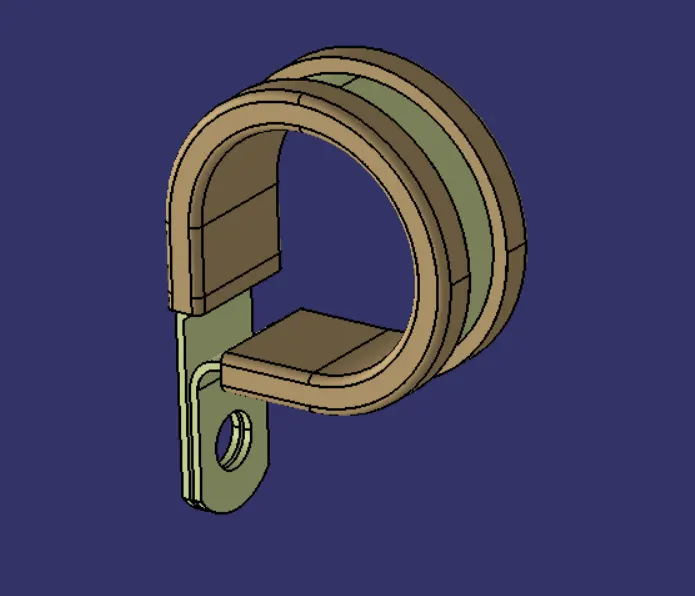

GIVEN CLAMP

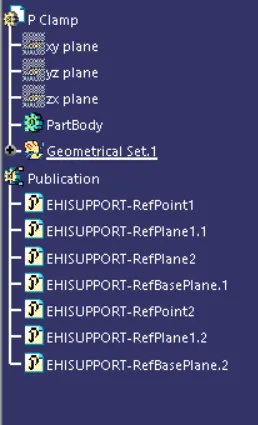

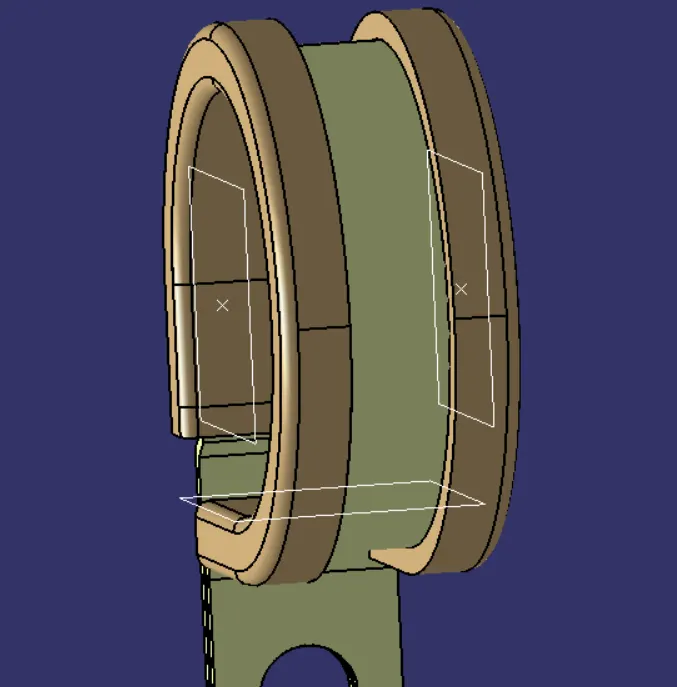

TO DEFINE THIS WE NEED 3 PLANES ENTRY PLANE , EXIT PLANE AND BASE PLANE.

WE HAVE TO DEFINE THE DEFINE SUPPORT PART TWO TIMES WITH BOTH THE ENTRY POINTS

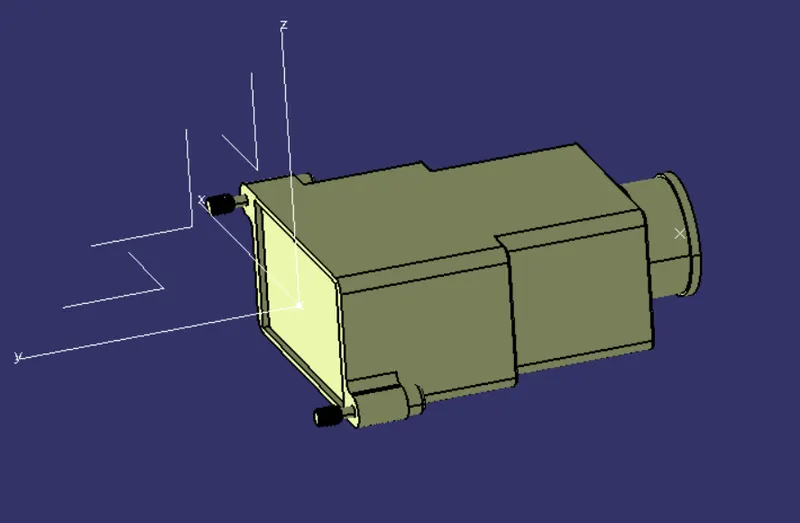

GIVEN BACK SHELL

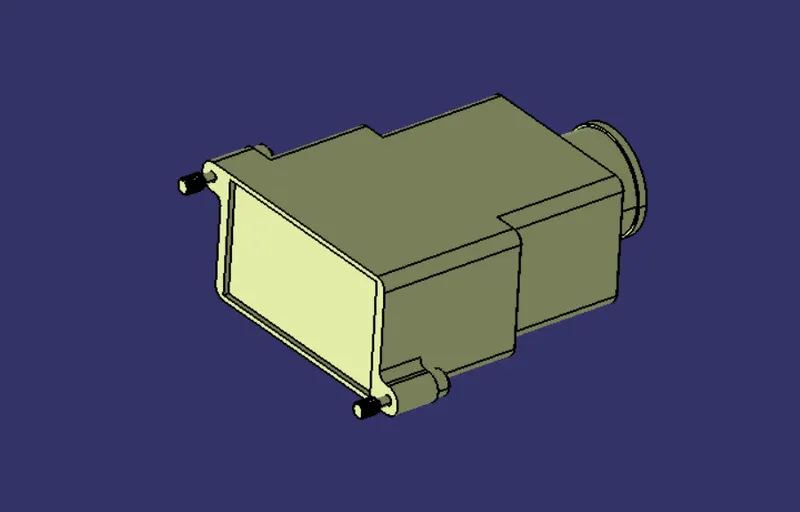

BACK SHELLS ARE PLASTIC MOLDED PARTS USED AT WIRE ENTRY SIDE OF THE CONNECTOR AND ALSO FOR THE PROTECTION

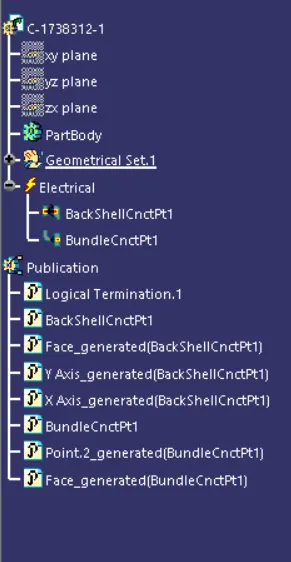

WE HAVE TO CREATE MATING POINT AND AXIS AND ALSO THE BUNDLE POINT

THE DEFINE THE PART AS BACKSHELL AND ALSO DEFINE THE CONNECTION POINT AND BUNDLE CONNECTION POINT.

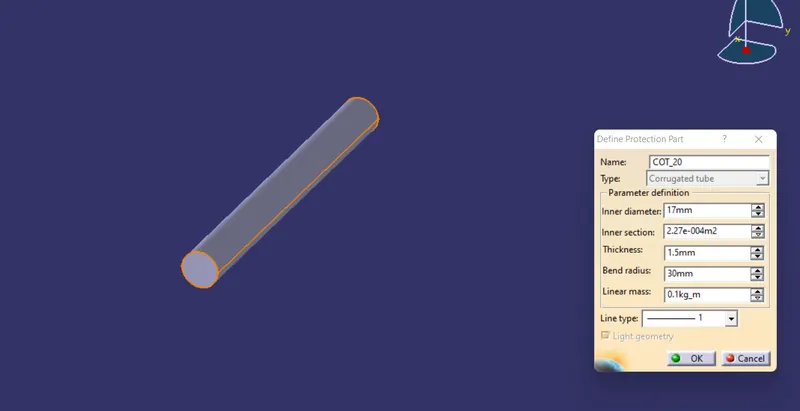

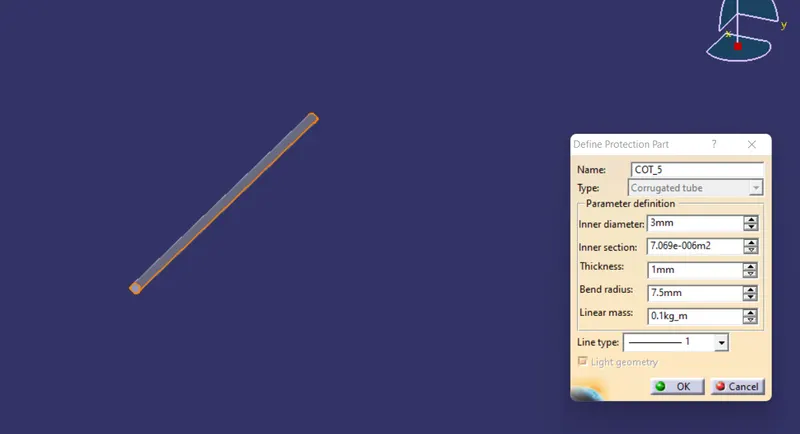

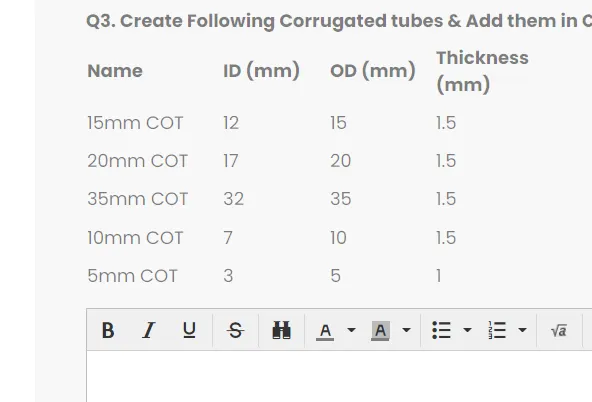

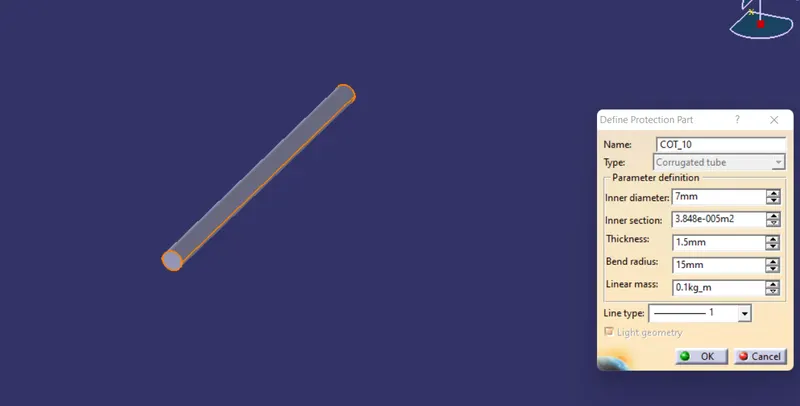

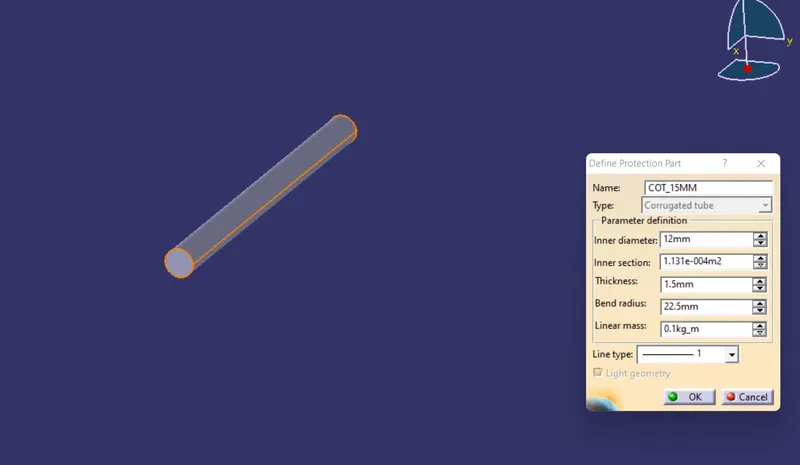

CORRUGATED TUBES

CREATE UNDER 'SLITCOT' FAMILY

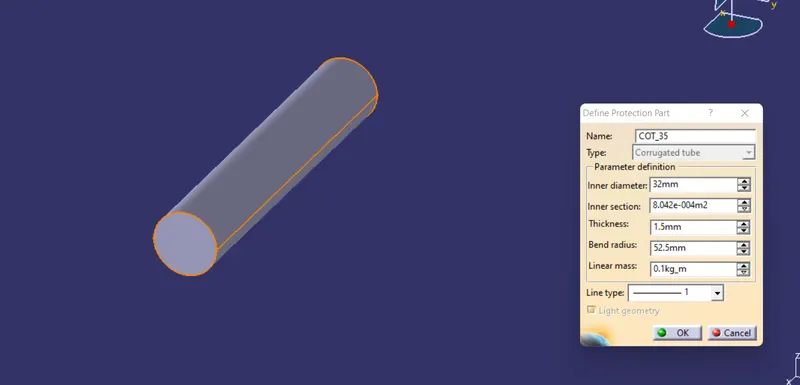

THE BEND RADIUS CALCULATION:- 1.5 TIMES THE OUTER DIAMETER

THE FAMILY FILE FOT COT TUBES ARE SUBMITTED AS A ZIP FILE
