Wiring harness routing & packaging Rules Week 3 Challenge
1. To download the following cad data & define it as Electrical support using Electrical Part design Workbench with all the necessary properties.
Downloaded file:
Defining the part as Electrical support using Using Electrical part design Workbench and specifying all the necessary properties...

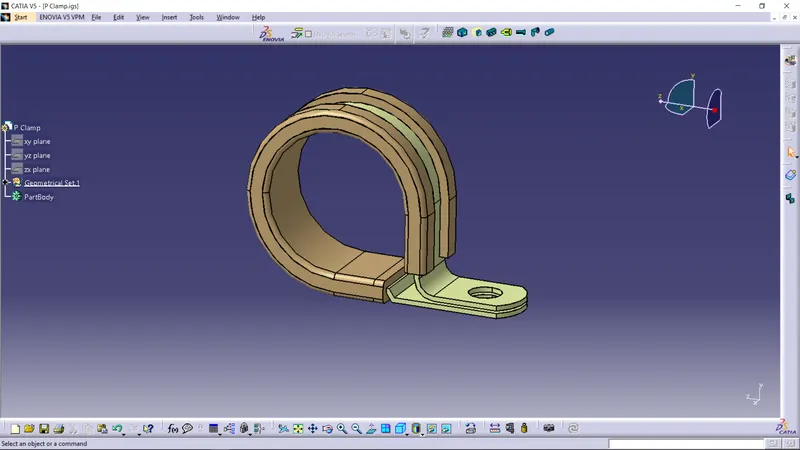

- After downloading the part it was opened in the mechanical part design workbench and defined using a point, the reference plane was then added and the part was shifted to the electrical workbench where the electrical support was defined.

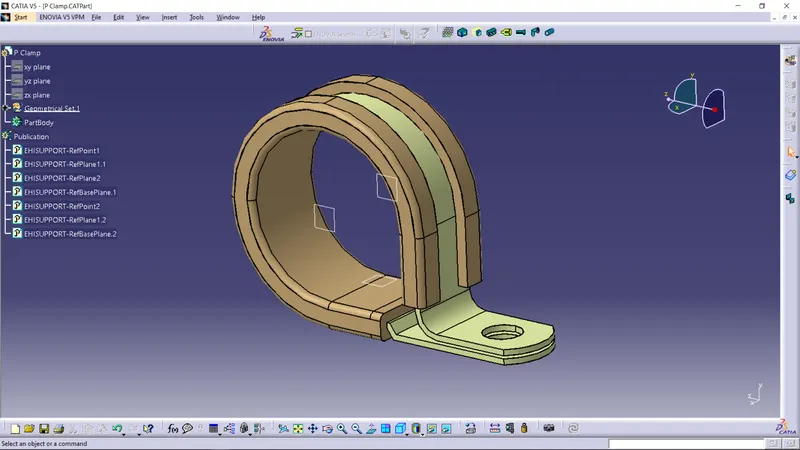

- The above picture shows the entry point of the clamp after being defined as support.
2. To download the following Back shell cad data & define it as an Electrical back shell using Electrical Part design Workbench with all the necessary properties.

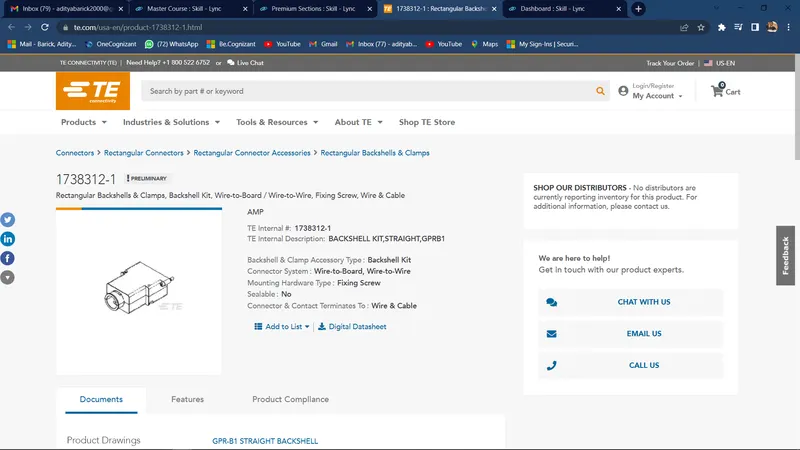

File to be downloaded:
Converting the backshell Cad Data to electrical backshell using Electrical Part Design Workbench...

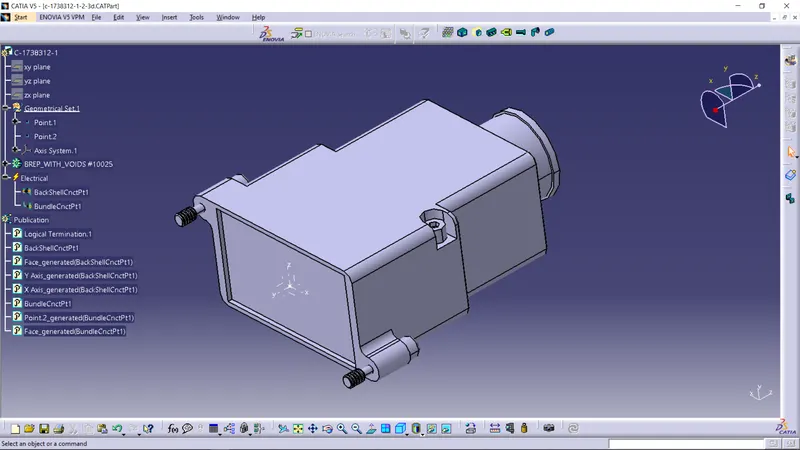

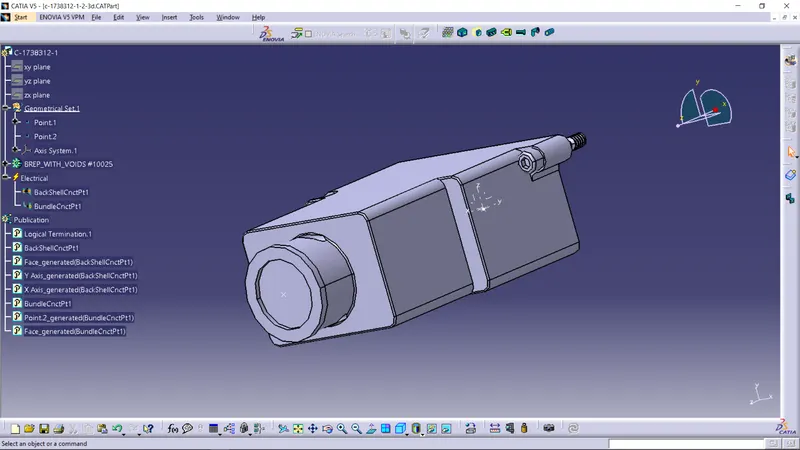

As shown in the above picture the downloaded backshell CAD part file is first defined using the point and the axis reference in the mechanical part design workbench.
After that it is shifted to the electrical part design workbench where it is converted into an electrical part by defining the backshell and the bundle connection point.
3. Construction of the following corrugated tube according top the following table provided below...
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

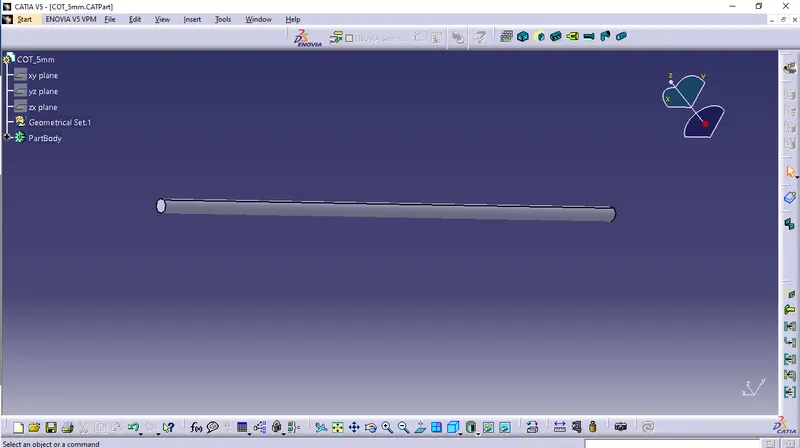

a) COT_5mm

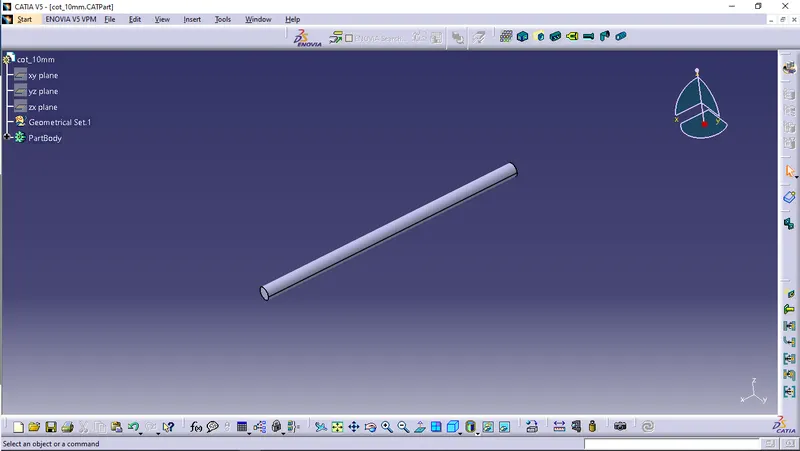

b) COT_10mm

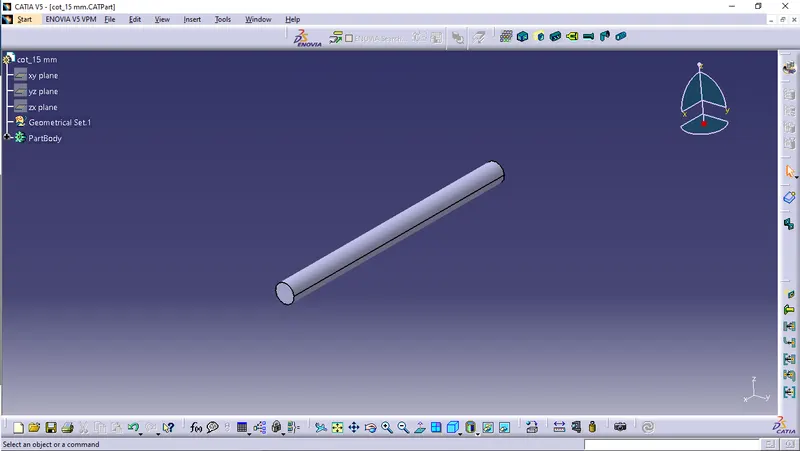

c) COT_15mm

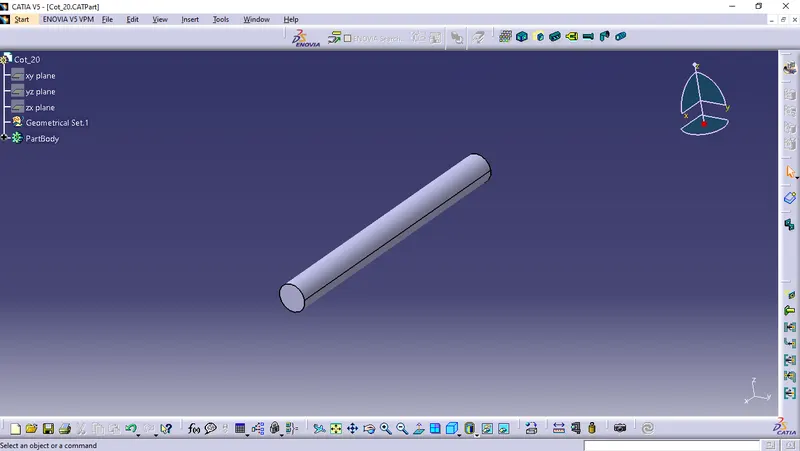

d) COT_20mm

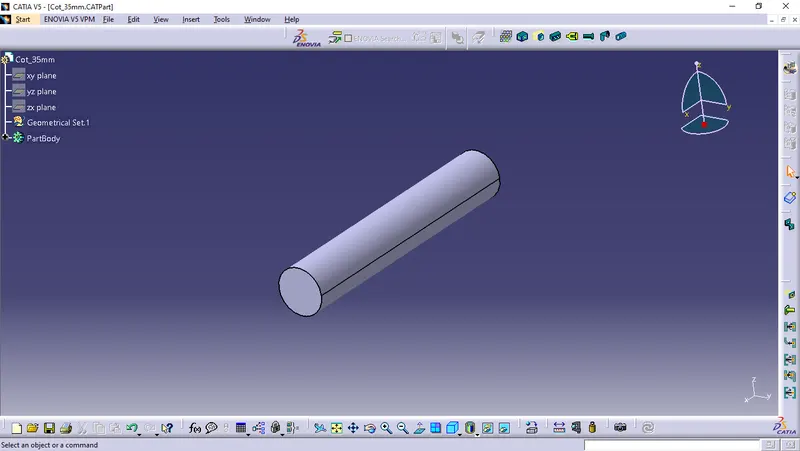

e) COT_35mm

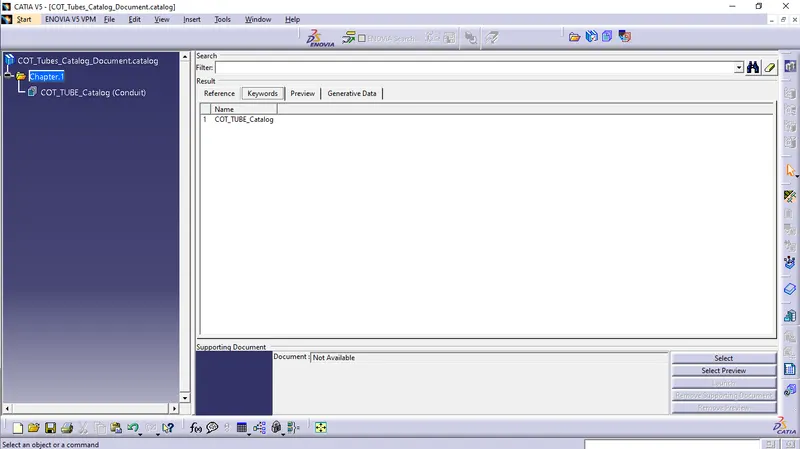

After Creating the corrugated tube they are added into a Catalog family ...

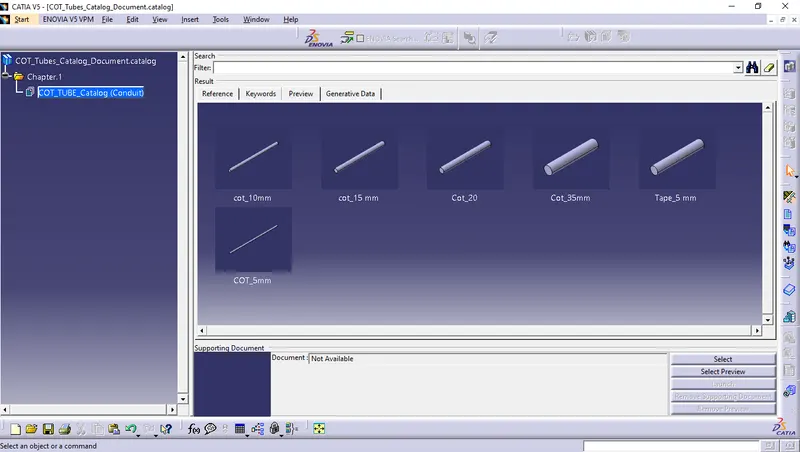

- Catalog Creation
- Adding Corrugated tube to the catalog family
Conclusion:
In the above task we learnt how to define an electrical support , how to define an electrical backshell and the construction of the corrugated tubes. Along with all these, catalogue creation was also a crucial part of this task as it makes easier to perform an assembly very smoothly by adding all the created electrical parts to the catalog family and using it while performing assembly.
