Wiring harness routing & packaging Rules Week 3 Challenge

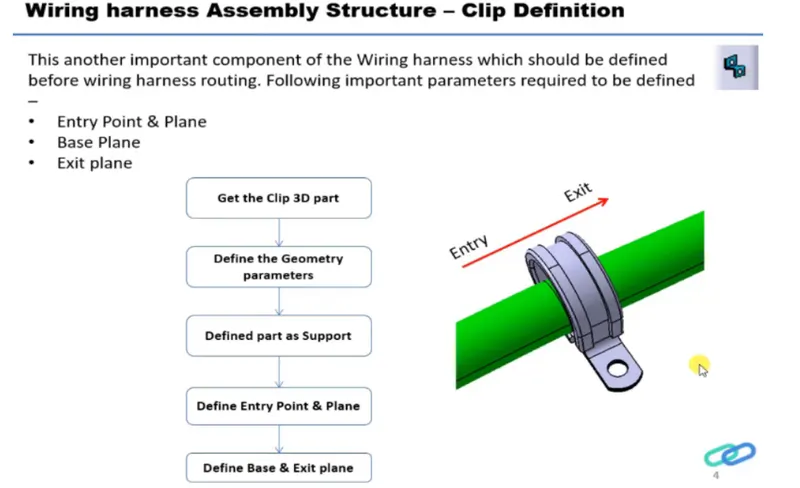

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
process:

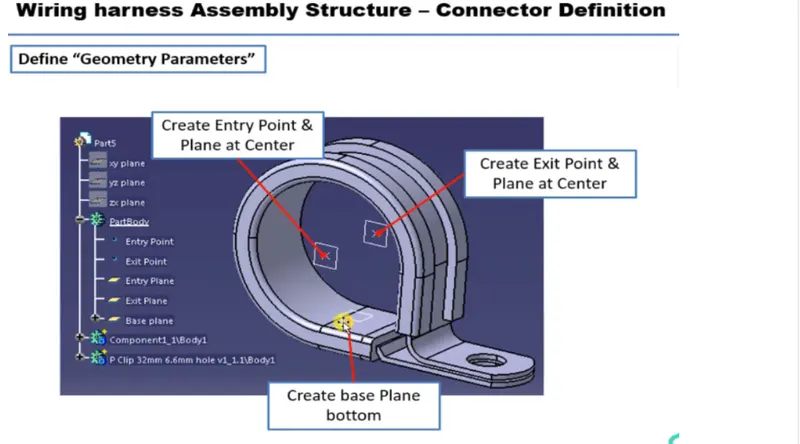

• Create two points one as entry and another as exit point.
• create planes at two points and another at base.
• Switch to Electric part desgn

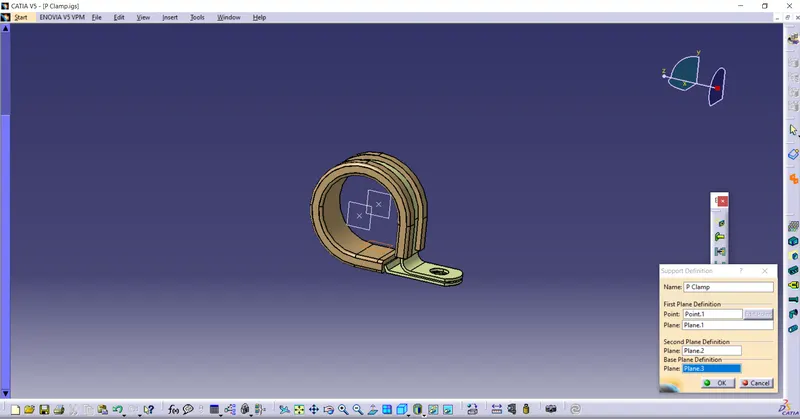

• Click on support defination select part select entry point select entry plane, exit and base plane.

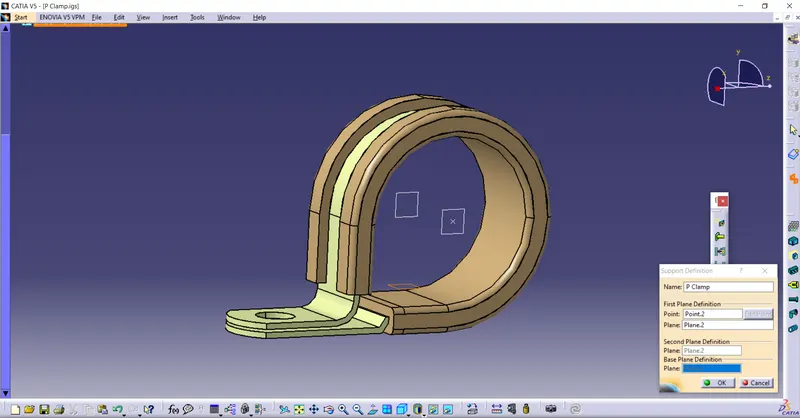

Again Click on support defination - select part - select exit point - select exit plane and base plane as
secondary plane is automatically taken.

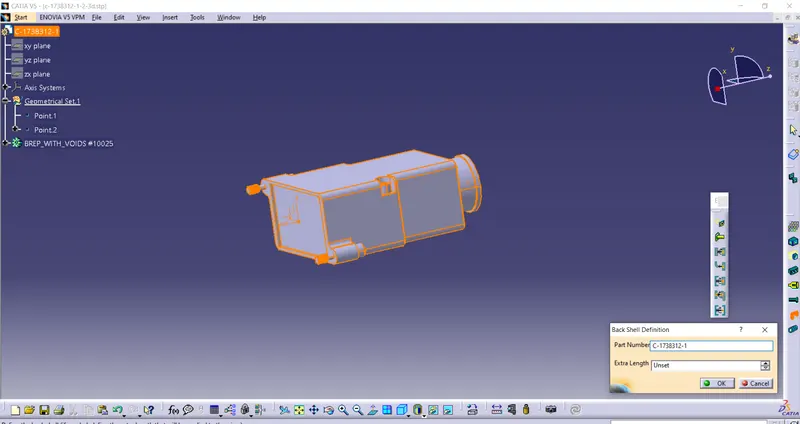

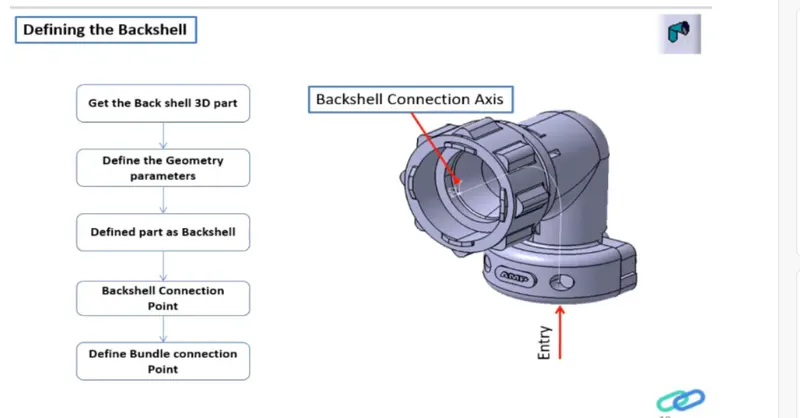

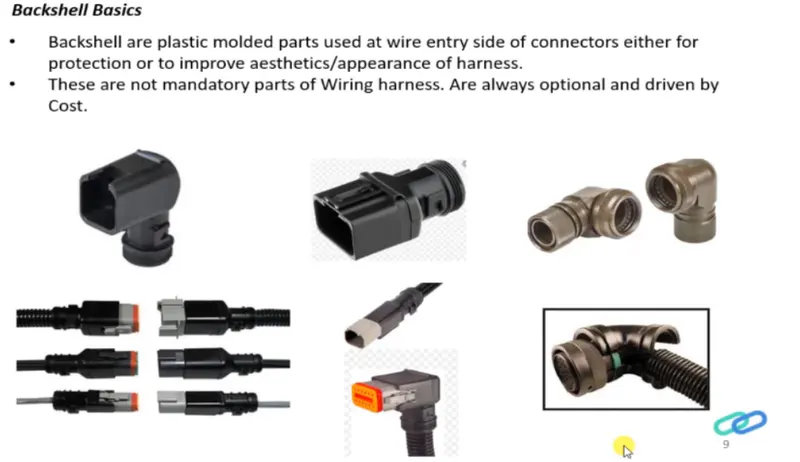

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
Process:

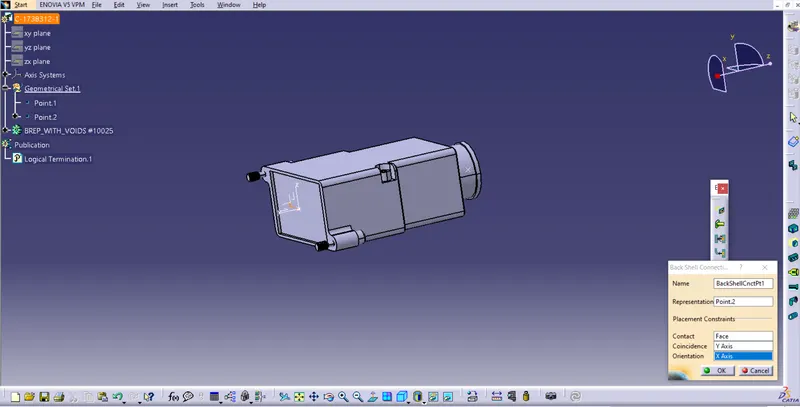

• create Back shell entry point.

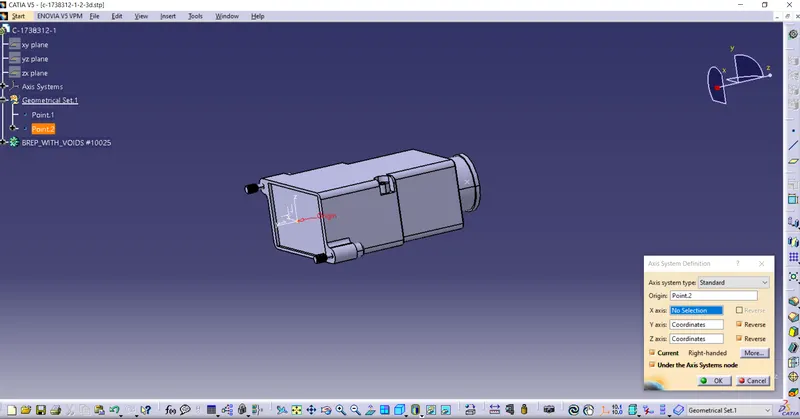

• create axis system for back shell entry.
• create bundle connection point.
• switch to Electrical part design.
• Define part electricaly as back shell.
• Then define Back shell connection point.

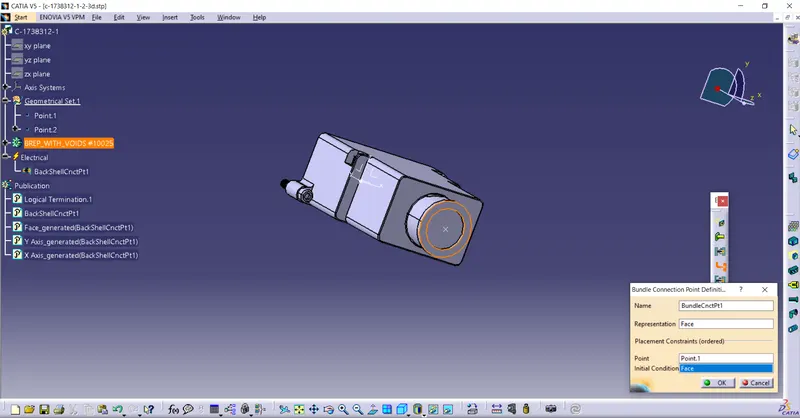

• Define bundle connection point.

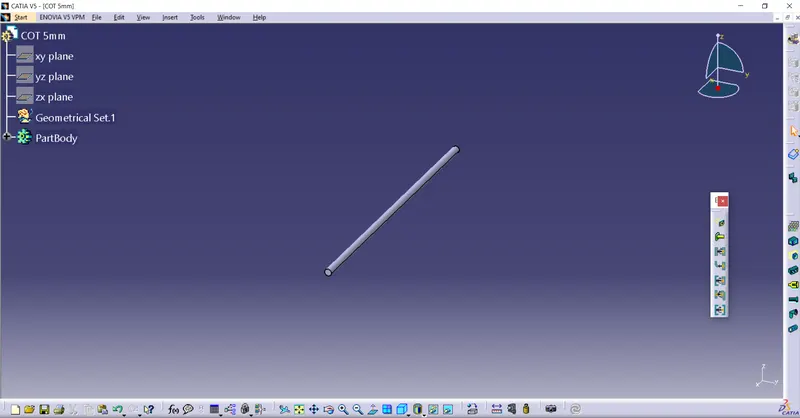

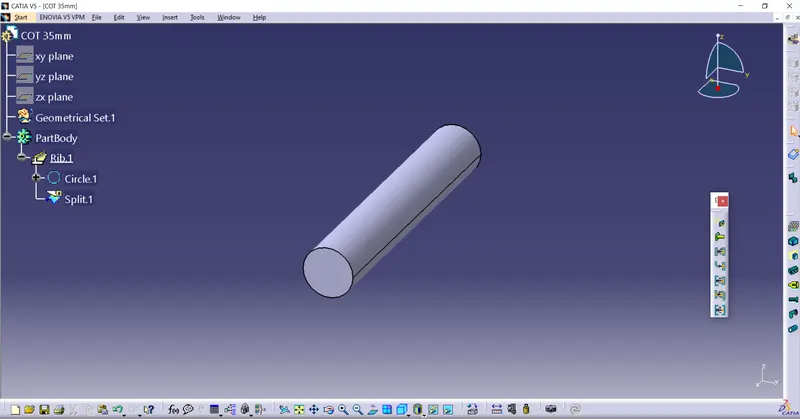

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|

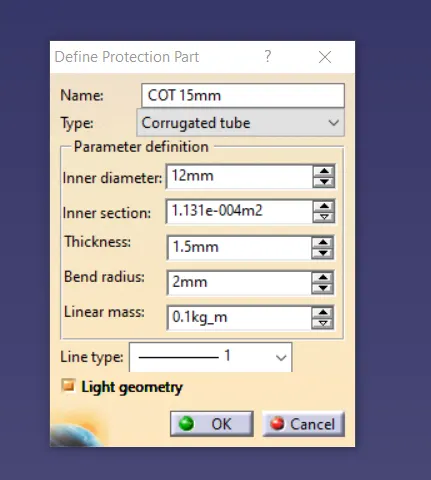

15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|

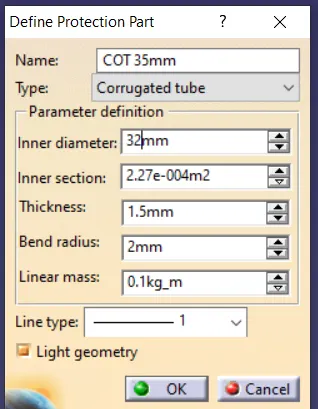

35mm COT |
32 |
35 |
1.5 |
|

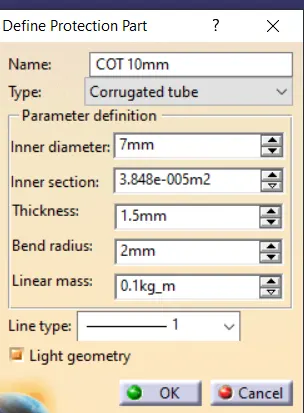

10mm COT |
7 |
10 |
1.5 |
|

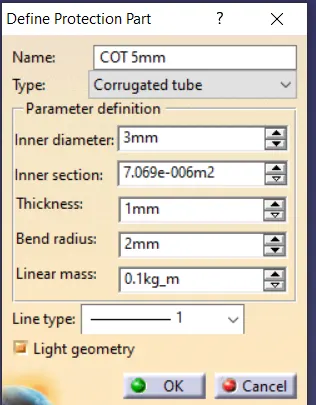

5mm COT |
3 |
5 |
1 |
Process:

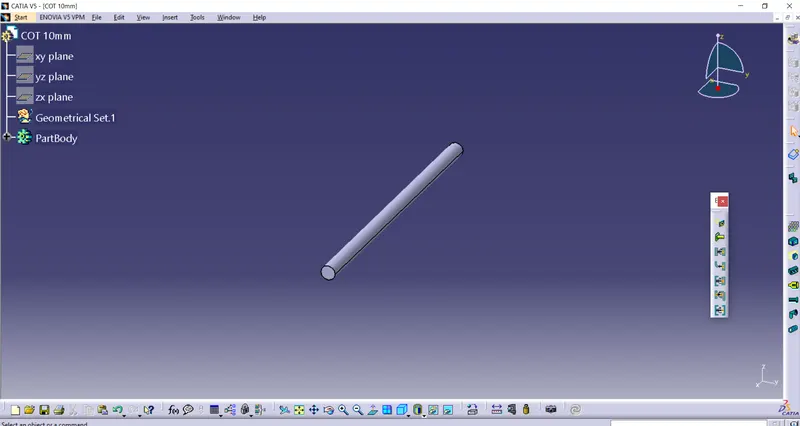

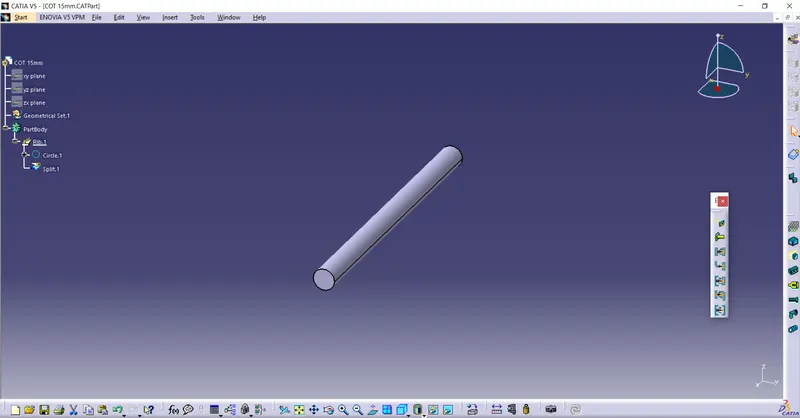

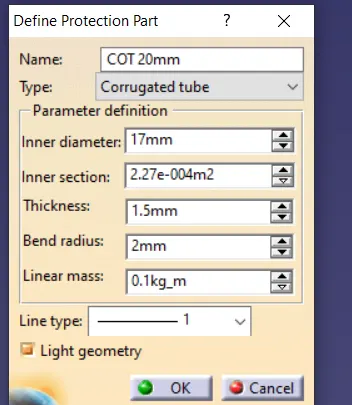

• Switch to Electrical part design

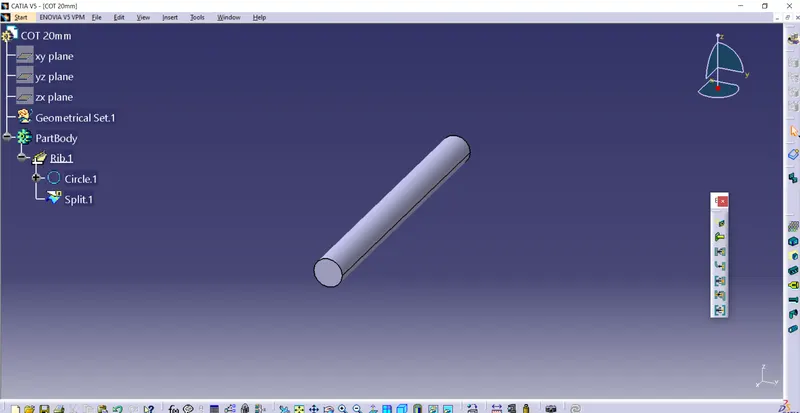

• Select Define protection Part
• Click on part (on file name in specification tree)
• Provide given parameters and bend radius as '1.5 x Outer Dia'.
Catalogue Cretation:
• new part - catalogue document - add family - give name-type-select Conduit - save.

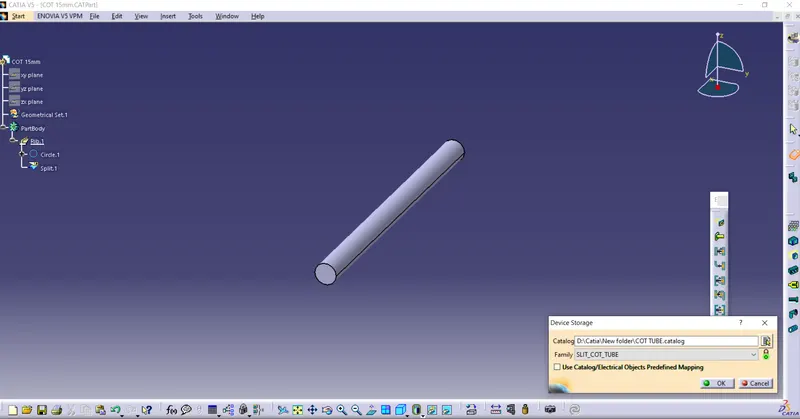

• Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
