Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

AIM:

TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.

GIVEN:

HARNESS ASSEMBLY:

HARNESS FLATTENING:

1 WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS.

2 WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY TO THE FLATTENING WORKBENCH HERE.

3 CHOOSING A SUITABLE PLANE WE FLATTEN THE HARNESS ASSEMBLY.

4 BUNDLE SEGMENTS ARE ROTATED AT THE REQUIRED ANGLES. THE HARNESS ASSEMBLY IS THEN DRAFTED.

5 FLATTENING PARAMETERS ARE DEFINED IN ORDER TO MAKE THE BUNDLE AND THE CORRUGATED TUBES VISIBLE IN THE 3D DRAWINGS.

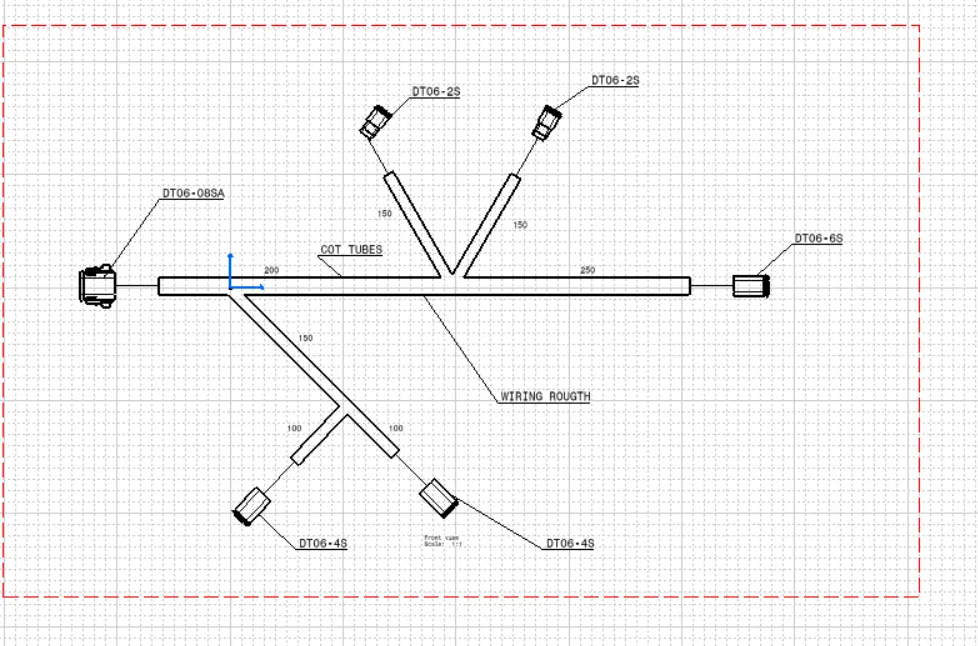

DRAFTING REPRESENTATION:
