Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

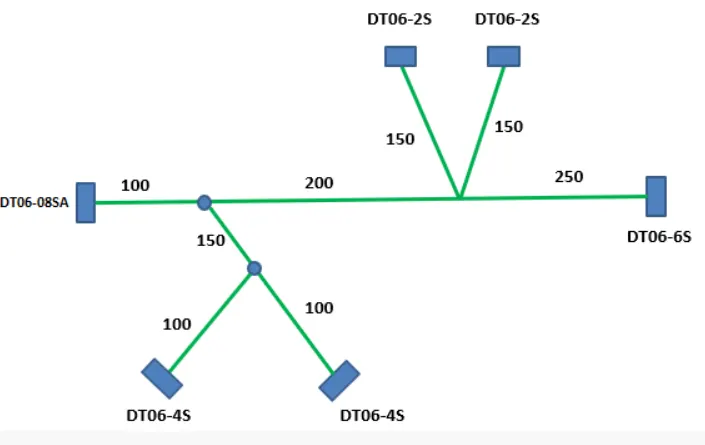

Aim:- To Flatten the Harness and draft the wire harness assembly

Goto- Harness Flatenning workbench and define the flatenning Parameters.

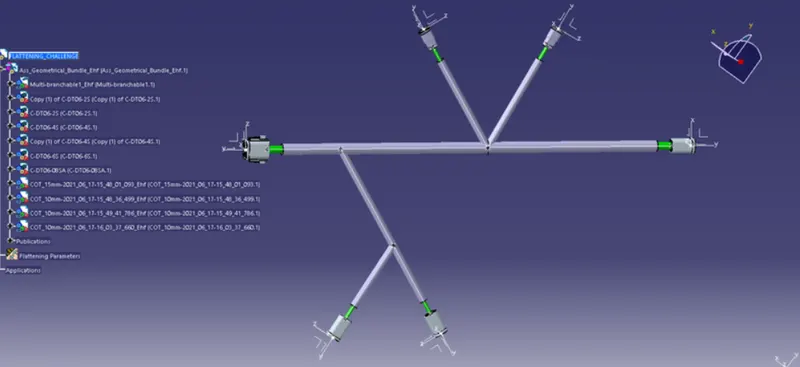

We use the extract command to bring the harness Assembly to flattening workbench.

Choose a suitable plane to flatten the harness

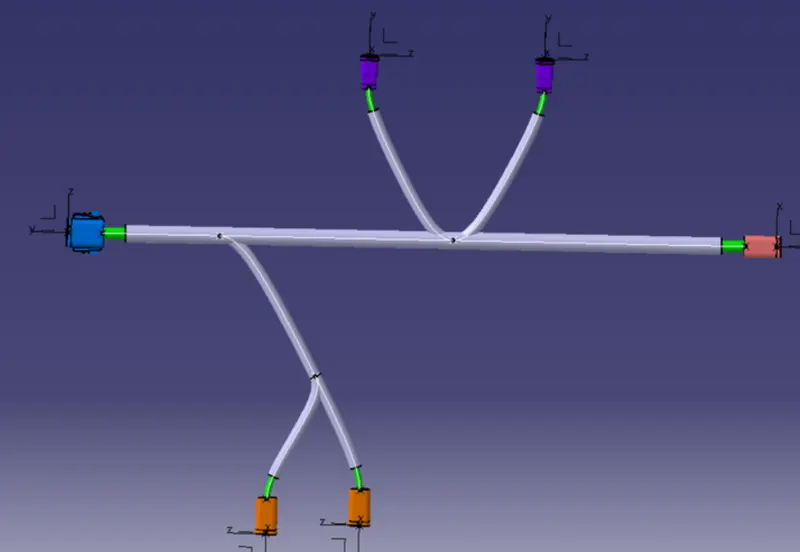

Bundle segments are rotated as required.

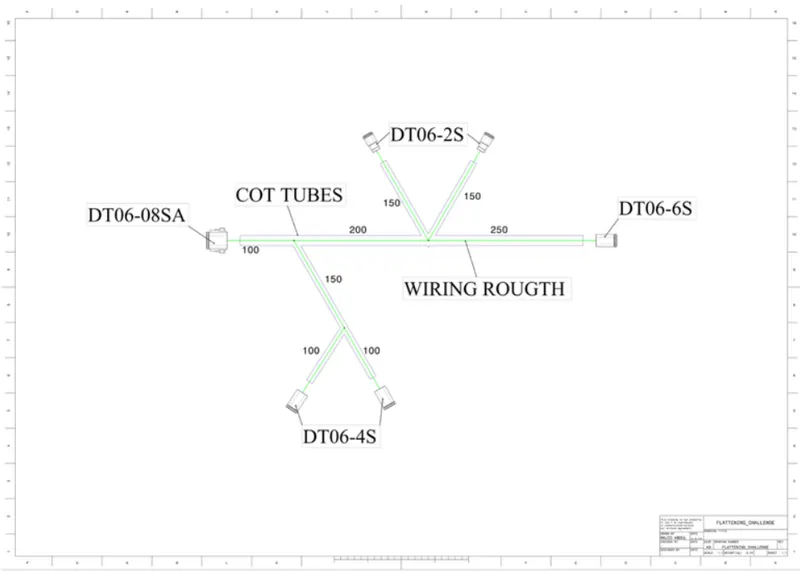

The Harness assembly is then Drafted,

Flattening Parameters are defined in order to make the bundle and the corrogated tubes visible in 3D drawing.

.
