Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

AIM:

To flatten the wire harness assembly completed in week 4 assignment and place the flattened view on a drawing sheet.

OBJECTIVE:

To flatten the wire harness assembly completed in week 4 assignment.
To orient the wire bundle as shown in the layout.
To place the flattened view on a drawing sheet.
To ensure bundles with protective coverings has different visuals on drawing view

STEP 1

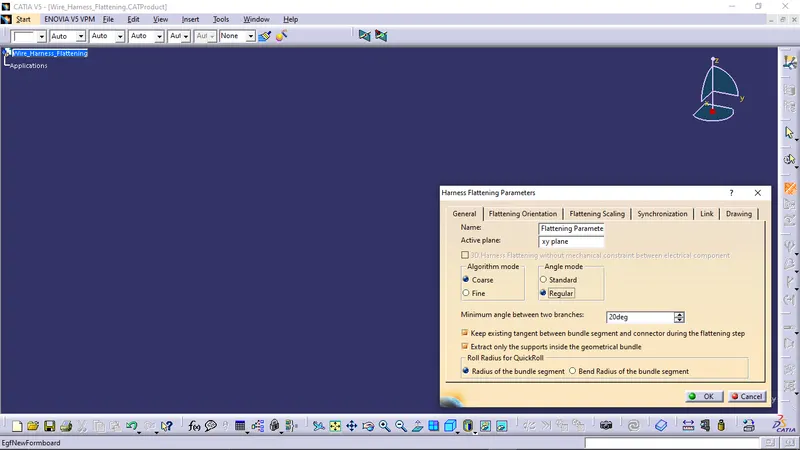

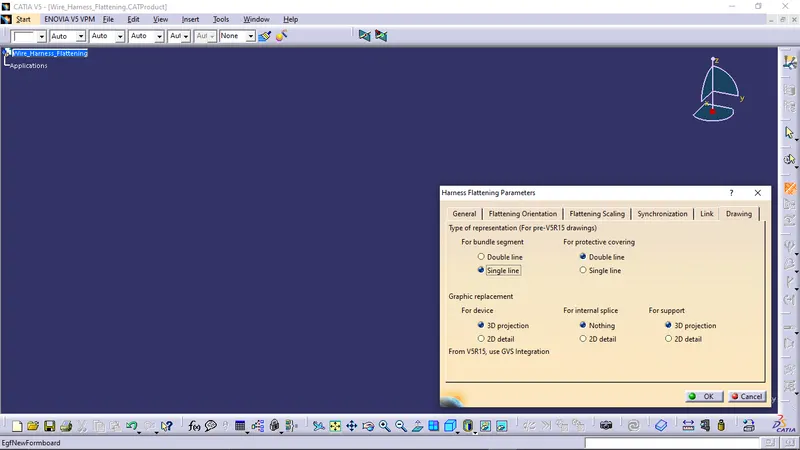

define the following parametric in electrical flattening

STEP 2

Export the electrical bundle to flattening work bench

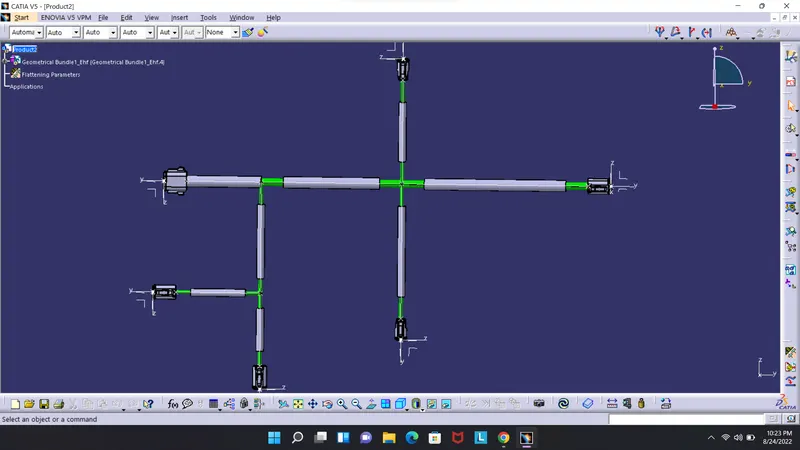

make the bundle flat by flatten tool

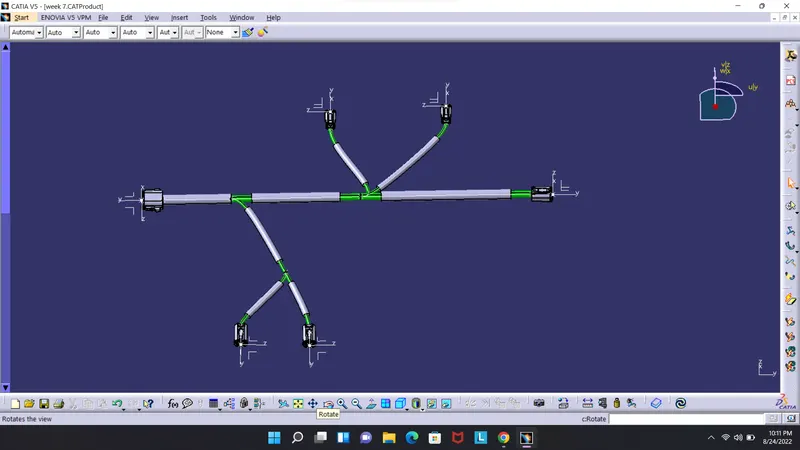

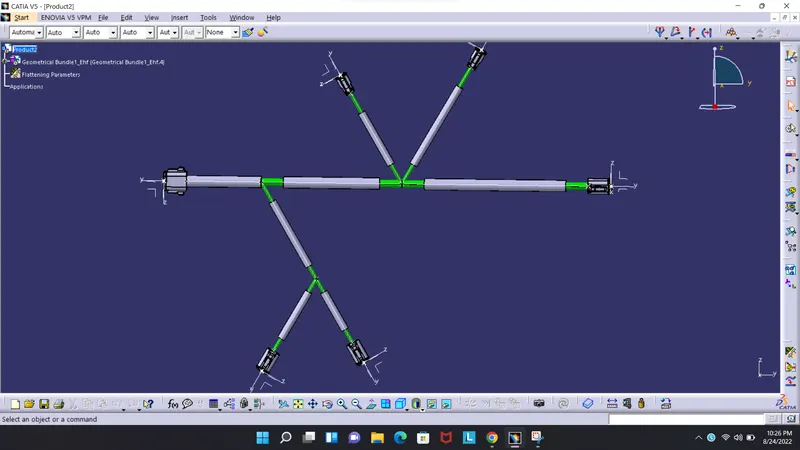

give necessary rotation and adjustments

STEP 3

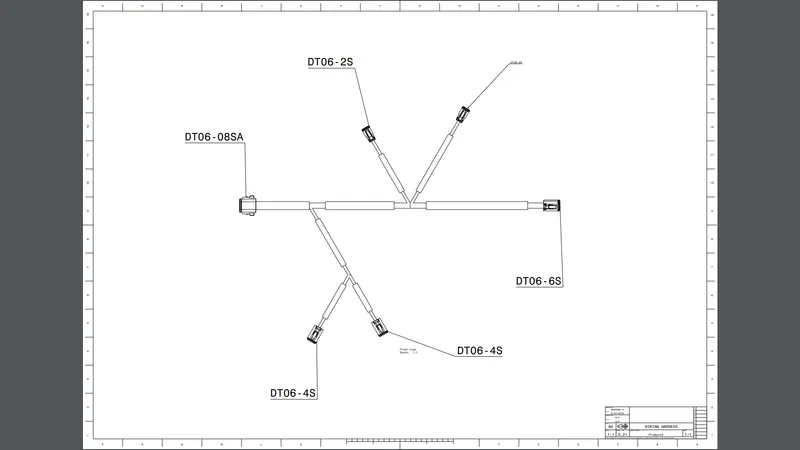

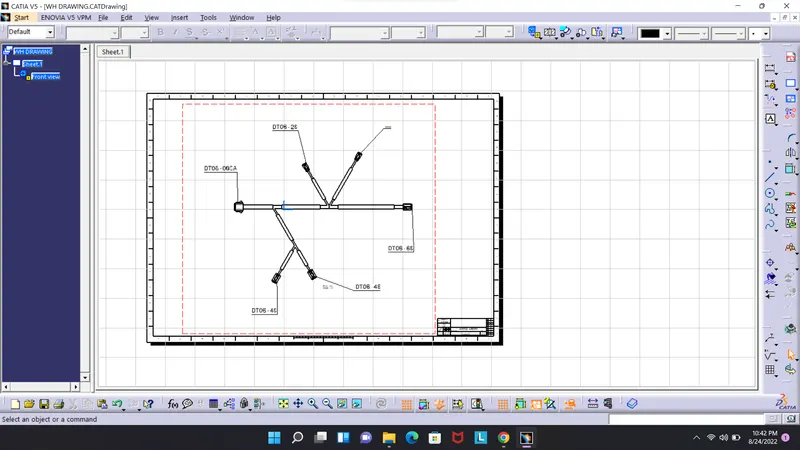

open drawing and export the front view and and annotations

CONCLUSION:

From the above assignment we learnt how to flatten a given wire harness assembly and how to place the flattened view on a drawing sheet and show all its components.
