Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

VVikramjeet Pal7 May 2022

AIM- Route two electrical harnesses as per the given layout and interconnect them as a single harness assembly and then check for bundle continuity, bundle warnings, and then give annotations to the final harness assembly.

OBJECTIVE

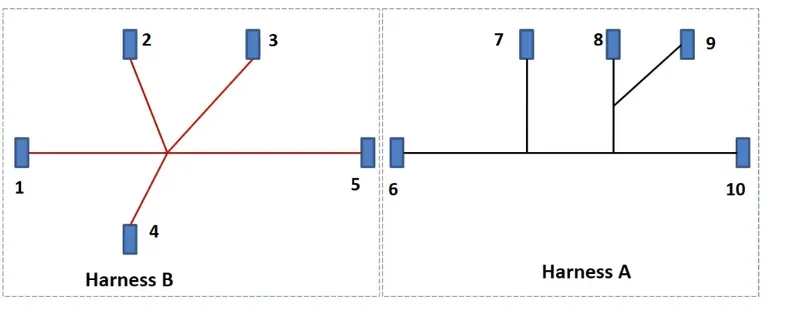

1. The objective of this project is to first route the two Harness A and Harness B as per the given harness layout.

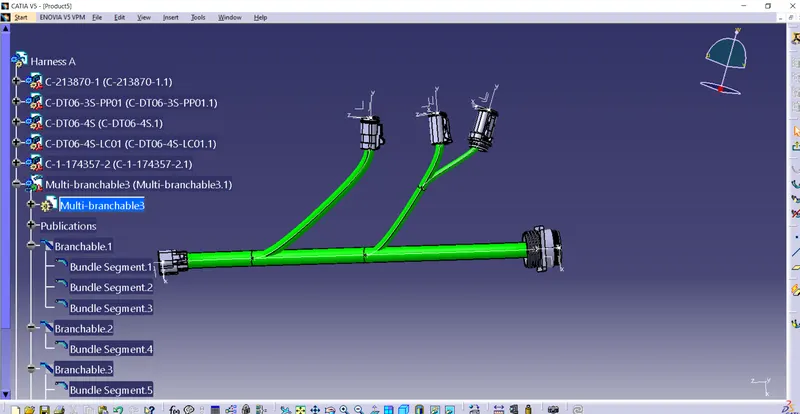

Harness A

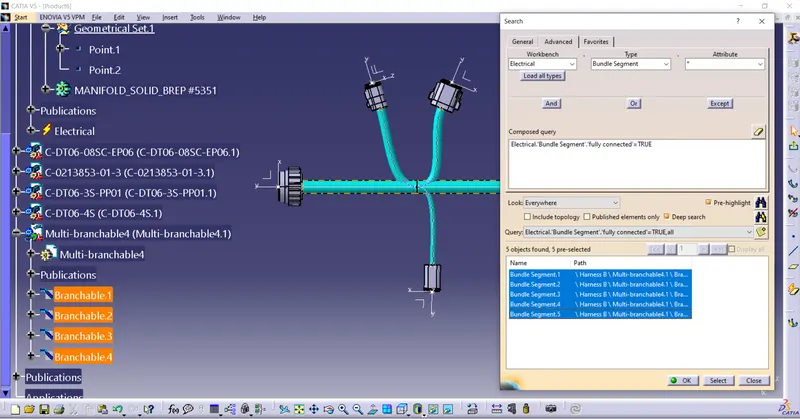

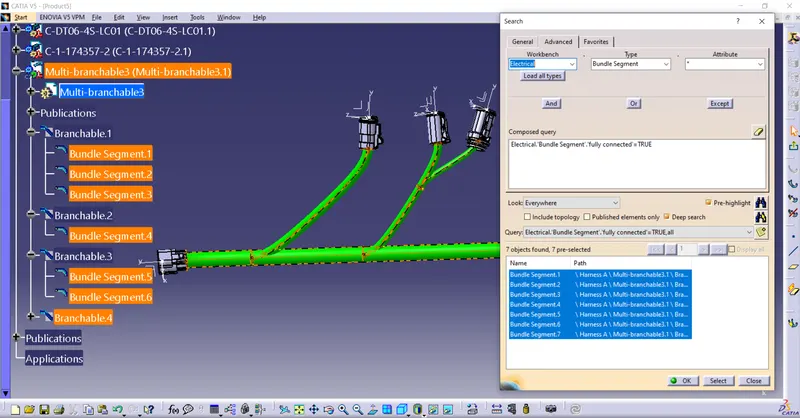

Connectivity Check

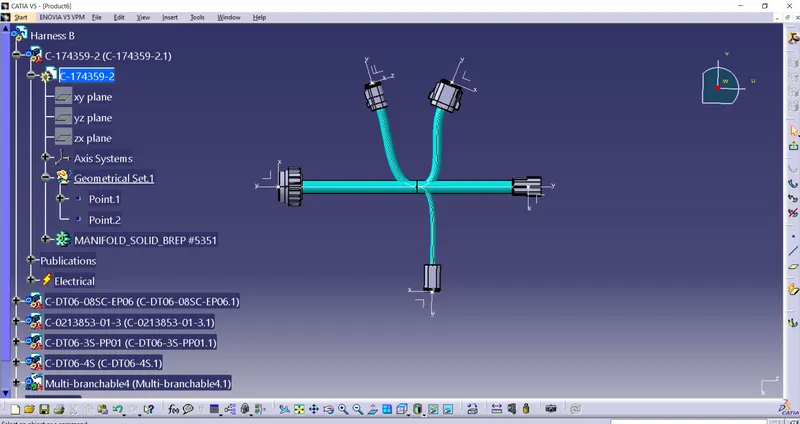

Harness B

Connectivity

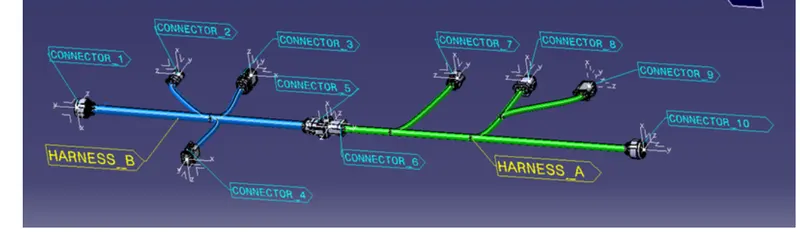

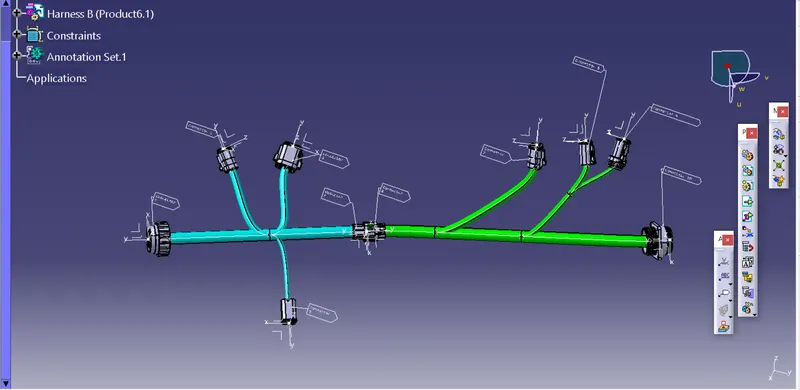

Annoation

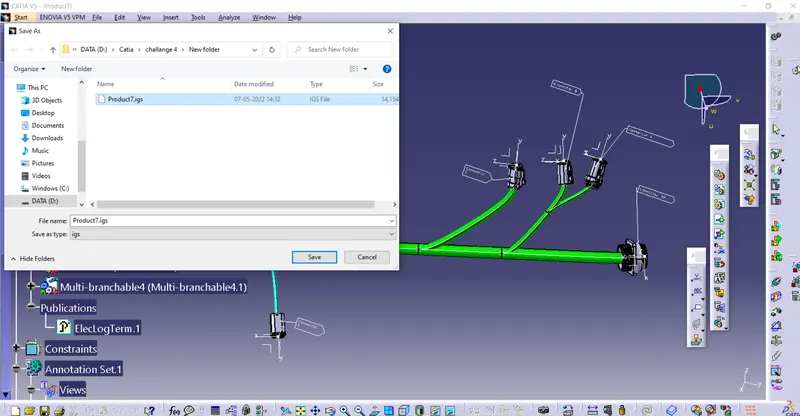

Converted as a part body and save as IGS Format
