Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

RRoshan Singh23 Dec 2022

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing

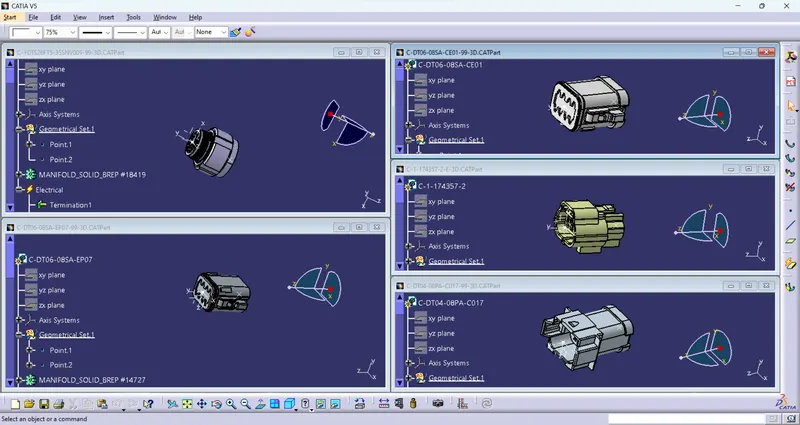

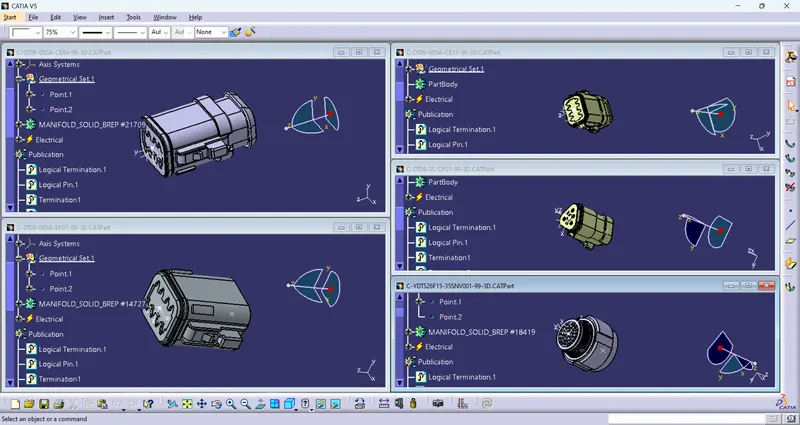

First Electrically define the all connectors in Electrical Part WB.

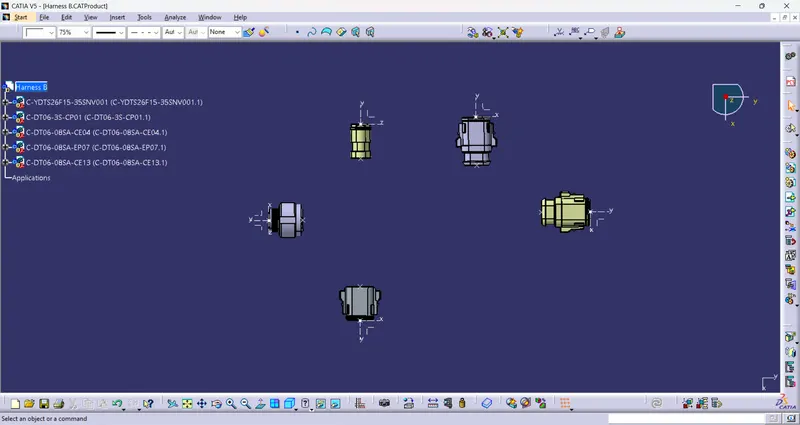

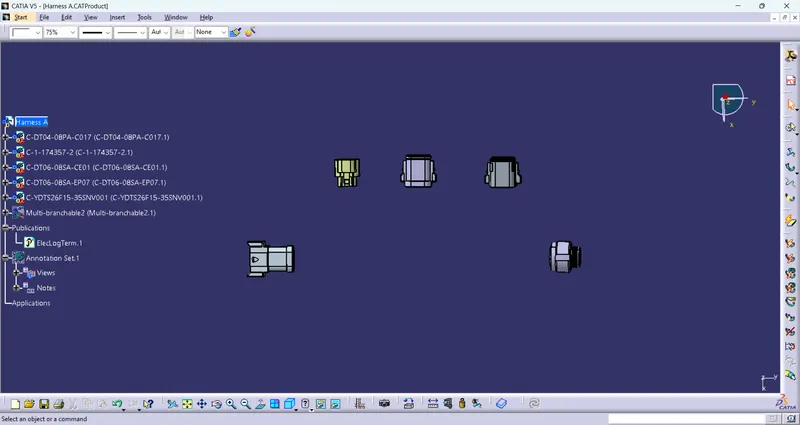

Now add all the required connectors part file in the product file (harness A or harness B) and then, manipulate or move the connectors as per the required position of the connector in Assembly design WB as per given layout.

then routing the harness bunch to the connectors as per above layout.

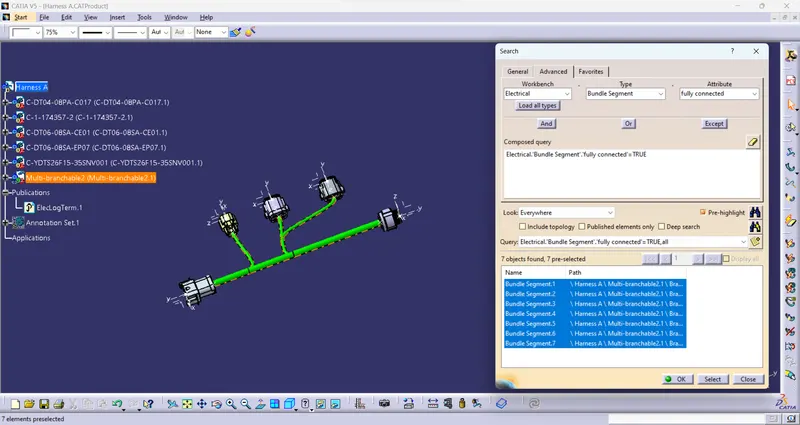

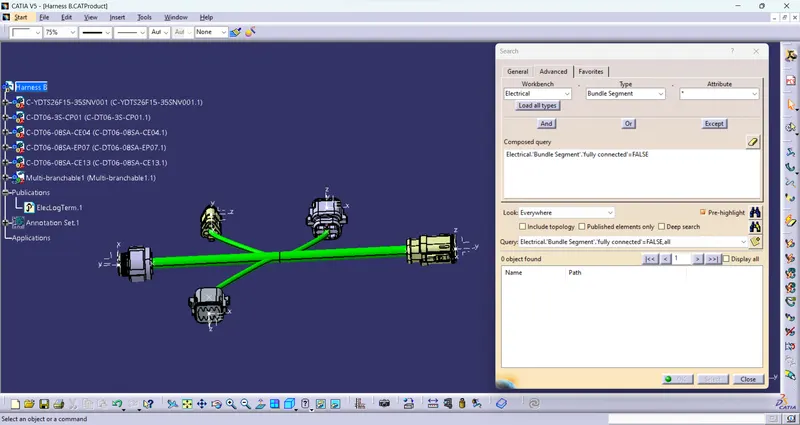

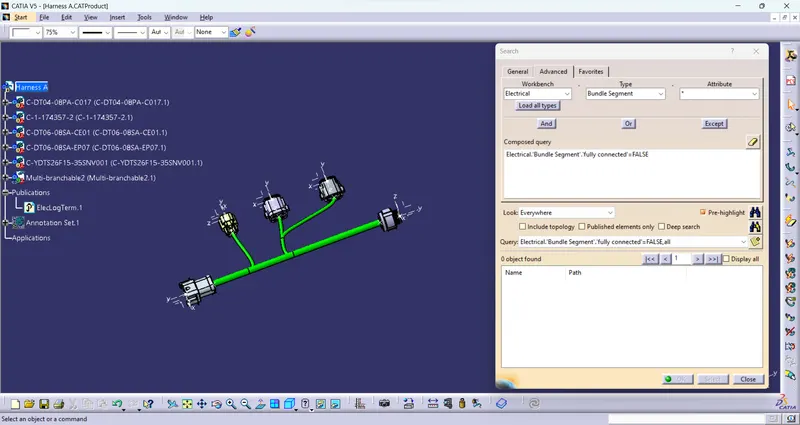

Check the bundle Continuity. Add snap of result in submission

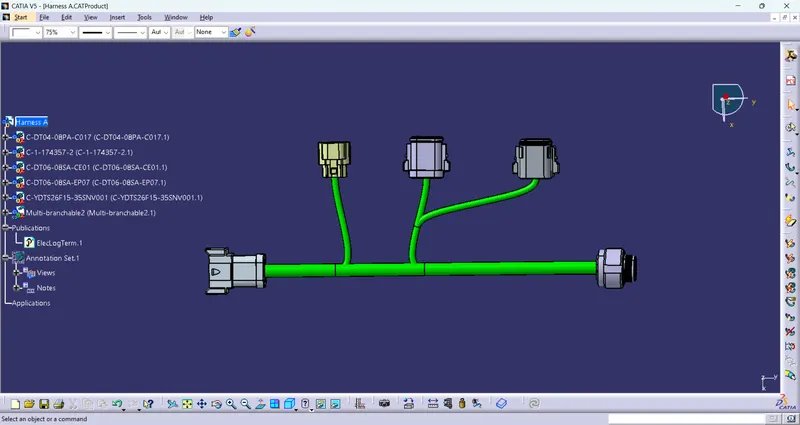

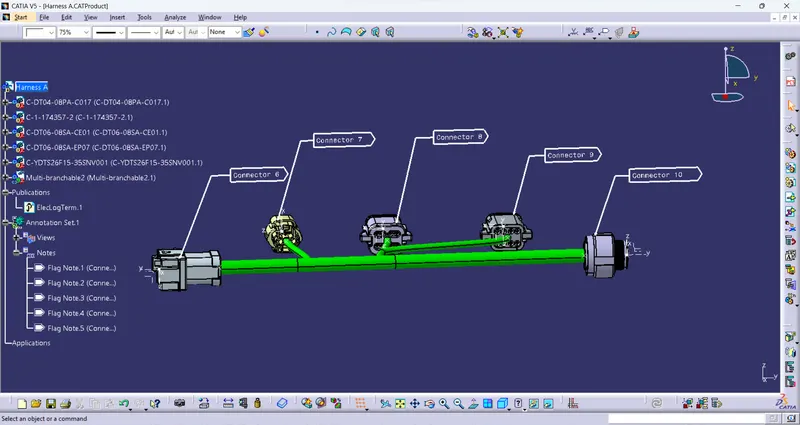

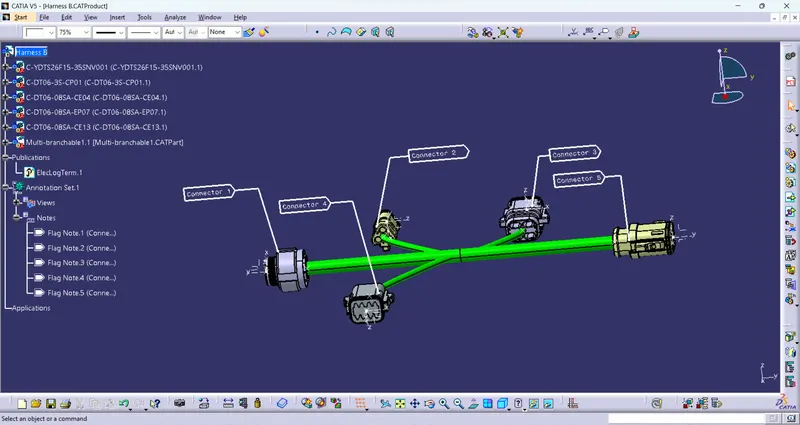

Adding annotation to all connectors

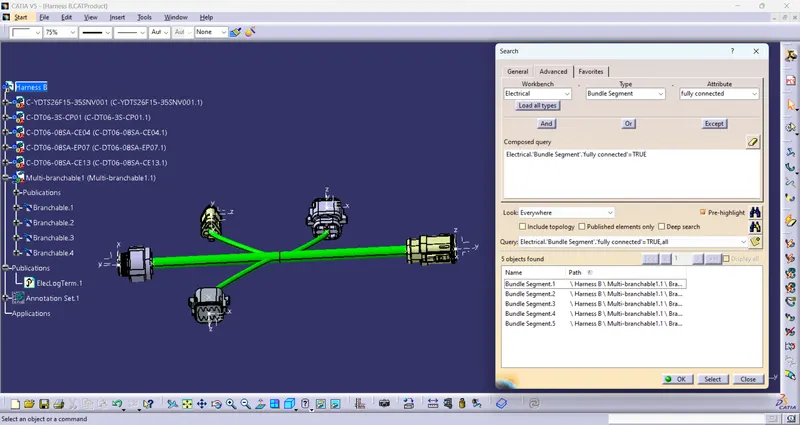

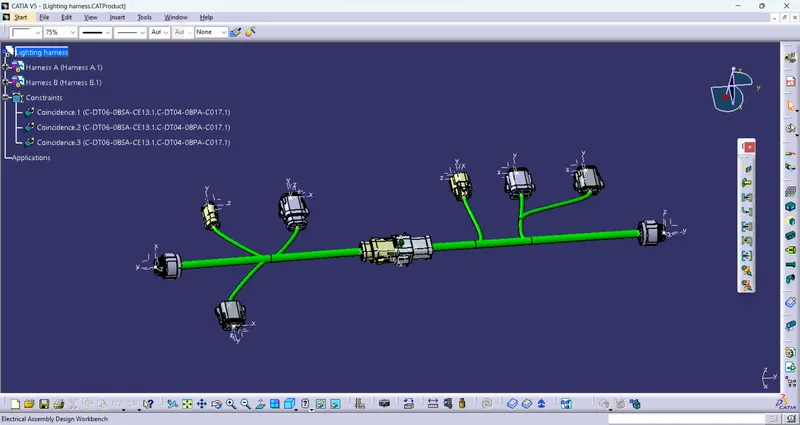

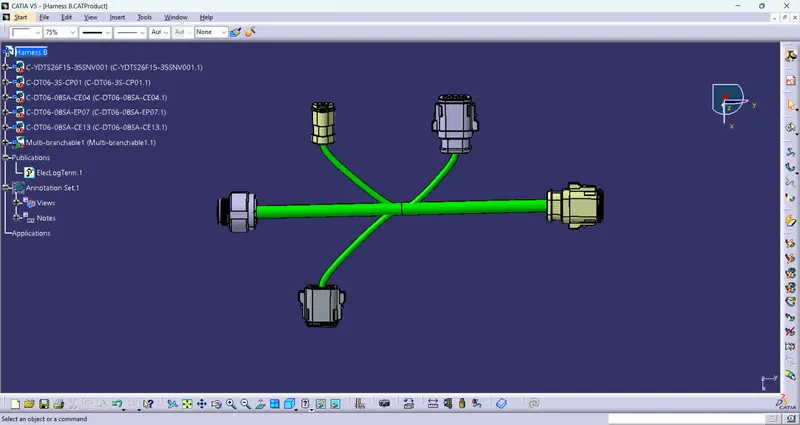

Intersection of Harness A and Harness B

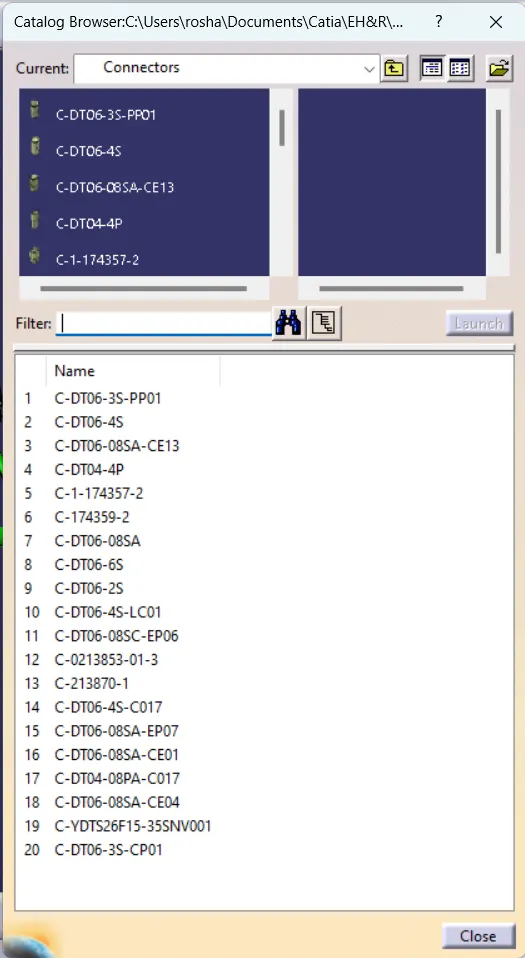

Catalogue of connectors
