Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

AIM- Route two electrical harnesses as per the given layout and interconnect them as a single harness assembly and then check for bundle continuity, bundle warnings, and then give annotations to the final harness assembly.

OBJECTIVE-

1. The objective of this project is to first route the two Harness A and Harness B as per the given harness layout.

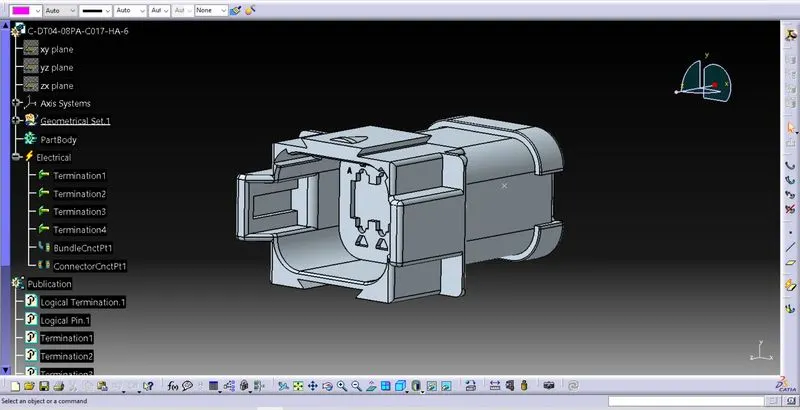

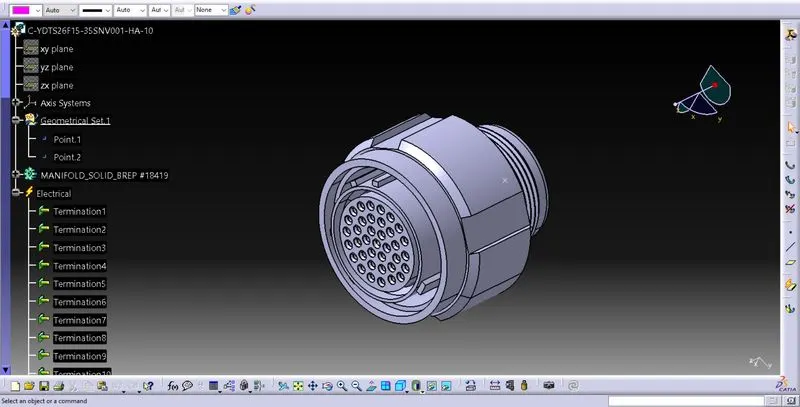

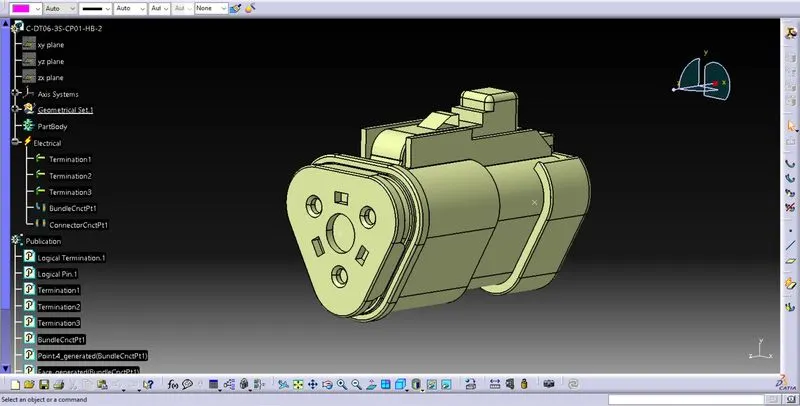

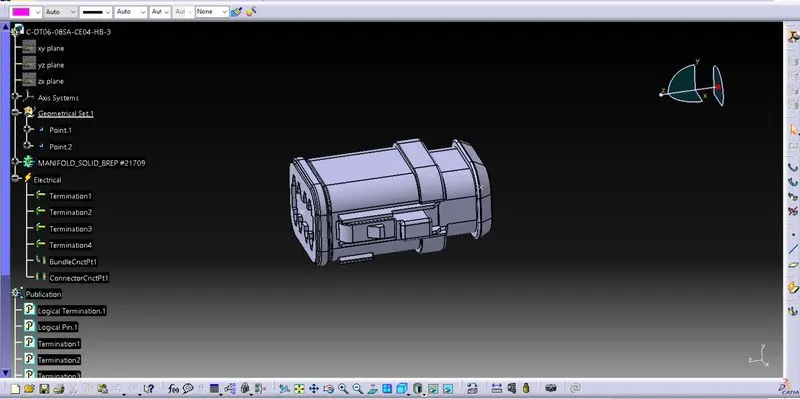

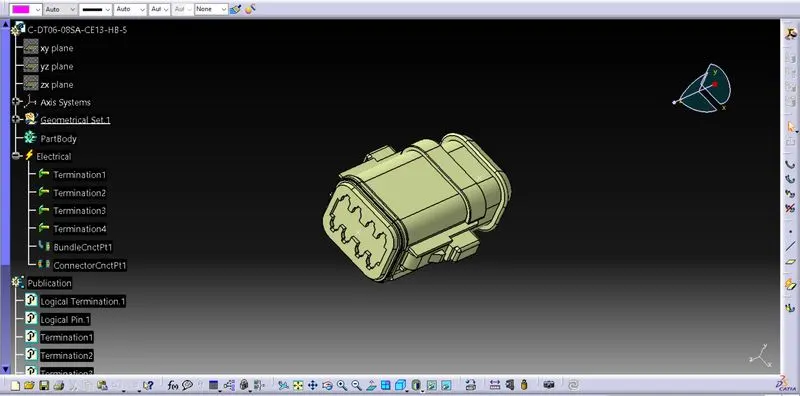

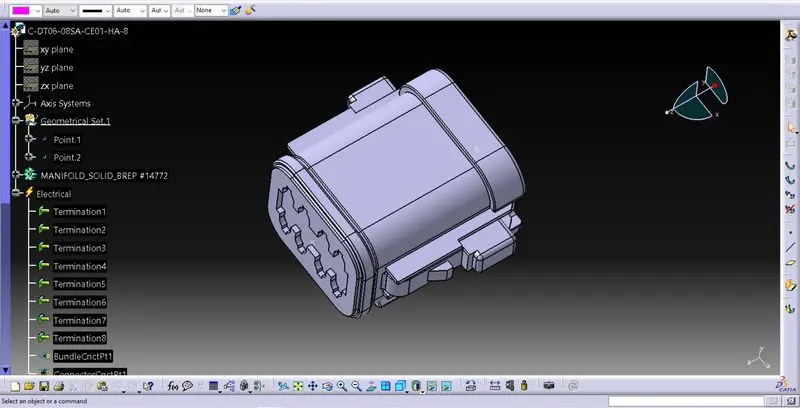

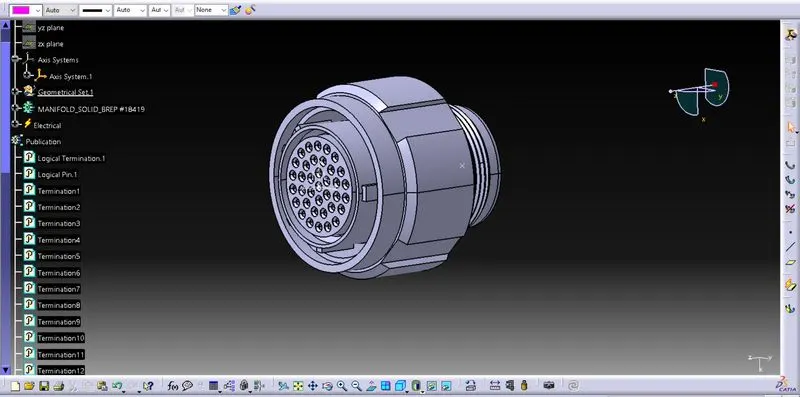

Step 1: We have to first define all the connectors geometrically and electrically as shown in below images.

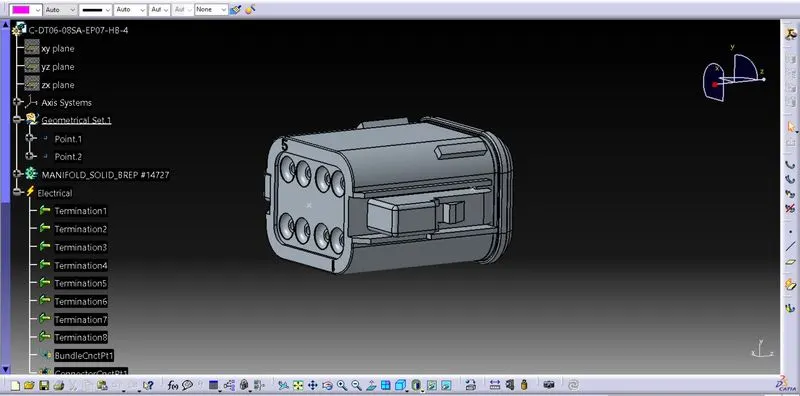

Components for Harness-B.

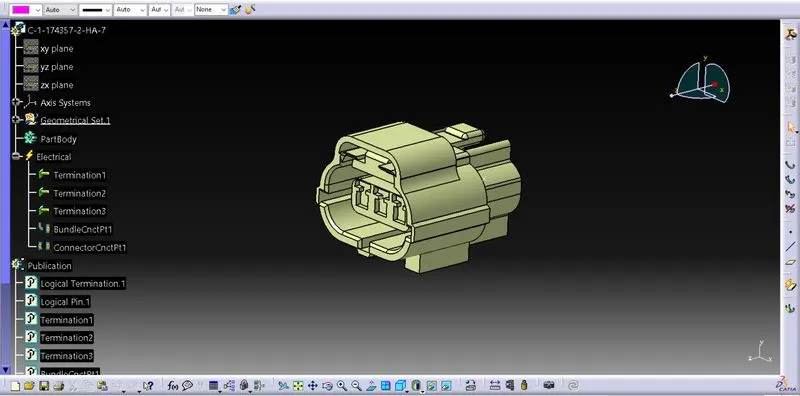

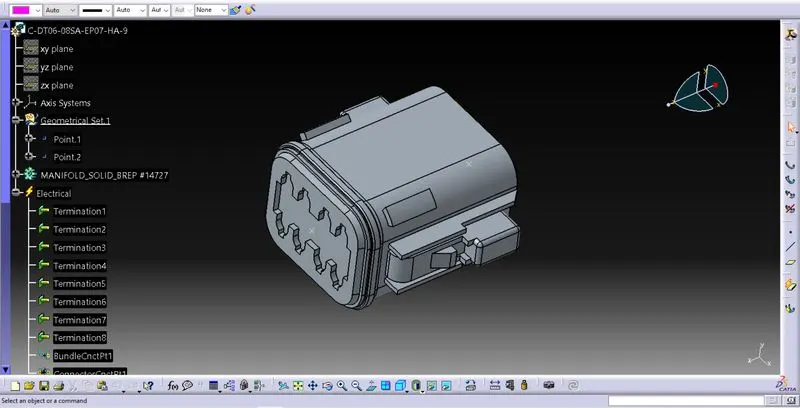

Components for Harness-A.

Step 2:

Now, we have to create Harness A and Harness B by using electrical harness assembly as shown in below image.

First, we will locate all the connectors at their desired position, add branch points required and create bundle segment according to the diameters assumed as 15mm and 8mm.

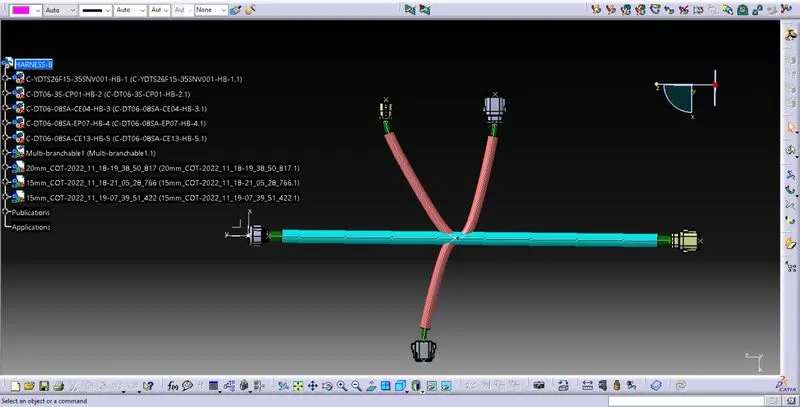

Harness-B Rounting.

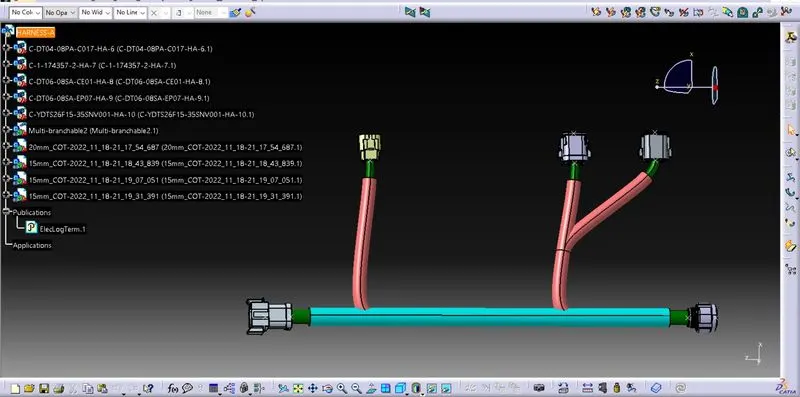

Harness-A Rounting.

Step 3:

• Now in this step, we have to check bundle continuity in both Harness A and Harness B.

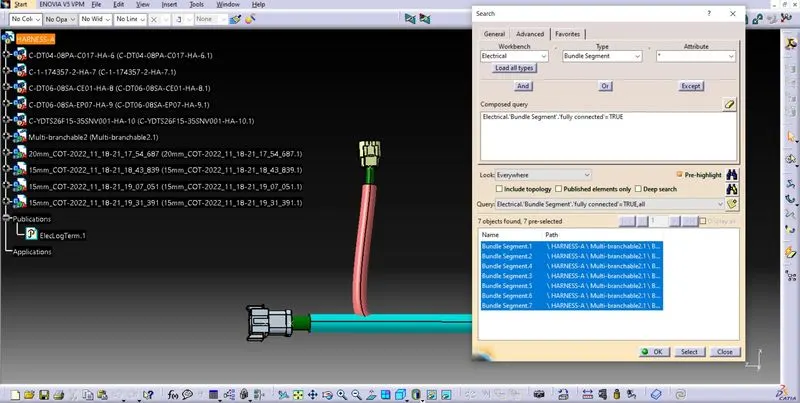

• So for that, go in Edit>Search>Workbench-Electrical>Type-Bundle segment>Attribute-fully connected.
• We will get one window, in that selecting True option will show all the connected bundle segments while selecting False option will show all the non-connected bundle segments.
• Now, we will check for True condition and search for result.

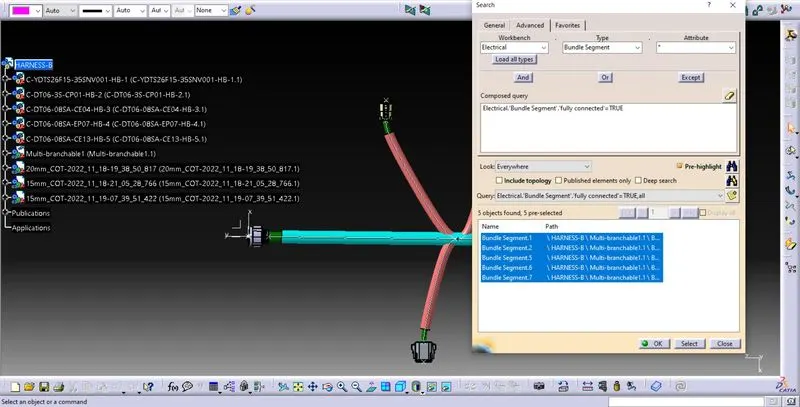

• All the bundle segments are showing connected. So there is bundle continuity in both Harness A & Harness B as shown in below images.

Bundle Connectivity Check for Harness-B

Bundle Connectivity Check for Harness-A

Step 4:

• In this step, we have to interconnect both Harness A & Harness B.
• For that, we have to create new product file and can give name as Assembly.

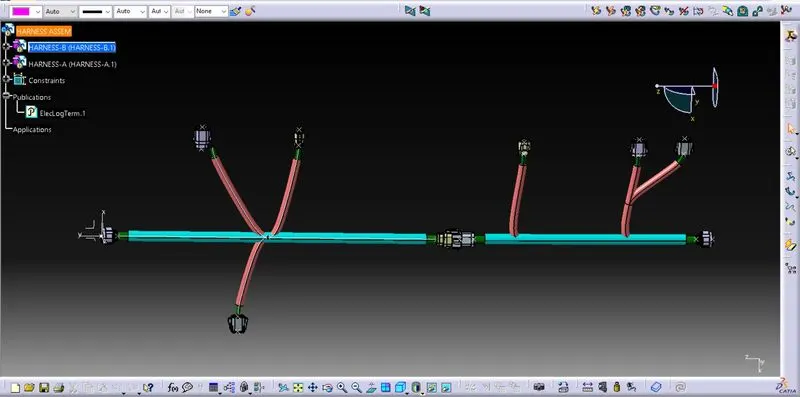

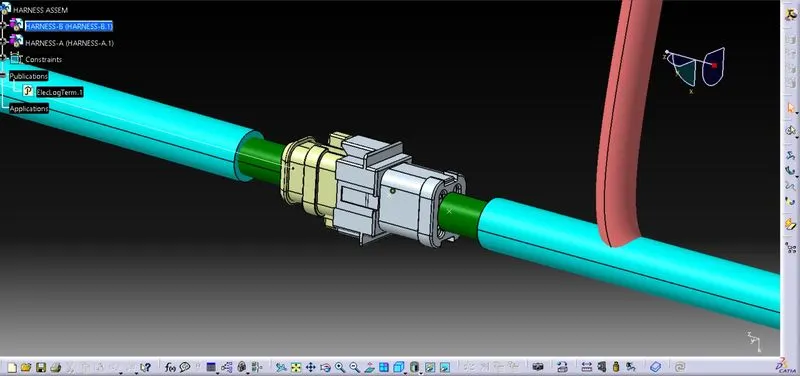

• Then, copy both harnesses and paste it in newly created product file or call both harnesses in mechanical assembly design as below image.

• As shown in below image, male connector should have to be inserted into the female connector.

Step 5:

• In this step, we have to add annotations for all the connectors in mechanical assembly design workbench.
• Annotations are used for giving connector name, functions etc.
• For this, we have to select plane where annotation will be placed. In below image, we have selected front plane.
• We should make sure that the geometrical bundle is active before selecting the annotation plane.
• We can change a font, font color and font size by going into the properties as shown in below image.

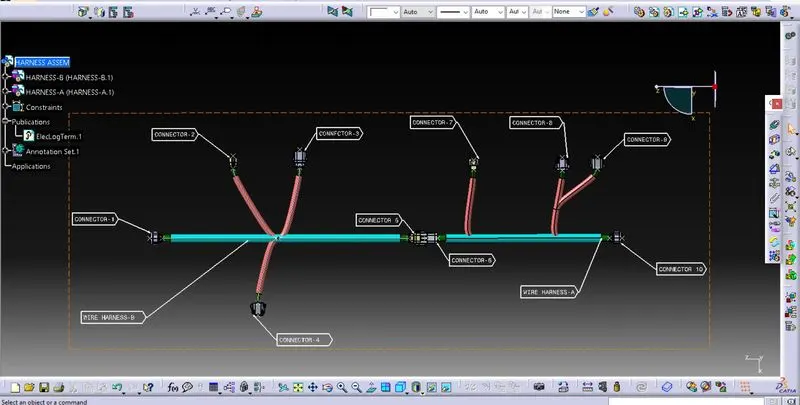

• So after giving annotations to all connectors, the whole assembly will look as below.

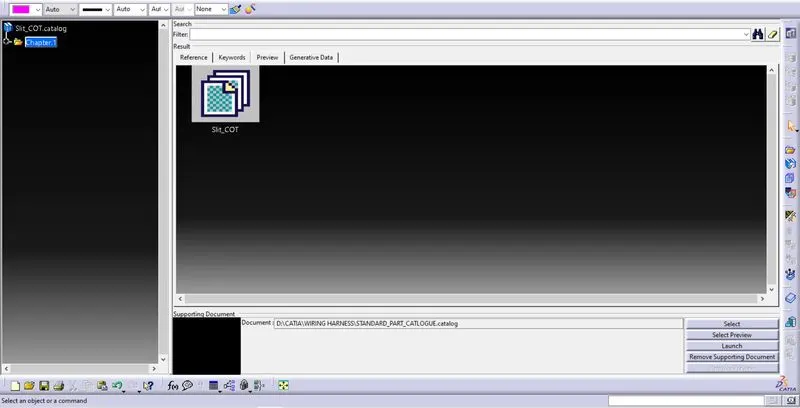

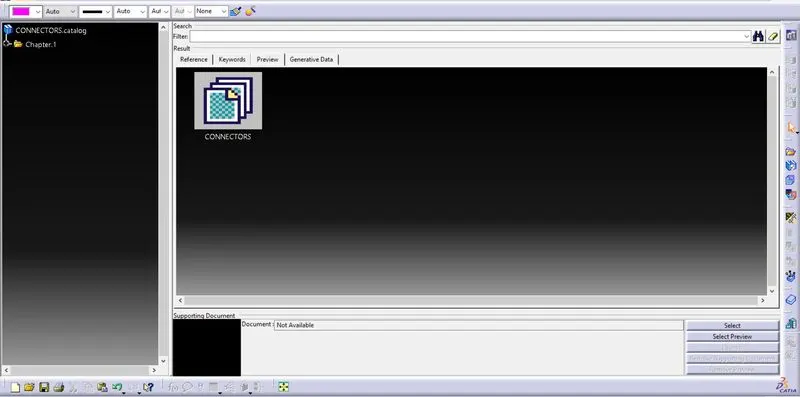

Creating Catlogue for Connectors and Protective covering.
