AIM:

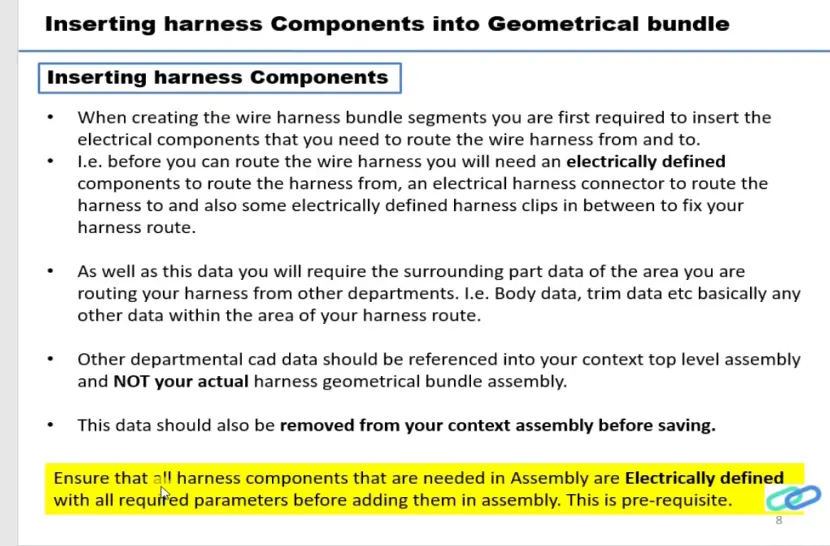

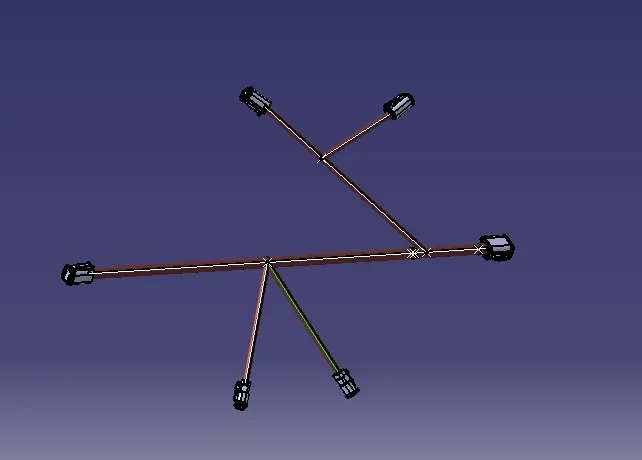

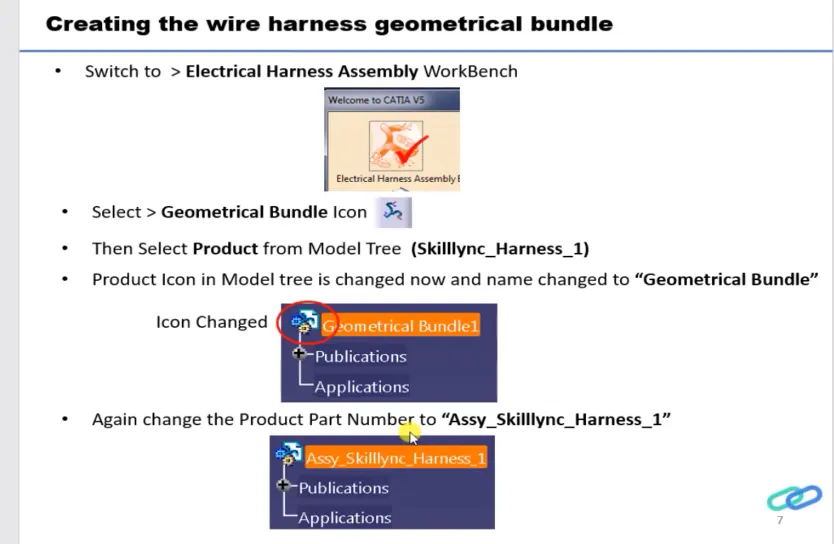

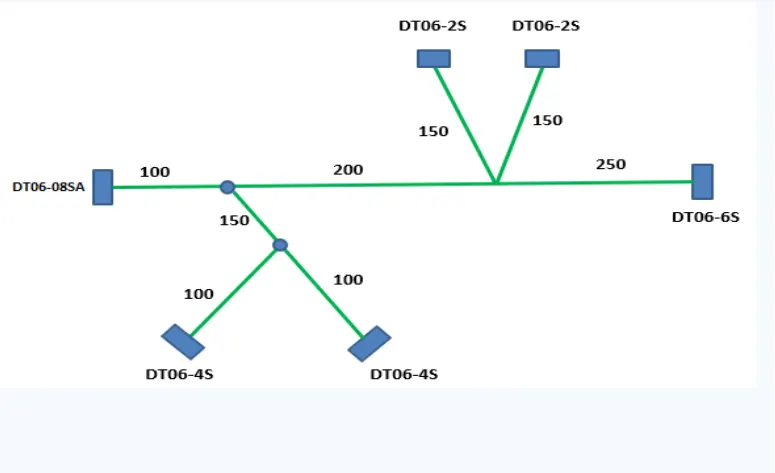

*ELECRICAL CONNECTOR AND CONNETING BUNDLE TO ROUTE THE FOLLOWING HARNESS LAYOUT IN THE ELECTRICAL WORKBENCH.

*ADD PROTECTIVE COVERING ON ALL BRANCHES CONNECTED TO DT06-2S& DT06-4S CONNECTORS GIVEN : CAD DATA OF THE FOLLOWING CONNECTORS : DT06-4S DT06-2S DT06-08SA CONNECTORS LAYOUT DESIGN : STEPS TO BE FOOWED : DOWNLOAD..

*TO ROUTE THE FOLLOWING HARNESS LAYOUT IN THE ELECTRICAL WORKBENCH .

*ADD PROTECTIVE COVERING ON ALL BRANCHES CONNECTED TO DT06-2S &DT06-4S CONNECTORS. GIVEN

CAD DATA OF THE FOLLOWING CONNECTORS:

DT06-4S

DT06-6S

DT06-2S

DT06-08SA

•

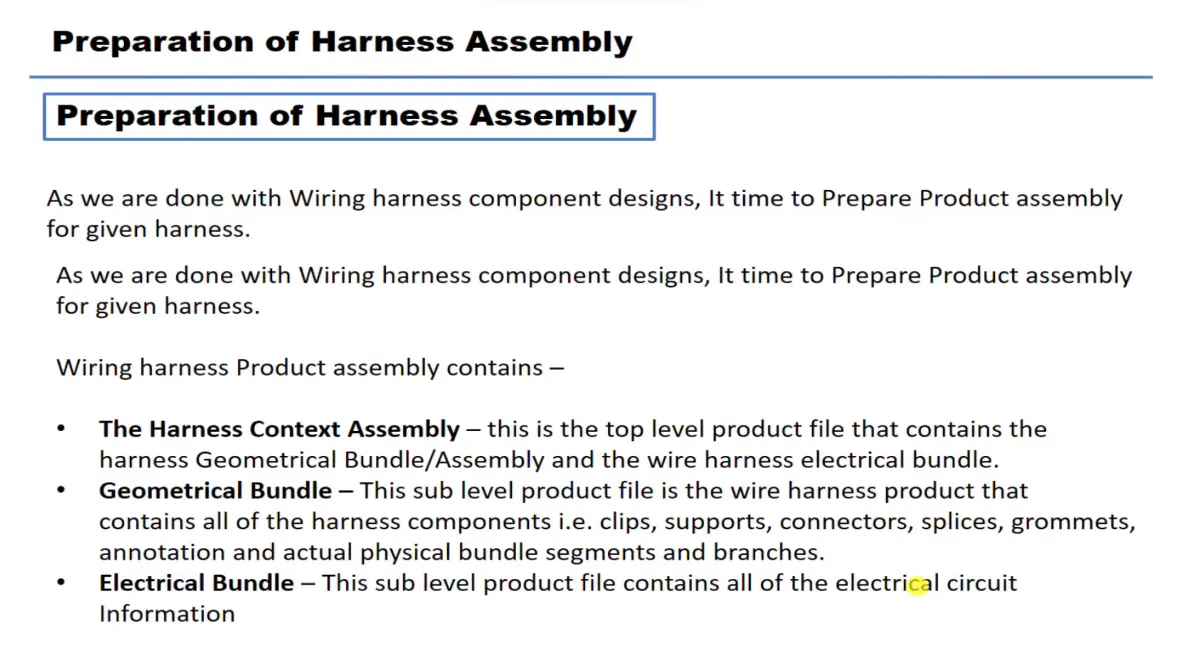

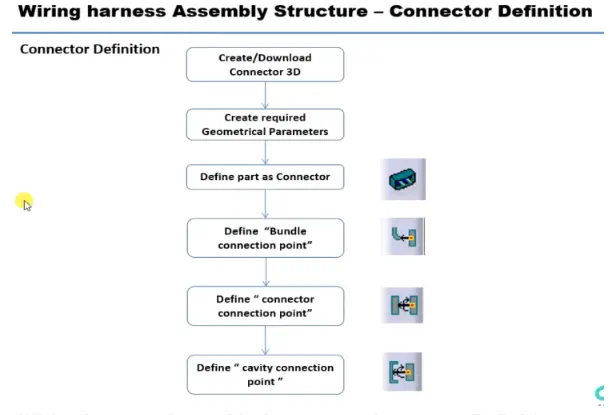

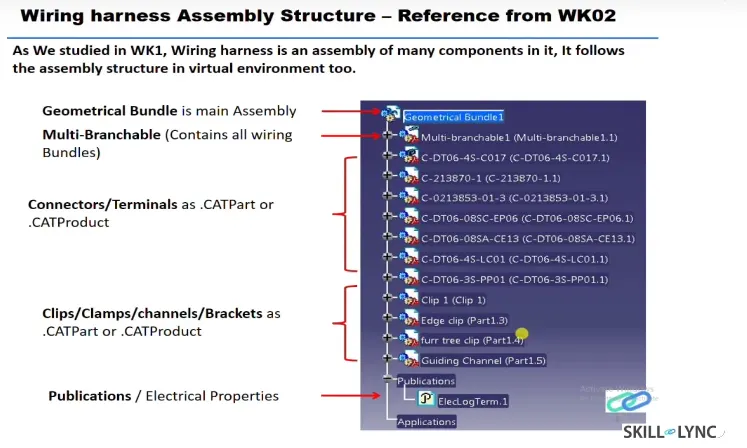

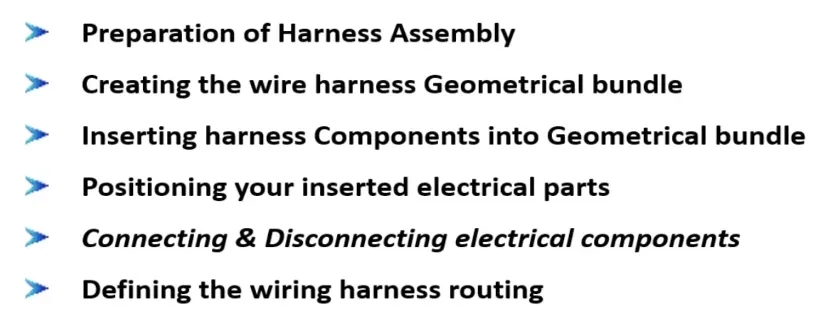

*CONVECTING THE MECHANICAL PART INTO THE ELECTRICAL PART FOR THAT I HAD FOLLOWED THE FOLLOWING STEPS .

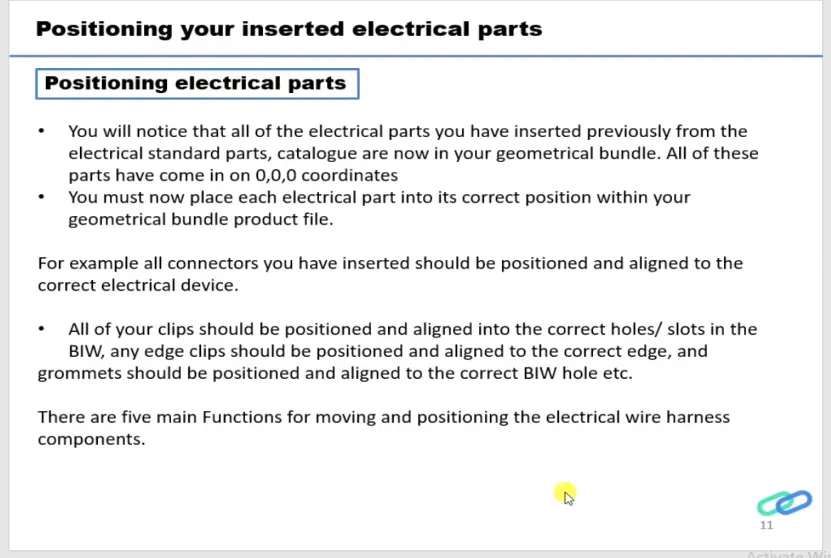

TRANSLATION & ROTATION :

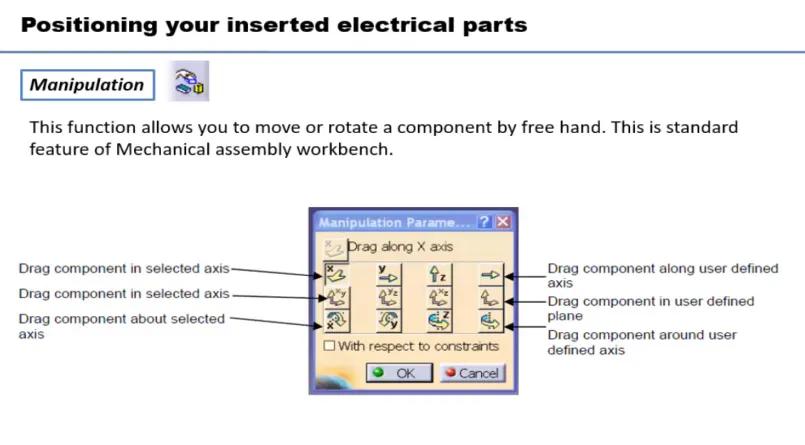

this function allows you to move or rotate a component by a set value .

this is standard feature of mechanical assembly workbench

x,y,z ,axis value enter part rotate end .

snap :

this fuction allows you to align a component by snapping from a surface , edge or point to the surface ,edge or point of another component .

this is standard feature of mechanical assembly workbench .

select the ,FACE AND SURFACE ,EDGE etc on component you wish to align.

select the ,face and surface ,edge etc on the component you wish to align to .
