AIM : CREATING BUMPER COMPONENT THROUGH THE GIVEN CLASS A SURFACE . TO BEING THE TOOLING AXIS FOR THE CLASS A SURFACE , SHOULD BE CREATED MEETING THE REQUIREMENTS OF THE DRAFT ANGLE AND AT THE END PERFROM THE DRAFT ANALYSIS ON THE MODEL TAKE THICKNESS OF THE COMPONENT TO BE 3MM .

OBJECTIVES :

• CREATED GEMOMETRIC SETS SHOULD HAVE PREPOR NAME CREATED INSIDE TREE STRUCTION .
• FRIST SETP TOOLING AXIS CREATED
• CLASS B SURFACE AND CLASS C SURFACE
• PUBLICATION : CLASS A, CLASS B , CLASS C, TOOLING AXIS

TOOLING AXIS :

THE DIRECTION IN WHICH MODEL OR CORE AND CAVITY OPENS IS THE TOOLING AXIS .

creating of the tooling axis :

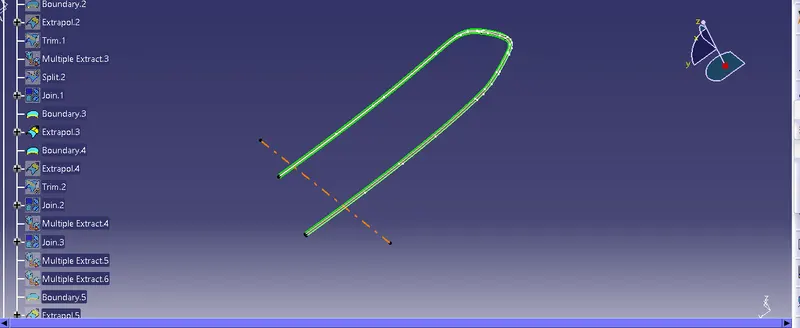

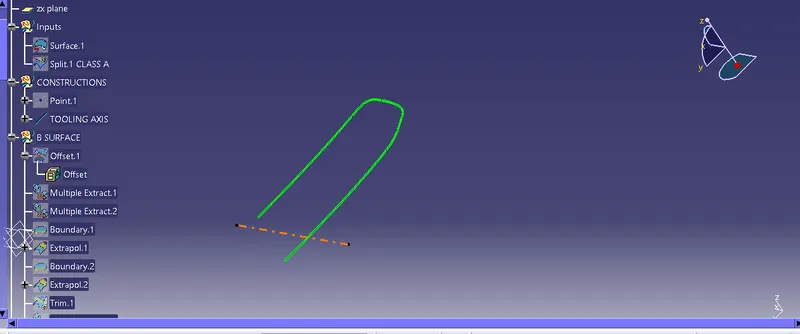

TO CREATING TOOLING AXIS I HAVE EXTRACTED A CLASS SURFACE AND CREATED A POINT IN THE MIDDLE OF THE SURFACE BY USING THE POINT COMMANDAND CRETATED A LINE "AT THE X-AXIS , NOW PERFORMED AT A DRAFT ANALYSIS FROM THAT LINE .

A CLASS SURACE REF SURFACE COMPONENT BASE :

B CLASS SURFACE :

B SURFACE PATCH:1

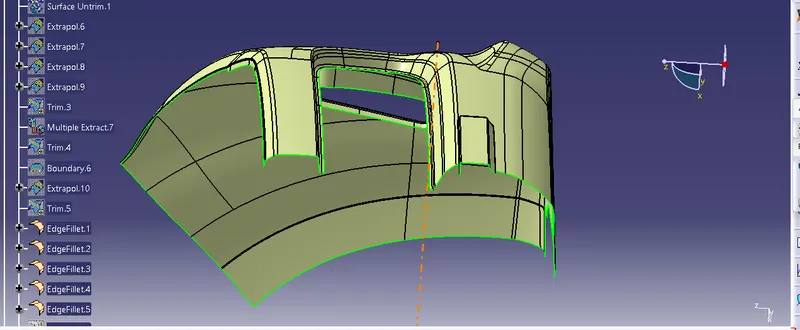

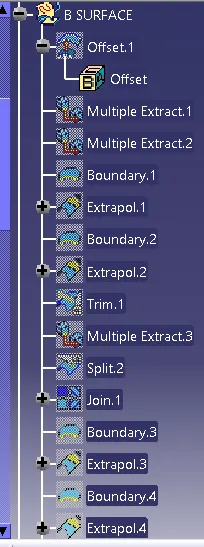

FRIST SETP : OFSET PORFILE > MUTIPLE EXTRACT EDGE SURFACE > BOUNDARY > EXTRPOLED > TRIM > SPILT :

B SURFACE PATCH:2

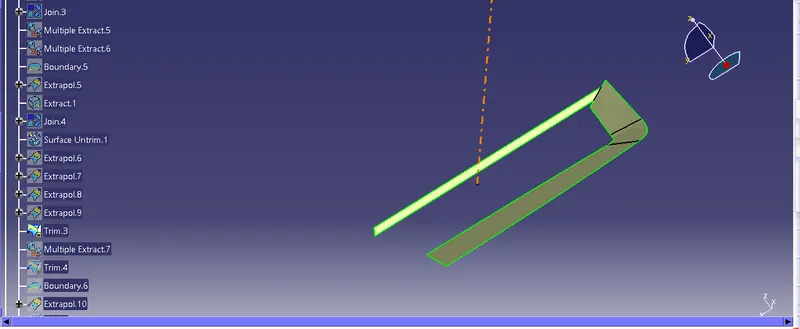

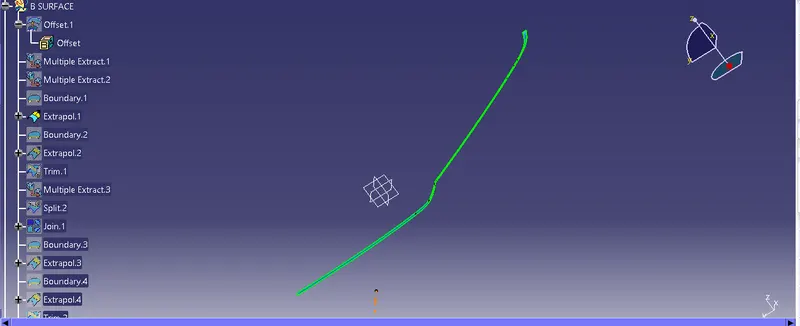

JION > BOUNDARY > EXTRAPOLED > TRIM :

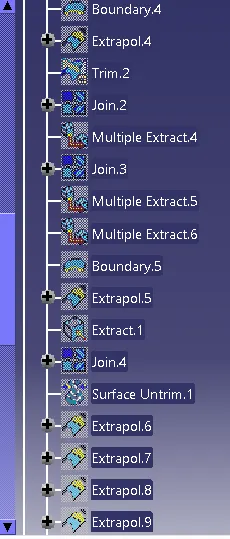

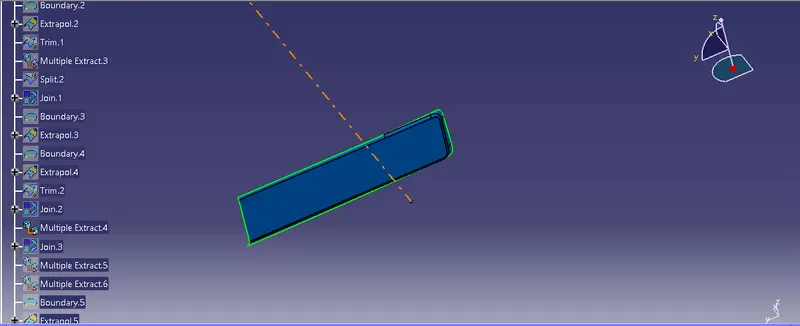

.JION > MUTIPLE EXTRACT > BOUNDARY > EXTRPOLED > TRIM > SURFACE TRIM >EXTRPOLED > TRIM >

PATCH :3

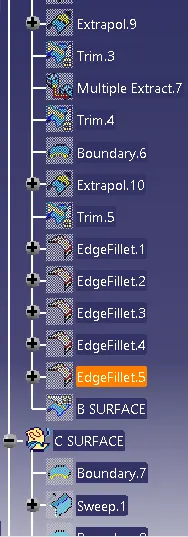

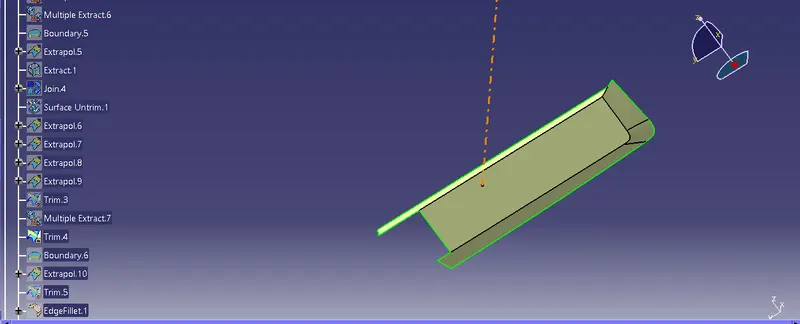

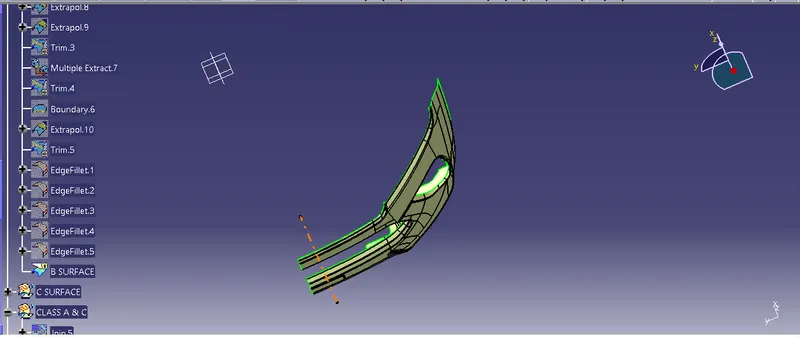

FINAL B SURFACE : EDGE FILLET IN AREA CREATING MALE AND FEMALE EDGE -,+ , VALUVE

SPLIT THE A CLASS SURFACE :

B CLASS SURFACE :

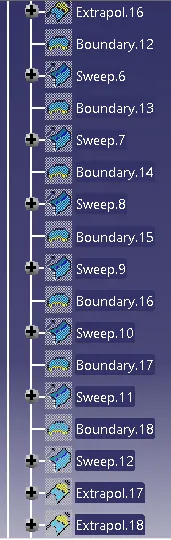

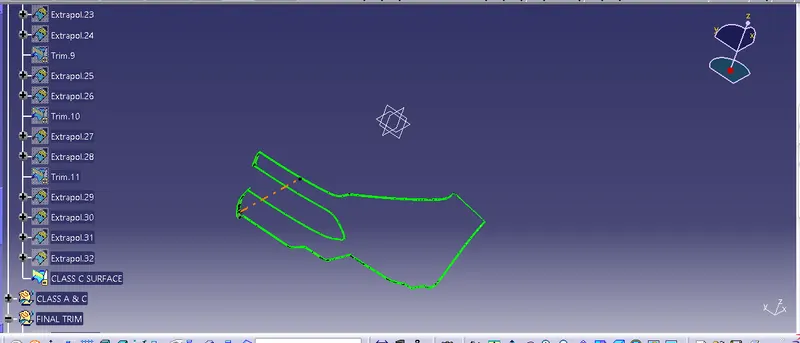

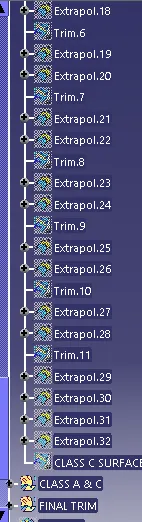

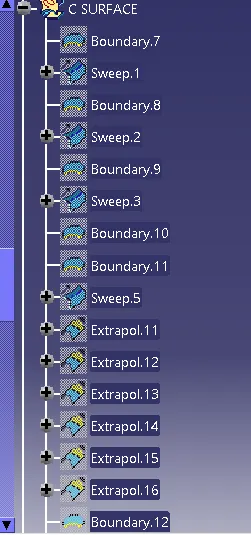

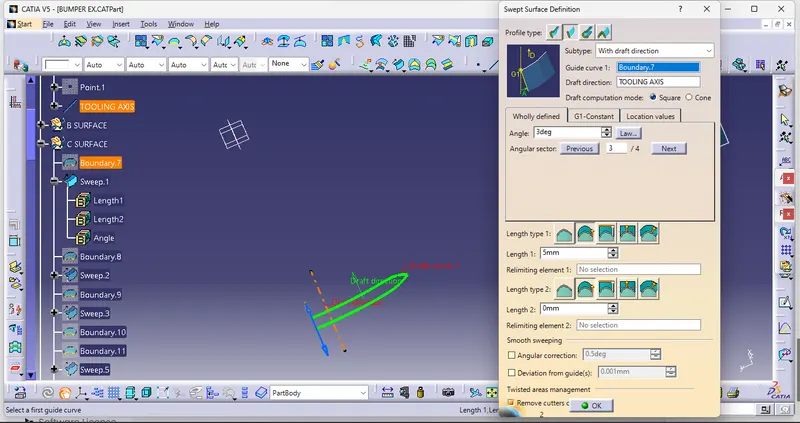

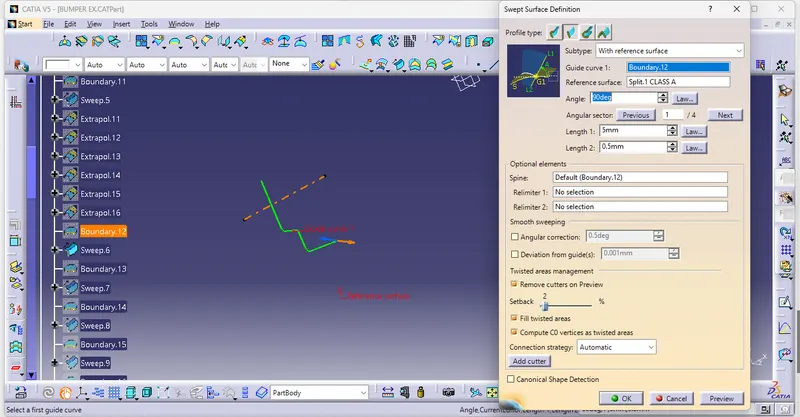

C CLASS SURFACE : CREATING OUTER EDGE > BOUNDARY > SWEEP>EXTRPOLED> TRIM > SPILT FINAL C CLASS SURFACE OK .

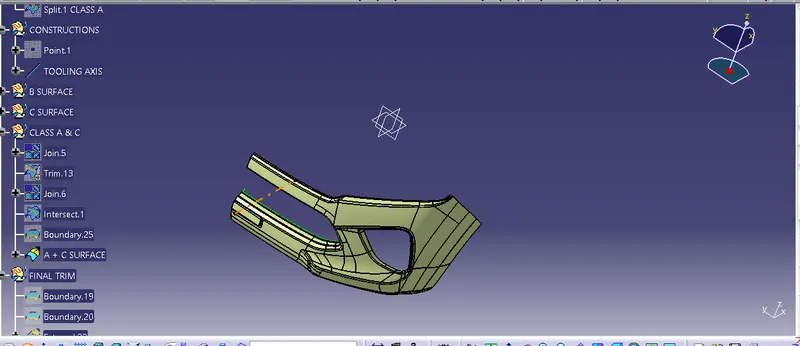

CLASS A+ C SURFACE : JIONT > TRIM> JIONT>INTERSECT> BOUNDARY >SPILT

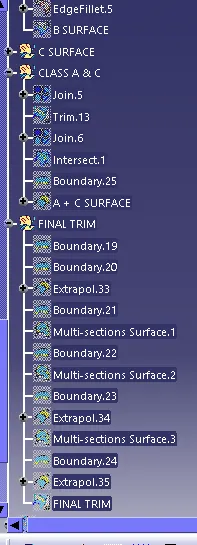

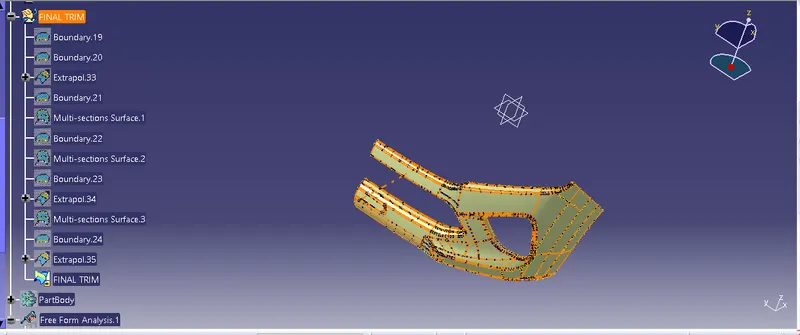

FINAL TRIM : B CLASS, C CLASS , A, CLASS SURFACE

CRETING SURFACE CLOSED SOILD PART > MECHNICAL DESIGN > PART WORK BENCH >

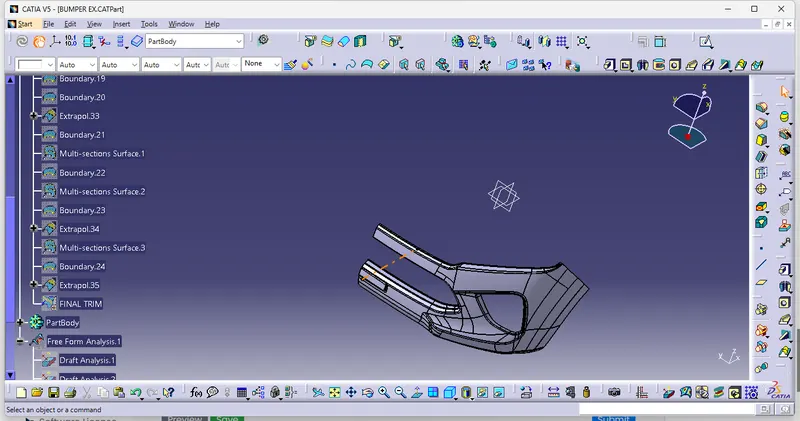

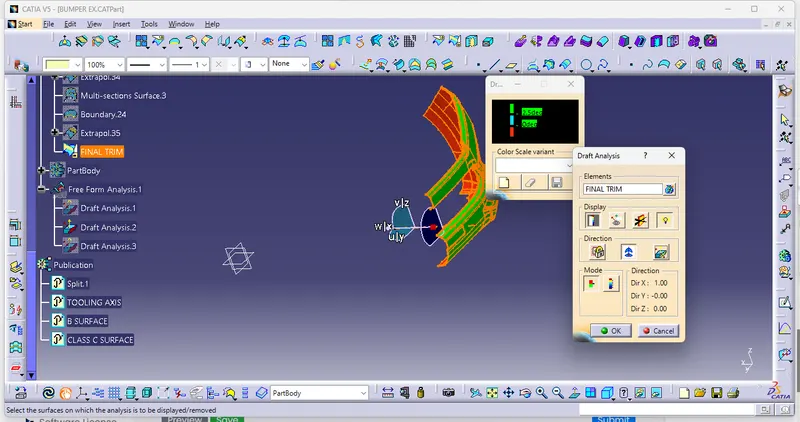

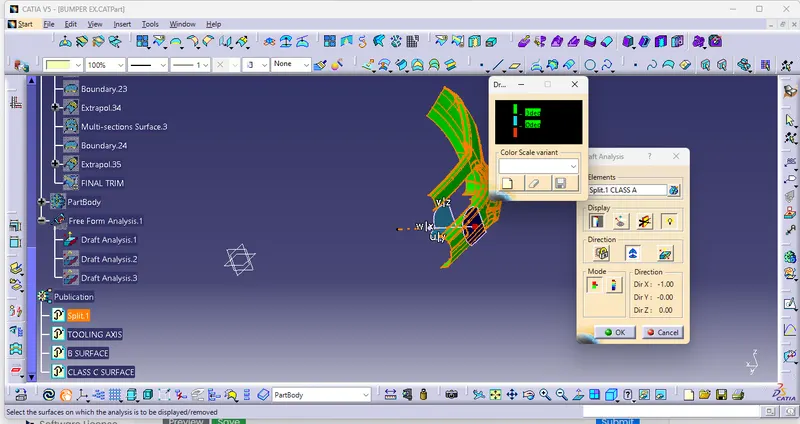

DRAFT ANALYSIS FINAL TRIM SURFACE

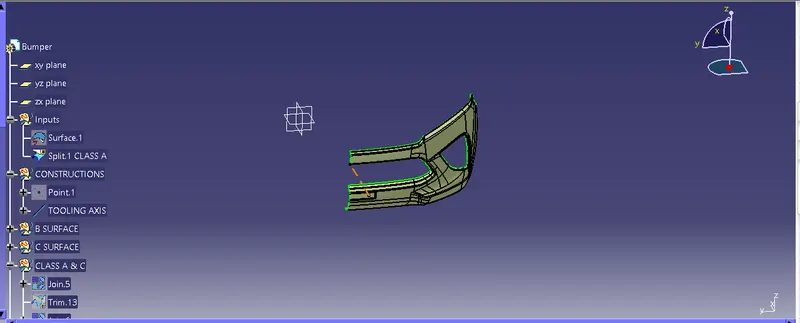

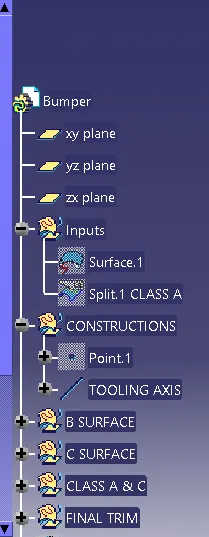

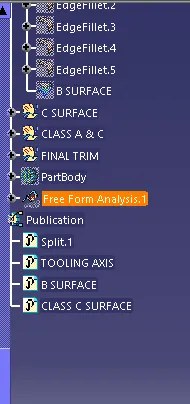

TREE STRUCTURE :

CONCLUSION : FINALLY THE PLASTIC COMPONENT BUMPER DAFT ANAYLSIS WORK DONE .
