Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Steps for making Wiring Harness on CATIA V5:-

1. Download connector 3D data from www.te.com

2. Converting the Mechanical part into the Electrical part through the steps mentioned below:-

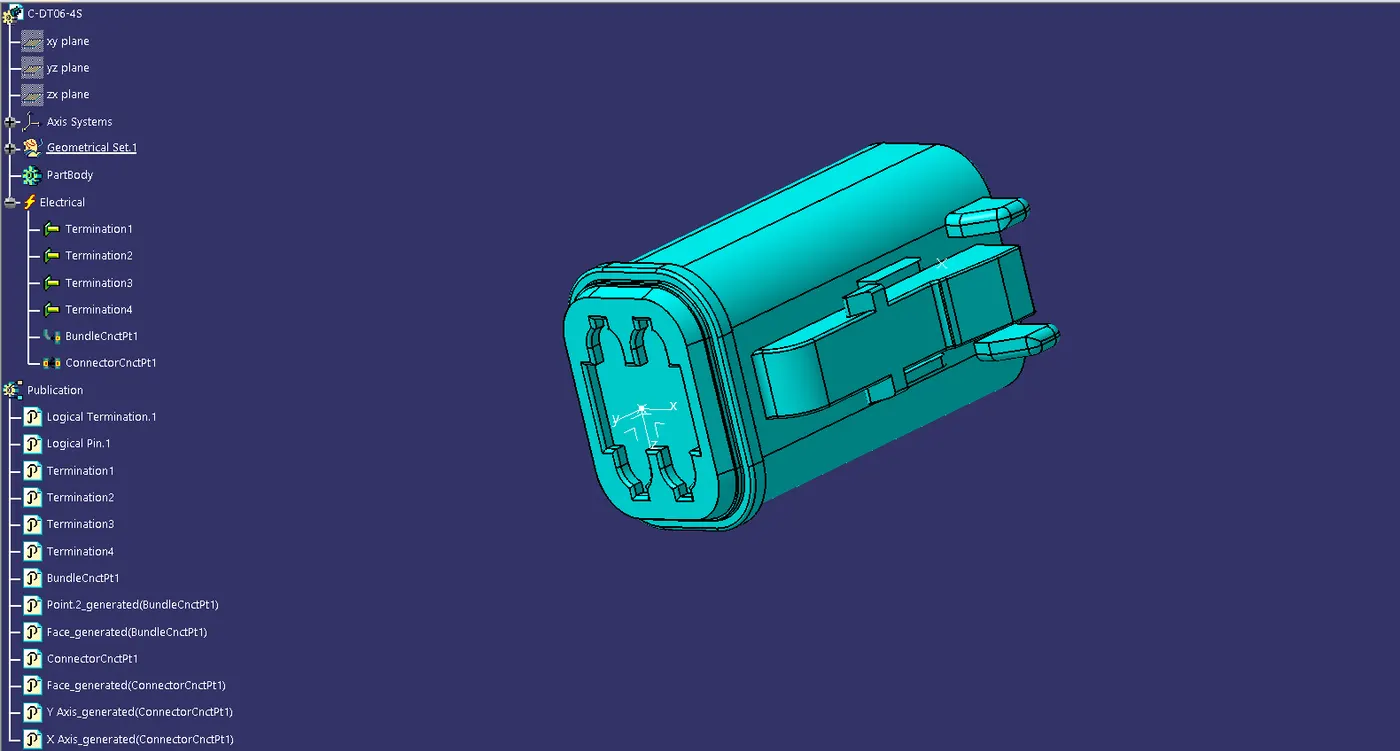

For DT06-4S

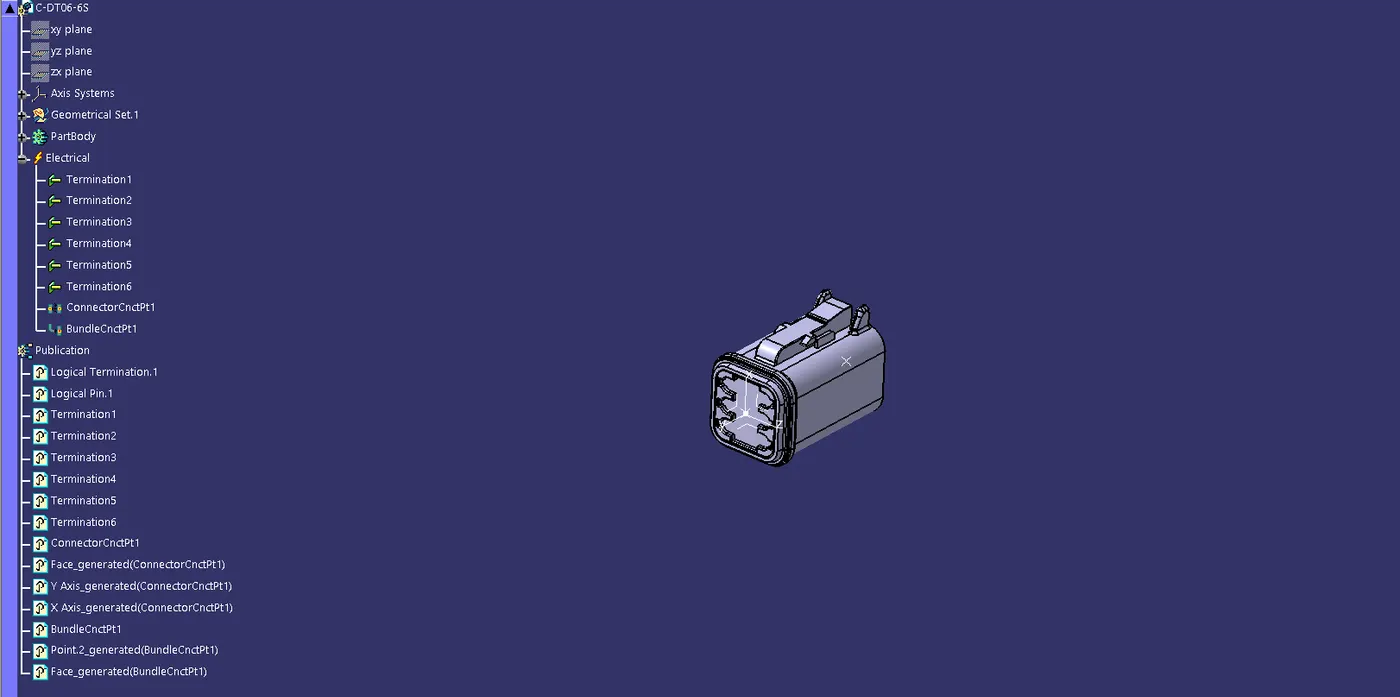

For DT06-6S

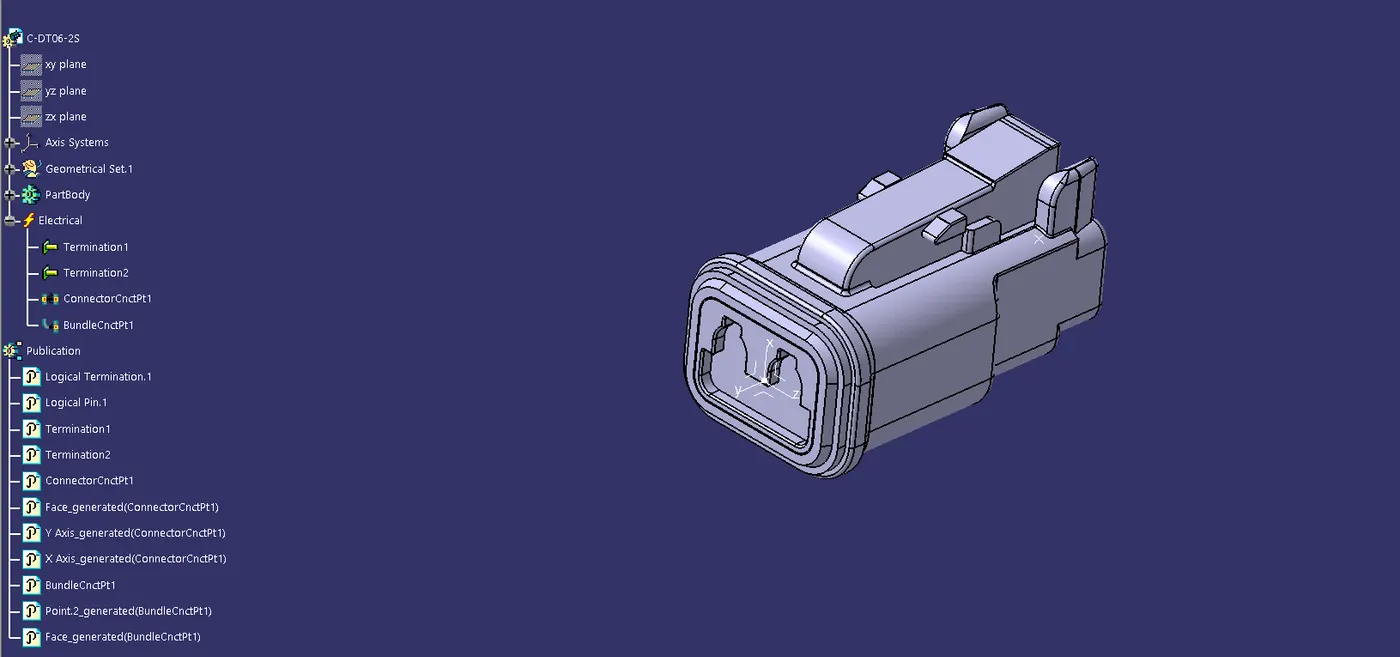

For DT06-2S

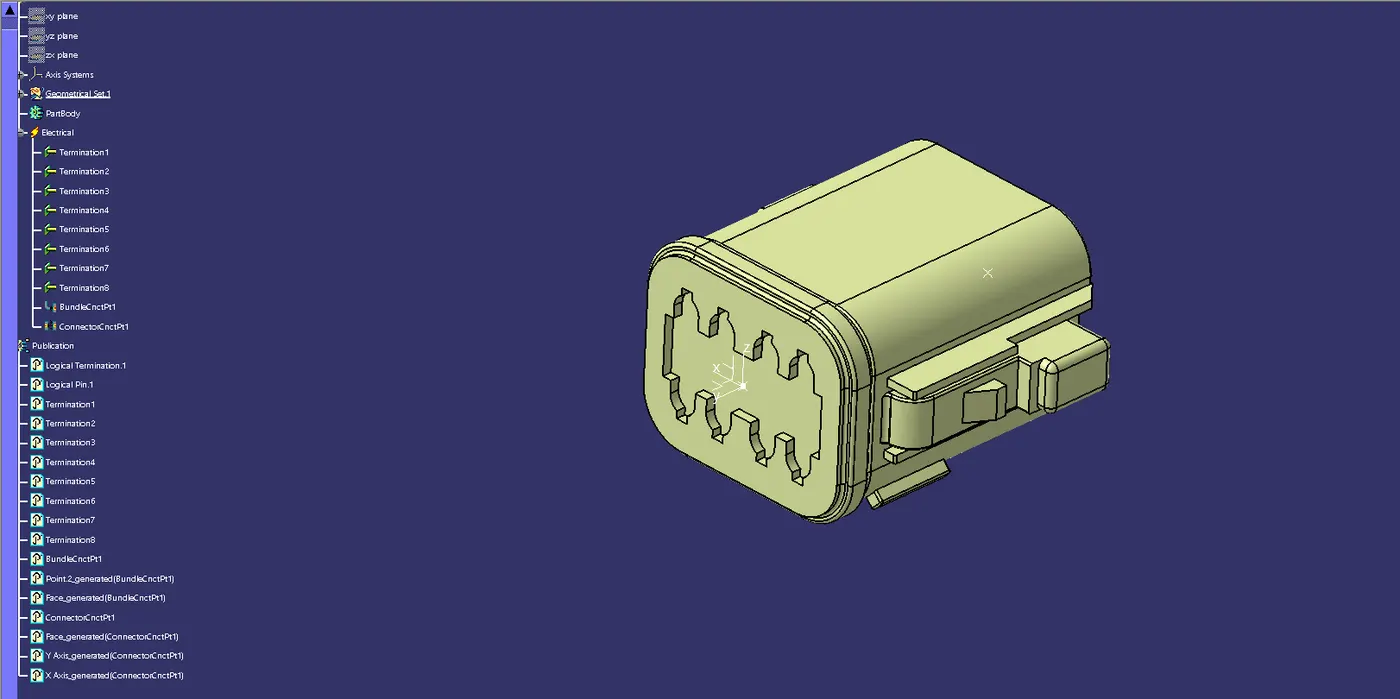

For DT06-08SA

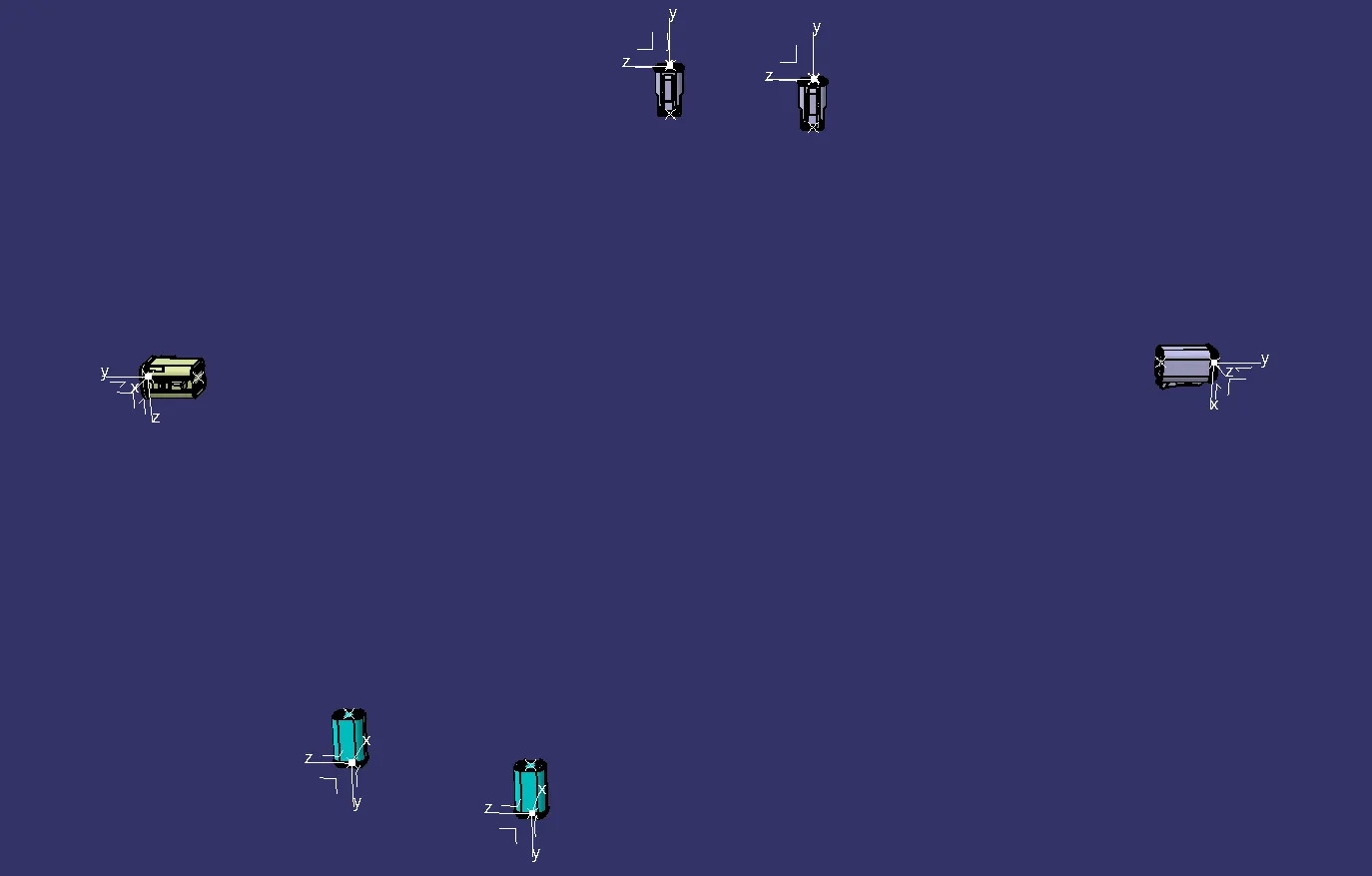

Arranging the Connectors by following the Layout

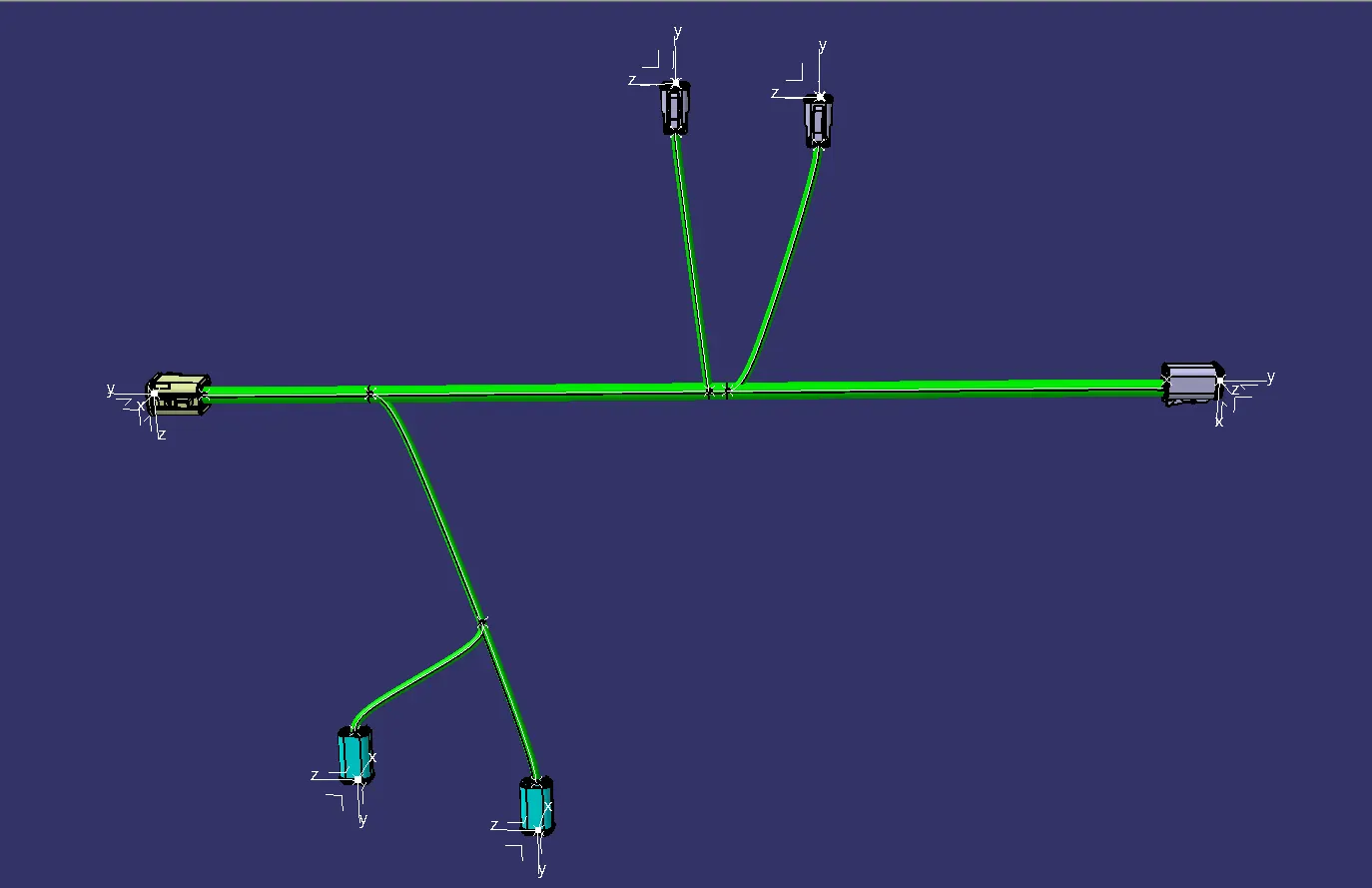

Creating Multi-Branching to the Connectors

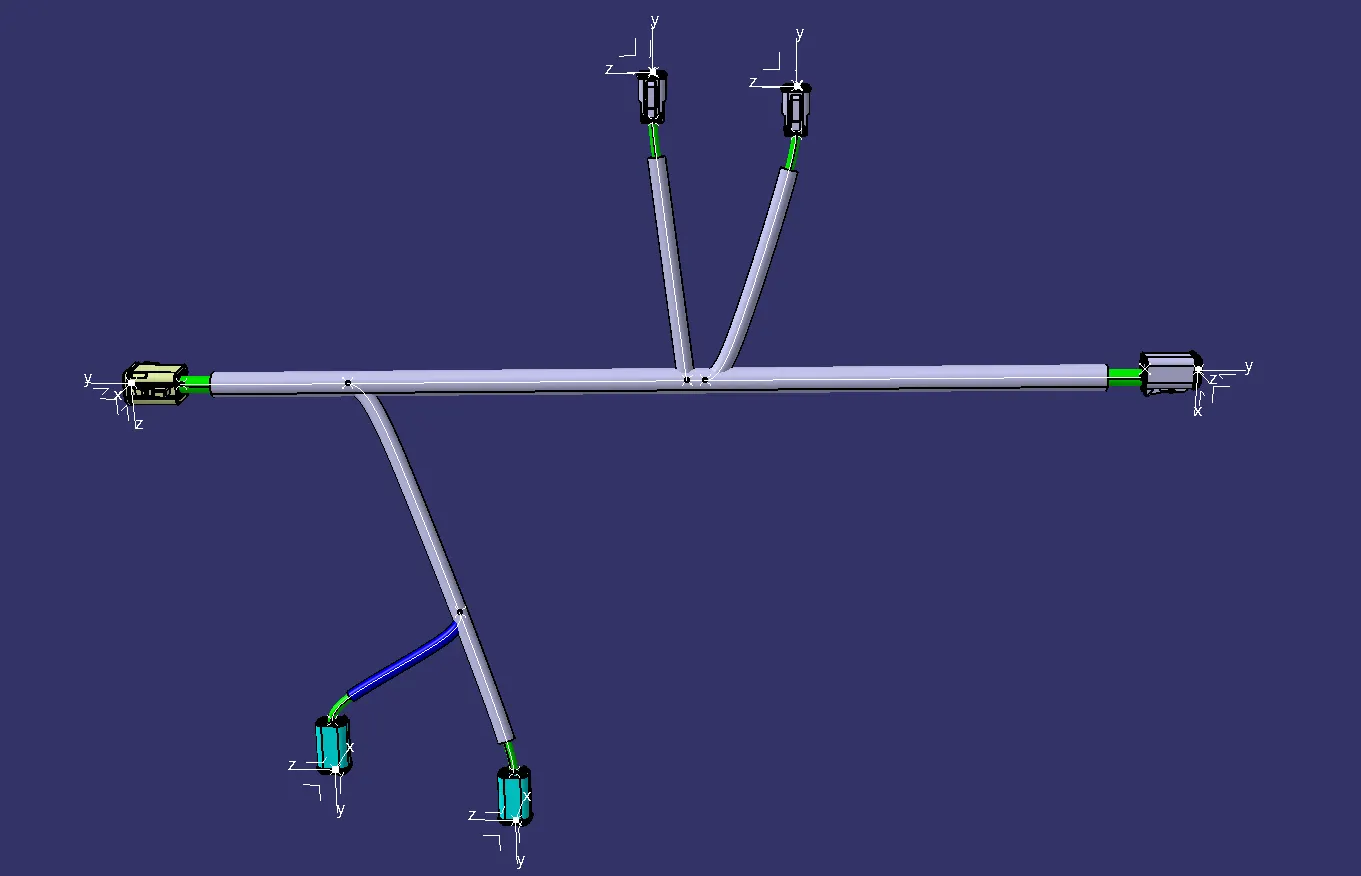

Creating a Protective Covering

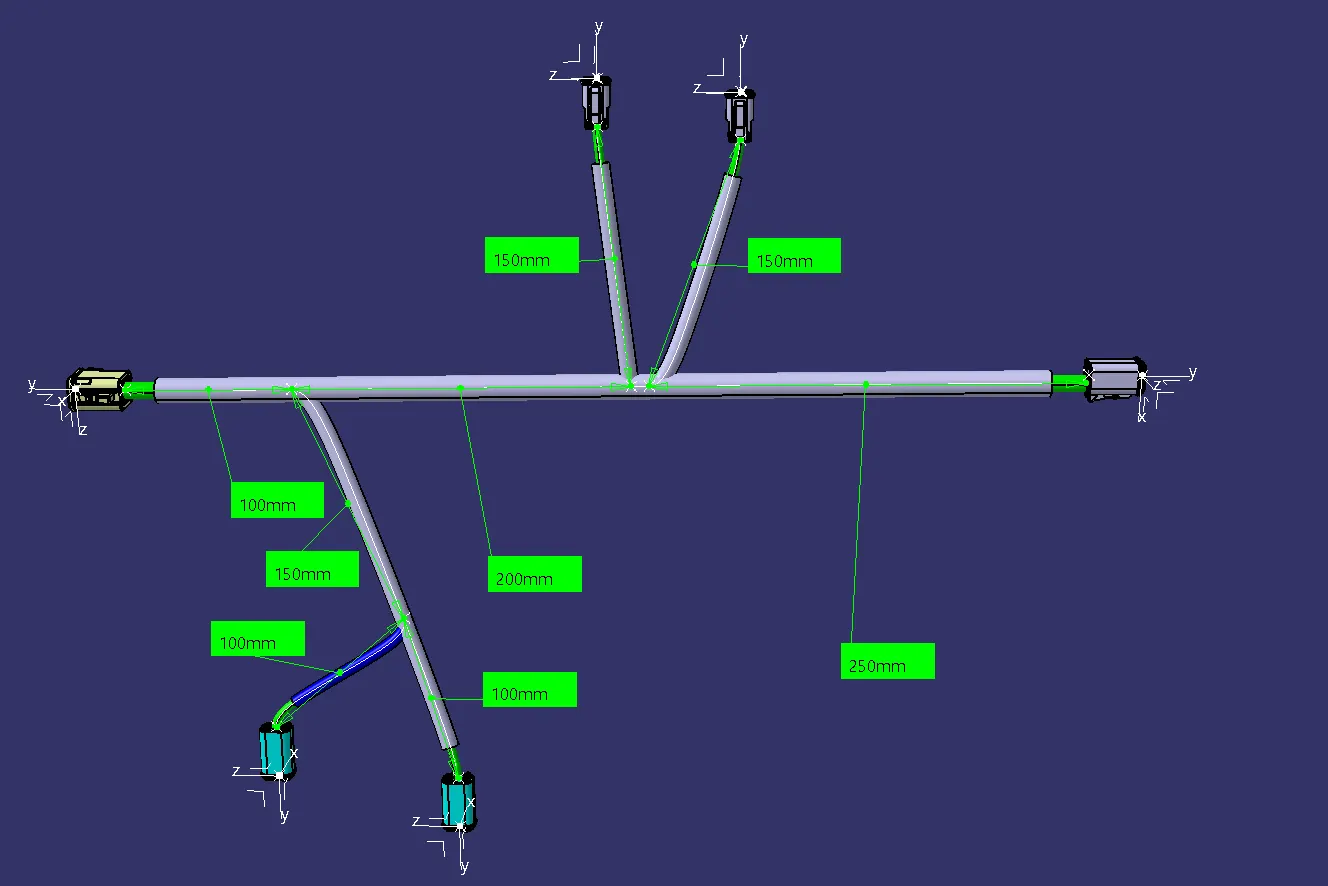

Checking as per Layout
