Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Wiring Harness design in catia v5
Objective:

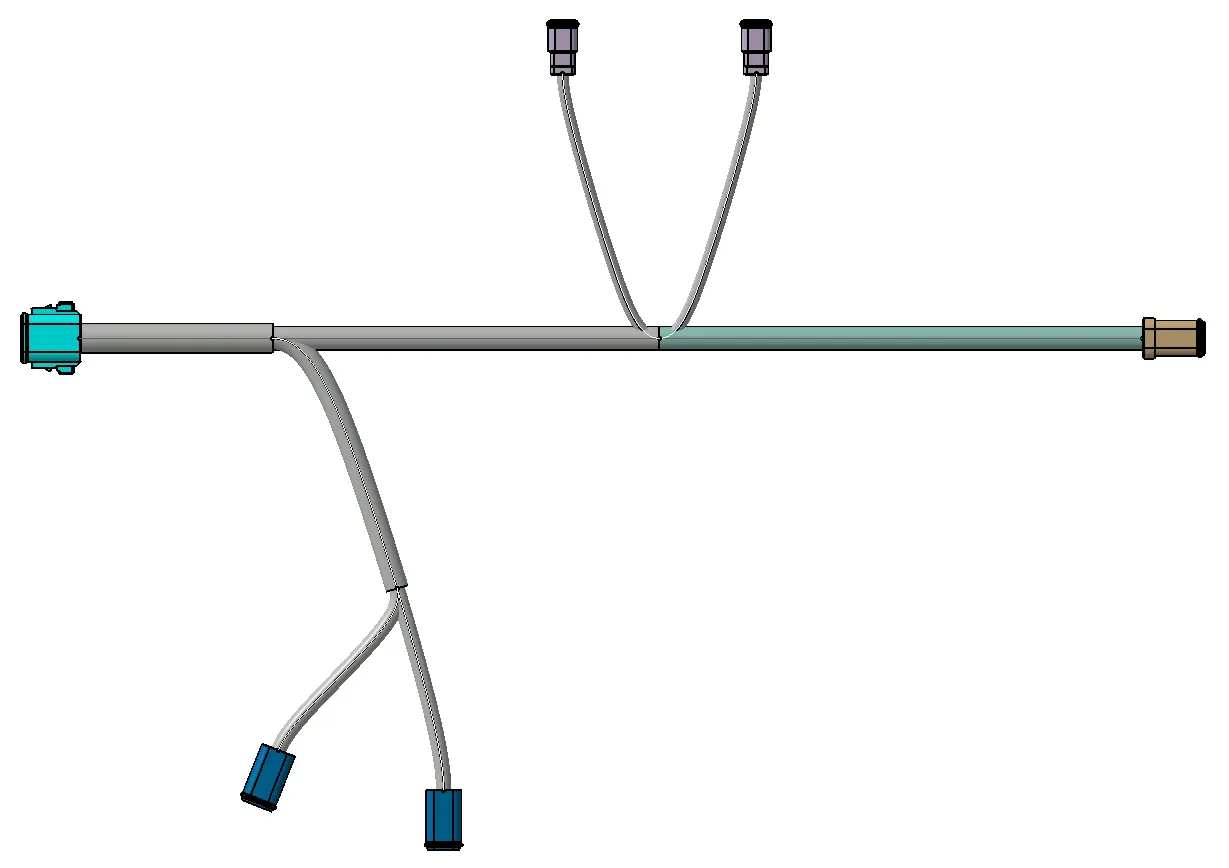

- Route the following harness layout in Electrical workbench.[Using connectors as shown in layout diagram.]
- Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. [whereas Keeping end extremity at 30mm]
Given:
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA

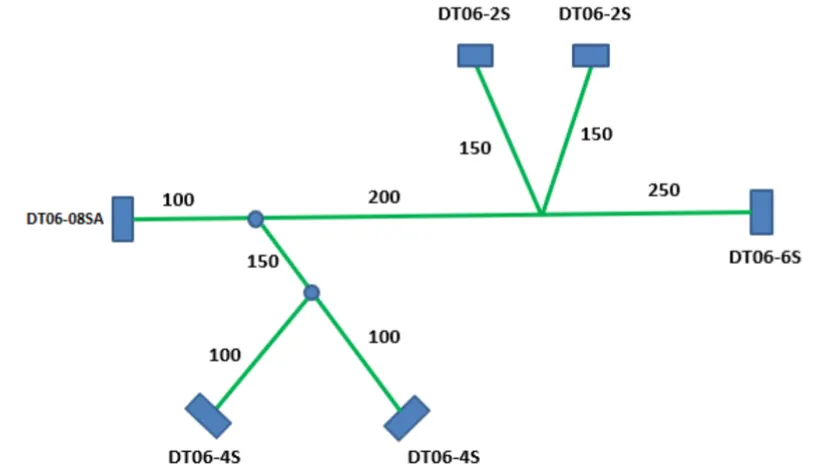

- Given Layout Design :
Steps to be followed for given routing:
Electrical definition:

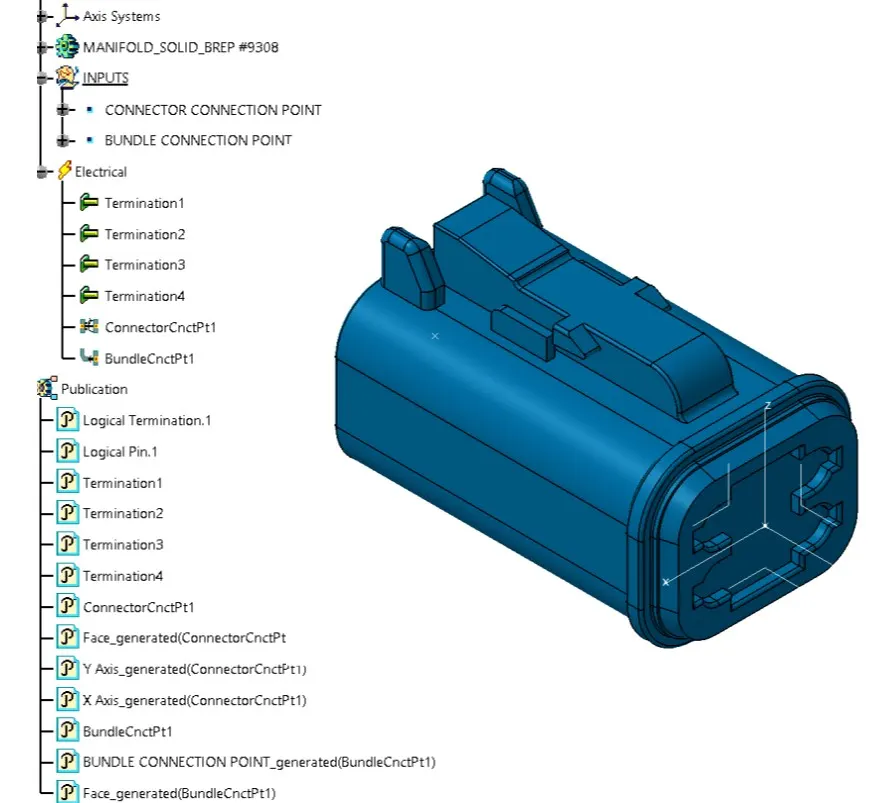

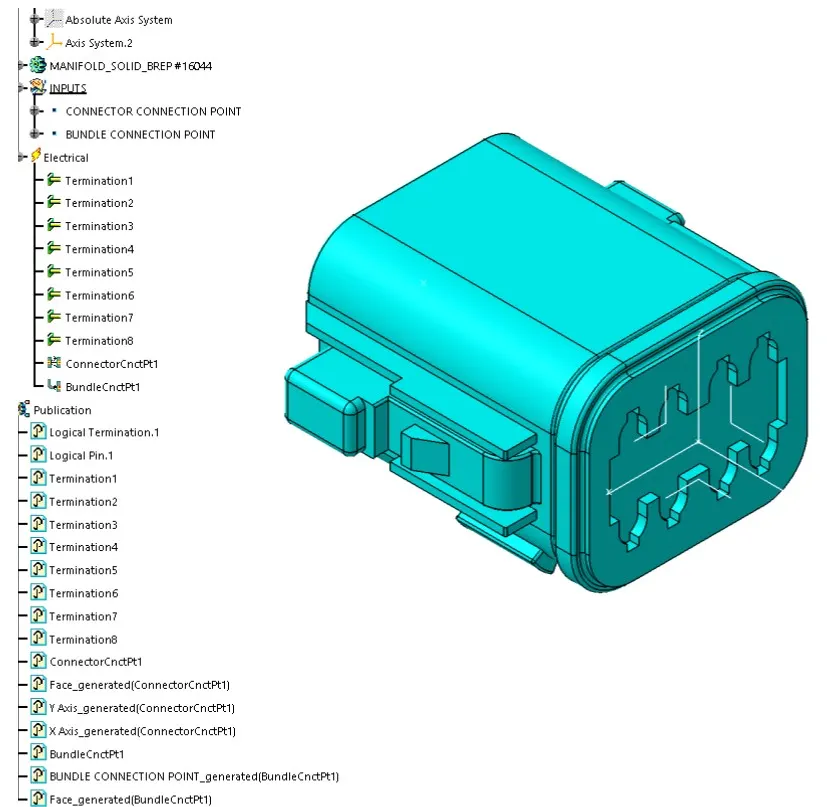

- DT06-4S Connector

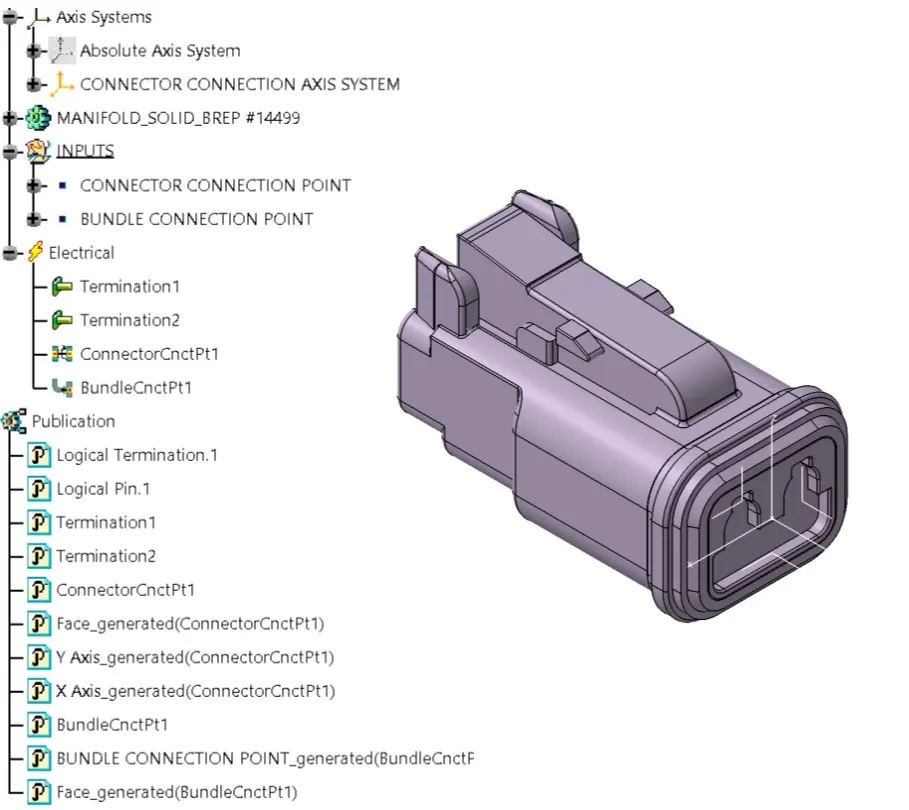

- DT06-2S Connector

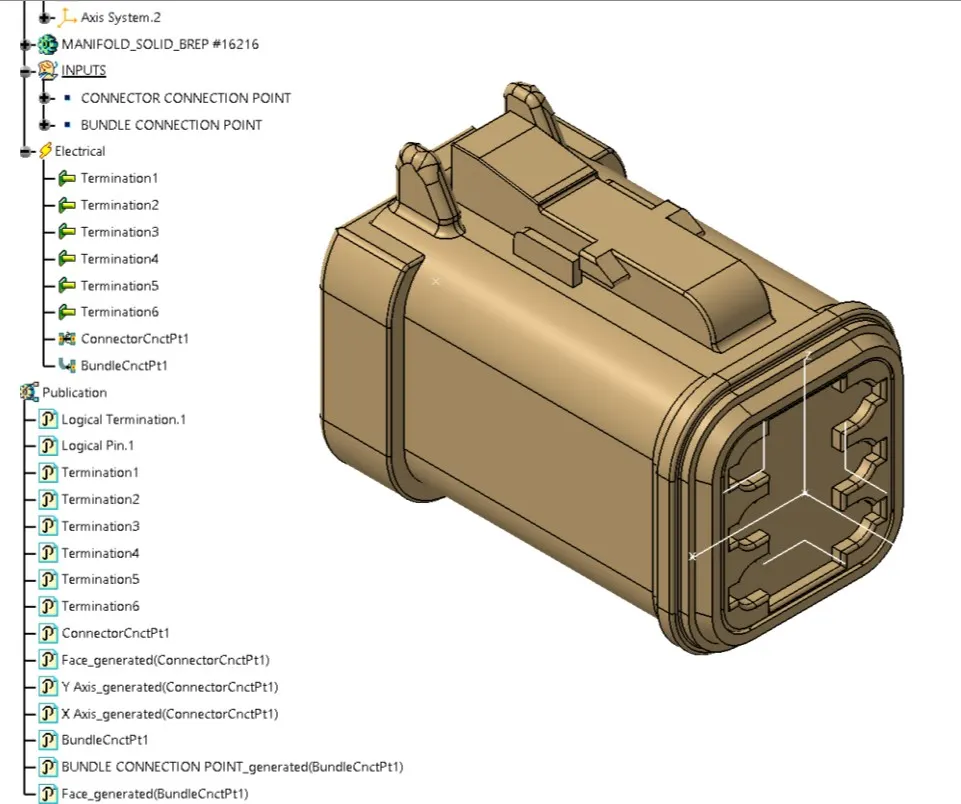

- DT06-6S Connector
- DT06-08SA Connector

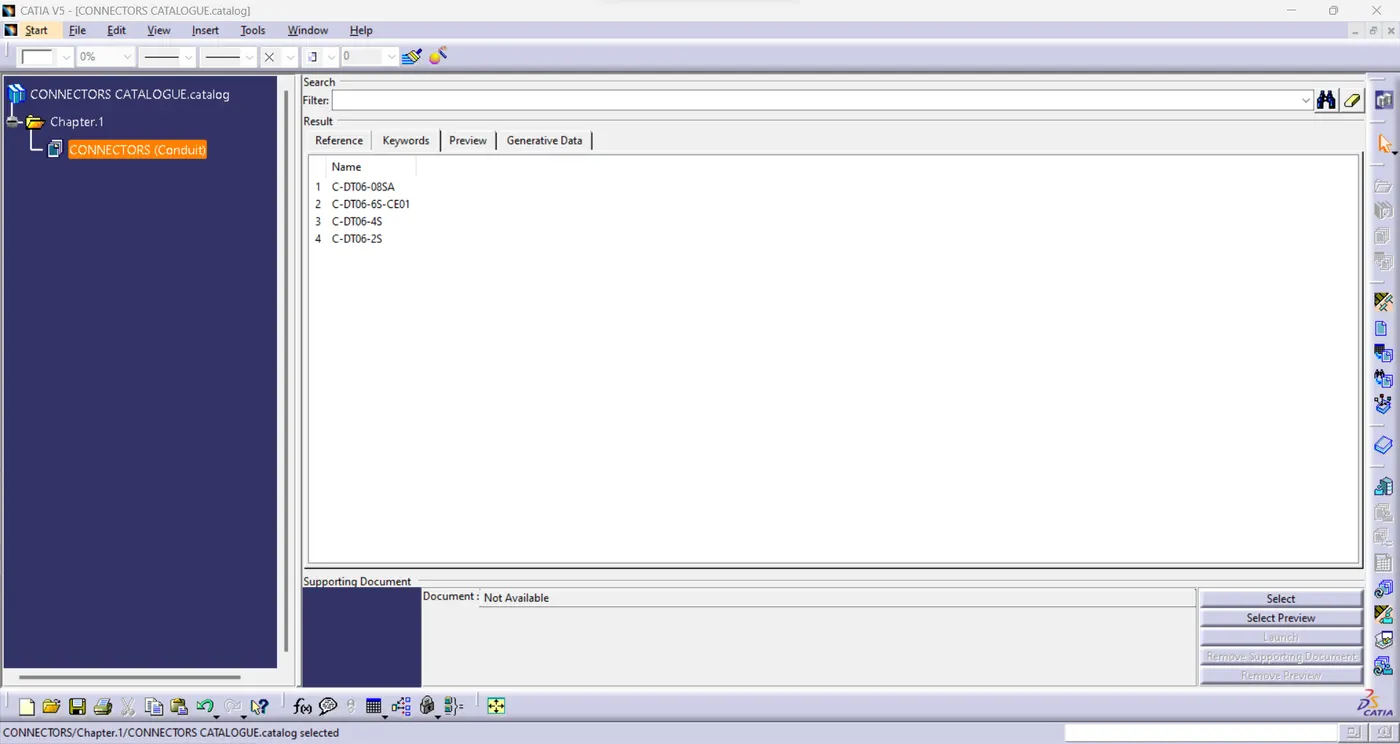

- Catalogue creation for connectors

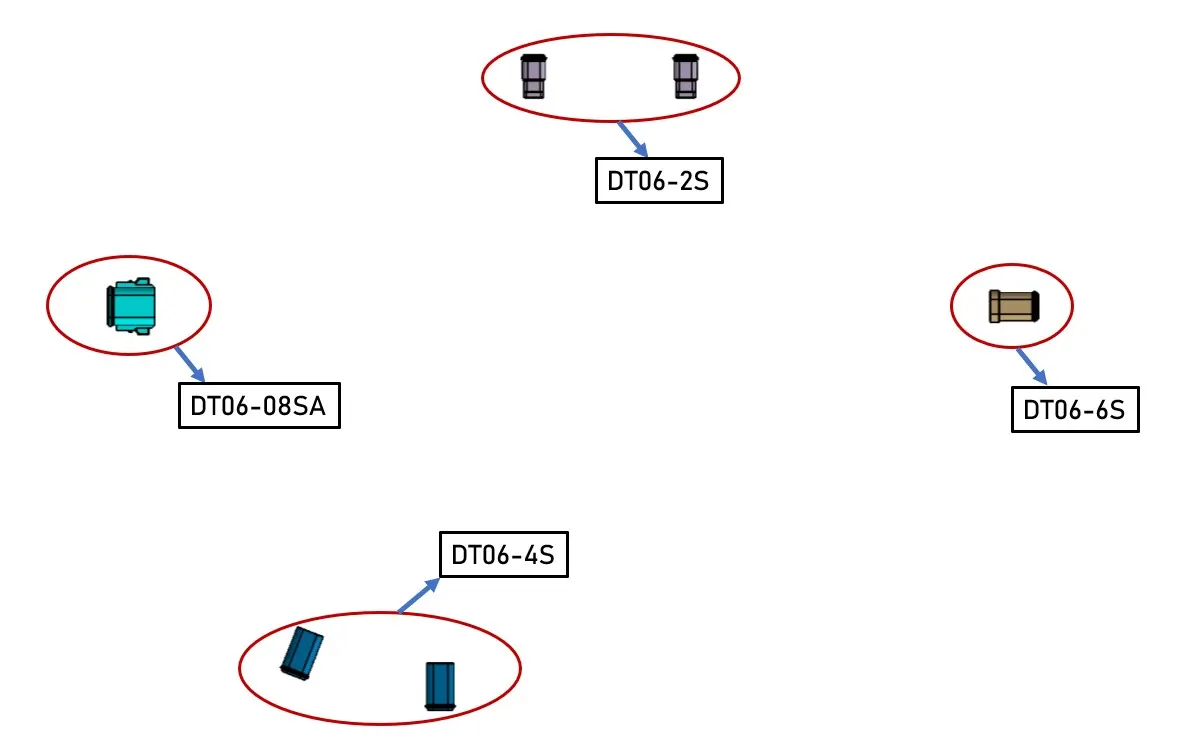

Set connectors as per given layout:
Create Multi-branching to the connectors:

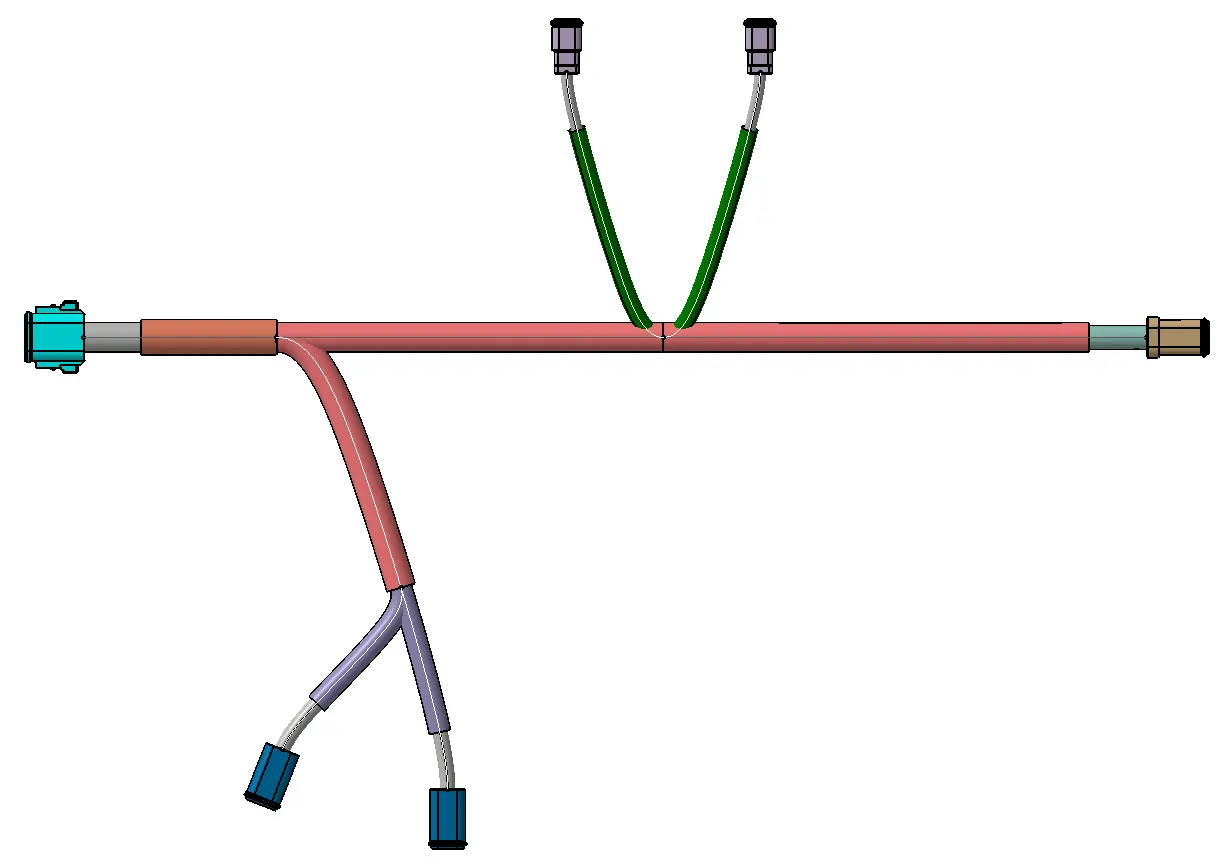

Protection covering over Multi-branching of connectors with 30mm extrimity[connectors end]:

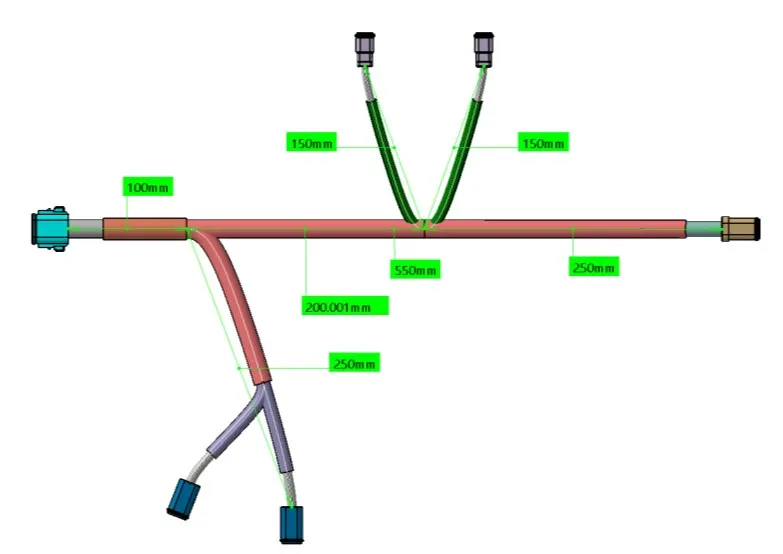

Dimensioning as per layout:
