Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

AIM

Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.

Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)

CONNECTORS

• DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

 download the cad file of above mentioned connectors from  www.te.com

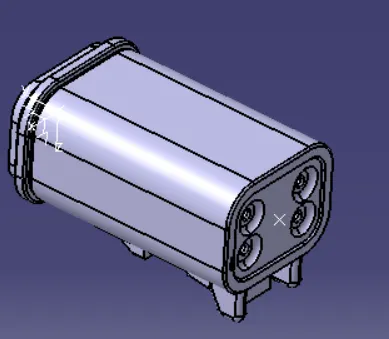

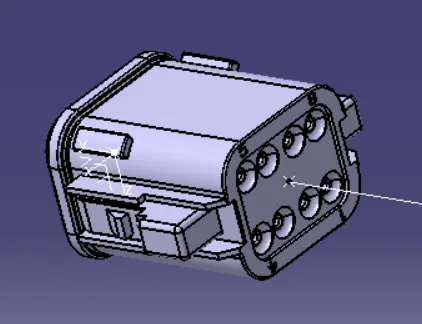

Then open the cad file in catia part design  workbench and create the connector connection point,connector connection axis system , bundle connection point .Switch to electrical part design and define it as a connector also define  connector connection point and bundle connection point.

• DT06-2S

• DT06-4S

• DT06-6S

• DT06-08SA

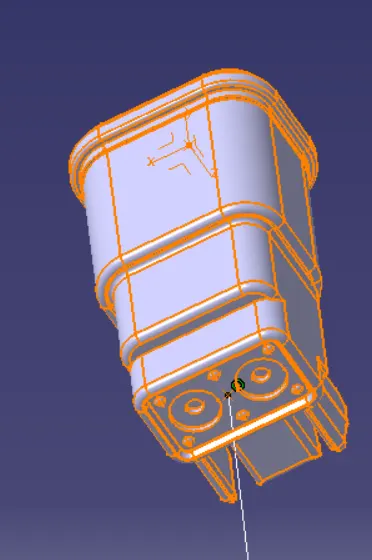

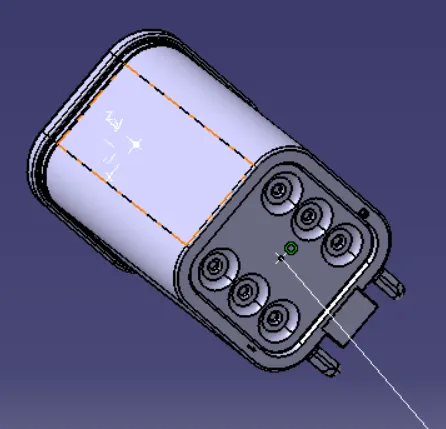

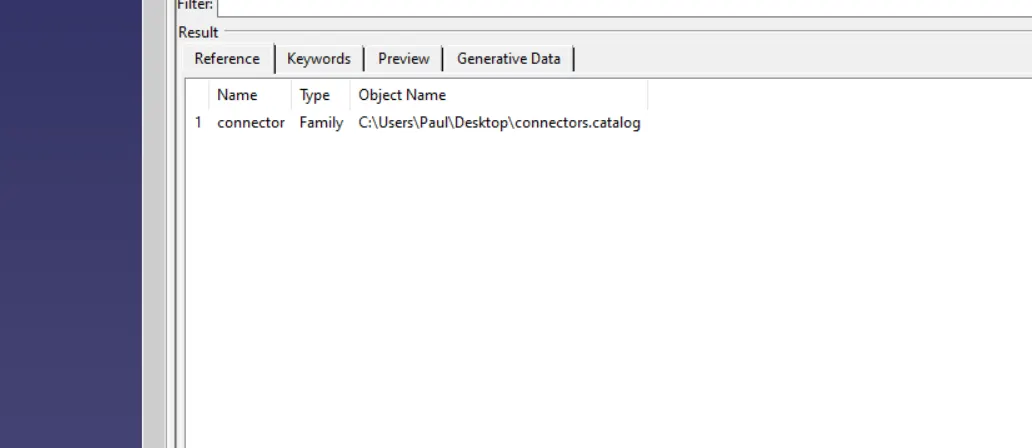

All the connectors defined as electrical connector and defined all the necessary properties to Connectors.create a catalog document in connector family and  store all the connector data in catalog document .

Next create a new product in assembly workbench named as  assembly wiring harness contex .it is the top level  product file inside this product file  created geometrical bundle and wire harness electrical bundle

Geometrical bundle contains all of the harness components i.e connectors ,clip, gromets and actual physical bundle segments and branches.

Above electricaly defined connectors add to geometrical bundle .Then switch to electrical harness assembly workbench and defined it as a electrical assembly by using the tool "Geometrical bundle".

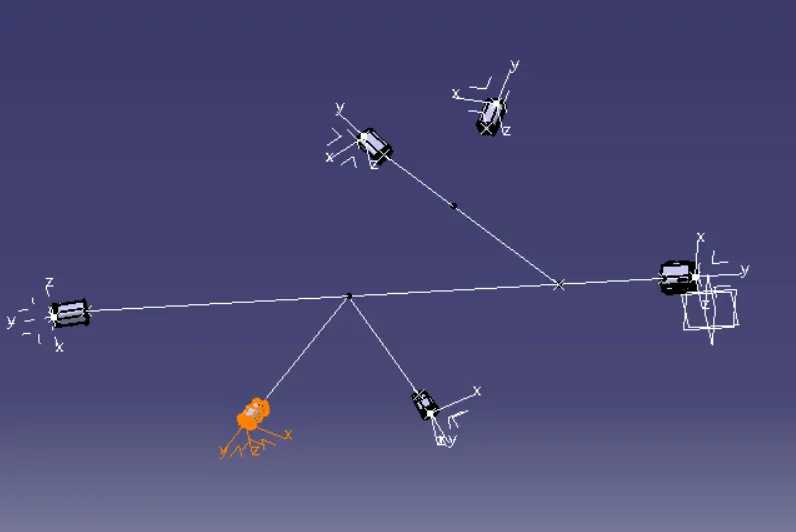

To position the connectors , sketch created on the part design workbench by following the given data.

All the connectors positioed based on the reference sketch by using move options((manipulation,snap,smart move, using compass etc ) in the assembly workbench .

To create bundle segment in the geometrical bundle assembly  use multi-branchable option in the electrical harness assembly workbench.

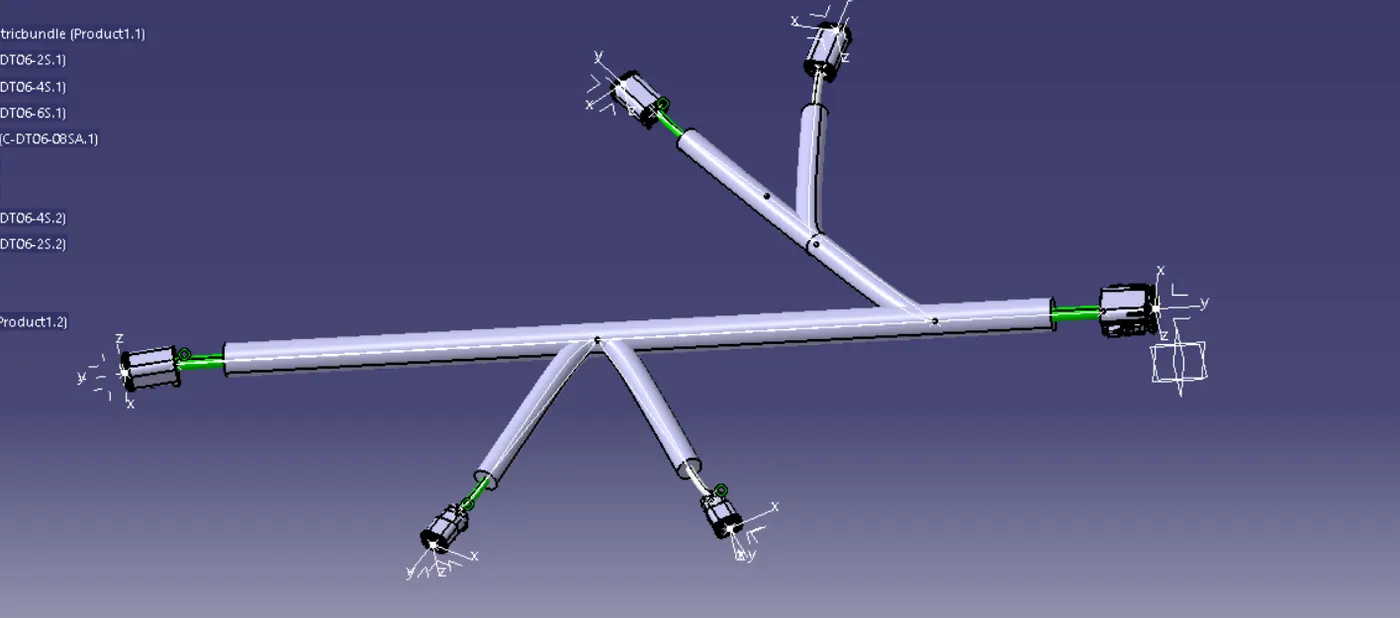

Multi-branchable catpart added to the geometrical bundle .it contains all the bundle segments and braches .first Select the diameter and bend ratio in the brach defenition window then use  route defenition option and select the harness components to create the bundle .it automatically switch to electrical harness instalation workbench .

here the main brach diameter is 10 mm and sub braches dia is 5 mm .For creating sub braches use "Add brach point" option in the  electrical harness instalation workbench and select the bundle and provide required length where to create the new branch.

Add the branch point and harness component in the Route defenition option in side the branch defenition to create the sub branches.

After creating the bundles then switch to electrical harness assembly workbench and use protective covering option to add corugated tubes to the bundles.select the catalog document and use the proper cot tube and bundle segment to create the protective covering .Keep end extremity at 30mm (from connectors end).
