Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.

Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)

Download connector 3D data from www.te.com

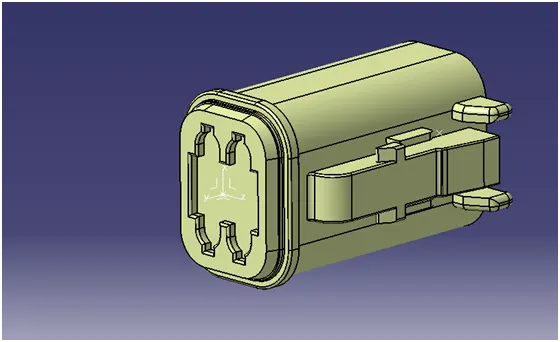

DT06-4S

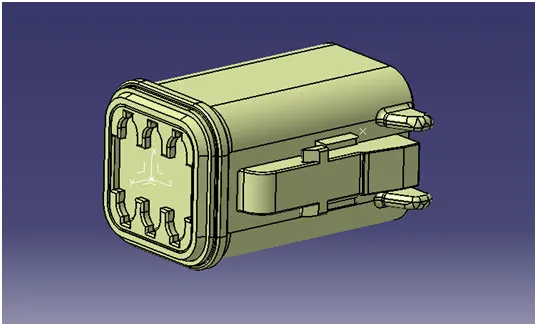

DT06-6S

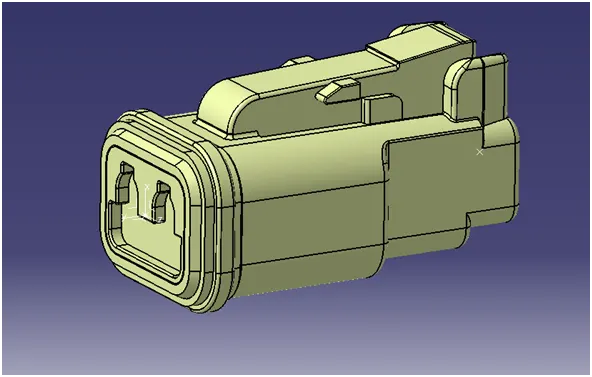

DT06-2S

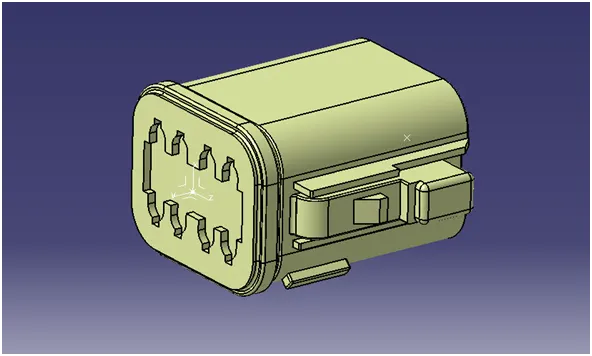

DT06-08SA

Given Harness Layout

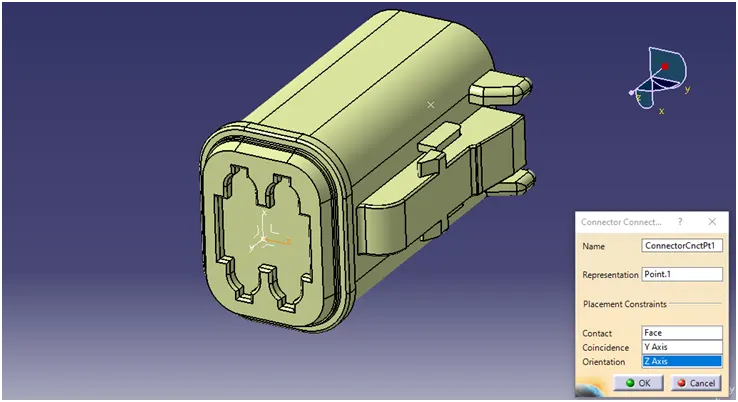

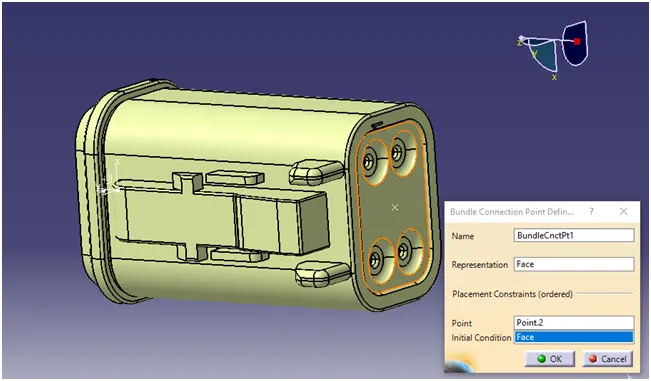

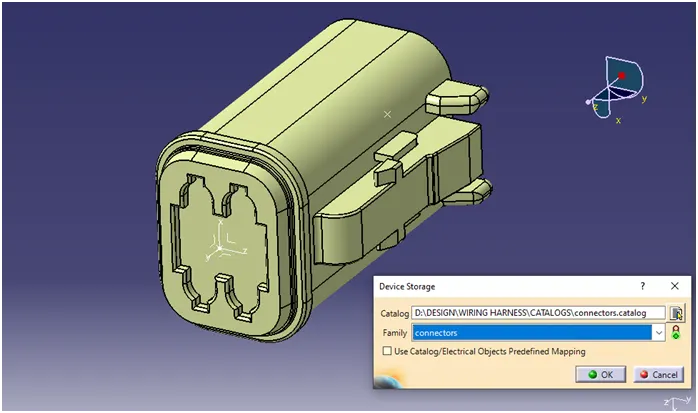

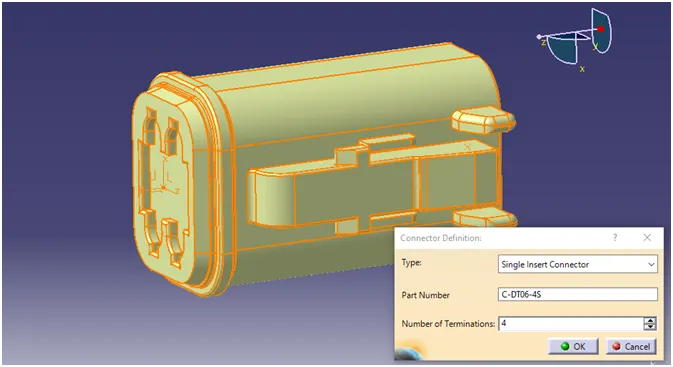

Define the connectors into electrical parts & provide bundle entry point & connector connection point and store in catalogue.

DT06-4S

DT06-6S

DT06-2S

DT06-08SA

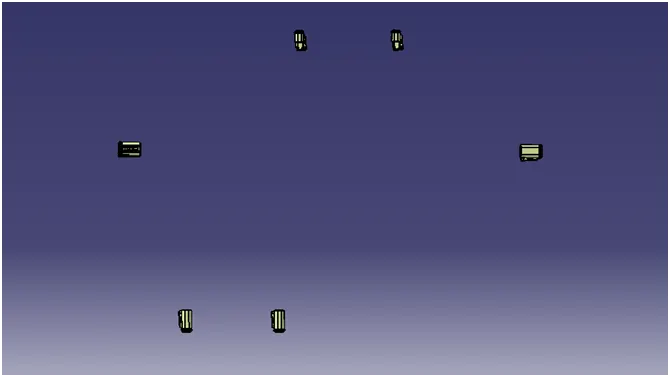

Insert all connectors & arrange as per the required layout.

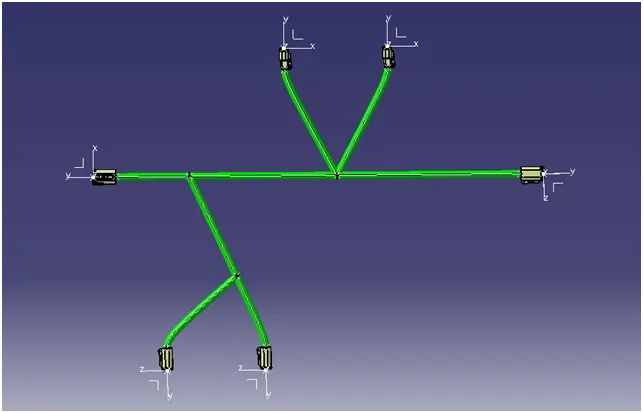

Connect the connectors using multibranchable document & define diameter(10mm), slack & select routing objects need to be connected.

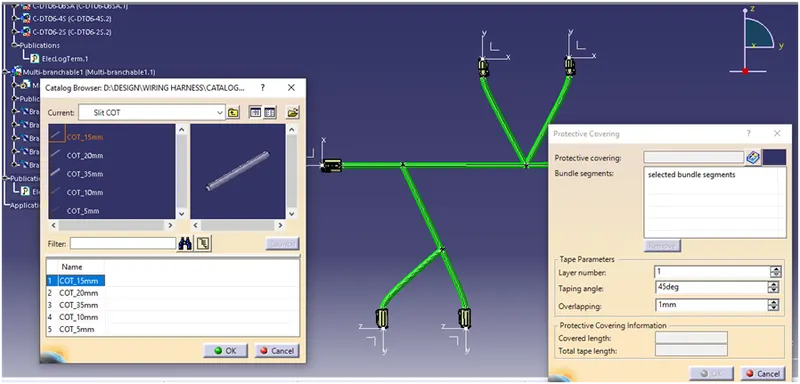

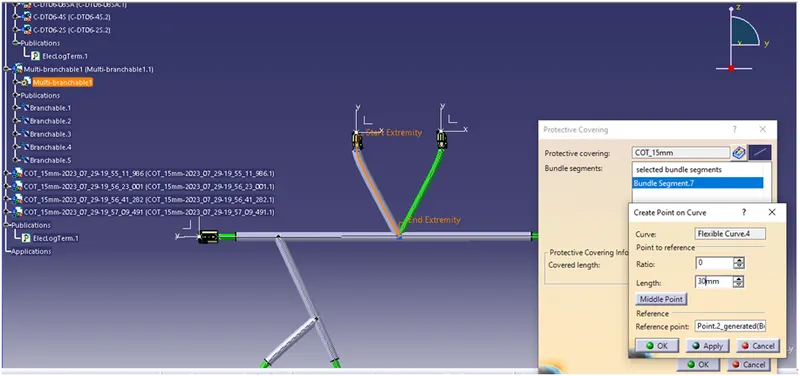

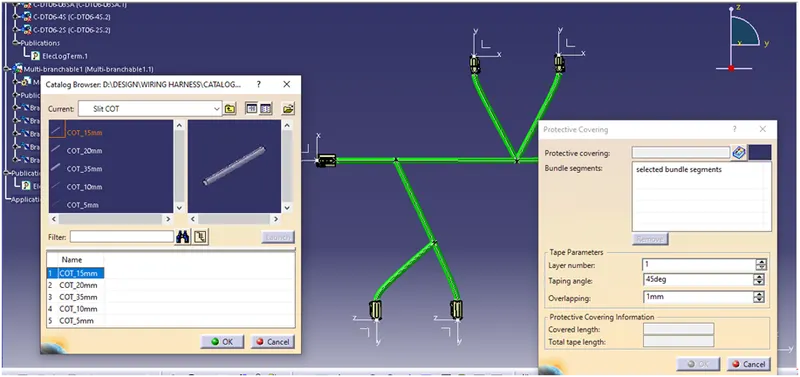

Adding protective covering to the harness

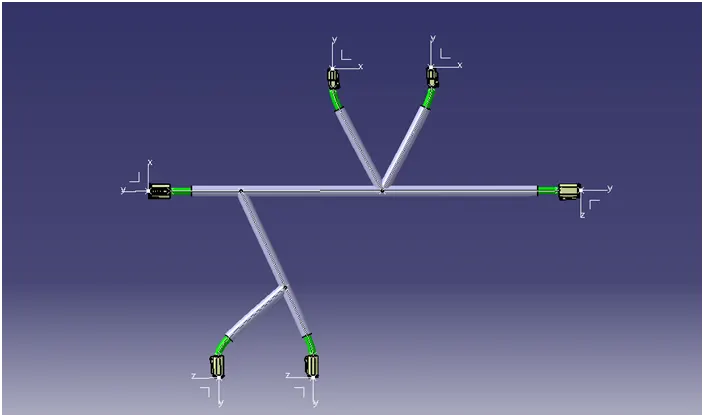

Final wiring harness with protective covering
