Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

AIM

• Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.
• Add protective covering on all branches connect to connectors. Keep end extremity at 30mm (from connectors end).

Download connector 3D data from www.te.com

• DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

DT06 – 4S

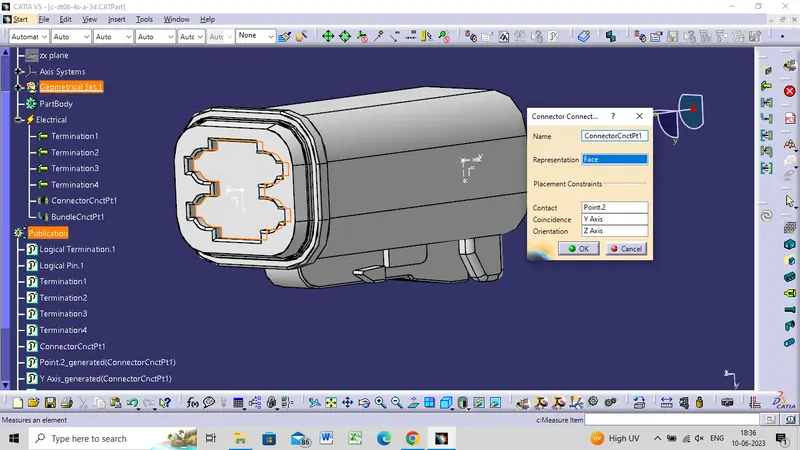

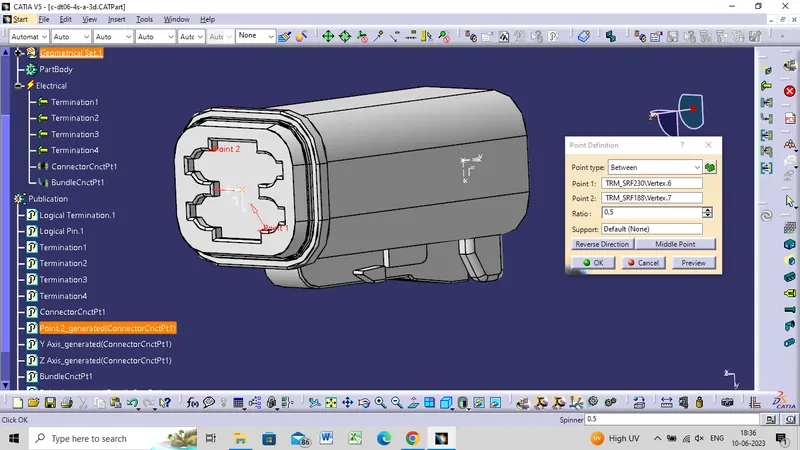

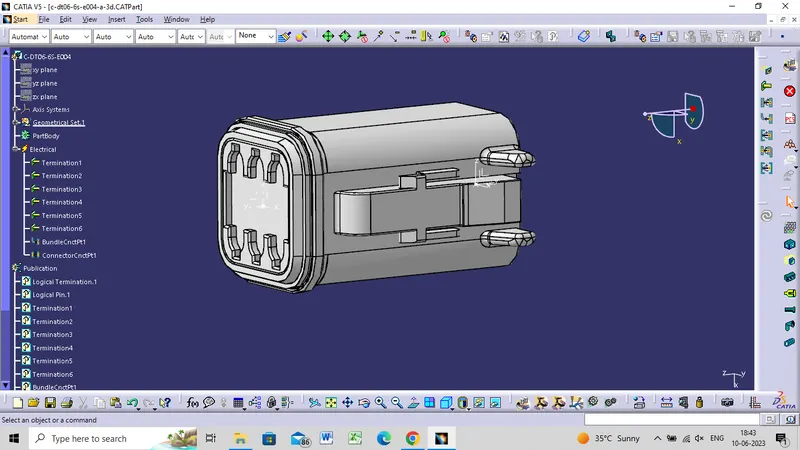

Create midpoint on the contact face which will be normal to wire bunddle insertion.

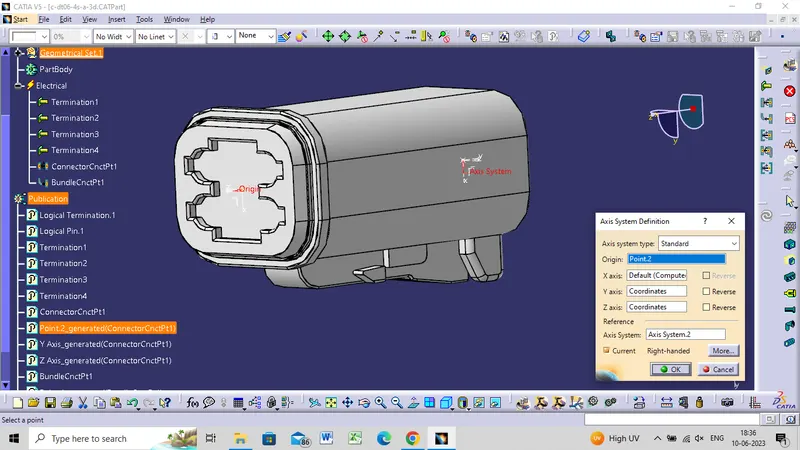

Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,

Connector connection point

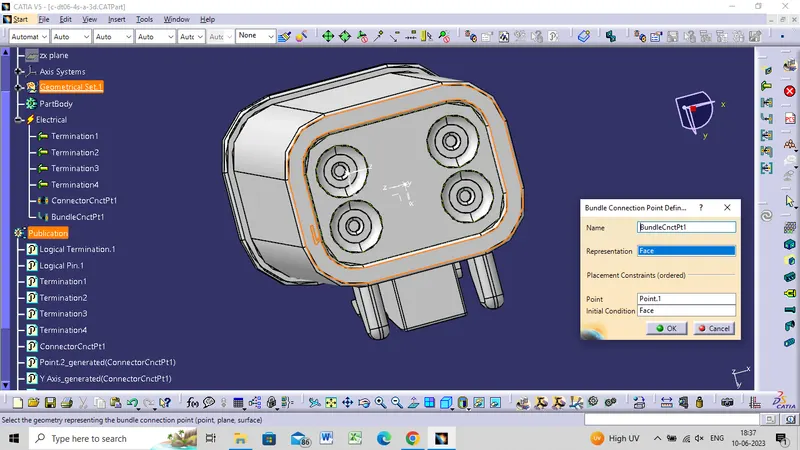

Define Bundle connection point

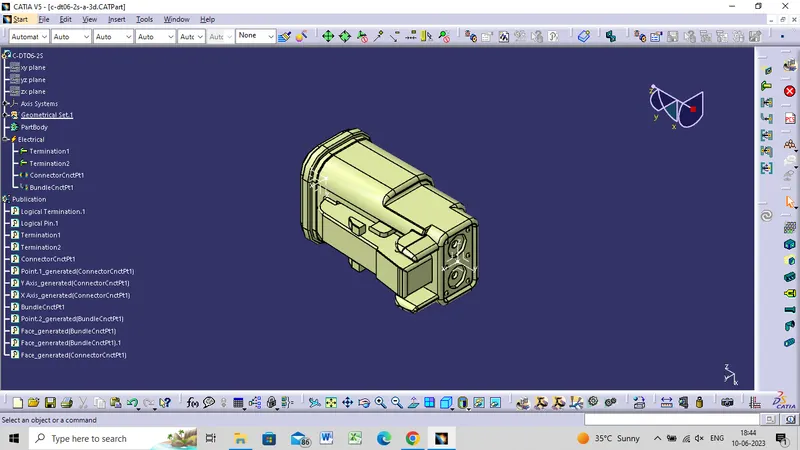

DT06 – 2S

DT06 – 6S

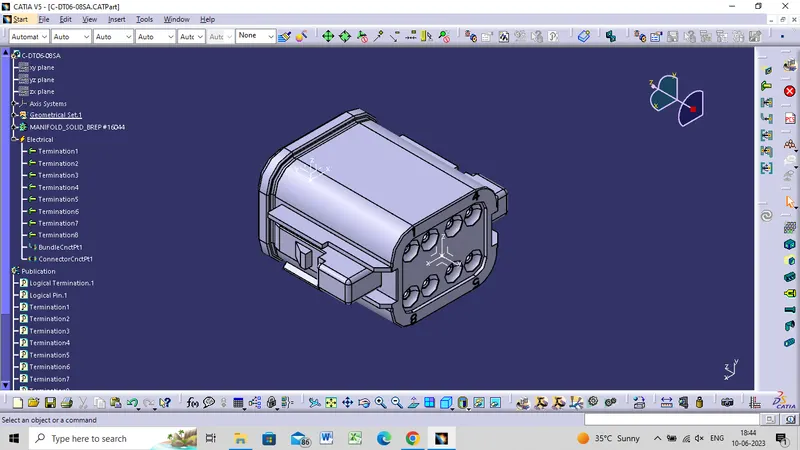

DT06 – 08SA

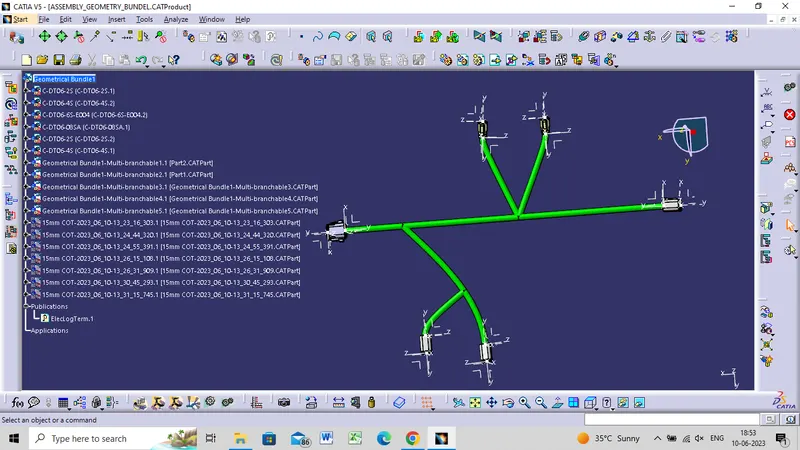

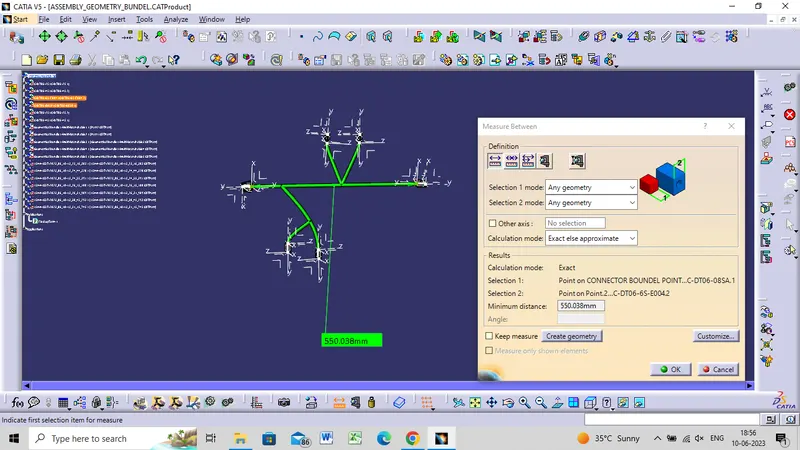

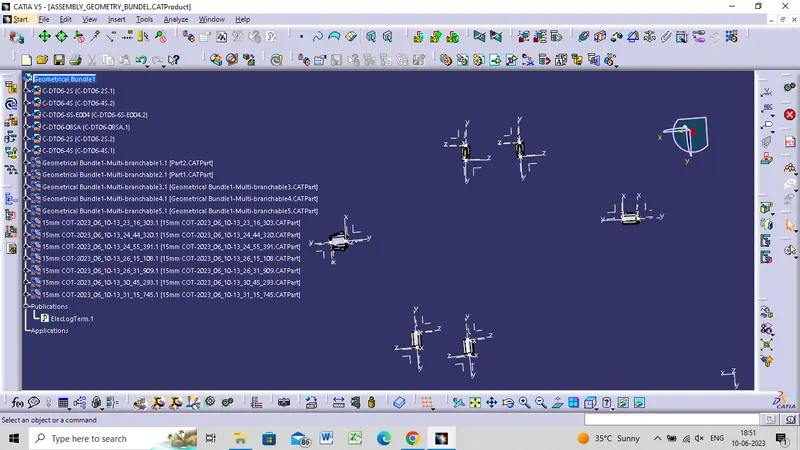

AS PER DIAGRAM CONNECTORS ARE ARRANGED

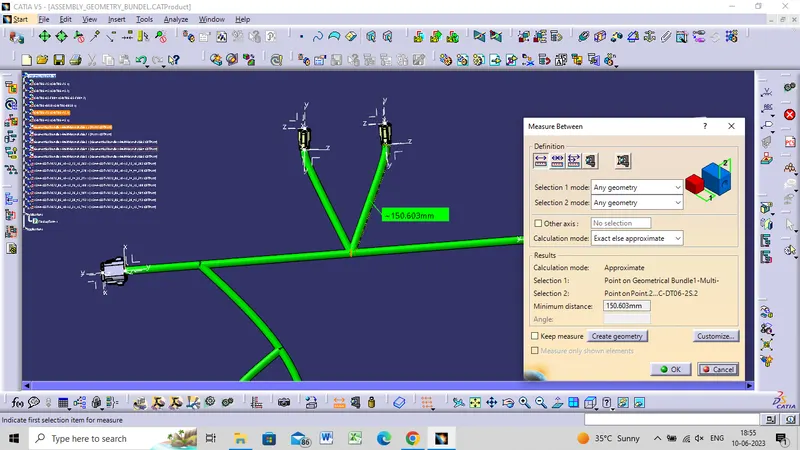

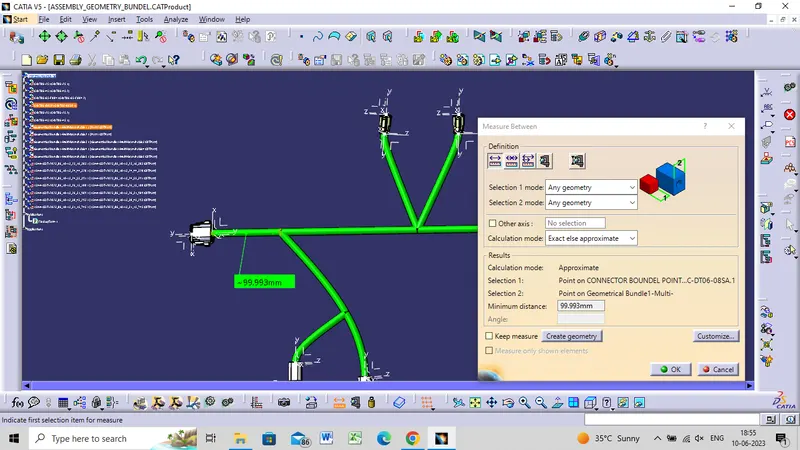

AND CREATING MULTI BRANCHABLE TO CONNECTORS

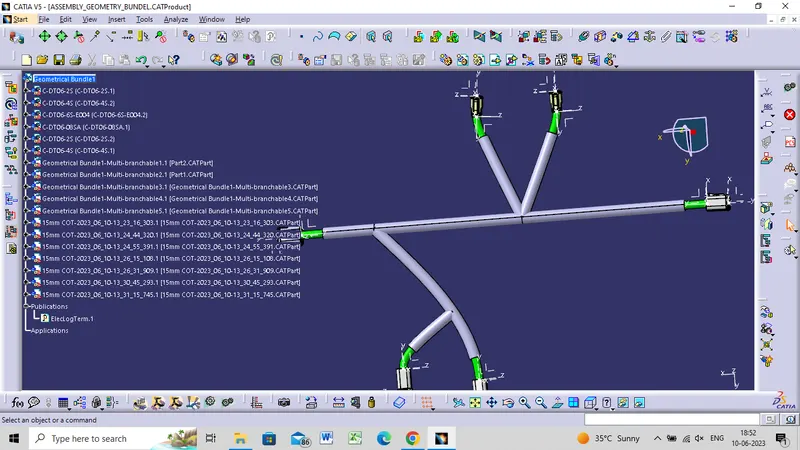

AND FINALLY CREATING PROTECTIVE COVERS
