Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Week-4 Challenge Wiring harness design in CATIA V5-3D Modeling
Aim:

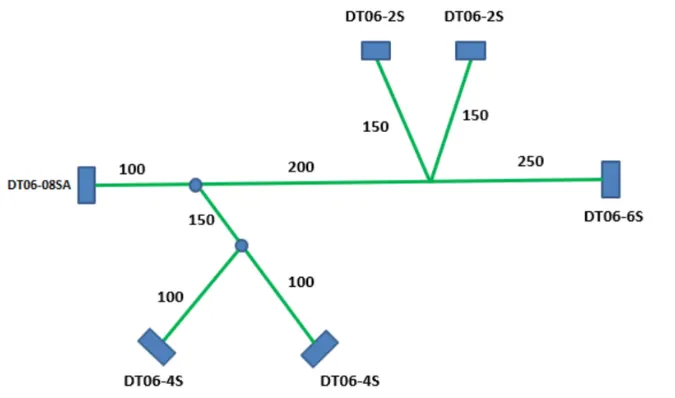

1) To Route the folowing harness layout in the Electrical workbench.
2) Add protective covering on all branches connected to DT06-2S & DT064S connectors.
CAD data of the following connectors.
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA

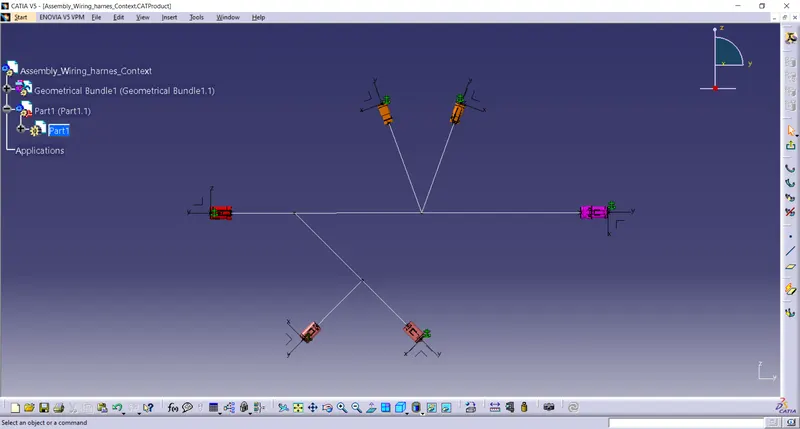

Connectors Layout Design:
Steps to be followed:

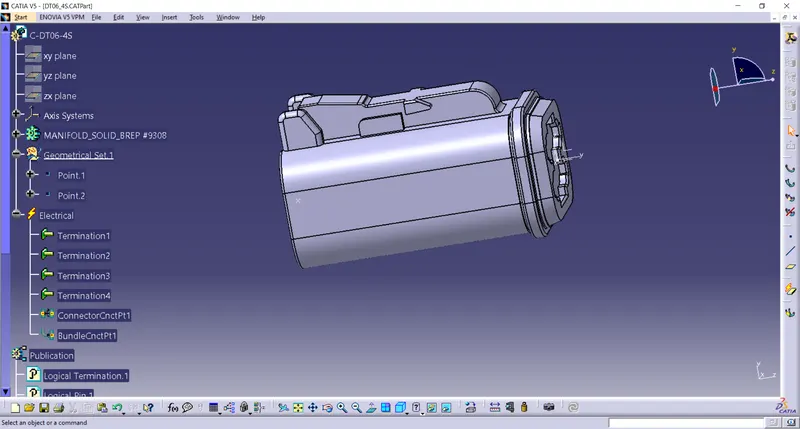

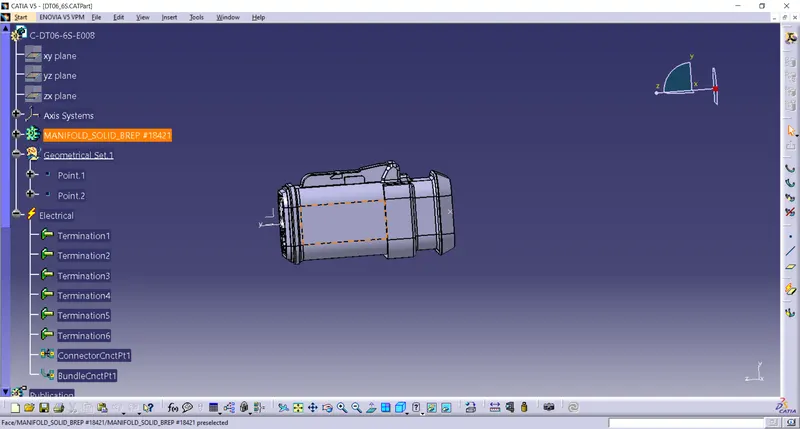

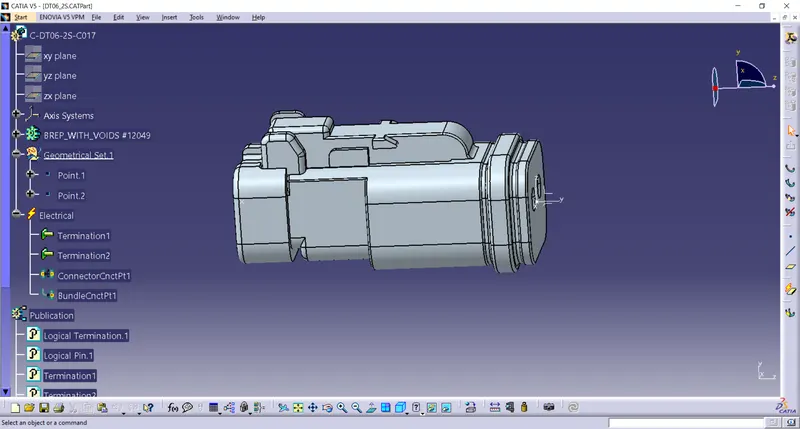

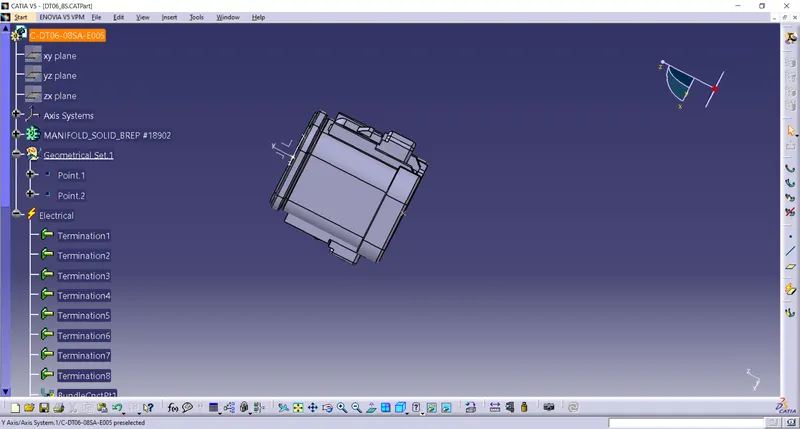

1. Download Conndector 3D data
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA

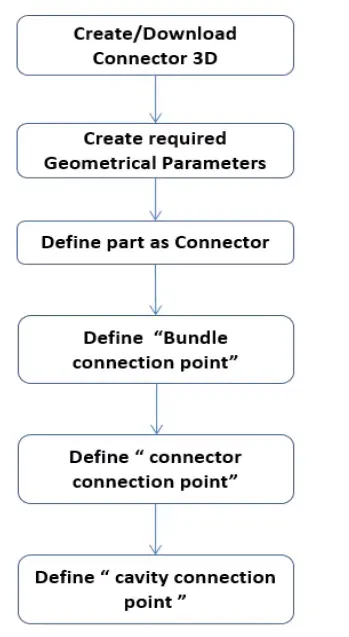

2. Connecting the Mechanical part into the Electrical part for that followed the following steps.
- The given connectors were downloaded
- The folowing was defned for all the connectors.
*Connectors Connection Point.
* Bundle Connection Point
*Axis system at the connector connection point

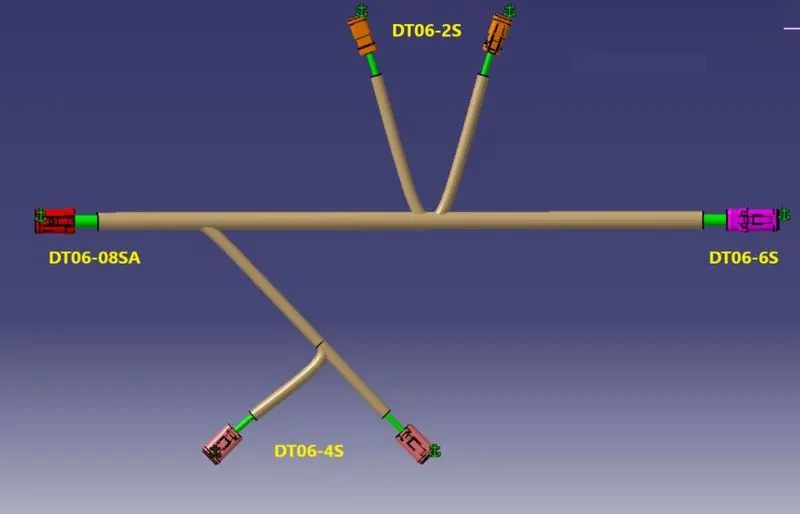

*Define all the connectors as were assembled as the given diagram.
DT06-2S
DT06-4S
DT06-6S
DT06-08SA

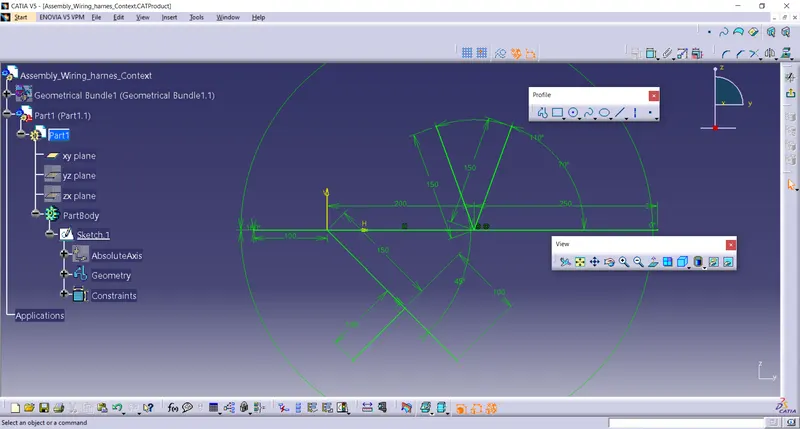

- Create the Drawing for fixing the connectors as per the given diagram
- Fixing the Conndectors as per the given drawing

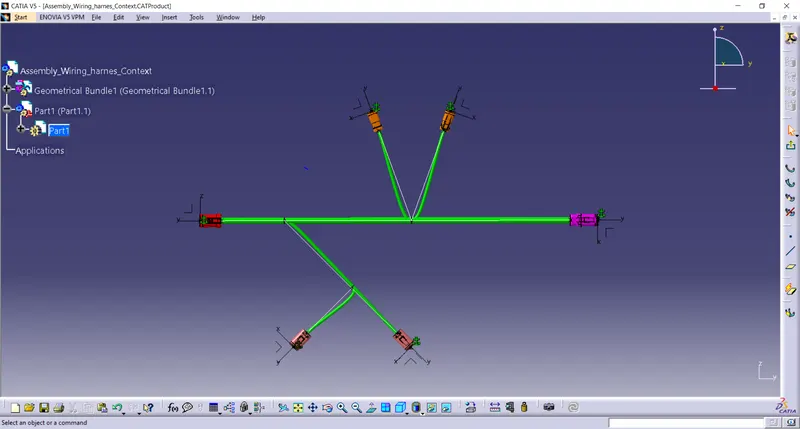

- Creat Bundels between connecgtors.

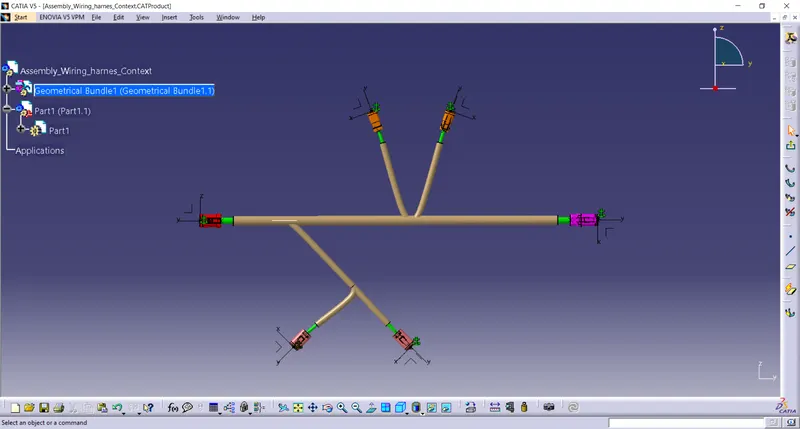

- Creat Protective Covering.
