Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

                                                               ROUTING USING HARNESS LAYOUT

AIM:

To route the following harness layout in Electrical workbench and to add protective covering.

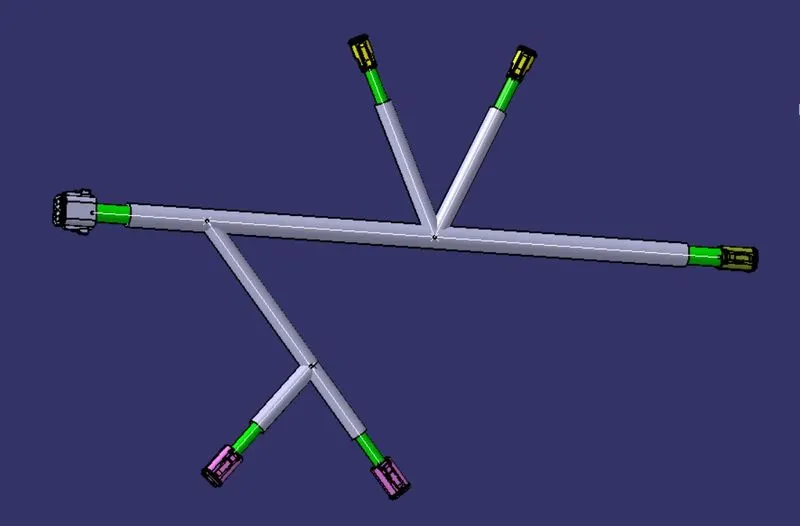

HARNESS LAYOUT:

PROCEDURE:

STEPS FOLLOWED:

• Download connector 3D data from te.com

                            DT06-4S

                            DT06-6S

                            DT06-2S

                            DT06-08SA

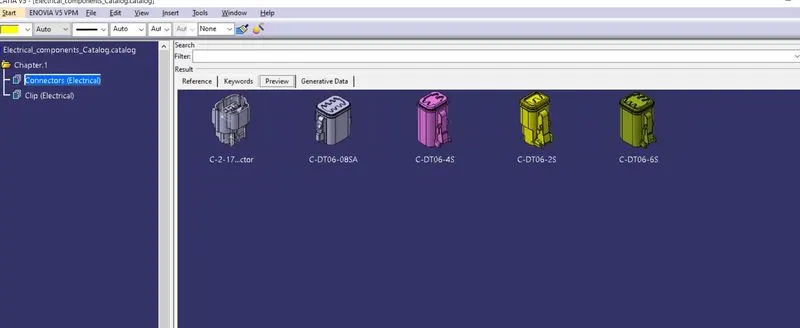

• Defined all electrical properties and added to a catalog

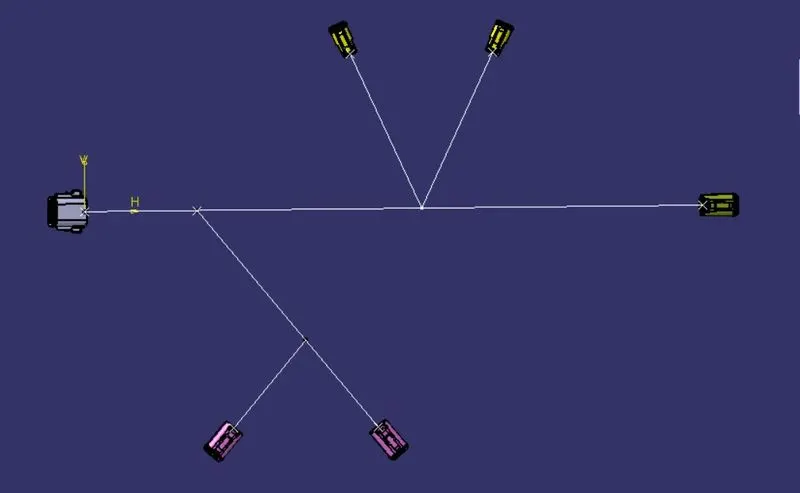

• Arranged of the Connectors as per the Layout

• Created Multi-Branching to the connectors

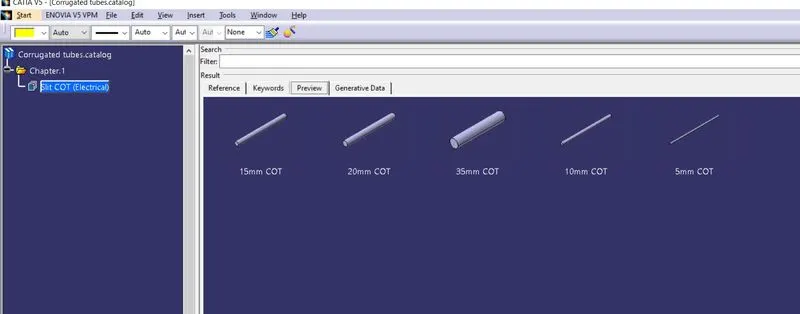

• Created a protective covering and added to the catalog

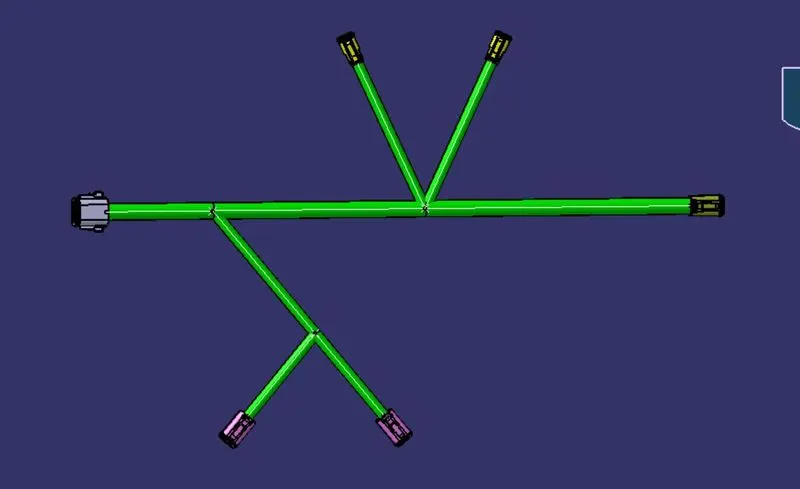

• Wating harness assembly as per layout

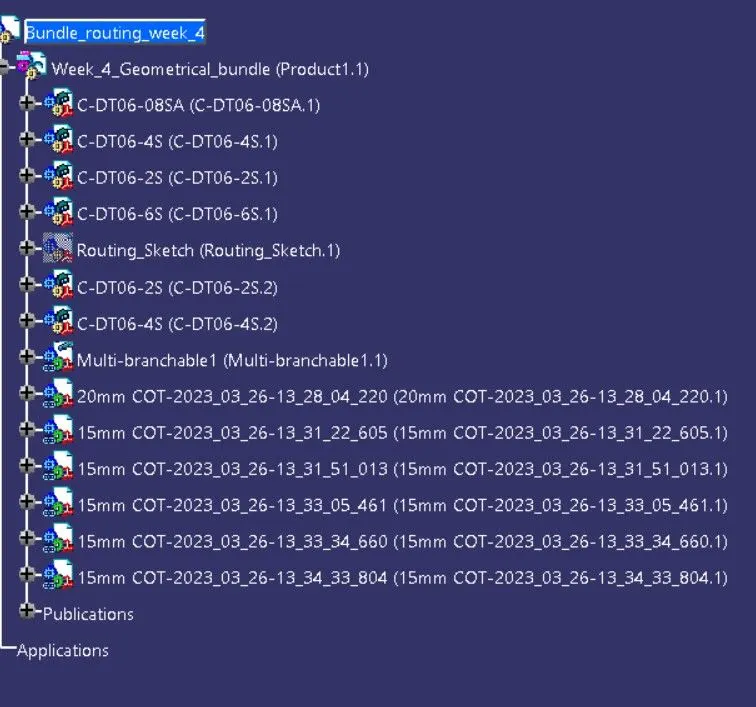

• Design tree of the assembly

RESULT:

Routed the bundle as per the following harness layout given and added protective covering to the bundle using CATIA V5.
