Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

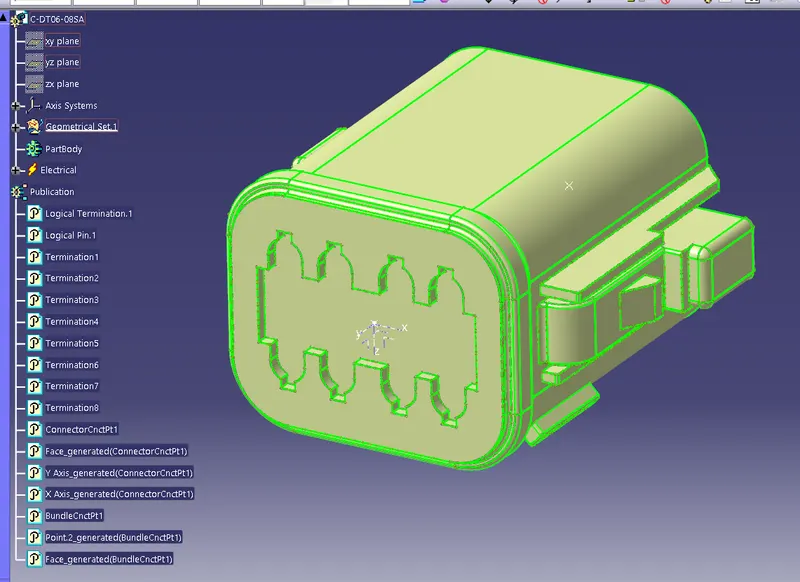

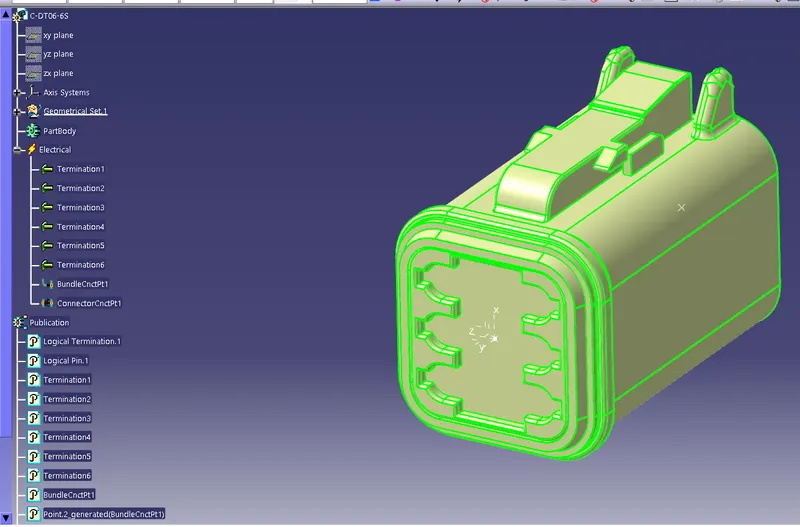

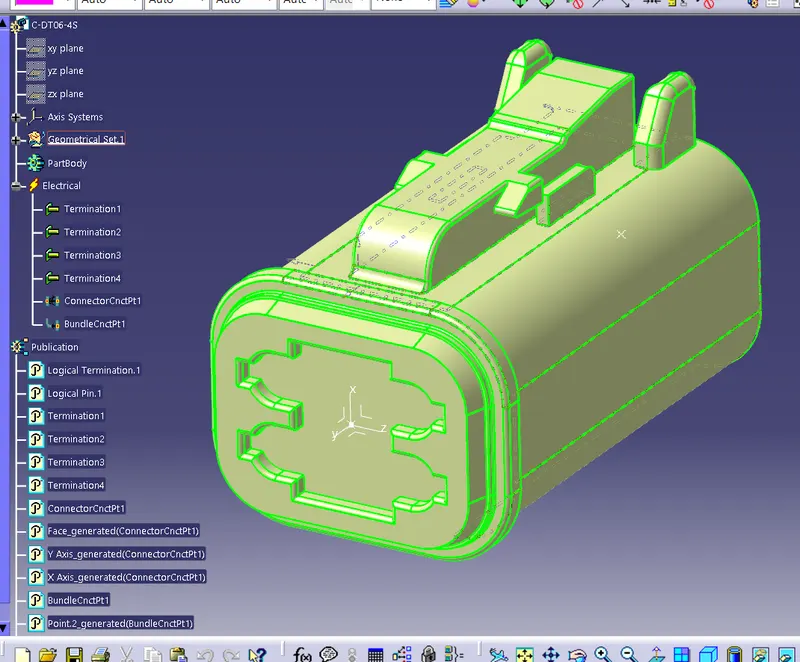

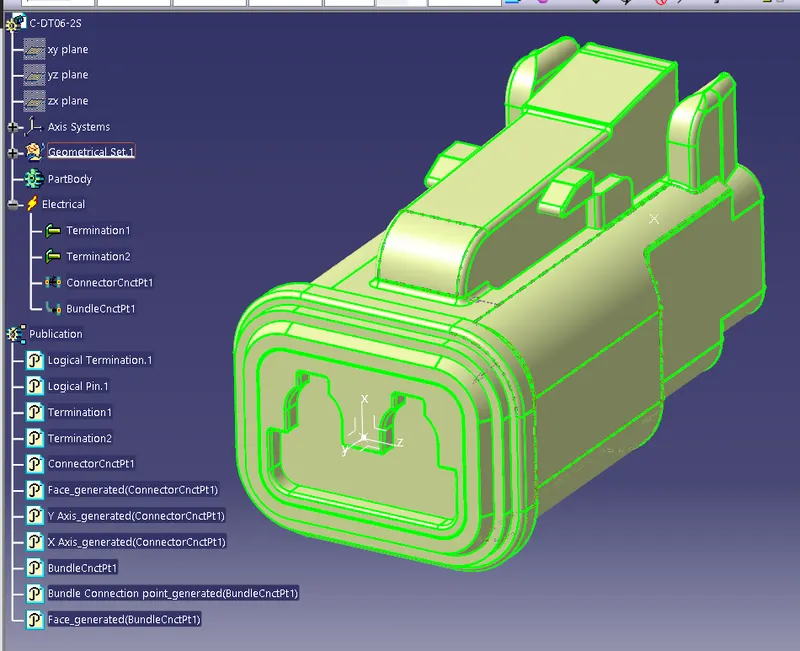

Connectors and electrical Definations.

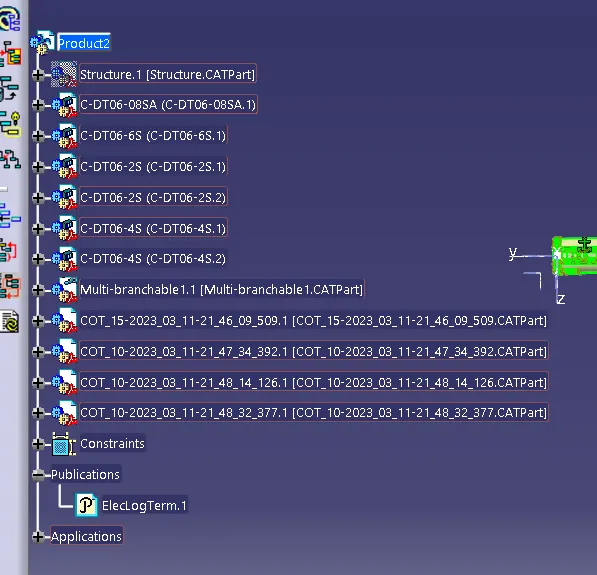

Assembly

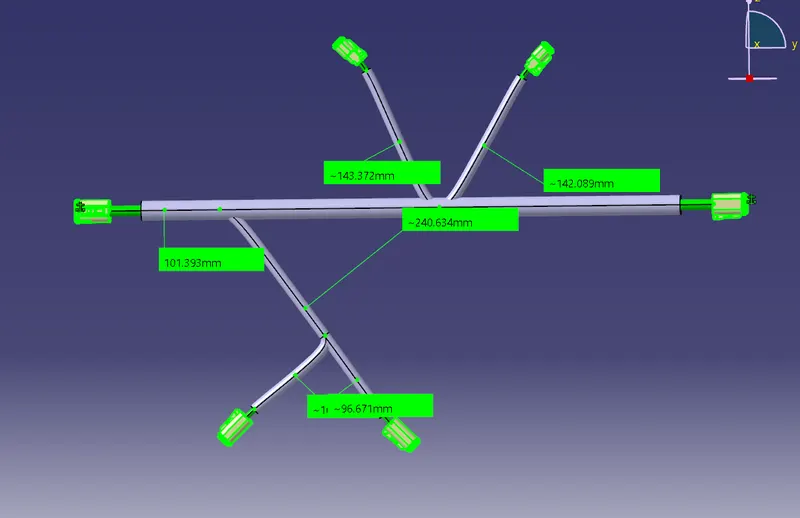

The Distance have shorten as the Coverings are kept away from extreme points. I found it little difficult to arrange connectors on a same plane with angle at specific distance. I have used my approach to do this challenge.

Let me know the mistakes. Couldnt make any mentoring sessions for this due towork constraints.

Coverings are used by using Catalogue that was created.
