Week 8 - Challenge 4 - Bumper

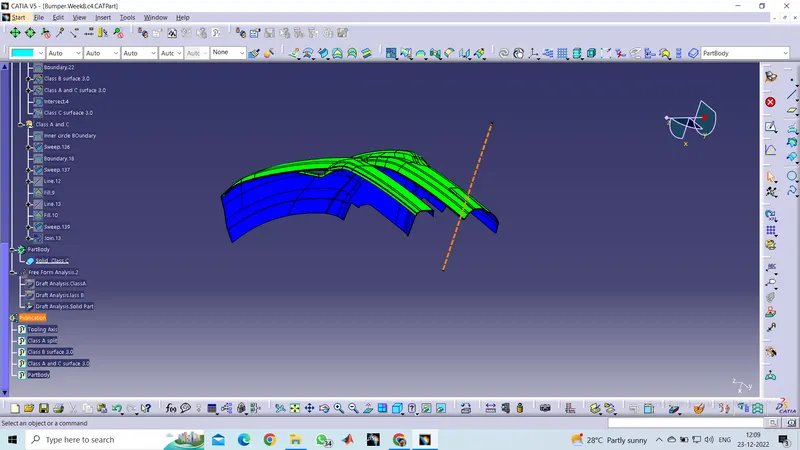

Draft Analysis in class A case was done and found the surface do not have any more than 3degree deviation.

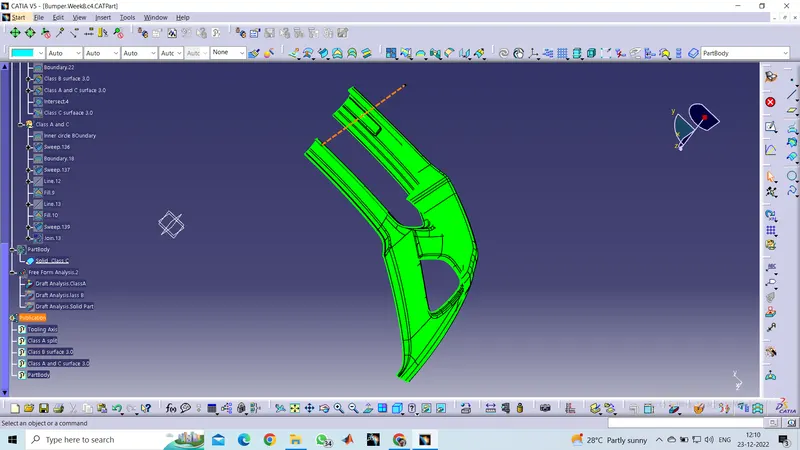

Part design had blue surface below as theres no draft applied there.

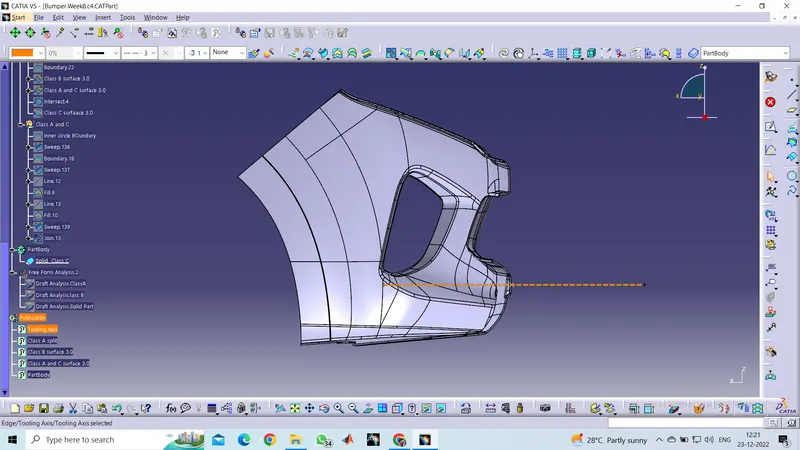

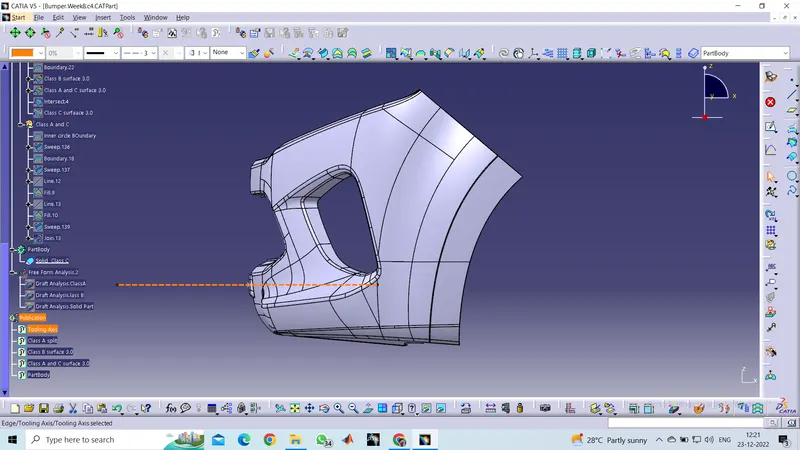

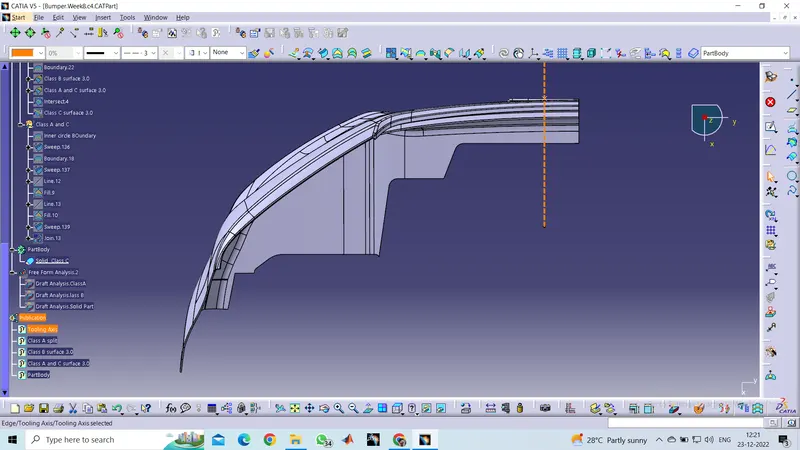

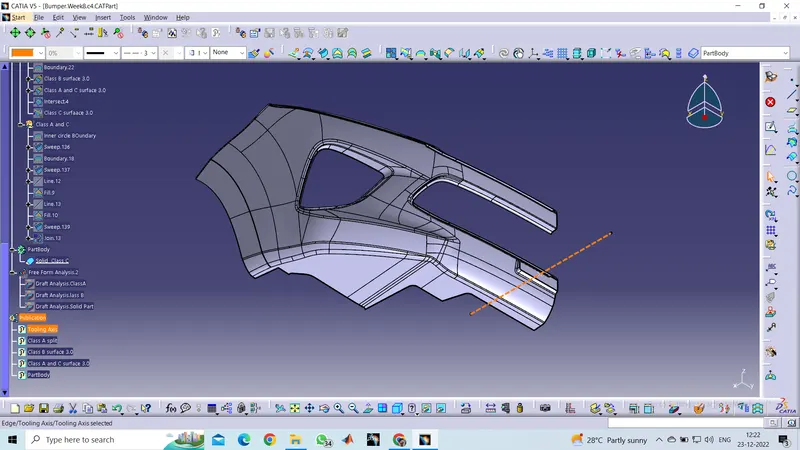

tooling axis inthis case was found to be on number plate as maximum parts were visible when viewed perpendicular to that plane.
