Week 8 - Challenge 2 - Switch Bezel Design

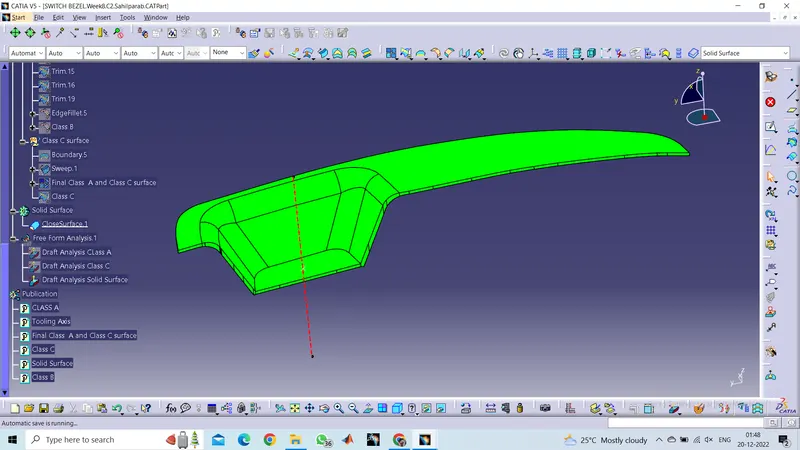

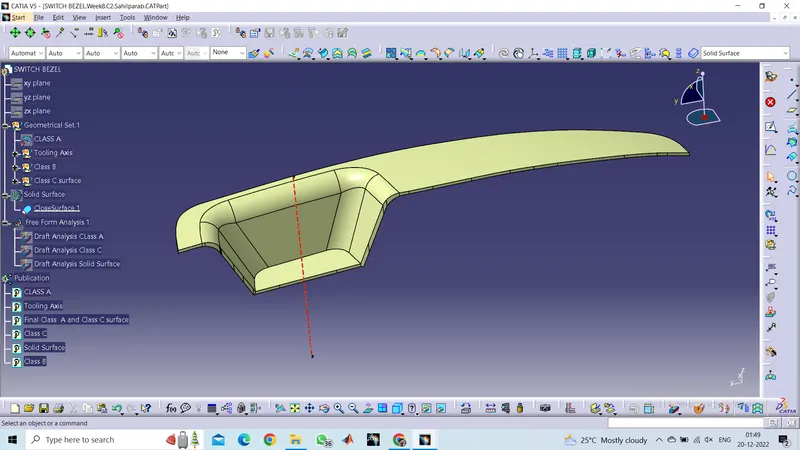

Tooling axis in this case was done by bisecting two dummy axis.

First we take bisection of the class A surface using XY plane and get a dummy axis.Then we try to get a intersection of the same using XZ plane. From this we create a coincident line and a 3degree angled dummy axis 2.

We bisect this two dummy axis in order to get the tooling axis.
