Week 8 - Challenge 3 - Coin Holder Design

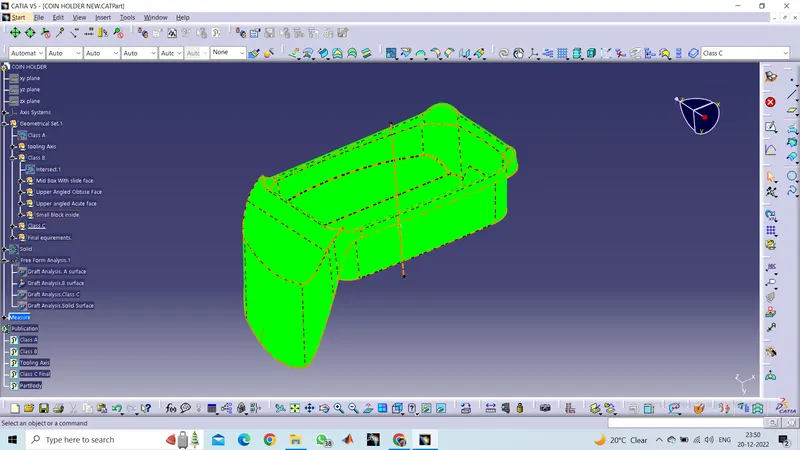

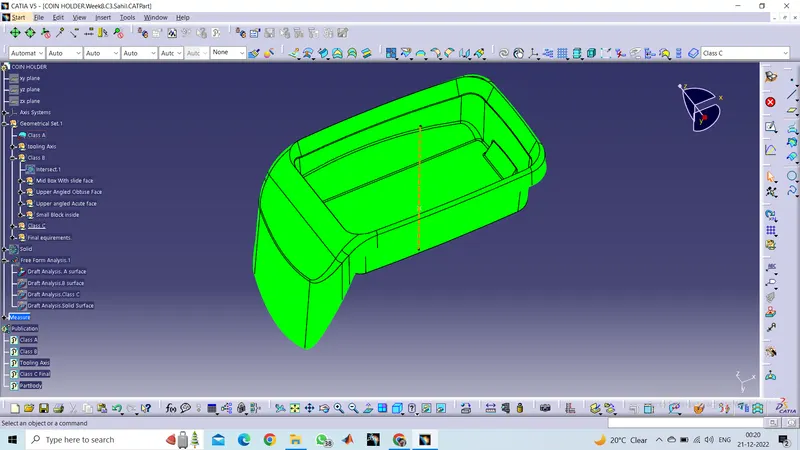

Draft Analysis: When I performed draft analysis on class A , I saw everything green which meant the degree was 3 or more.

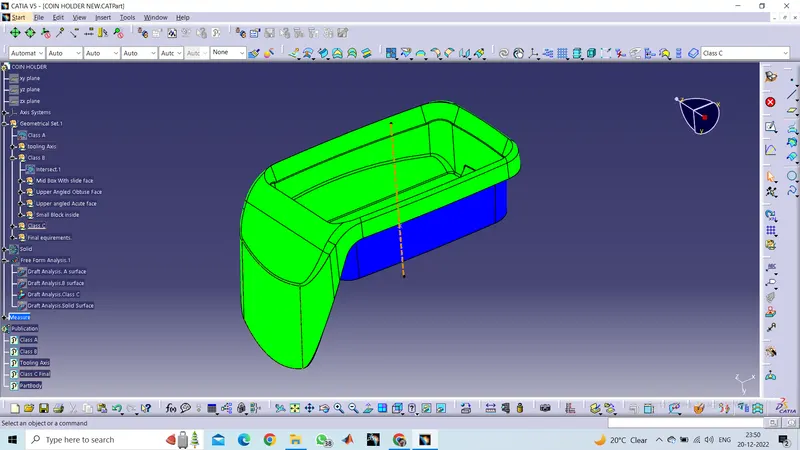

I have arranged a session wrt to thorough Draft Analysis explanation. As of now the blue areas gives me indication that the surface has <3degree surface. Helps in understanding the angular constraints and surfaces.

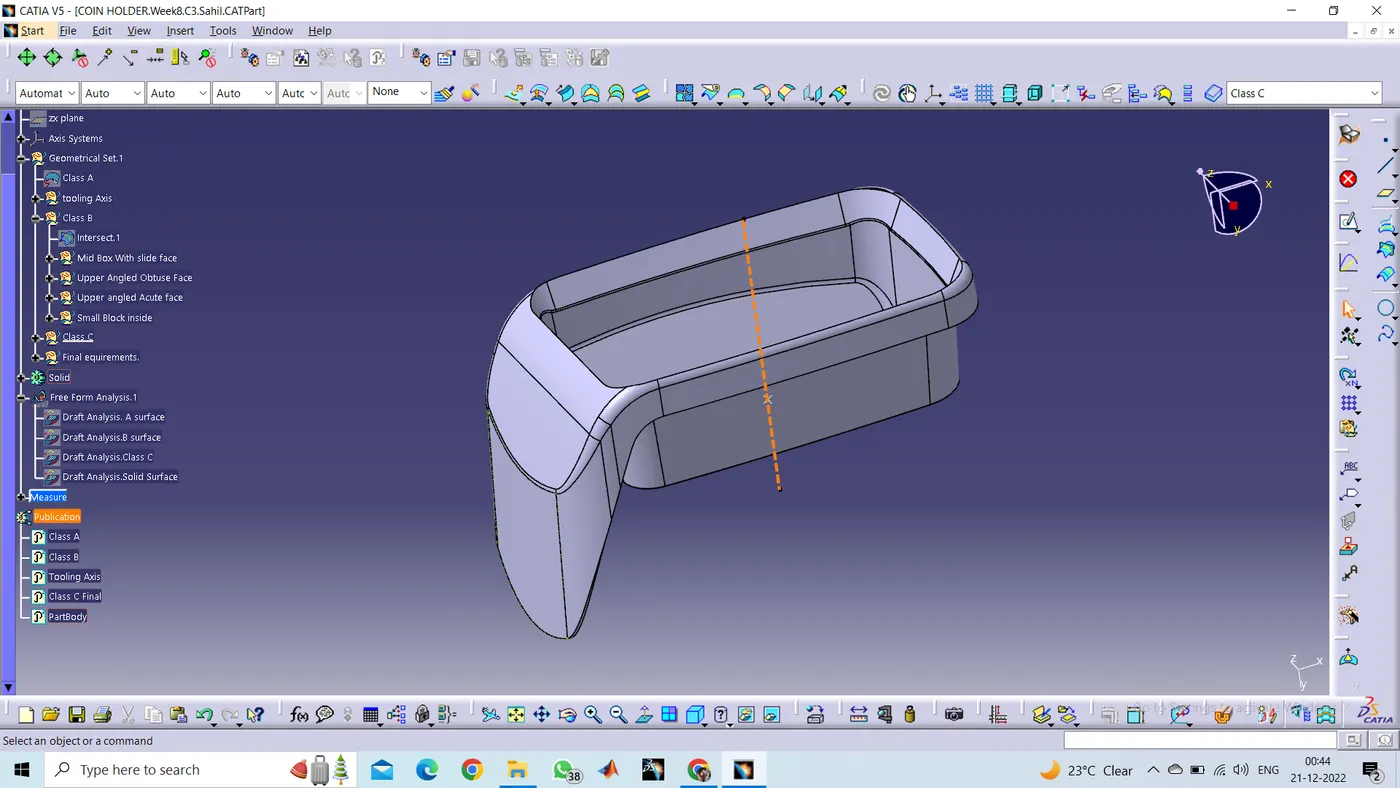

Tooling Axis : The axis where all the surfaces are visible. The direction of mould and cavity movement. inthis case the axis was normal to the surface as the surface is flat and the sidefaces when extracted and untrimed can be seen to have perpendicular side to main surface. The angled surface is not subjected to others so it cannot be considered while getting an tooling axis.
