Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Aim

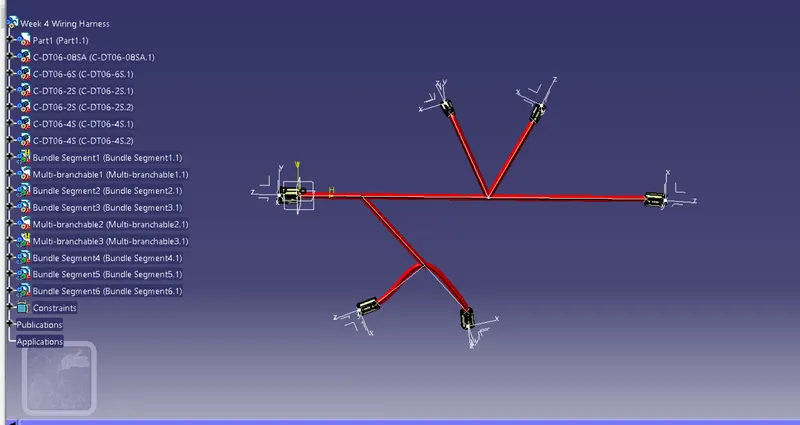

In the electrical workbench, arrange the following harness setup. Make a guess as to the diameters of the harness bundles. Utilize the connectors below as stated in the configuration design. Every branch that is attached to a DT06-2S or DT06-4S connection should have a protective covering. maintain the 30mm end extremity (from connectors end)

The axis definition, connectors, terminals, connector connections, and bundle connection point should all be represented in the give connectors

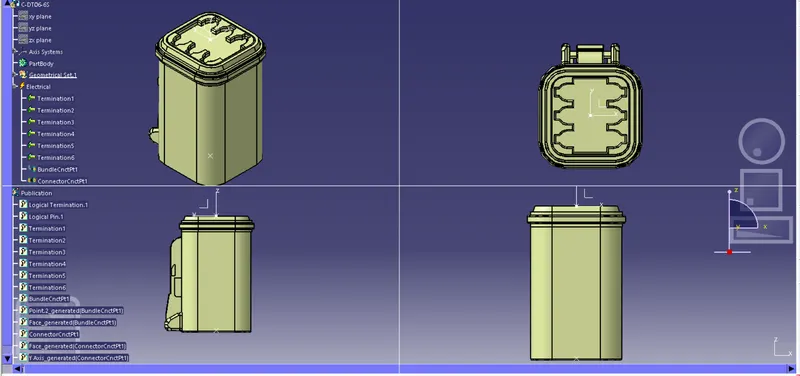

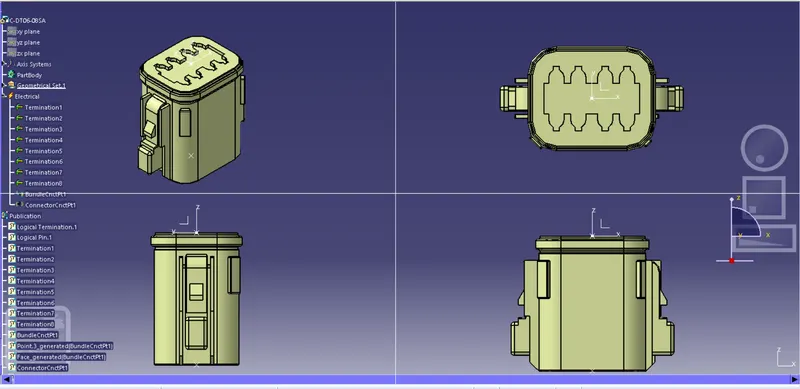

DT06-08SA

DT06-6S

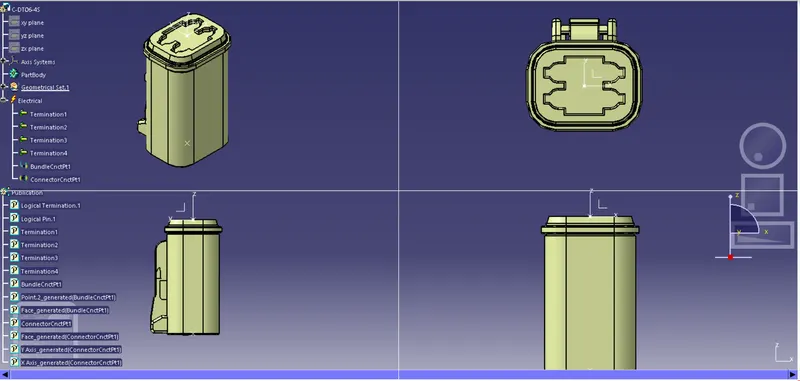

DT06-4S

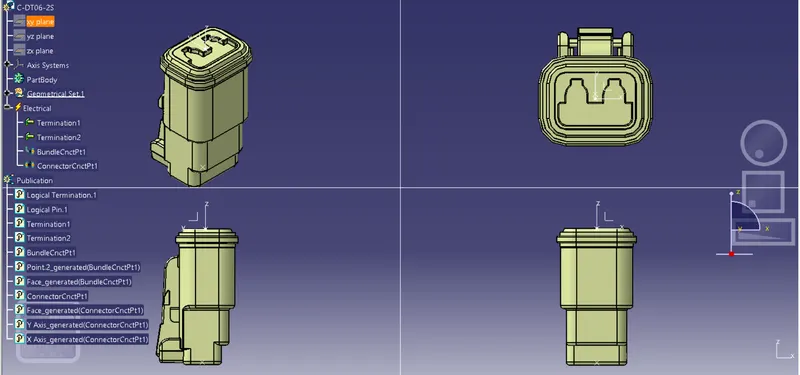

DT06_2S

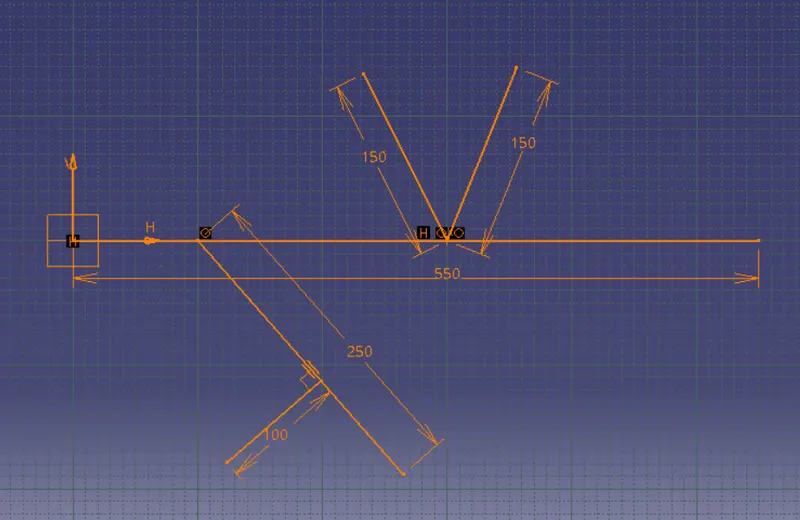

Wiring Harness Sketch

Construct a basic schematic in which all connectors are linked in accordance with the wire harness diagram's requirements.

Wiring Harness Connectors
