Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

The given connectors were downloaded from the www.te.com

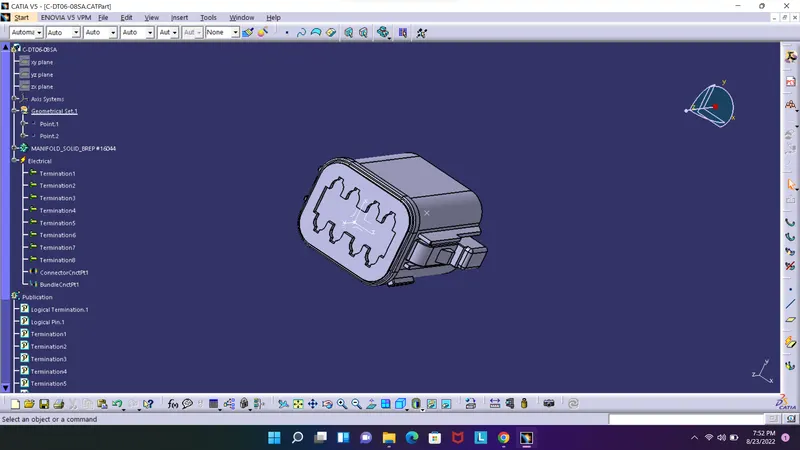

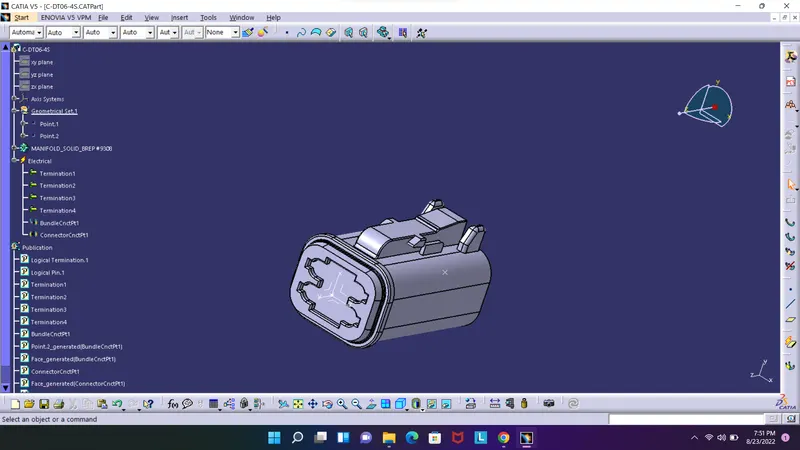

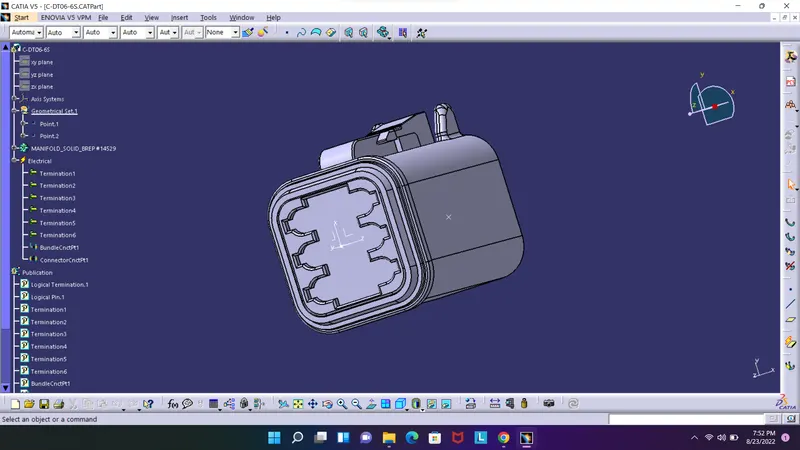

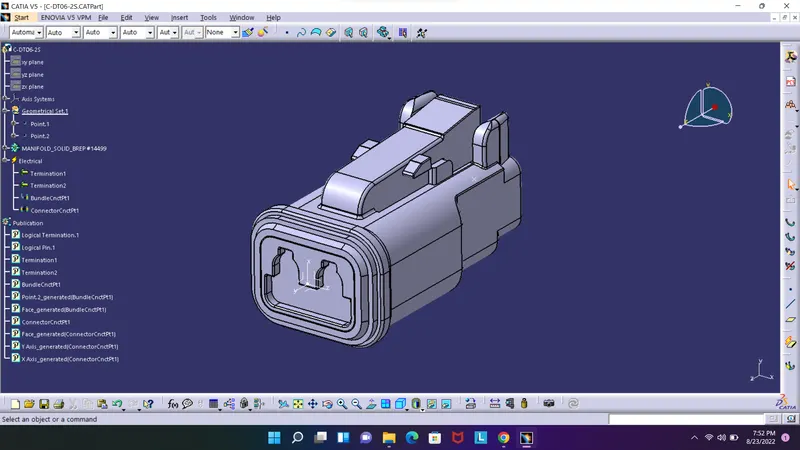

• Connector connection point
• bundle connection point
• axis system at the connector connection point
• define all the connectors as electrical components

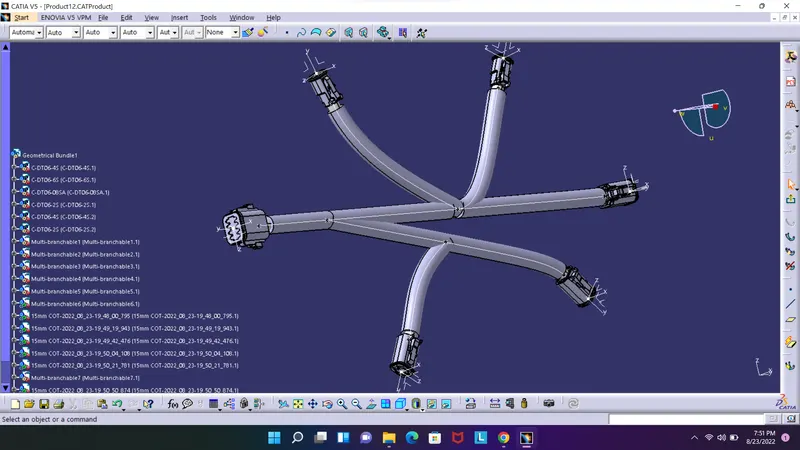

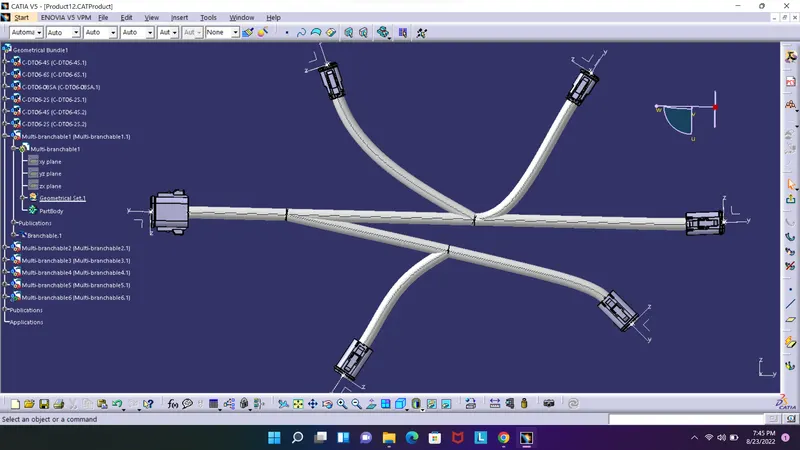

We use the multi branchable to add all the necessary brances , branch points in the wiring and harness assembly.

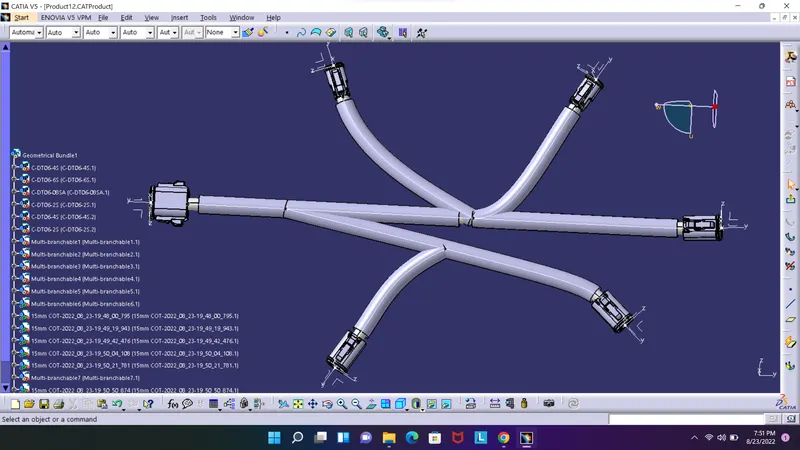

Protective coverings were added to the harness assembly.
