Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

WIRING HARNESS DESIGN IN CATIA V5 - 3D MODELING WEEK 4 CHALLENGE

AIM:

Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.

Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)

OBJECTIVE:

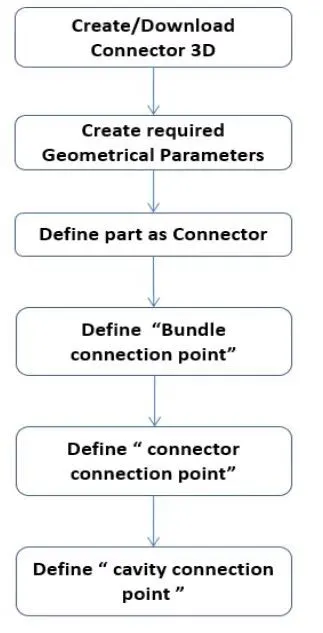

Flow chart of wiring and harness assembly

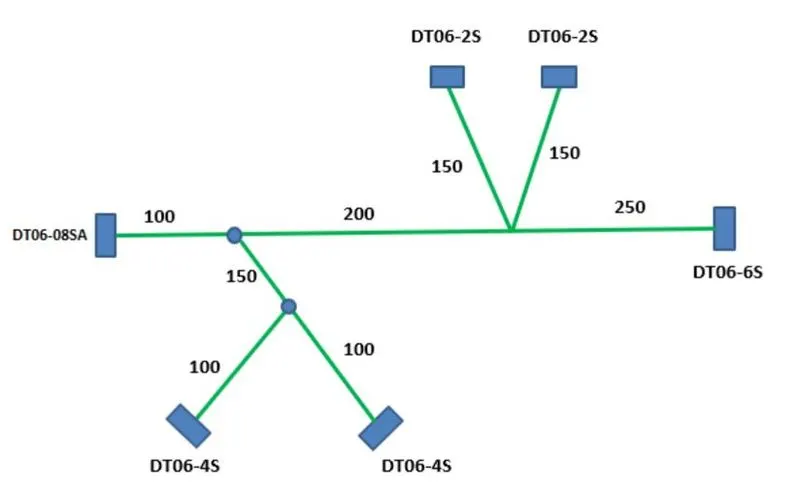

Connector layout diagram:

The connectors is define as

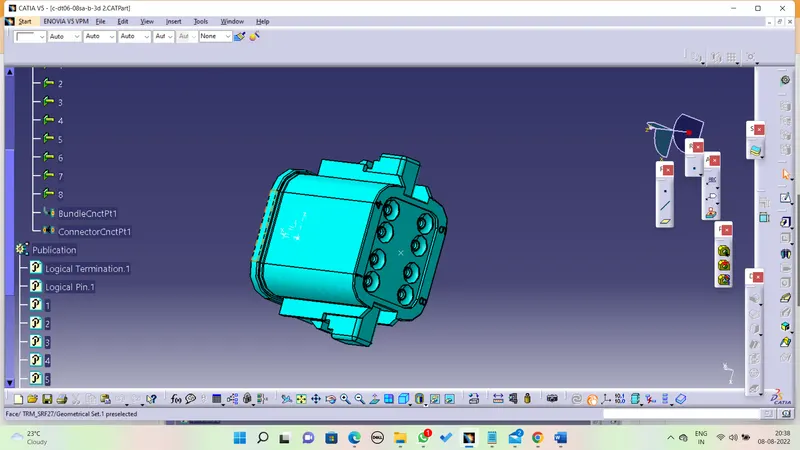

• Connector connection point
• Bundle connection point
• Axis system of the connector connection point

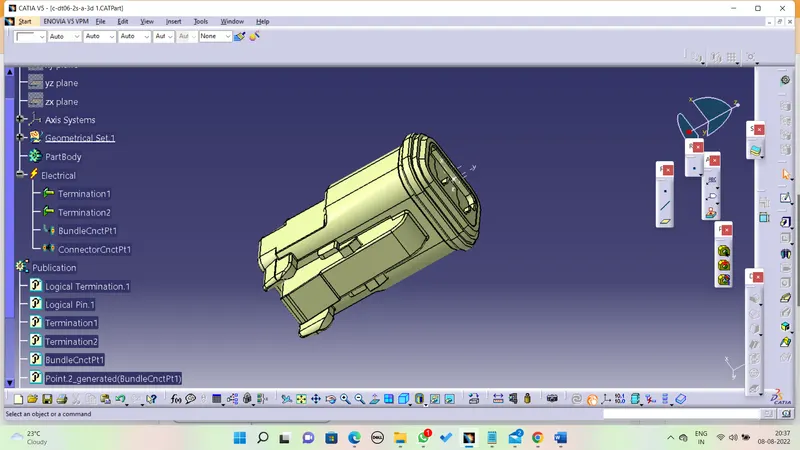

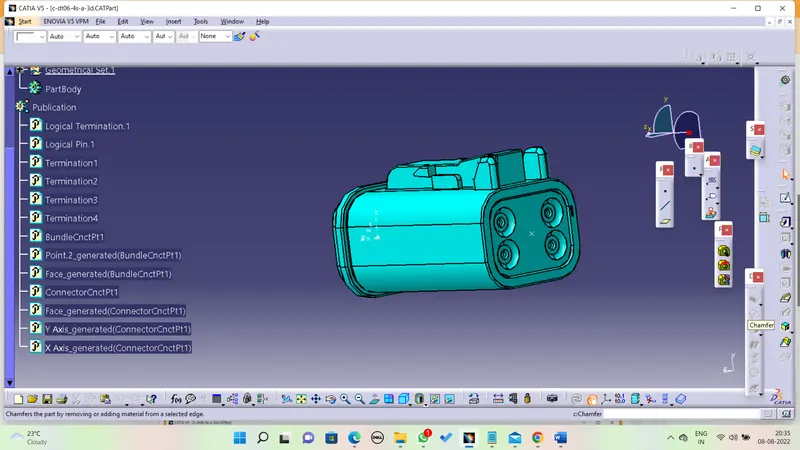

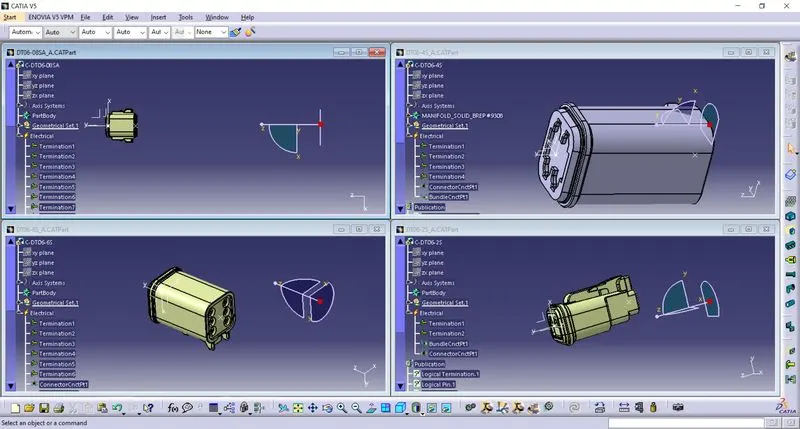

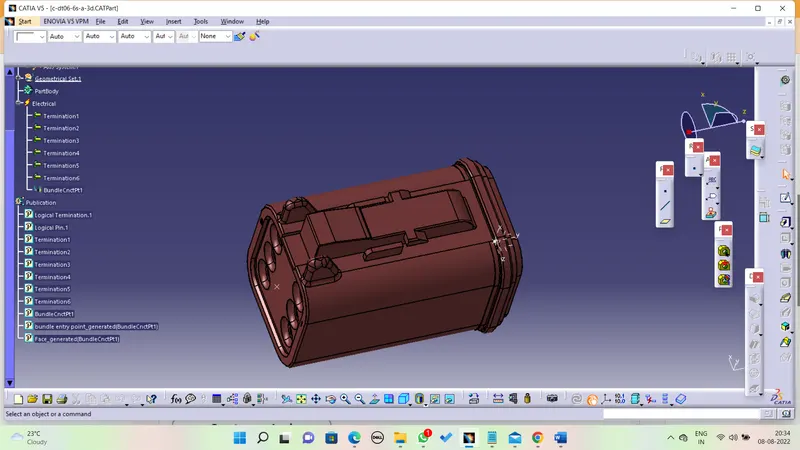

• Define the all connectors as electrical components

Download connector 3D data from www.te.com

• DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

1.DT06-4S

2.DT06-6S

3.DT06-2S

4.DT06-08SA

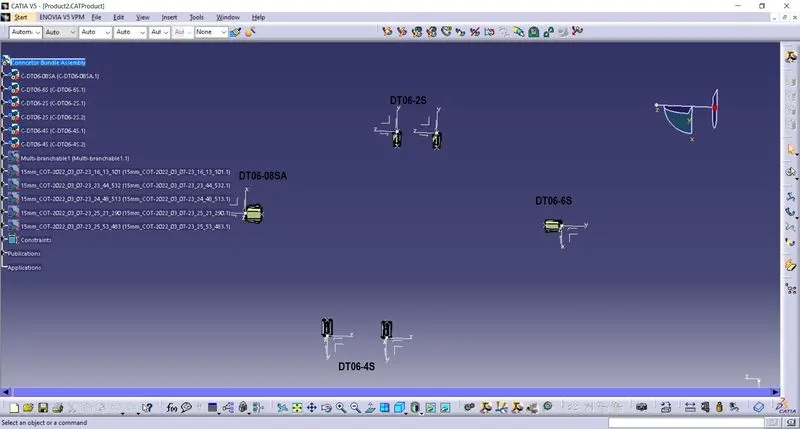

The connectors are assembled by given layout drawing

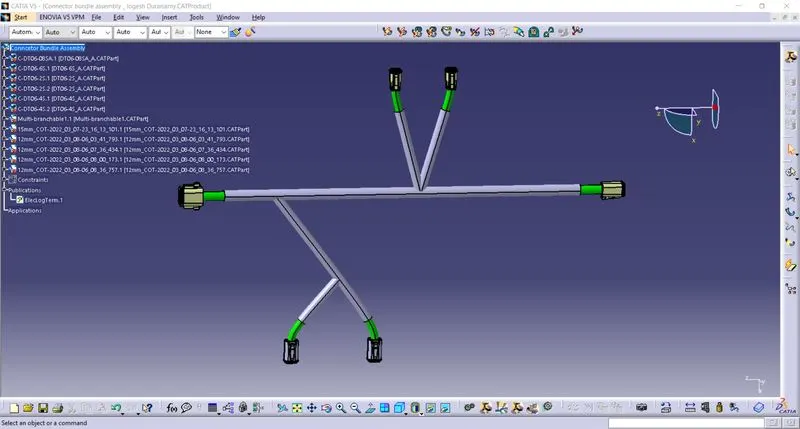

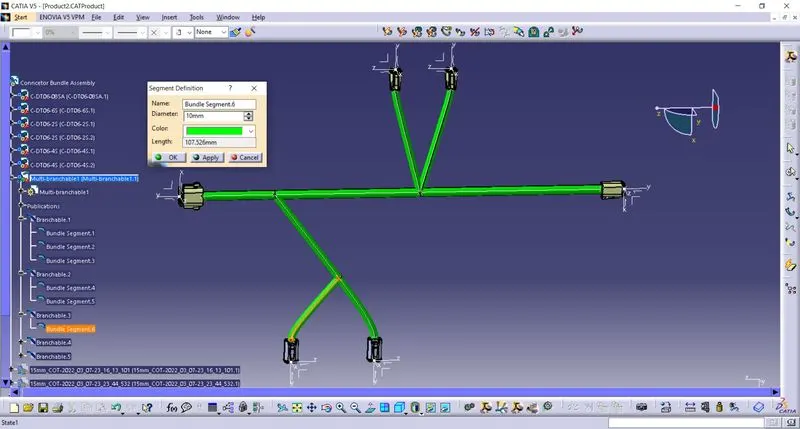

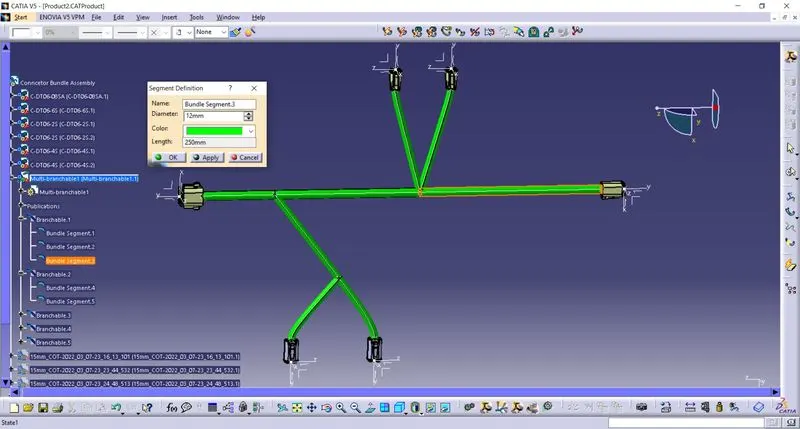

We use the multi branchable to add all the necessary branches, branch points in the wiring and harness assembly.

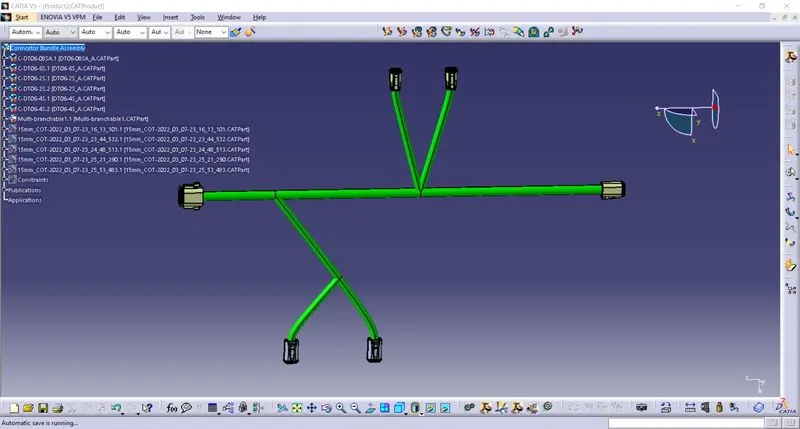

After added the protective covering in the wiring and harness assembly
