Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

The given electrical components are as follows

Deutsch DT06 – 08SA

Tyco 174357-2

Tyco 85229-1

All the given components are opend in electrical part design workbench to define the components as conectors and cavity

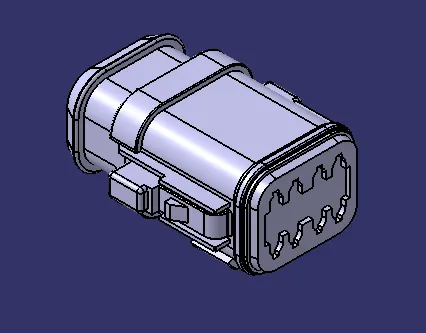

Deutsch DT06 – 08SA

firts the part is defined as connector by mentioning the number of terminal present in the connector.

Then the connector connection point and bundle connection point are defined which were created in mechanical part workbench at the positions as shown in the pictures below.

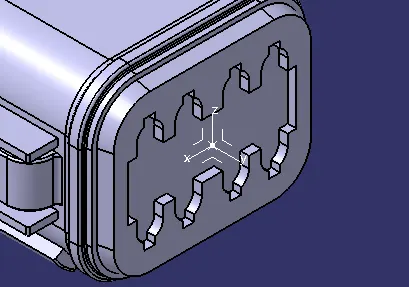

Connector Connection Point

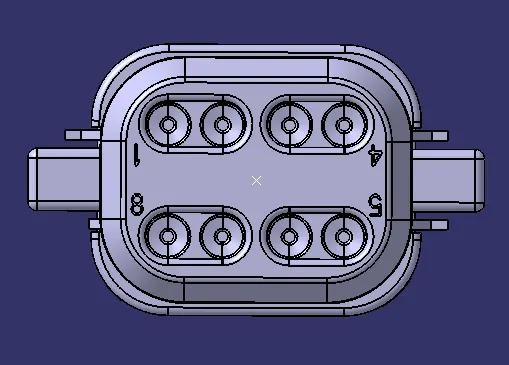

Bundle Connection Point

Electrical Properties

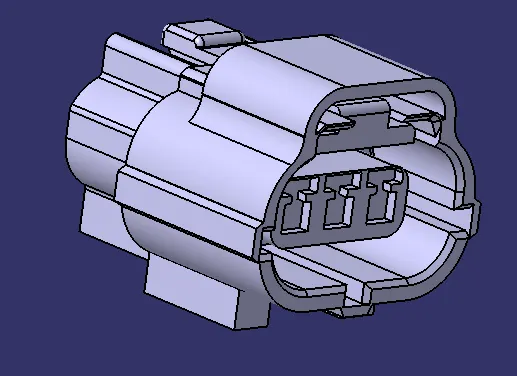

Tyco 174357-2

firts the part is defined as connector by mentioning the number of terminal present in the connector.

Then the connector connection point and bundle connection point are defined and since the given part has a cavity locking system so the cavity connection point is also defined which were created in mechanical part workbench at the positions as shown in the pictures below.

Connector Connection Point

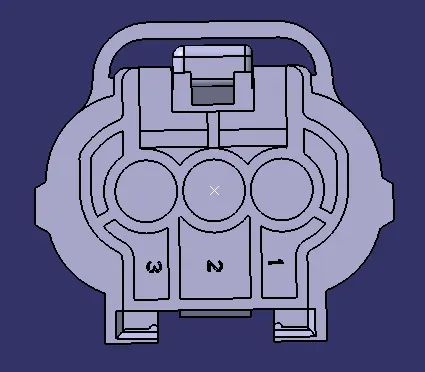

Bundle Connection Point

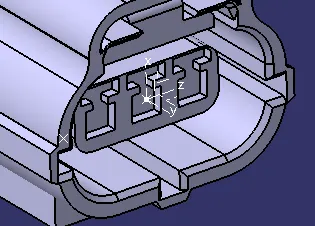

Cavity Connection Point

Electrical Properties

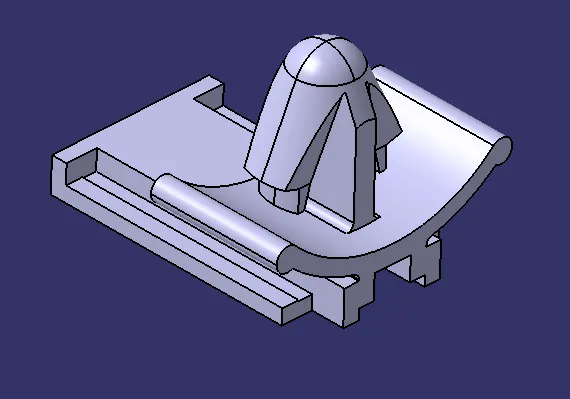

Tyco 85229-1

first the part is defined as an equipment.

Then the equipment is defined as the cavity and cavity conection point was defined which was created in mechanical part workbench at the positions as shown in the pictures below.

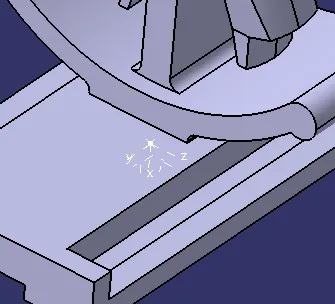

Cavity Connection Point

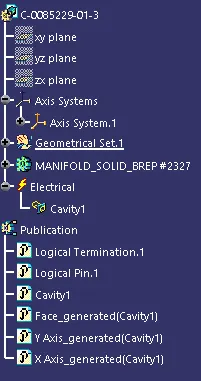

Tree sructure
