Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

AIM : Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

1. Deutsch DT06 – 08SA

2. Tyco 174357-2

3. Tyco 85229-1

PROCEDURE :

STEP-1

TO GET SOME SETTINGS FOR ELECTRICAL WORKBENCH

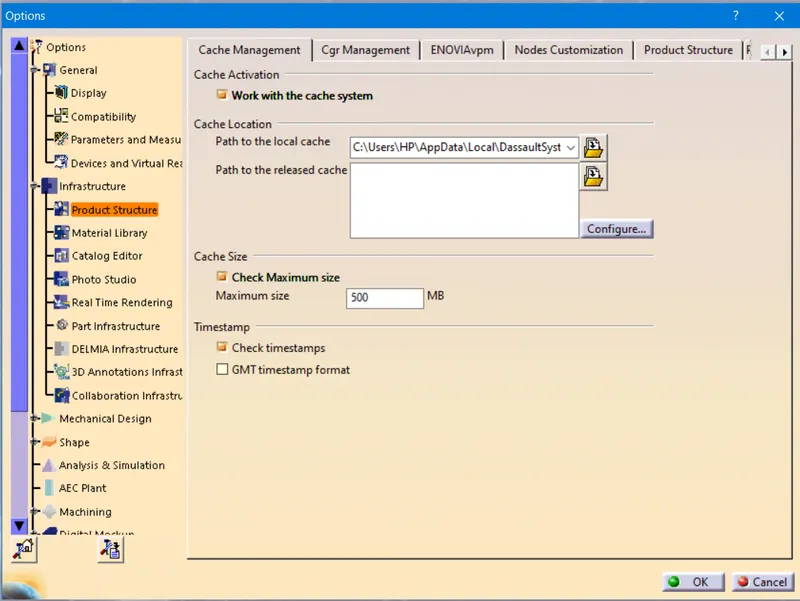

1. TOOLS - OPTIONS - INFRASTRUCTURE - PRODUCT STRUCTURE - CACHE MANAGEMENT

WORK WITH THE CACHE SYSTEM (ENABLE)

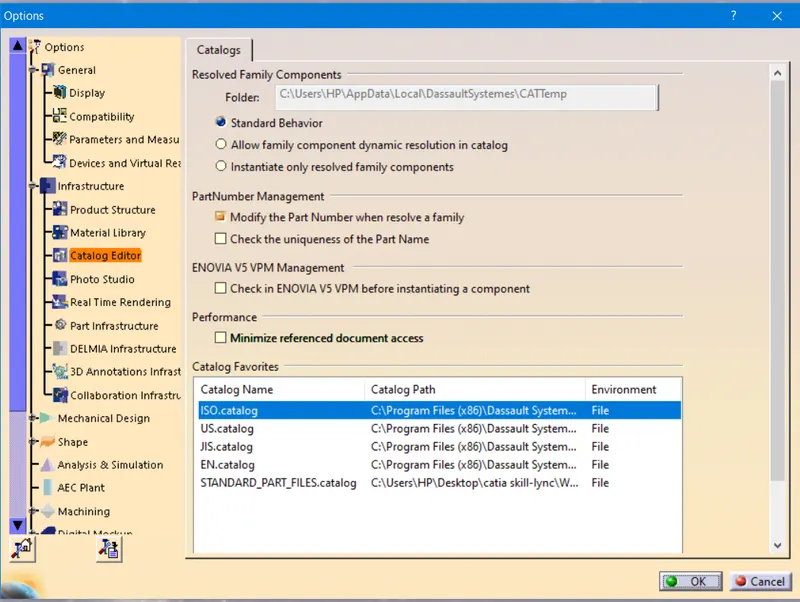

2. TOOLS - OPTIONS - INFRASTRUCTURE - CATLOGE EDITOR

USED TO ADD OUR OWN CUSTMIZE CATLOUGES

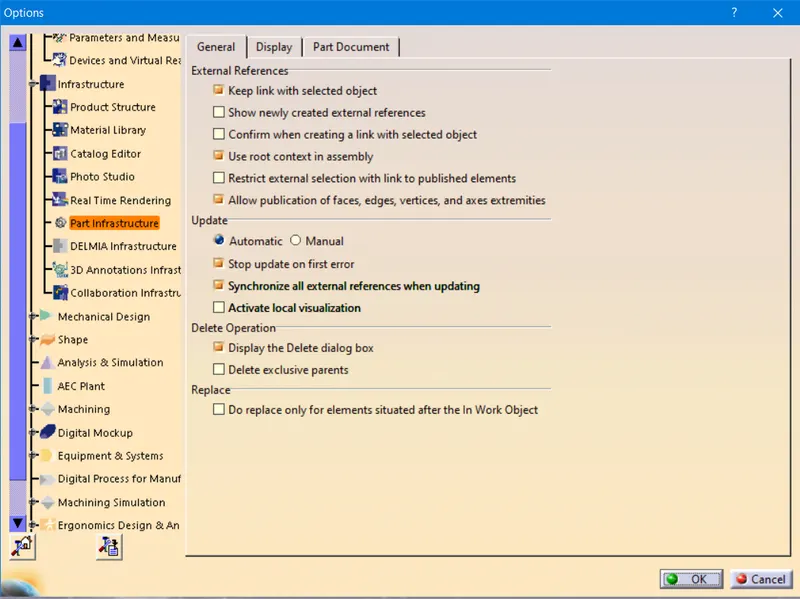

3. TOOLS - OPTIONS - INFRASTRUCTURE - PART INFRASTRUCTURE

KEEP LINK WITH REFERNCE FILE (ENABLE)

UPDATE - AUTOMATIC

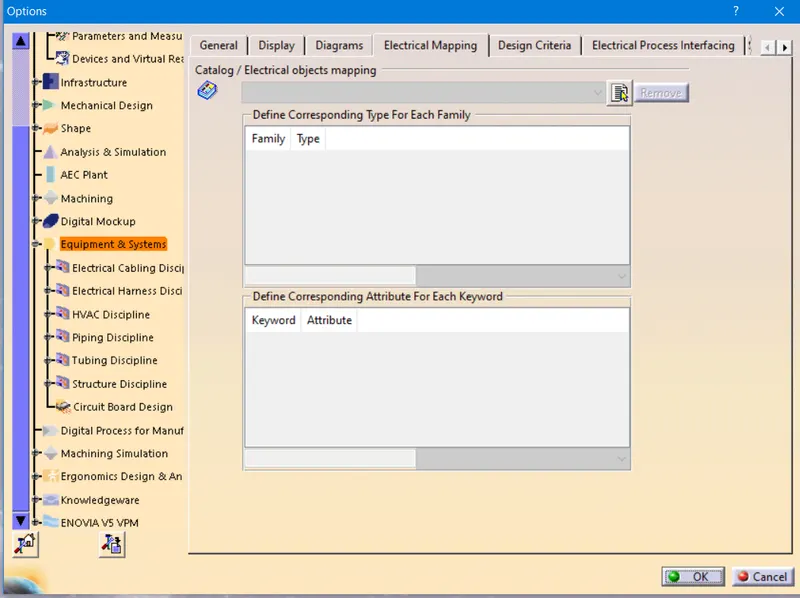

4. TOOLS - OPTIONS - EQUIPMENT & SYSTEMS - ELECTRICAL MAPING

USED TO LOAD THE CATLOG FAMILY

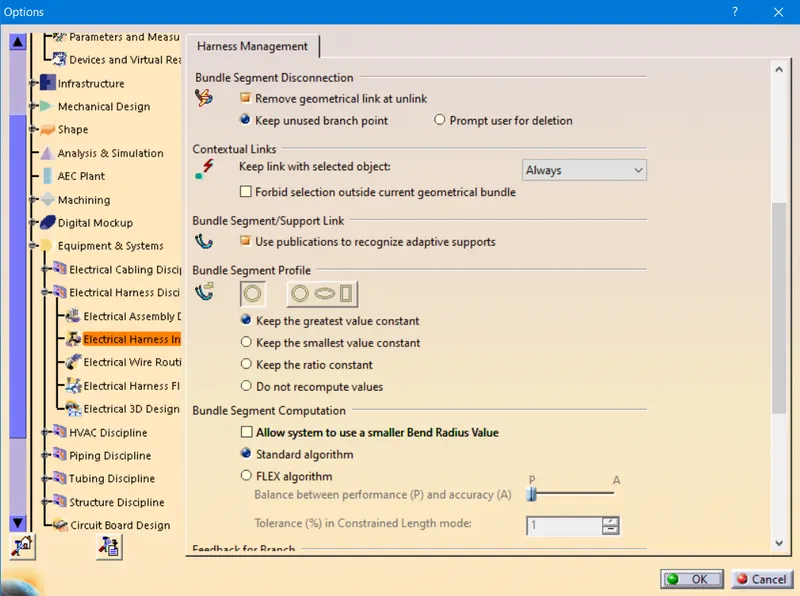

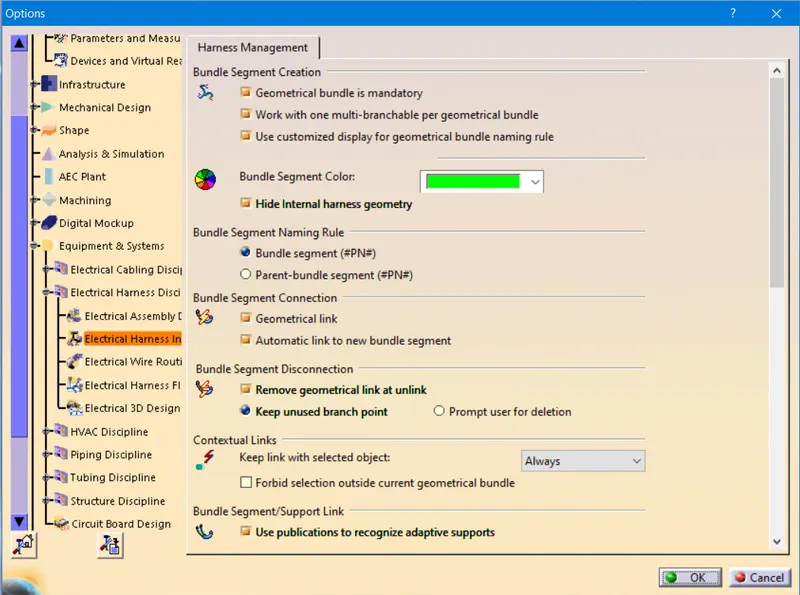

5. TOOLS - OPTIONS - EQUIPMENT & SYSTEMS - ELECTRICAL HARNESS DISCIPLINE - ELECTRICAL HARNESS INSTALATION

1. SELECT ALL OPTIONS IN BUNDLE CREATION

2. COLUR CAN BE CUSTOMIZE

3. CONTEXTUAL LINKS - ALWAYS

4. BUNDLE SEGEMENT PROFILE - STD - CIRCULAR PROFILE

STEP-2

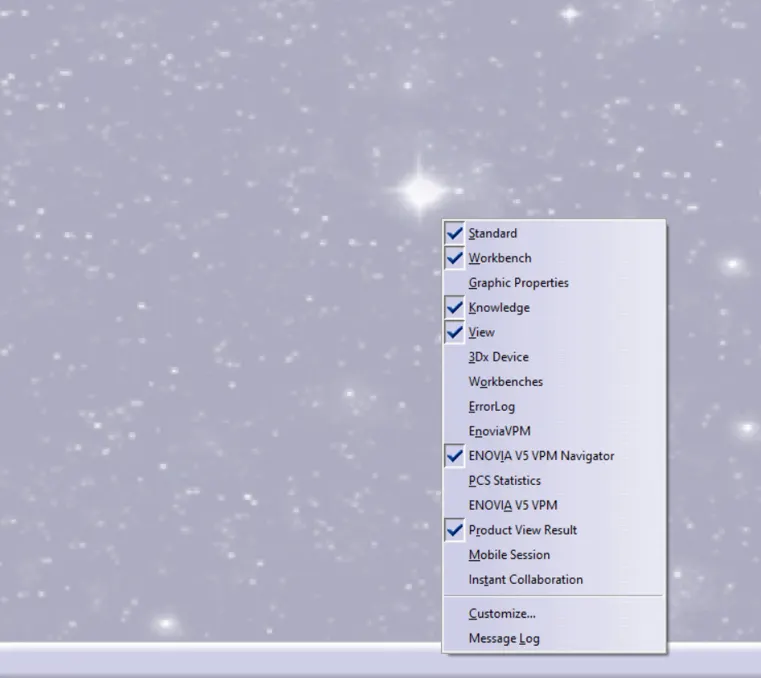

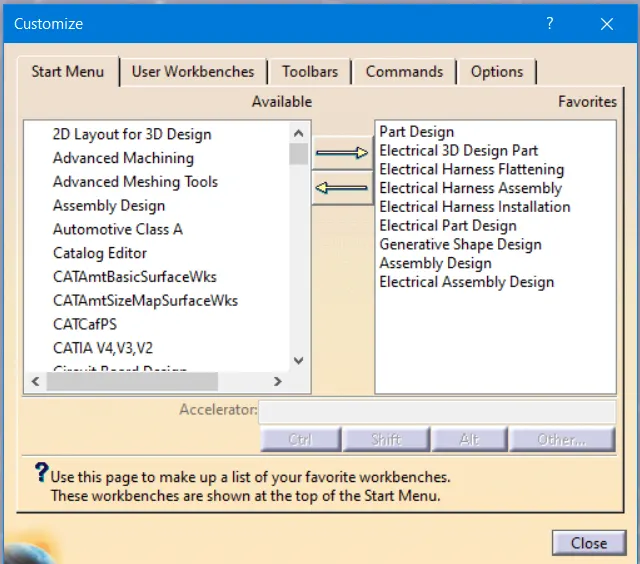

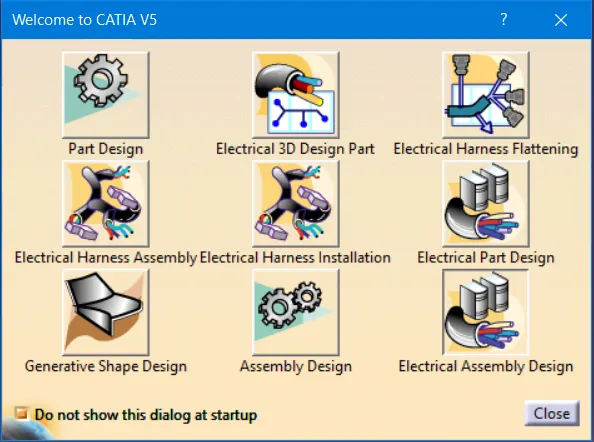

ADDING FAV WINDOW

RIGHT CLICK TO ADD ON CUSTOMZE THE PEOPERTIES

NOW ADD THE REQUIRED OPTION ON FAVORITES WINDOW

CONVERTING MECHANICAL PARTS TO ELECTRICAL PARTS

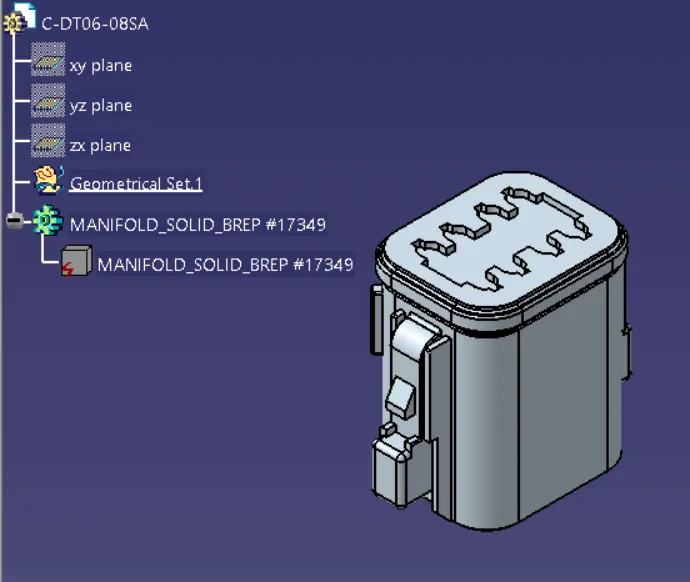

1. Deutsch DT06 – 08SA

STEP-1 (DOWNLODE THE PART FROM TE.COM WEBSITE)

MECHANICAL PARTS WITHOUT ELECTRICAL FILES

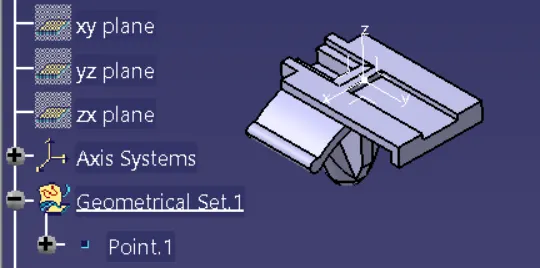

STEP-2 (CREATING REQUIED GEOMETRICAL PARAMETRS)

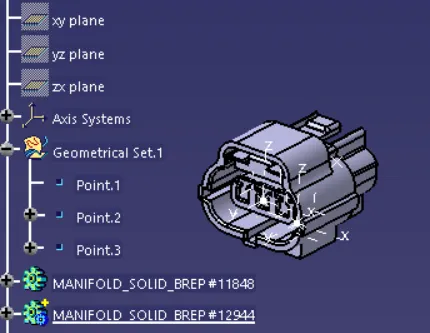

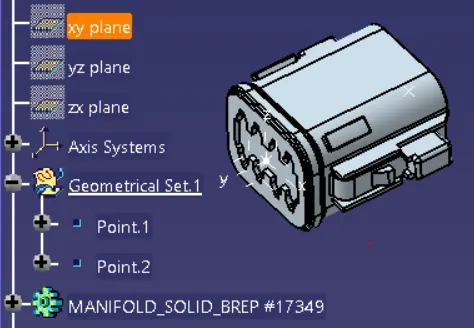

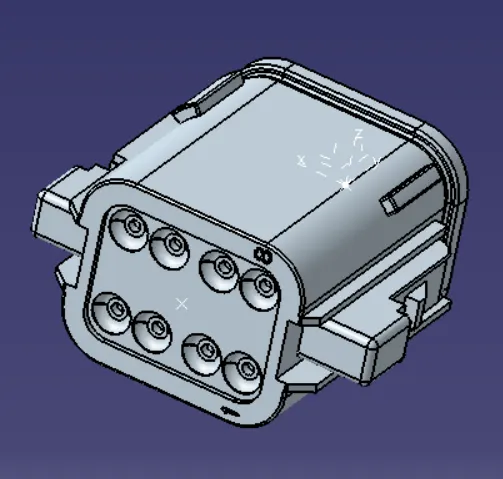

1. CREATE THE POINT AT THE MATEING FACE OF CONNECTOR

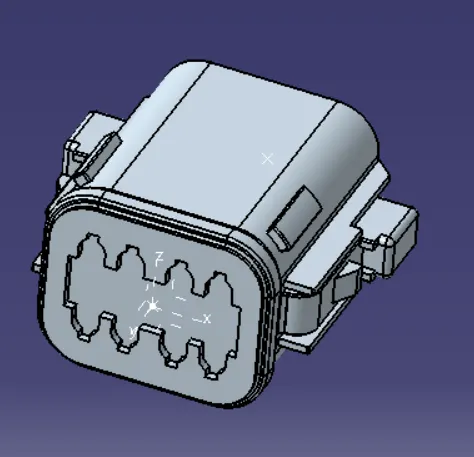

2. CREATE AXIS SYSTEM USING THE PONT

X - TOWARDS THE LOCKING SIDE OF CONNECTOR

Y - NOMAL TO FACE TO CONNECTOR

Z - PERPENDECULAR TO THE X

3. CREATE A POINT USING THE BETWEEN OPTION AT THE BUNDLE POINT AND CONNECTOR POINT

BUNDDLE POINT

CONNECTOR POINT

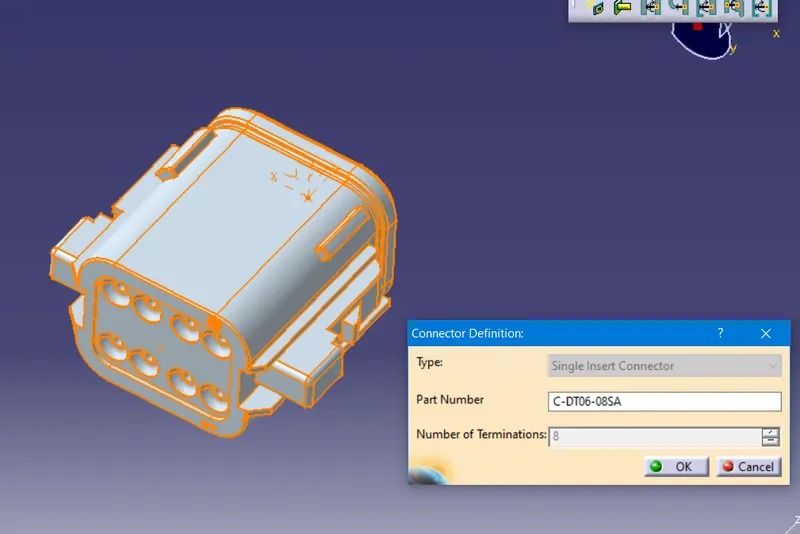

STEP-3(CONVERTING PART AS CONNECTOR)

NO OF TERMINALS AS - 8NO

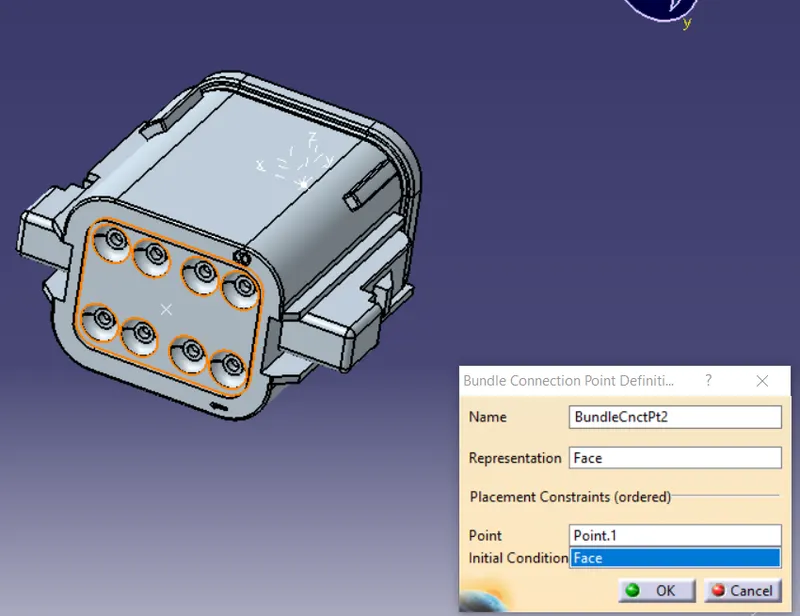

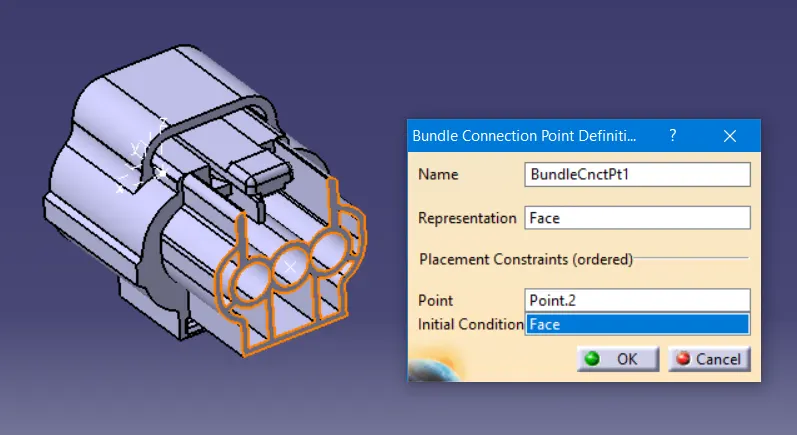

STEP-4(DEFINE"BUNDLE CONNECTION POINT")

USE OF POINT DEFINE ALL THE REFERNCE FOR BUNDLE CONNECTION

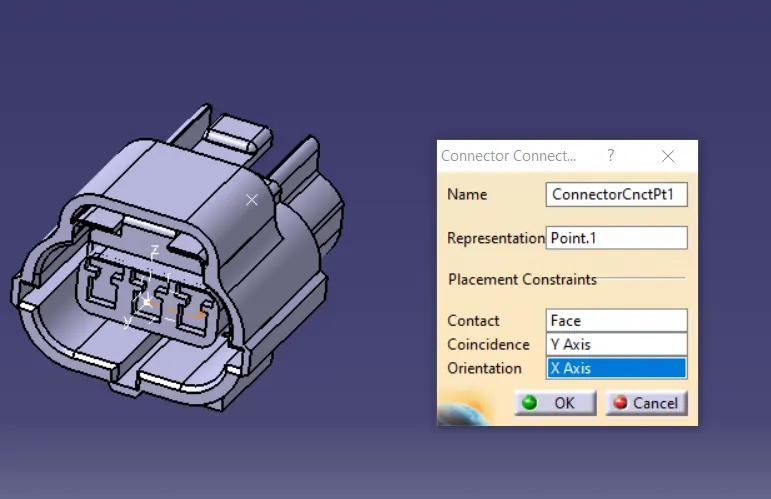

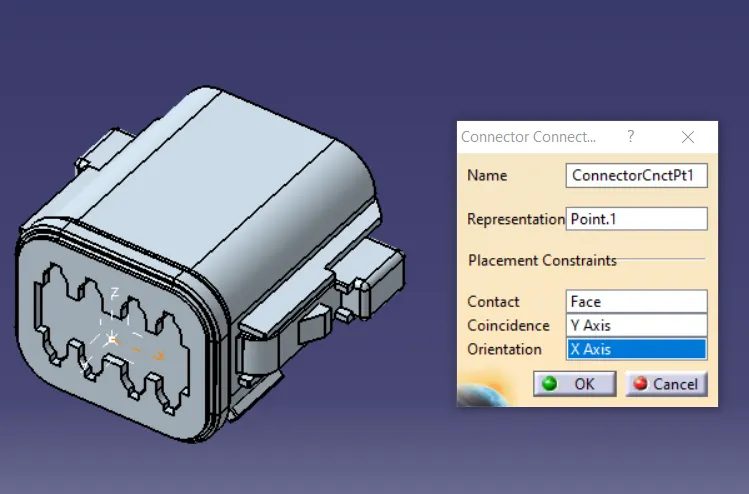

STEP-5("CONNECTOR CONNECTION POINT")

USE OF AXIS DEFINE ALL THE REFERNCE FOR BUNDLE CONNECTION

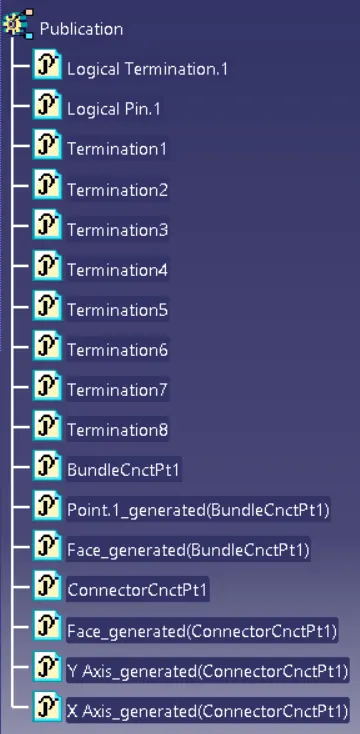

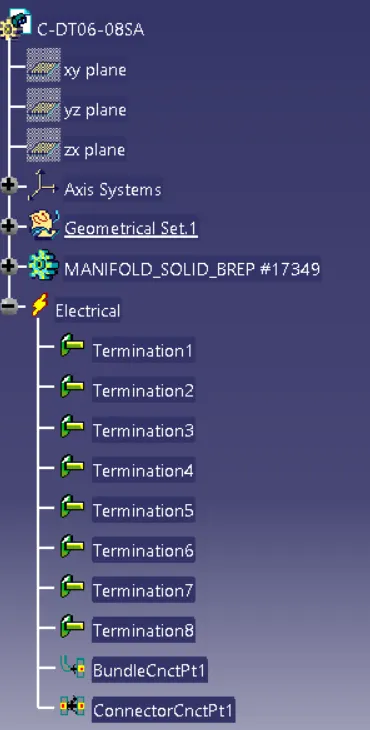

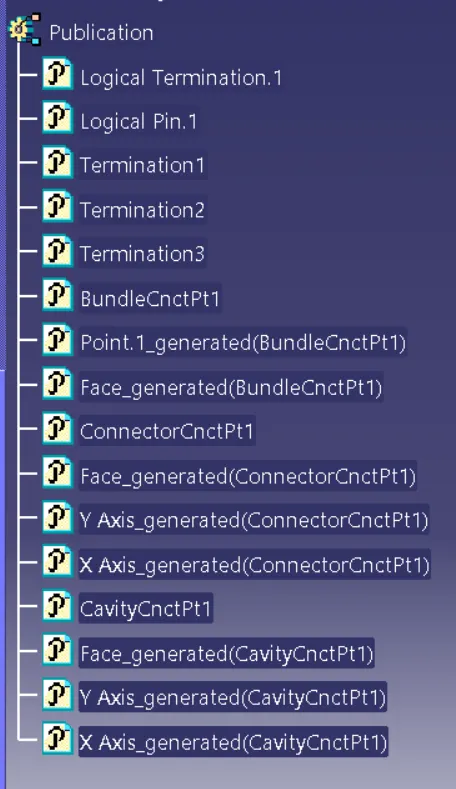

DESIGN TREE

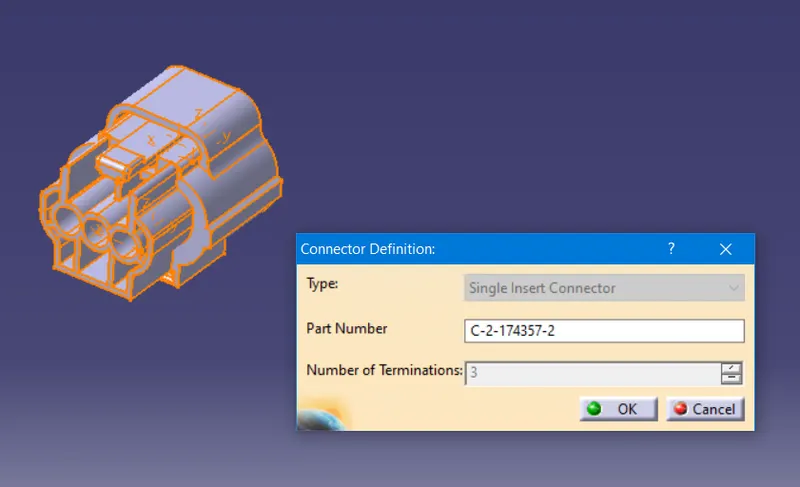

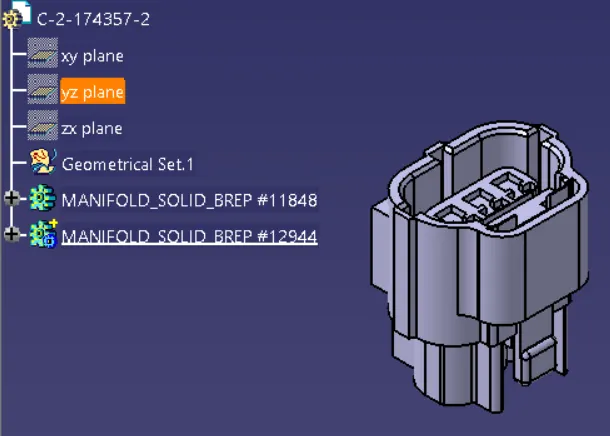

2. Tyco 174357-2

STEP-1

STEP-2

STEP-3

STEP-4

STEP-5

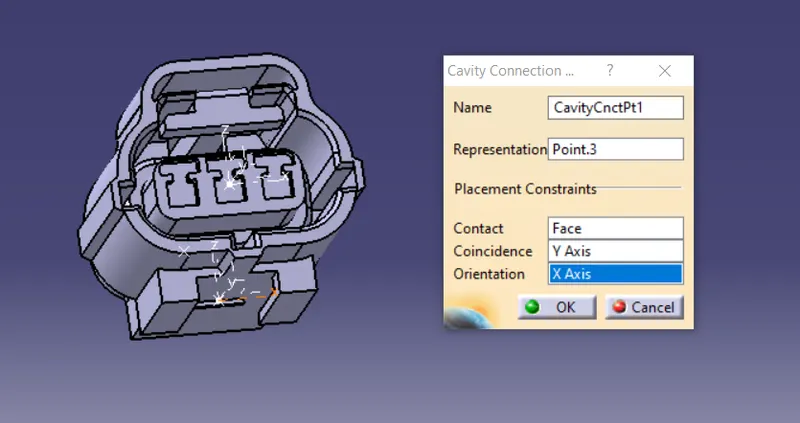

STEP-6 (DEFINE"CAVITY CONNECTION POINT")

USE OF AXIS DEFINE ALL THE REFERNCE FOR BUNDLE CONNECTION

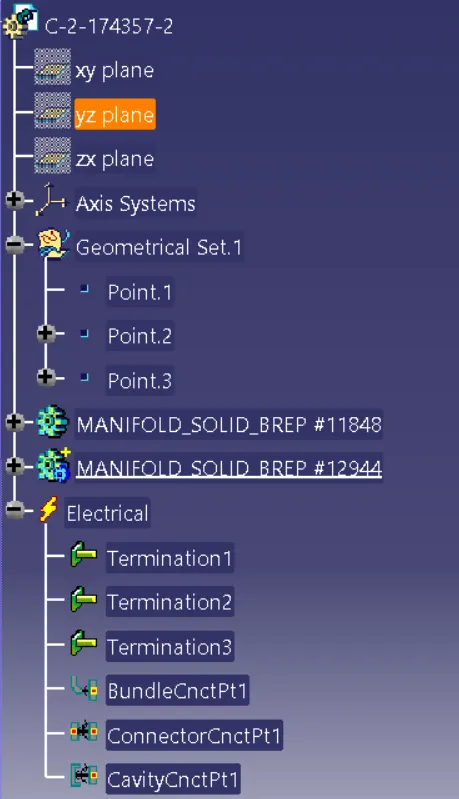

STEP-7 (DESIGN TREE)

3. Tyco 85229-1

STEP-1

STEP-2

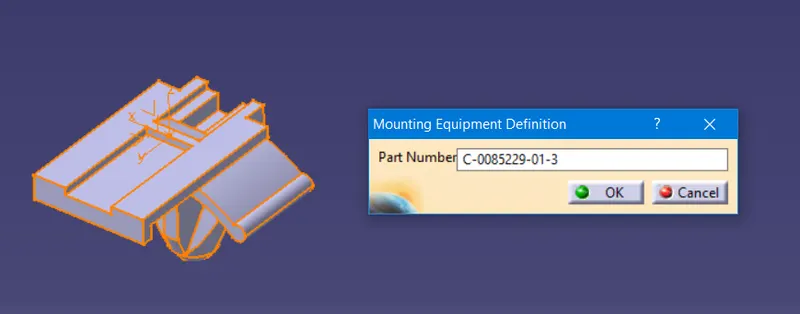

STEP-3 (DEFINE"MOUNTING EQUIPMENT")

THIS IS USED TO DEFINE A CLIP AND MOUNTING PARTS

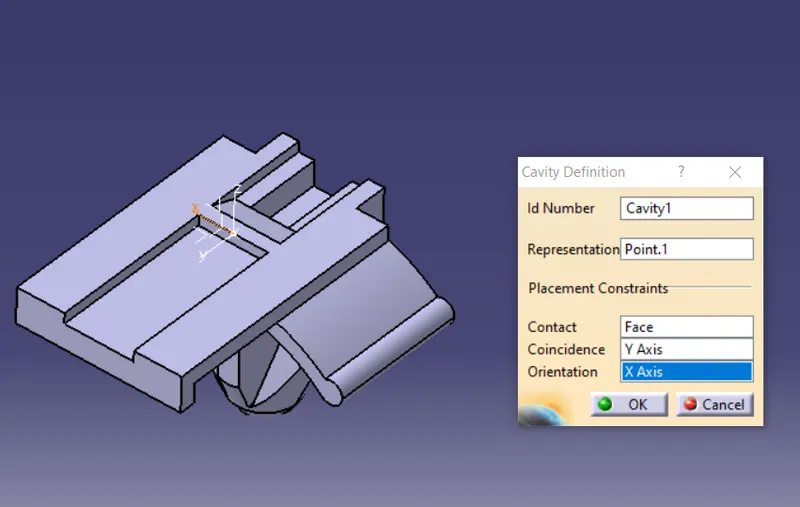

STEP-4 (DEFINE"CAVITY")

USE OF AXIS DEFINE ALL THE REFERNCE FOR BUNDLE CONNECTION

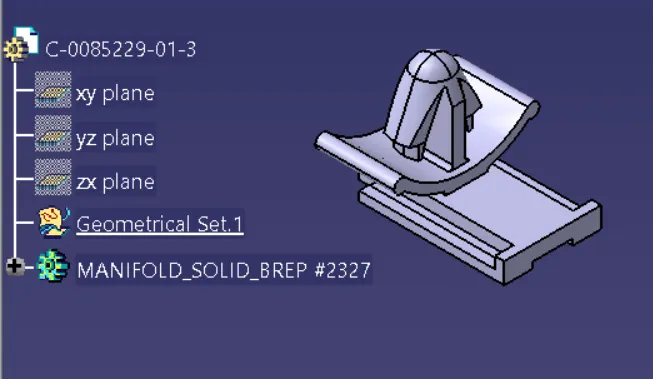

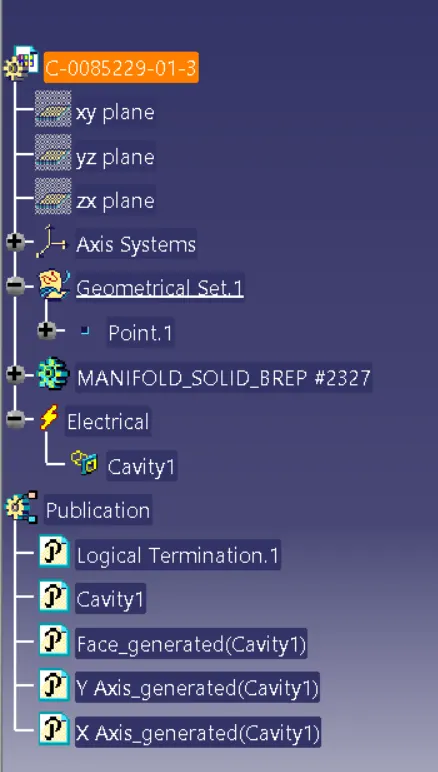

STEP-5 (DESIGN TREE)
