Week 8 - Challenge 4 - Coin Holder Design

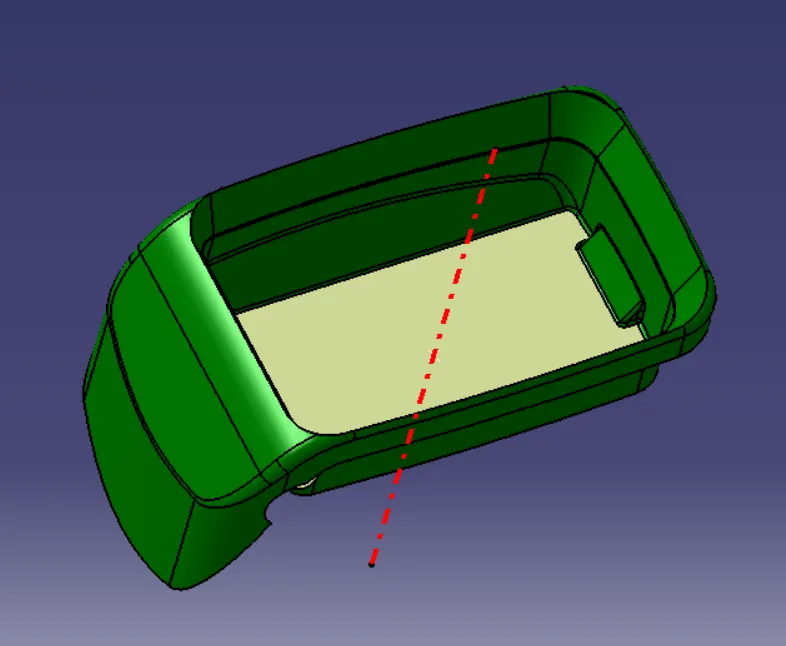

1. CREATING TOOLING AXIS



EXTRACT THE BOTTOM SURFACE TO CREATE THE POINT ON THE SURFACE THEN USE THE LINE COMMAND TO CREATE THE TOOLING AXIS ON IT USE THE POINT AND DIRECTION COMMAND TO CREATE THE LINE MAKE THE TOOLING AXIS

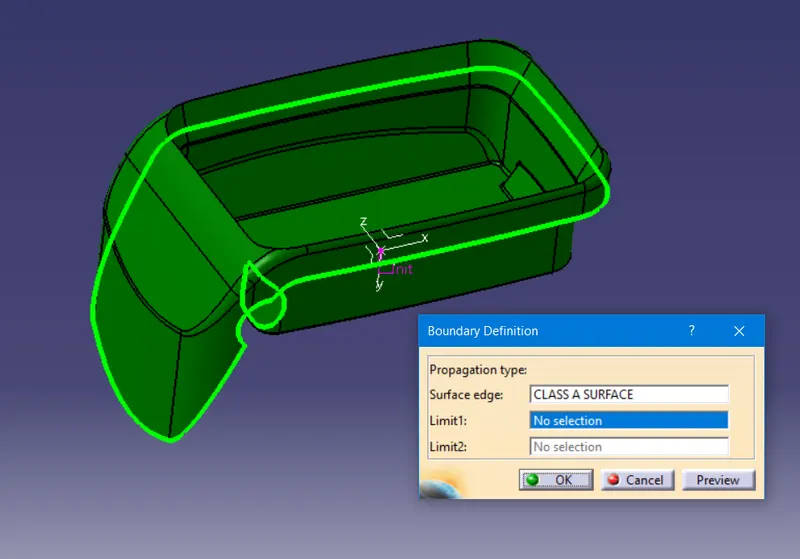

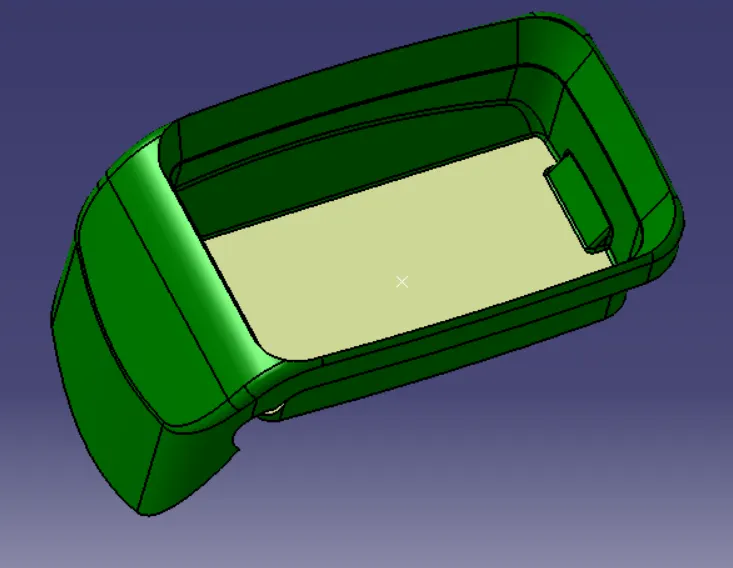

2. CHECK THE PART WITH BOUNDARY ENSURE TO BE ALL THE SURFACE ARE CLOSED

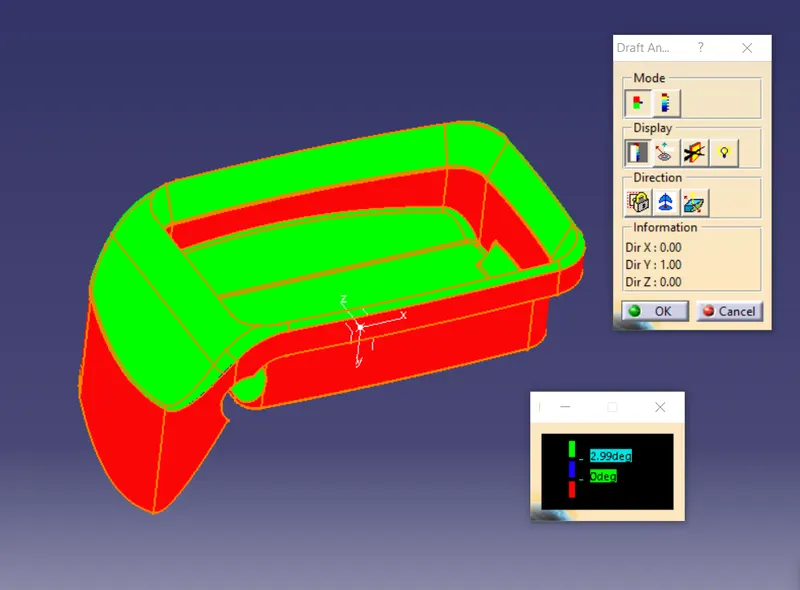

3. CLASS A DRAFT ANALYSIS

WE CAN THAT CLASS A DRAFT ANALYSIS SHOW THAT MOST OF THE FACES ARE IN LESS THAT 0 DEG ENSURE TO CREATE DEG VALUE IN CLASS A SURFACE.

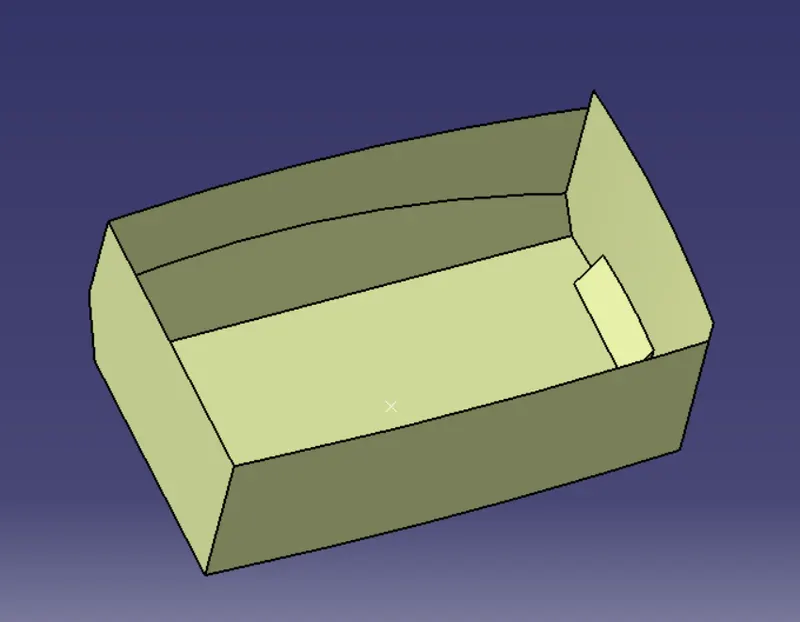

4. CREATING CLASS B SURFACE

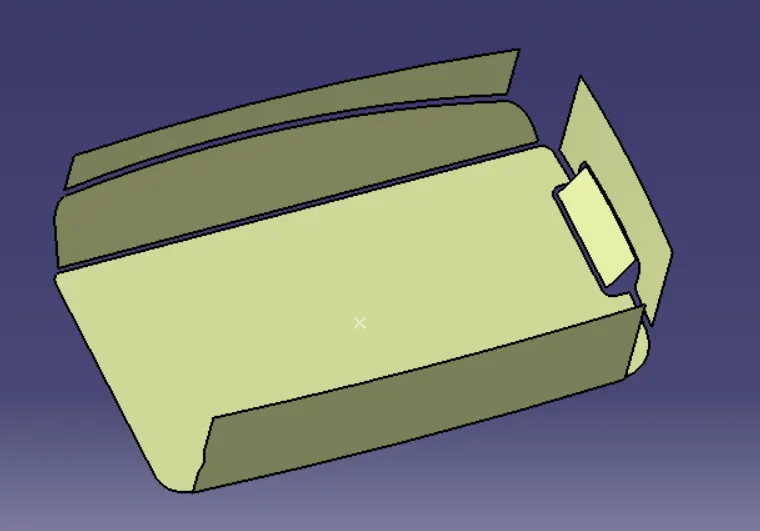

EXTRACT SOME OF THE FACES WHICH IS FLAT FACE AND NEGLET FILLET FACES

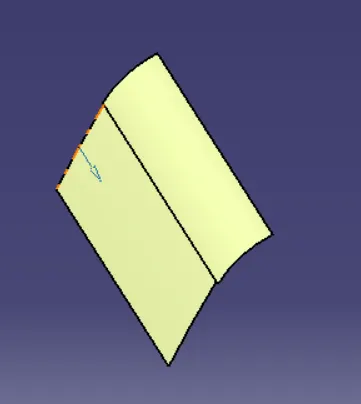

USE THE UNTRIM COMMAND AND USE EXTRAPOLATE TO MAKE B SURFACE



NOW EXTRACT AND UNTRIM IT AND EXTRAPOLATE THE REQURIRED VALUES THE NEXT SET OF FLAT FACES TO CONNECT THE OTHER PARTS

OFFSET THE SURFACE UPTO 2.5mm FOR THICKNESS

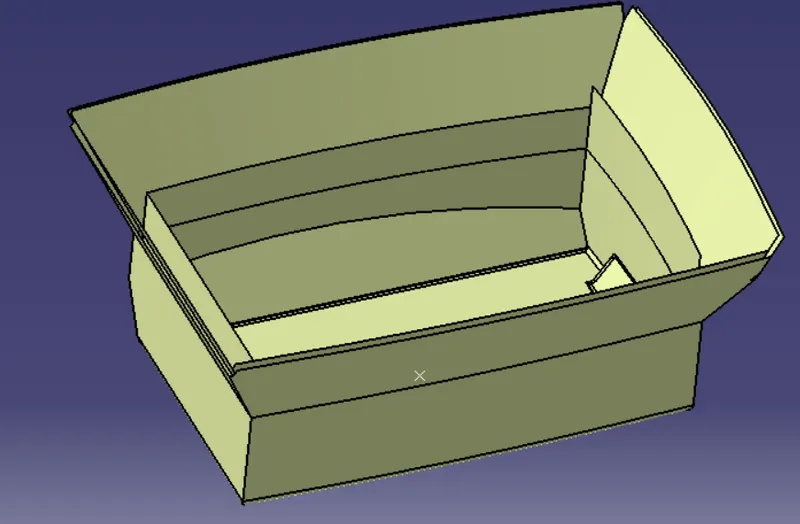

NOW USE MULTIPLE EXTRACT COMMAND TO GET ANOTHER SET OF FLAT SURFACE TO ACHIVE THE CLASS B SURFACE AND JOIN ALL THE SURFACE

AND EXTRACT THE FRONT FACE OF THE PART AND UNTRIM AND EXTRAPOLATE THE SURFACES

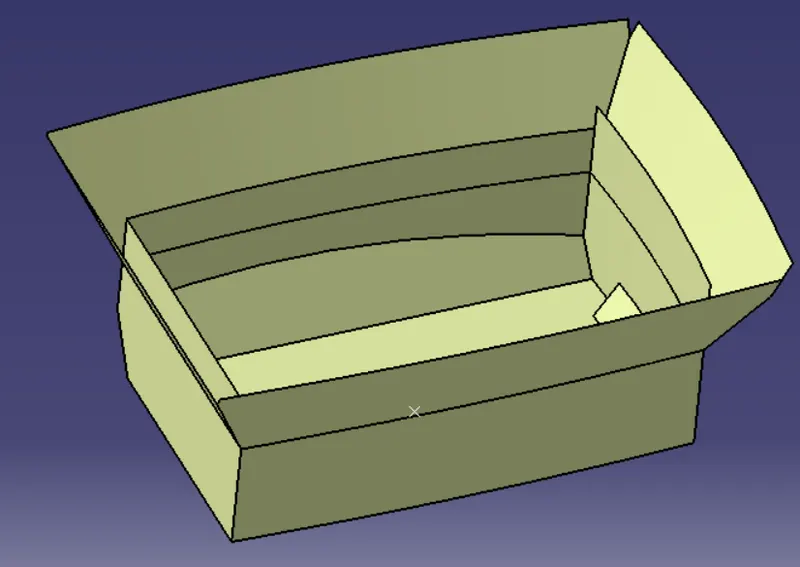

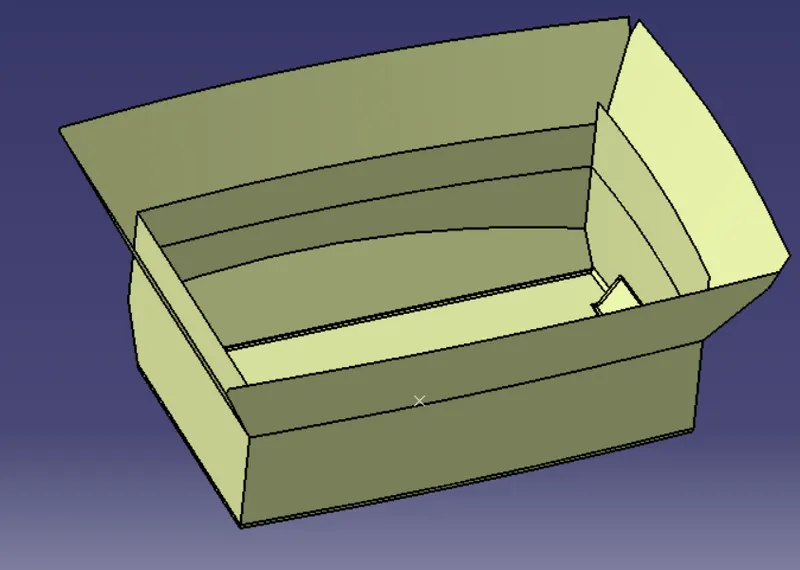

TRIM ALL THE SURFACE TO CREATE THE CLASS B JOIN ALL THE SURFACE TO CREATE IT AND OFFSET TO 2.5MM

4. CLASS C SURFACE

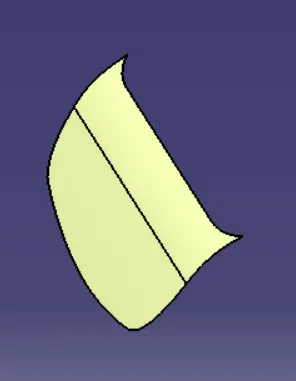

EXTRACT THESE SURFACE TO CREATE CLASS C SURFACE

CREATE THE SWEEP SURFACE TO FORM CLASS C SURFACE AND JOIN CLASS A AND C

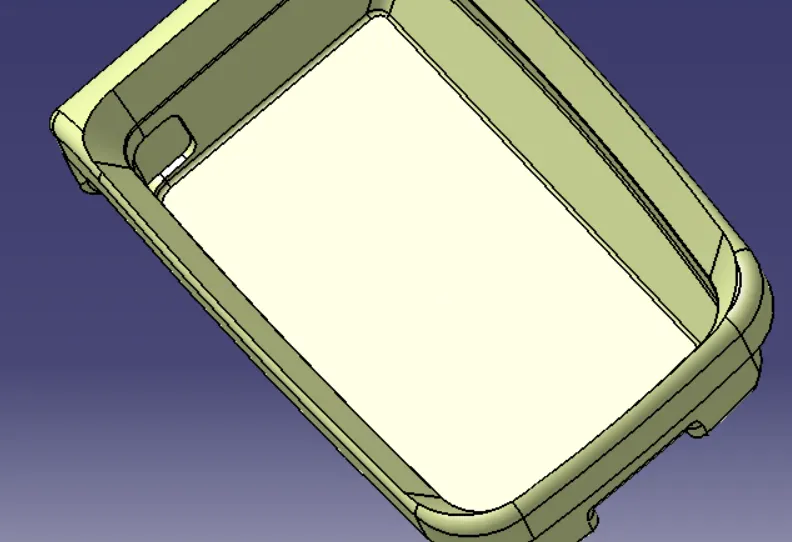

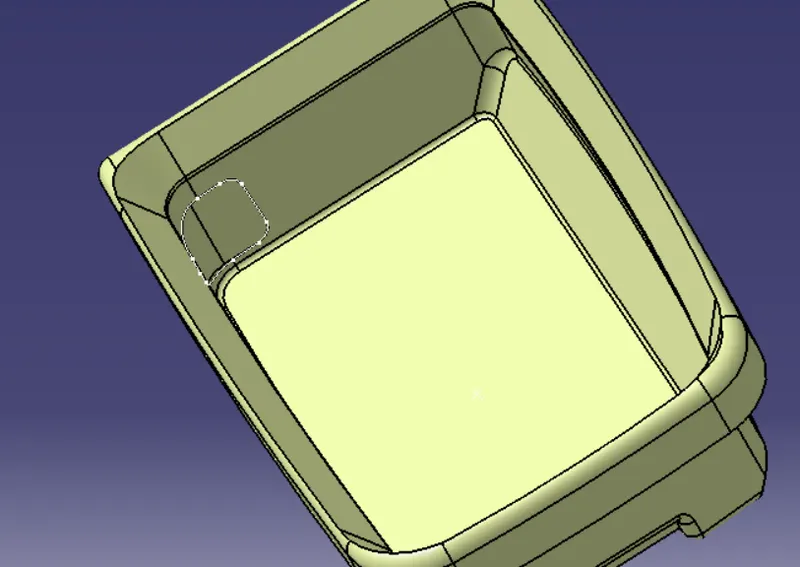

TRIM CLASS A,C WITH CLASS B SURFACE TO FORM THE FINAL PART

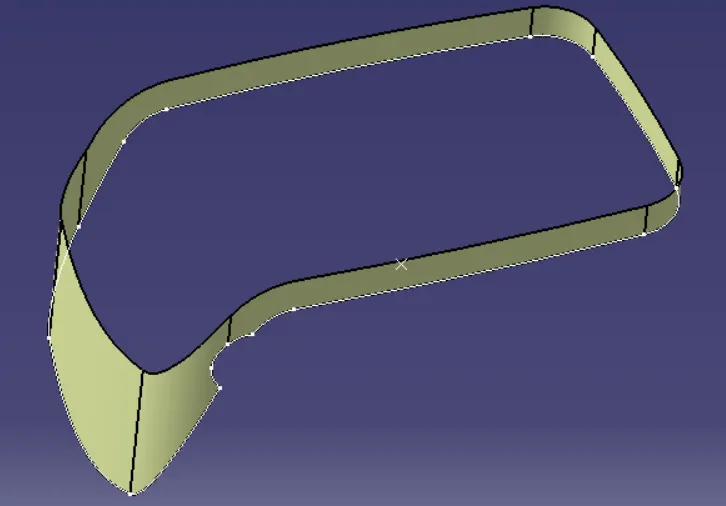

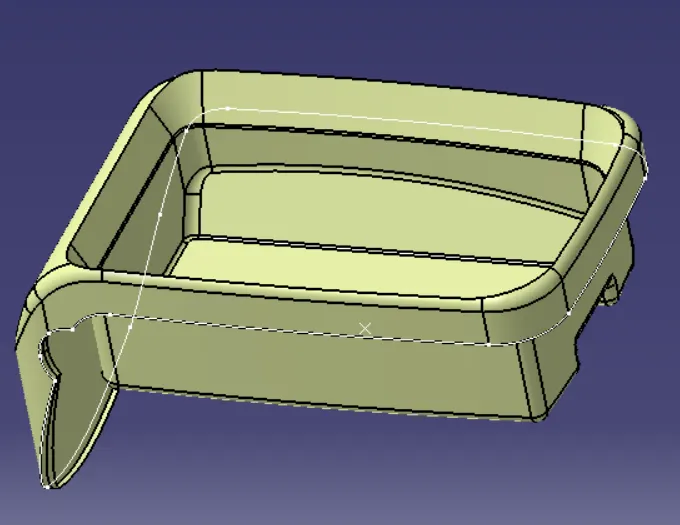

6. EXTRACT THE BOUNDARY LINE

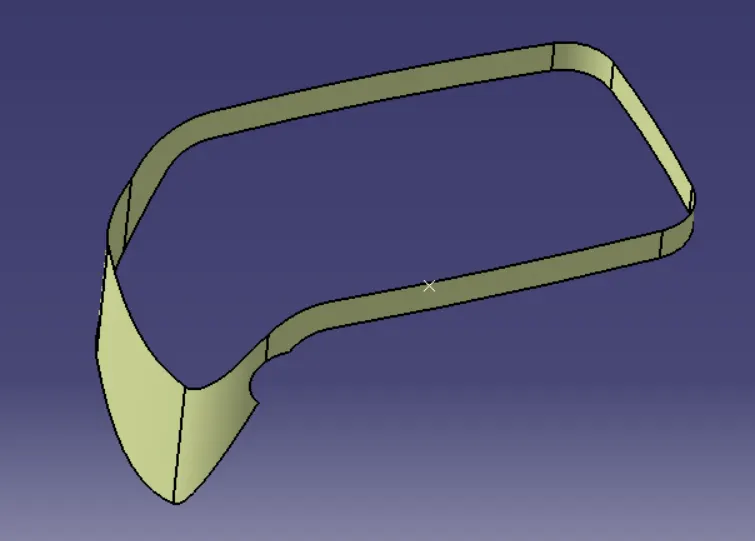

EXTRUDE IT

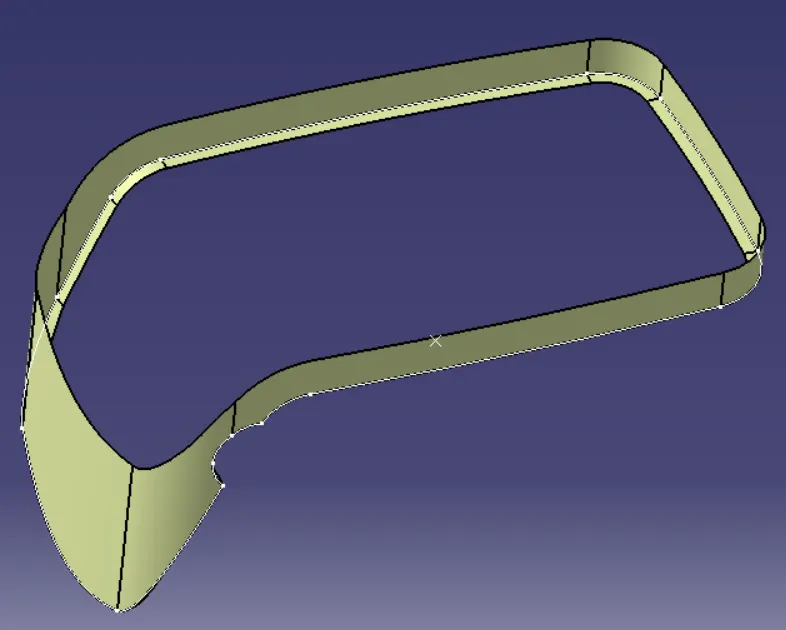

TRIM WITH THE SURFACE PART ALREADY CREATED

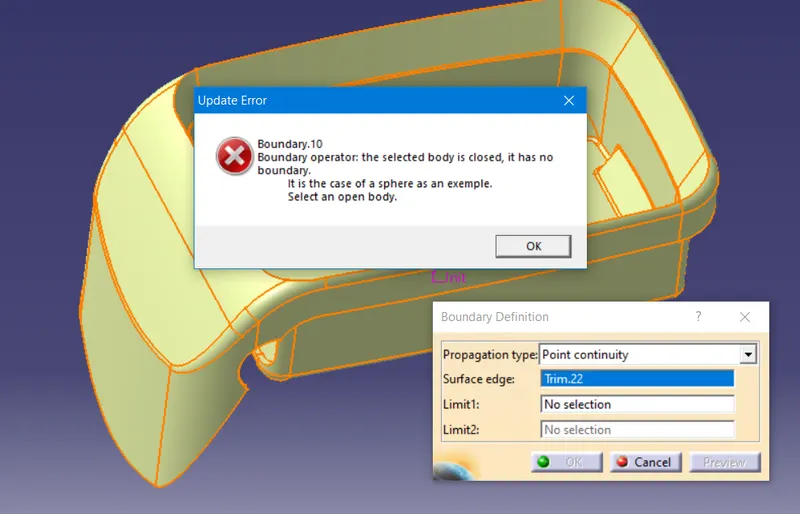

7. CLOSED SURFACE

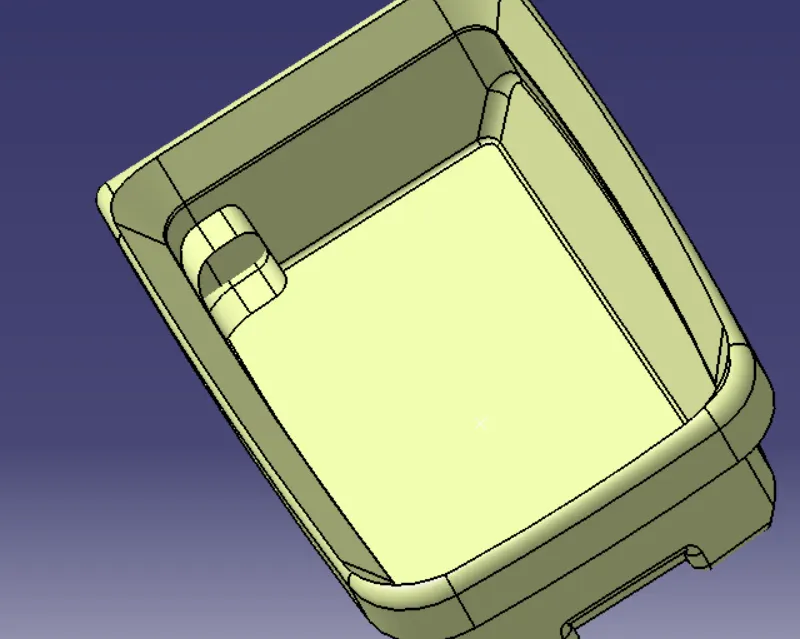

ENSURE THE SURFACE IS FULLY CLOSE BODY TO CREATE PART BODY

8.CLOSED SURFACE

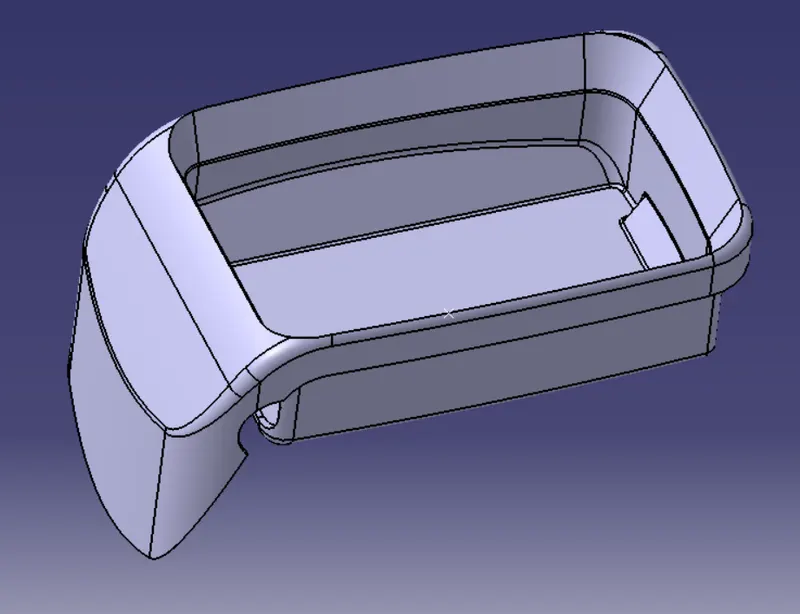

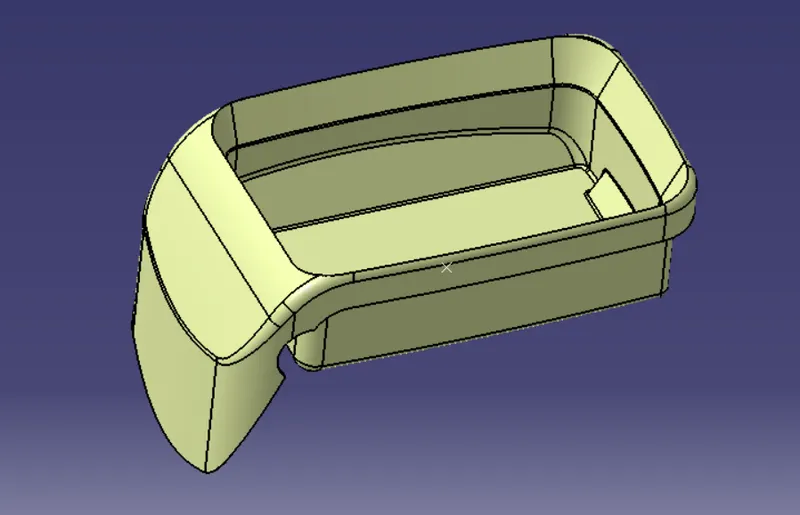

PRODUCT IS CREATED

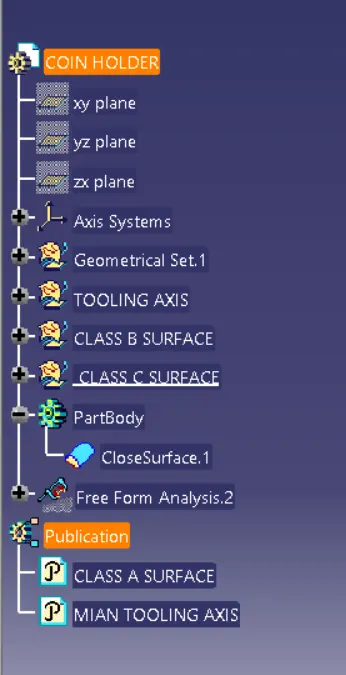

9.TREE STRUCTURE
