Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

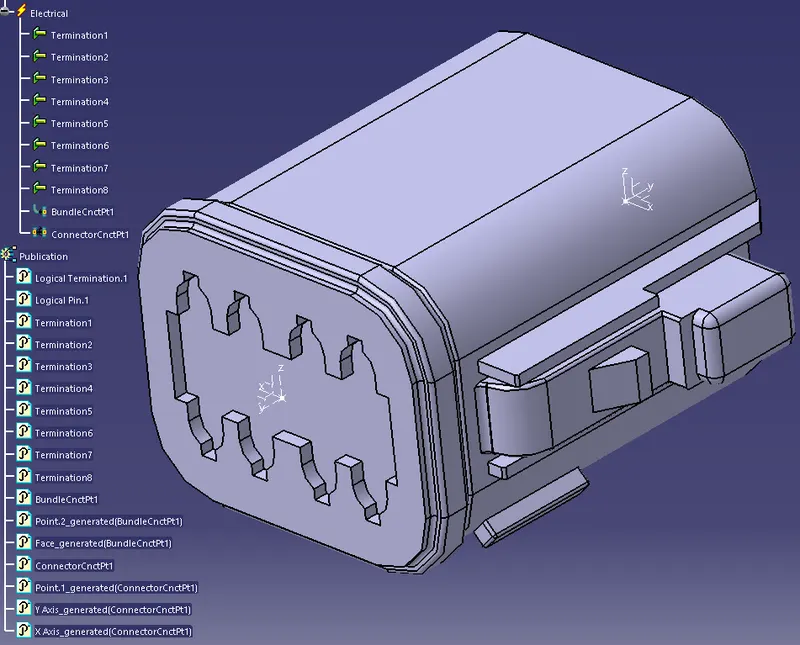

The First part with part no. DT06 – 08SA is defined as electrical connector with the necessary connector point, connector axis, bundle connection point and bundle axis.

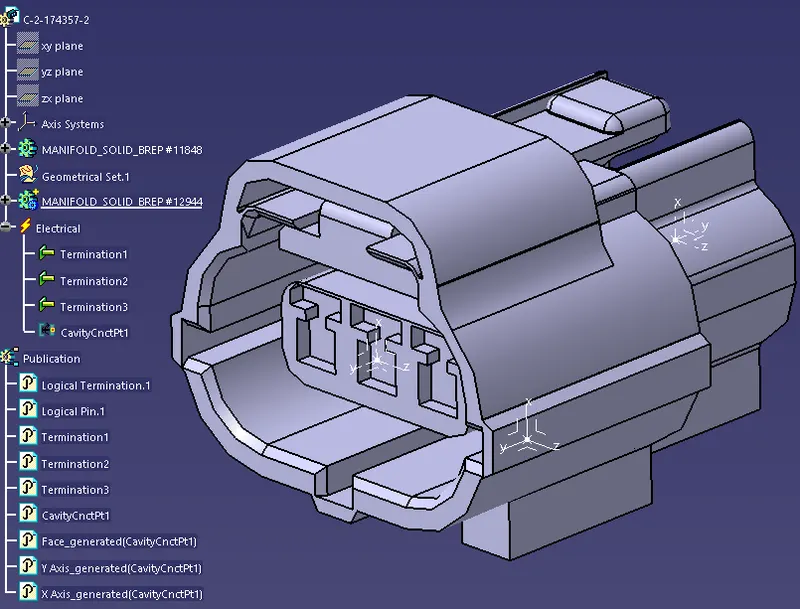

The second part with part no.174357-2 is defined as electrical connector with the necessary connector point, connector axis, cavity connection point.

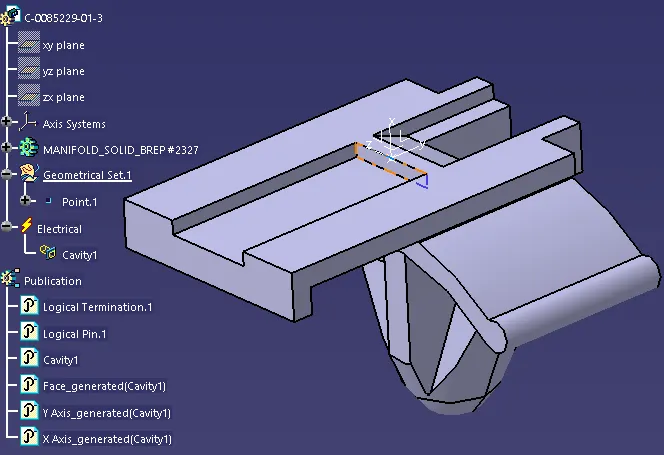

The Third part with part no.85229-1 is defined with the cavity point.
