Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM:

Download the connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench.

Discriptions -

CONNECTOR DEFINATIONS IN CATIA V5

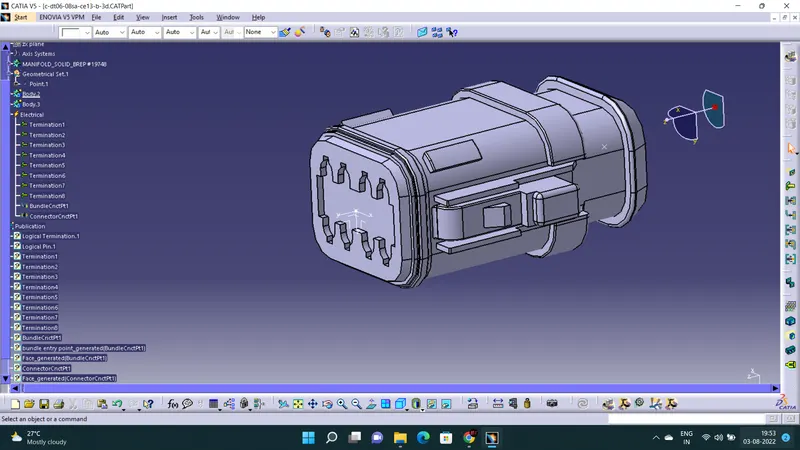

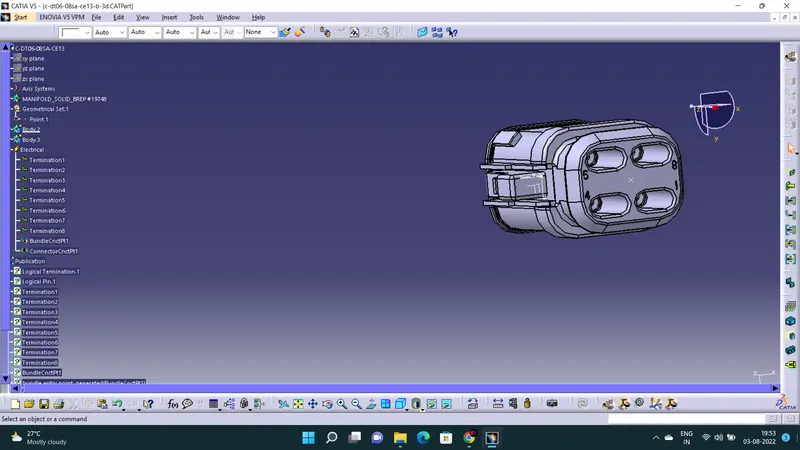

1. Deutsch DT06 – 08SA

* Create midpoint on the contact face which will be normal to wire bunddle insertion.

* Craete Axis System with respect to the point which we have created and defining the axis direction

Bundle connection point:

Switch to 'Electric Part Design'

Define the part as connector in catia, give no. of termination

Define Bundle connection point

Define connector connection point

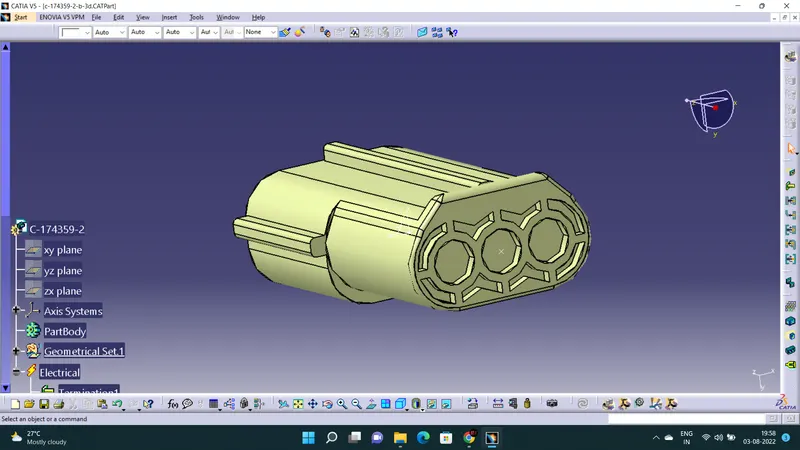

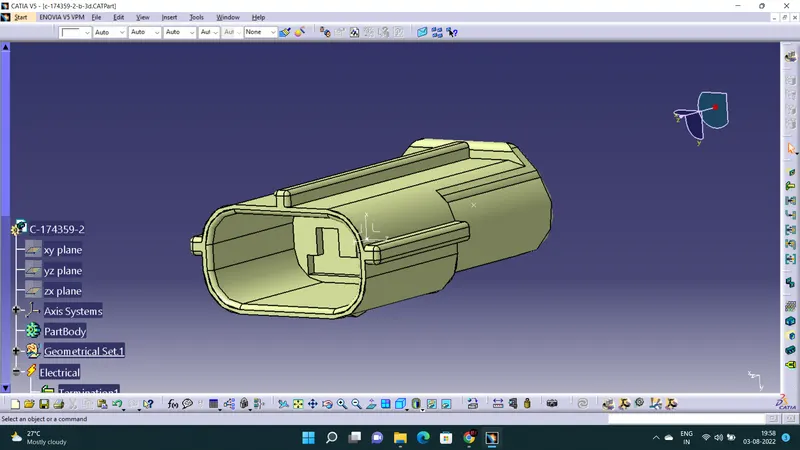

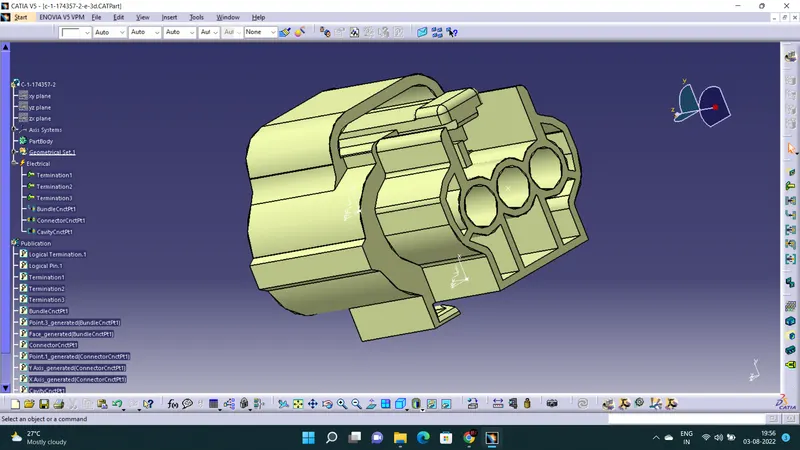

2.Tyco 174357-2

• Create midpoint
• create Connector connection point
• create Connector connection axis system
• create cavity connection point
• create cavity connection axis system
• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point

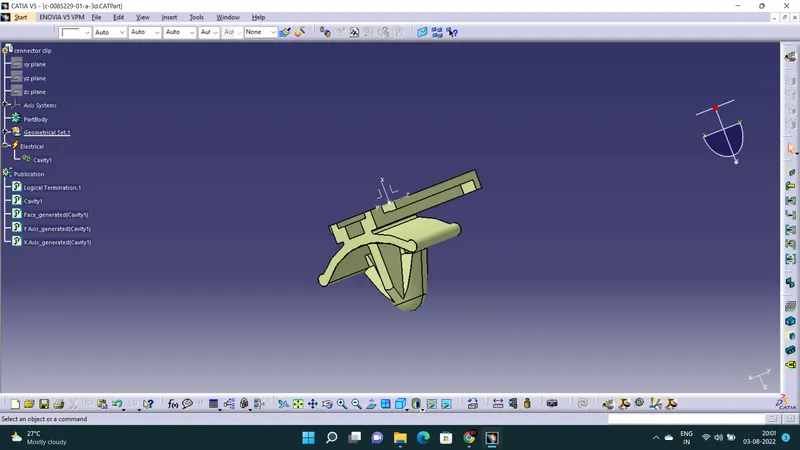

3. Tyco 85229-1

• Create midpoint
• create cavity connection point
• create cavity connection axis system and orientation should be same as in connector
• Switch to Electric part design and define part as Mounting Equipment
• Define cavity connection point

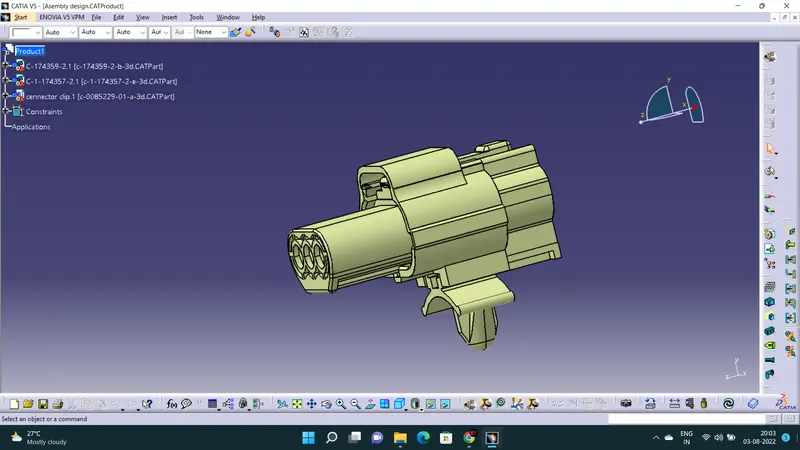

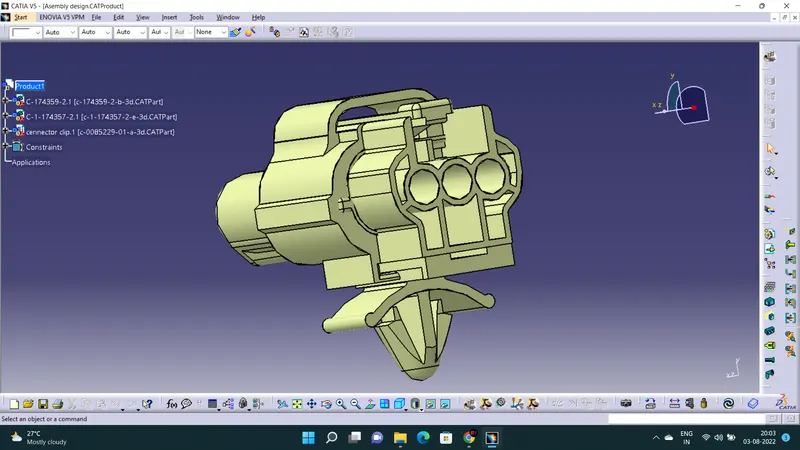

Elctric Assembly Design

• Import Connector and cavity / mounting clip.
• Select Defing Eelectric connection
• select cavity and then connector.

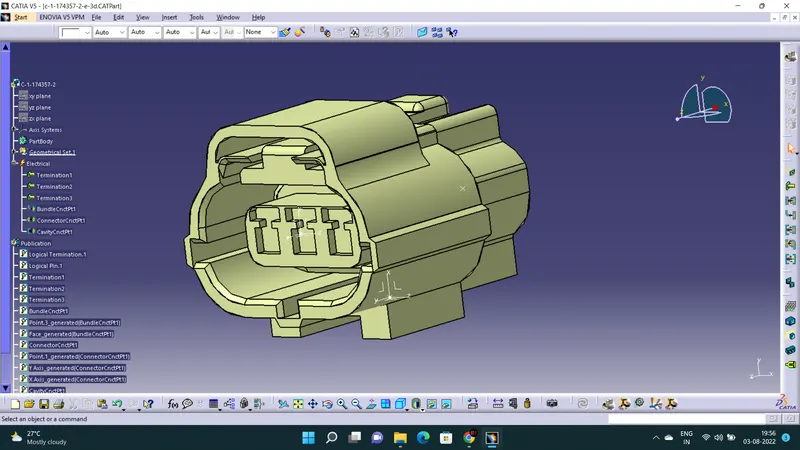

Screen shots -
