Challenge 4 : Concept Modelling of Alloy Wheel

Points to be followed in report

1. Title of the Project - concept modelling of alloy Wheel
2. Objective - To make a model of a alloy wheel usiang alias
3. Introduction - Concept modeling of alloy wheel is starts from where 3d data takes shape, it is a part of process as every part is involved in it. the design is depends on every parts to visualise shpe of the bodyand then design come out.

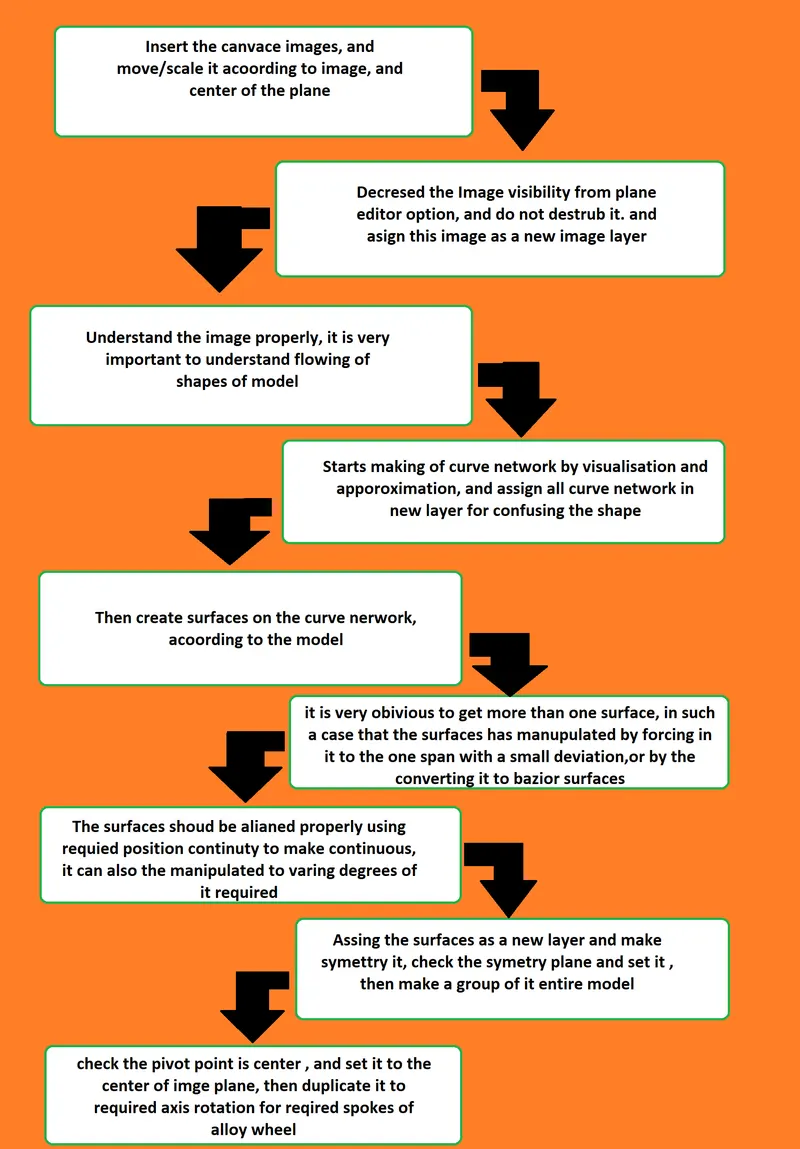

4. Design methodology / approach -

1. Description -

* imaport canvace images

* make a entire cuvre network by using cv curves , line , blend tools options

* Modify Cv as flowing the images views, by using

pick Cv , pick curves , pick object, pick surface

* trasformation tools -

move, move pivot , center pivot, scale, rotate

* information tools -

toggle model , toggle grid , plane editor

* layers - using layer for avoid cunfusion and see perticular image as we work on it

* surface tool bar -

skin , rail , square , planer

by creating surface using this command.

* suface edit tool bars-

Project tool, intersect tool , Trim tool , untrim tool,nurbs to bazior tool

by creating surface edit using this command.

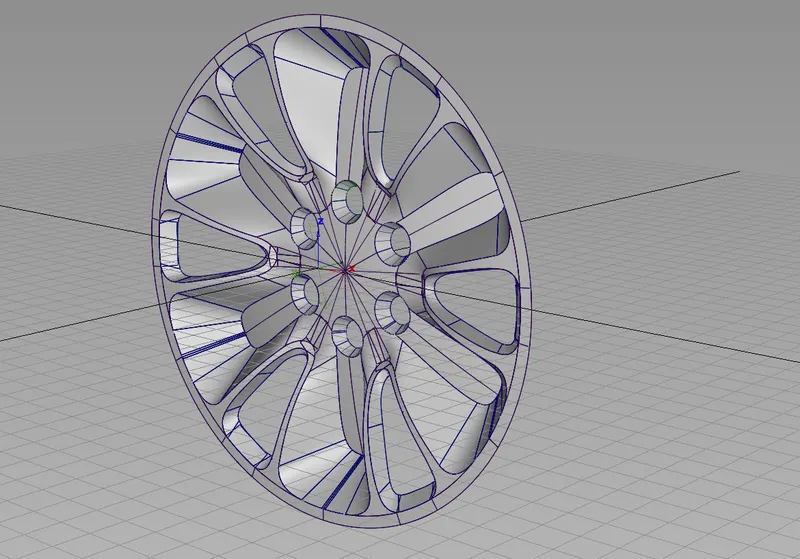

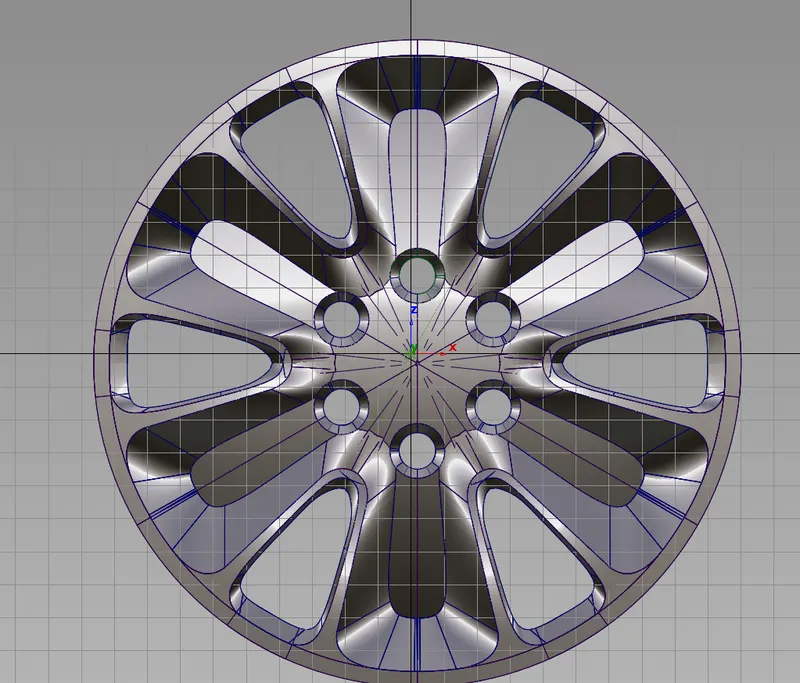

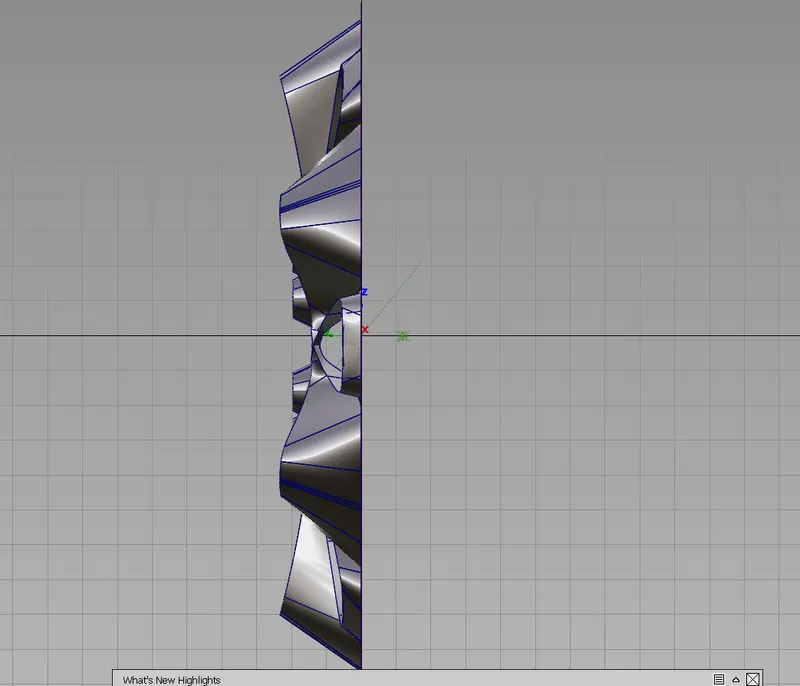

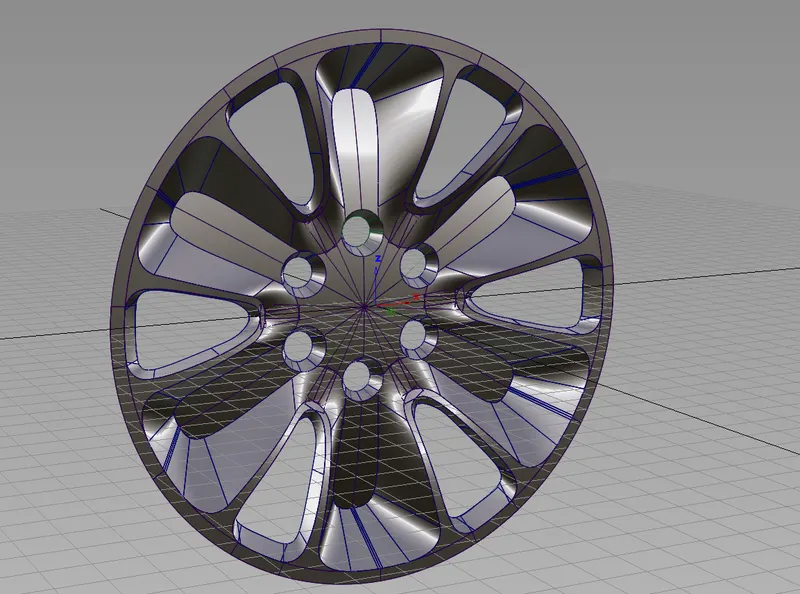

Dignostic shading -

shudnon , mulcol, horver

Conclusion - A good nad continuous surfaces resulted into a good concept model of a car alloy wheel
