Challenge 7 : Concept Modelling of Steering Wheel

1. Title of the Project - MAKING CAR STEERING WHEEL IN AUTO DESK ALIAS
2. Objective - To create the curve network and surface making for the car steering wheel
3. Introduction - In this I have learned about curve networks and also surface making. For this challenge I went into the entire curve networks and surface making

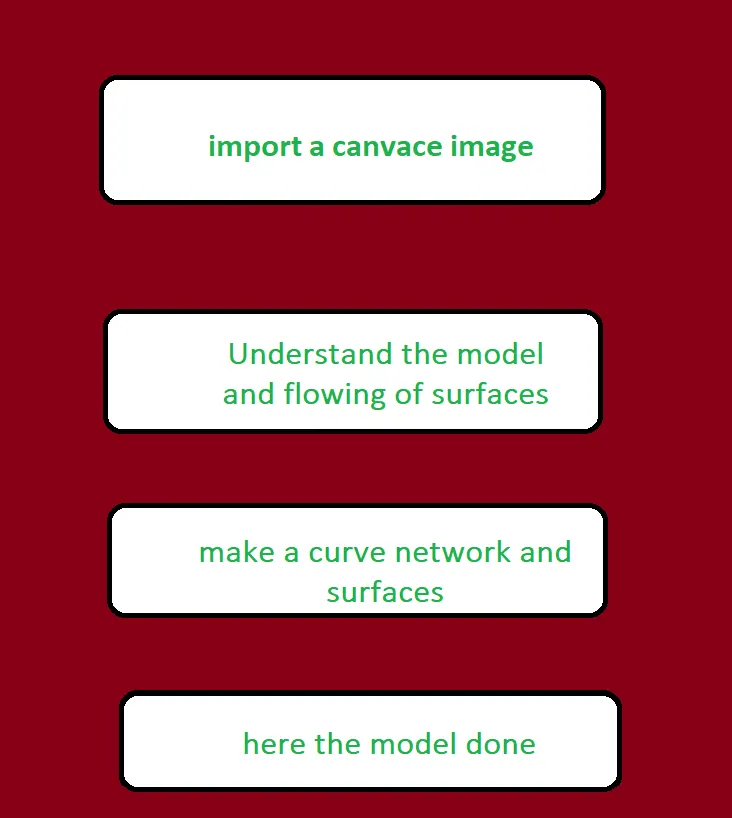

4. Design methodology / approach -
5. Description -

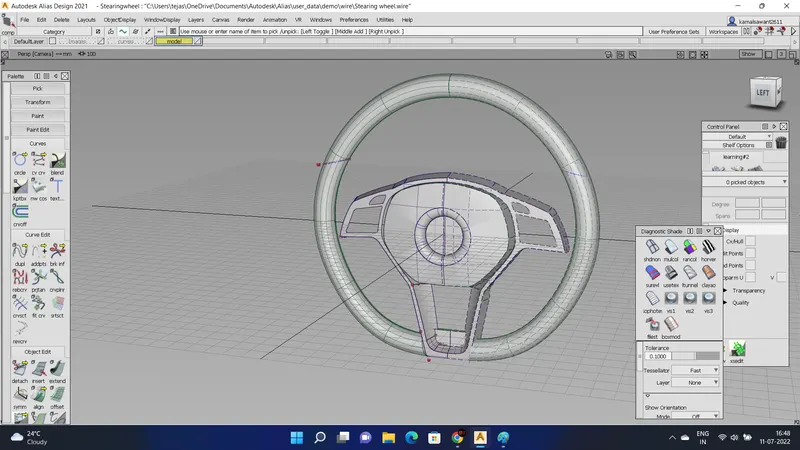

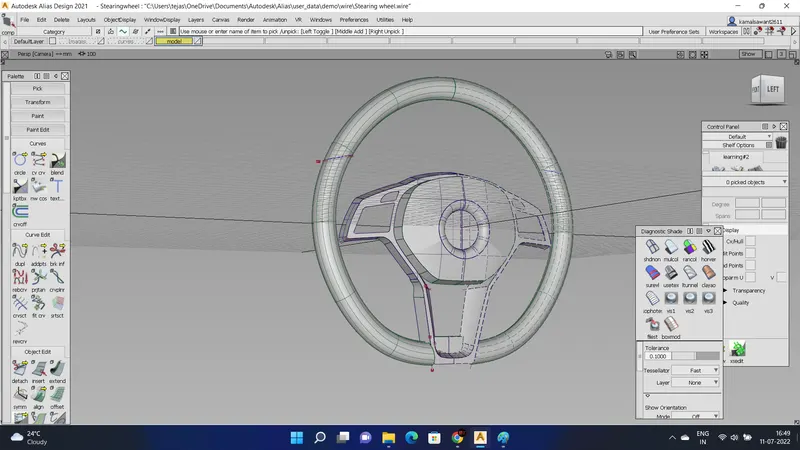

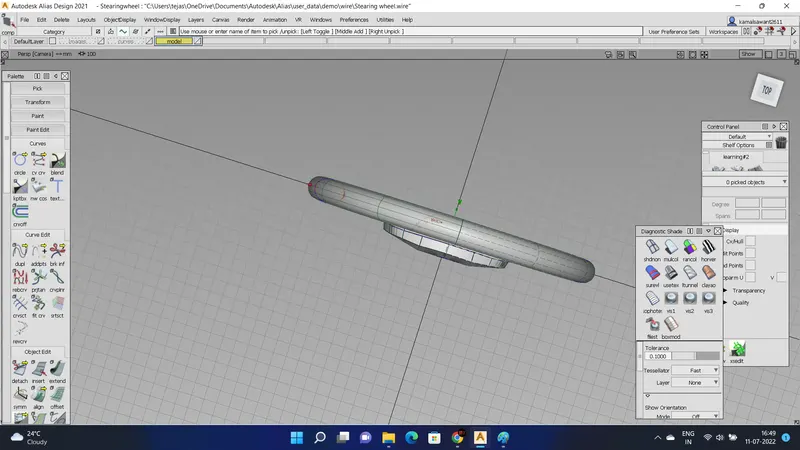

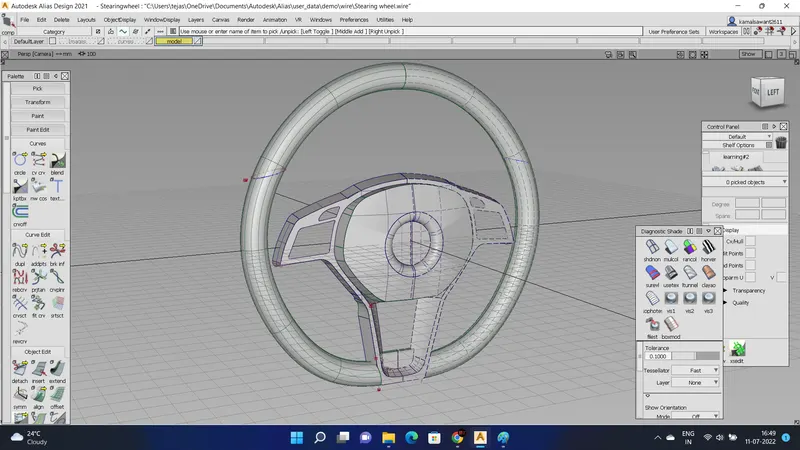

   For this modelling I have gone through curves and surface. I have learned about user interface and navigation tools , basics objects selection and viewing , import sketches as images or canvases working with layers. In this challenge I have faced many issue in surface continuous and also the trim convert comment and I have put many effort and come with the model. In Autodesk alias we will do the sketching, modelling surfacing visualization .

   A design is a plan or specification for the construction of an object or the implementation in the form of a prototype product or process .

   Palette and shelves , control panel and diagnostic shade options editors and panels marking menus and navigation viewable and navbar .

   Pick pallet : Select the object or curves or any thing in the working area

   For control the pick pallet use the ctrl & shift + left mouse button

   CURVES : It is uesd to draw the shapes in any direction.

   LINES : It is used to draw the lines where evere we want.

   BLEND : It is used to draw the curve joint's.

   How to control and built the curve network , and how to group it and ungroup it

   pivot points : how to change the pivot points and how to transform the pivot points

   pick pallet : it will use select the object or component what we want

   display controls , transforming tools it will use to move , rotate and scale

   orthograpic window , prespective window

   snapping : it will use the 3 icons to allow you to toggle the points snap , grid , snap and curve snap.

   object lister : It will manage the data for your entire model includes layers function also.

   group or un group : it will group the several object into one object.

   cv sculpting , concept sculpting .

   mirroring /symmetry : it will use to make a mirror of other side of the object to the another side easily.

   building and controlling simple geomentry, controlling geometry , mirroring , grouping , duplicating object .

   SURFACE MAKING TOOLS

   SKIN : Make the surfaces between two curves

   Rail : Make the surfaces using the generation curves and rail curves

   Square / mblend : square use the four sides to make the surface , mblend need more than four sides

   Sr fillet : Make the fillet between the two surfaces

   TRIM : Use to trim the unwanted surfaces with the use of projection curves (project tool)

   Detaching and trimming

   Surface hierarchy,

   Teriary surface : surface smooth out the edges or intersection of main body

   Object edit

   Curve edit , object edit hold curtail tool for surface alleration and transformation.

   Align tools : Align the corner of the surface and inside the surface , align to the trimmed edges and also the cv management.

   Query edit : use to make the surface align with the another surface.

   Surface align and surface continuity between the surface and curve net work using the tool of align and query edits .

   Set plane for symmetry and duplicate the object with the help of edit, duplicate, object give the number of duplicate object and also give the degree of rotation

   MS draft (multi surface draft )

   It is used to make the surface between the blend areas

   FILLET : making the surfaces fillet between the two surfaces with the perfect edges

6.

7. Conclusion - By using all those tools and methodologies I make this model of Mercedes benz steering wheel.
