Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Part number: DT06-08SA

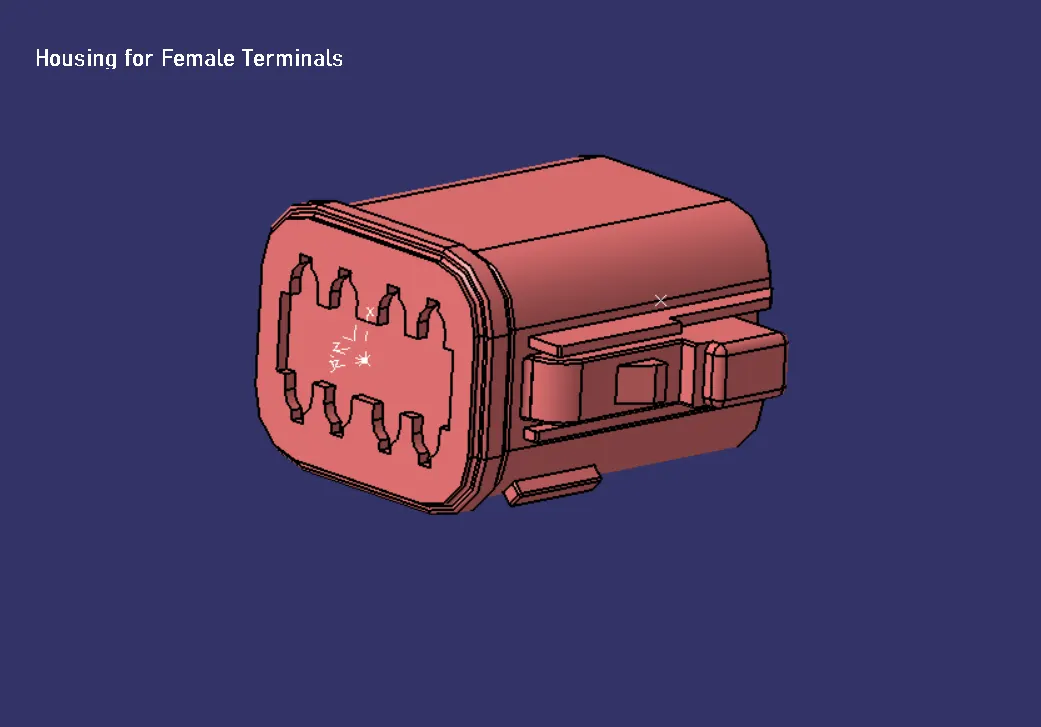

Housing for Female Terminals, Wire-to-Wire, 8 Position, .359 in [9.12 mm] Centerline, Sealable, Gray, Wire & Cable, Power & Signal, DEUTSCH DT

Part Number: DT04-08PA-C017

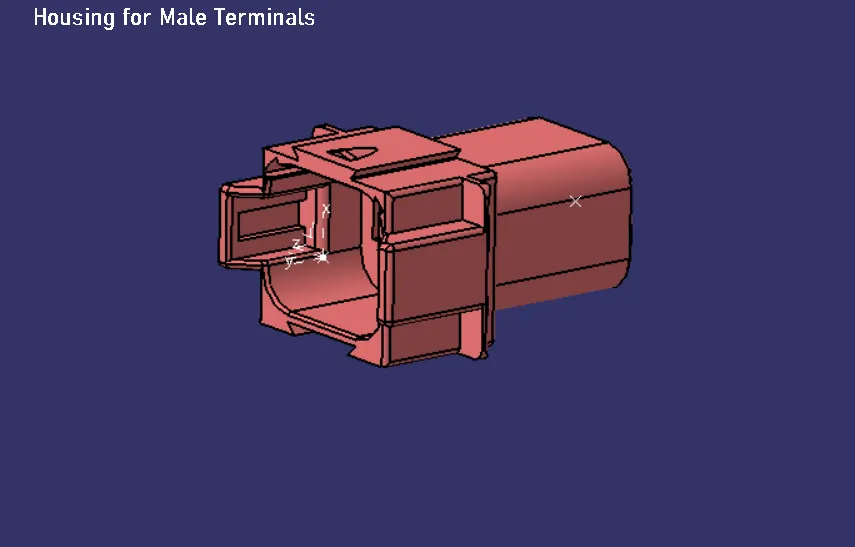

Housing for Male Terminals, Wire-to-Wire, 8 Position, .359 in [9.12 mm] Centerline, Sealable, Gray, Wire & Cable, Power & Signal



Part Number : 1027-001-0800

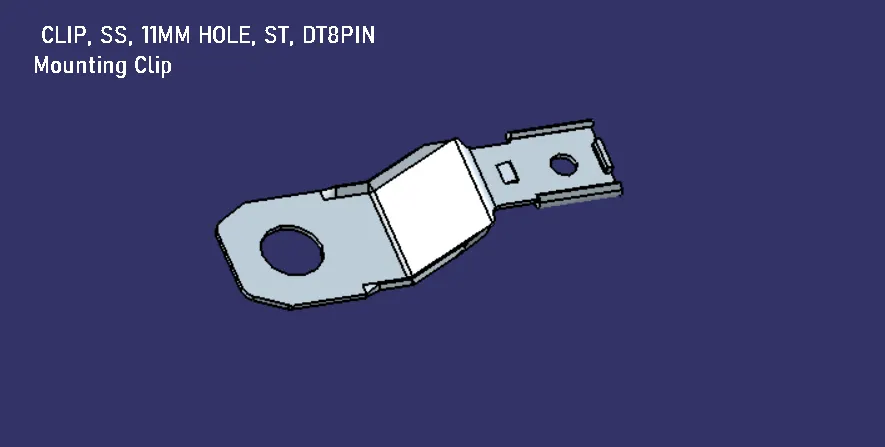

CLIP, SS, 11MM HOLE, ST, DT8PIN Mounting clip

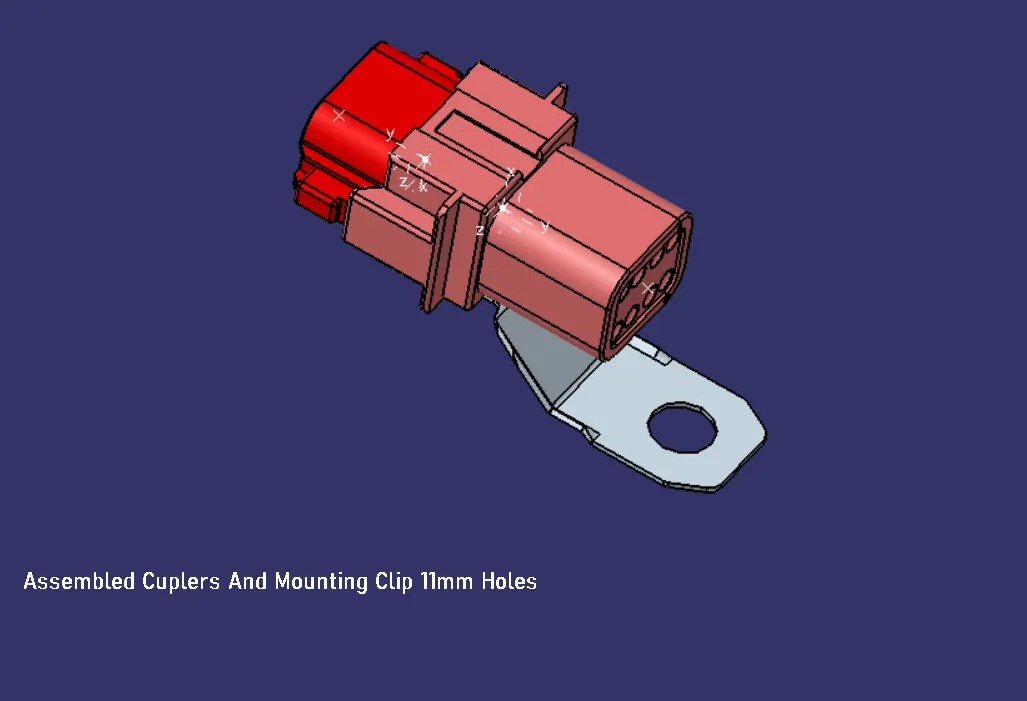

Assembled part CAT prodcut :

Part Number : 2-174357-2

Housing for Female Terminals, Wire-to-Wire, 3 Position, .189 in [4.8 mm] Centerline, Sealable, Black, Signal, Cable Mount (Free-Hanging), Econoseal


Part Number : 174359-2

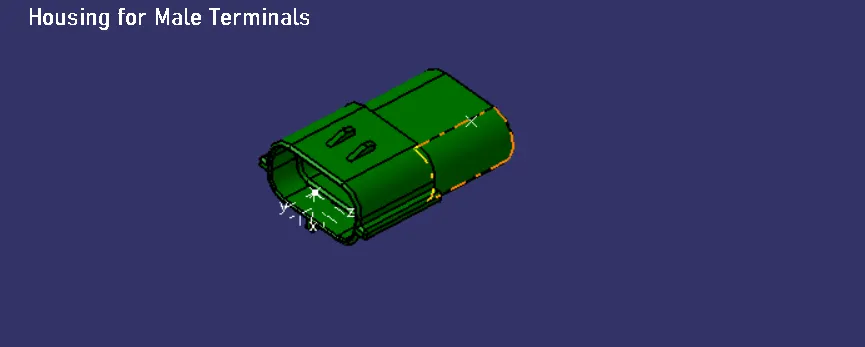

Housing for Male Terminals, Wire-to-Wire, 3 Position, .189 in [4.8 mm] Centerline, Sealable, Black, Signal, Cable Mount (Free-Hanging), Econoseal



Part Number : 85229-1

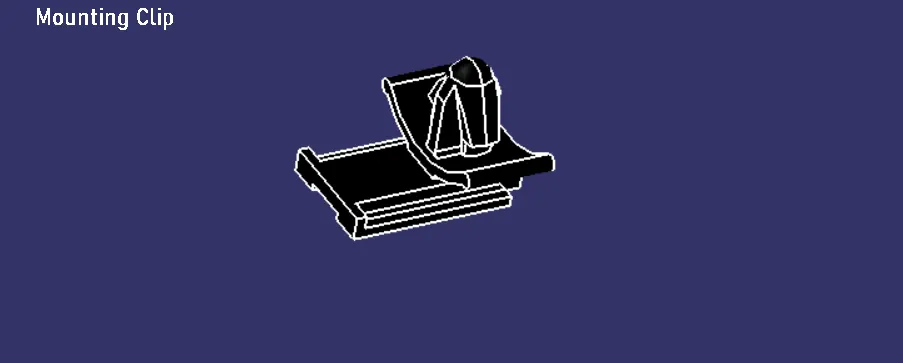

Other Automotive Connector Accessories, Mounting Clip, PA, Black, -40 – 120 °C [-40 – 248 °F], Econoseal

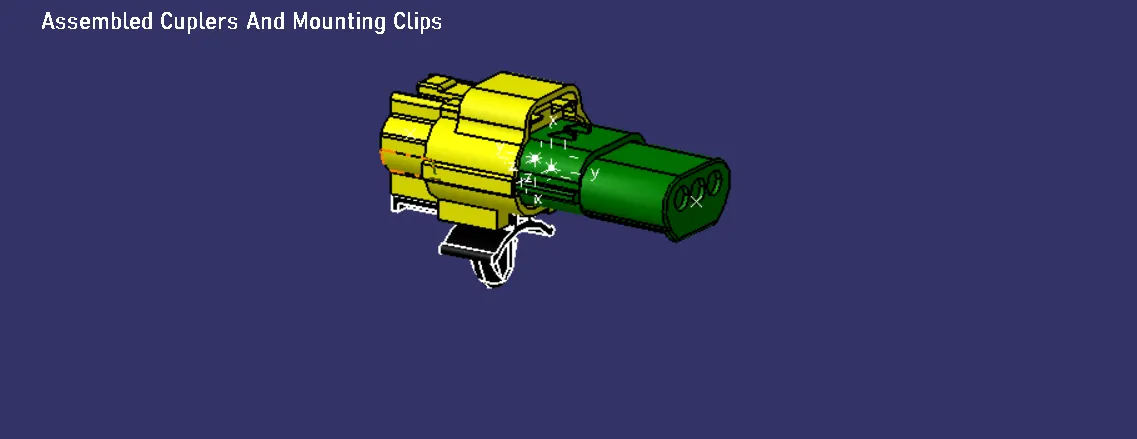

Assembled Part CAT Product:
