Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

CONNECTOR ASSEMBLY

To do assembly before that we need to define given parts as electrical components

GIVEN CONNECTORS AND MOUNTING PIN

STEP 1

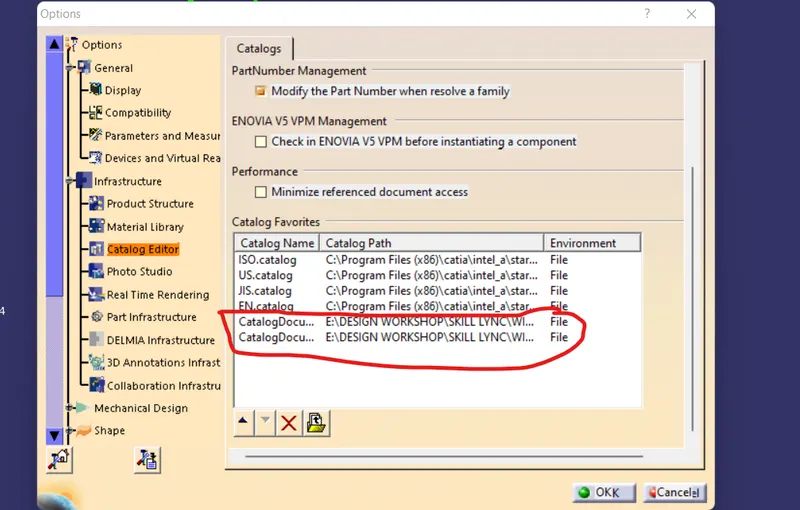

CREATE CATALOGUES FOR CONNECTORS AND PIN

ADDING CONNECTORS IN SAME FAMILY AND PIN IN ANOTHER CATALOGUE

DEFINING EACH PART

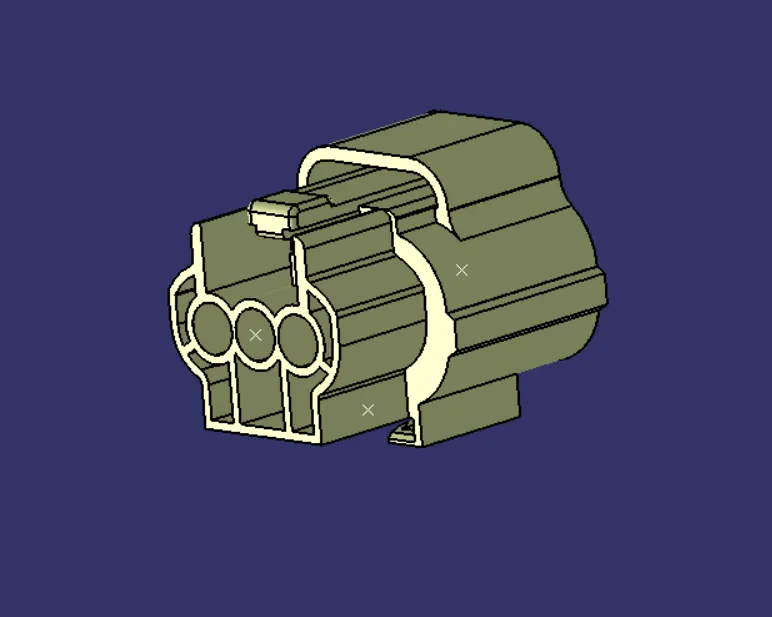

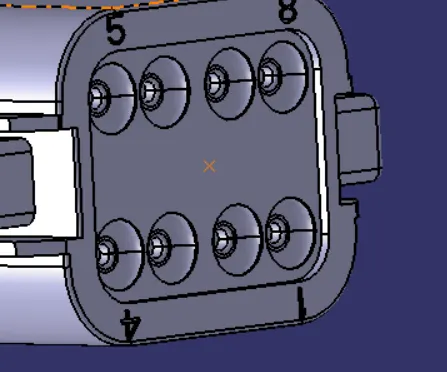

PART 1 CONNECTOR

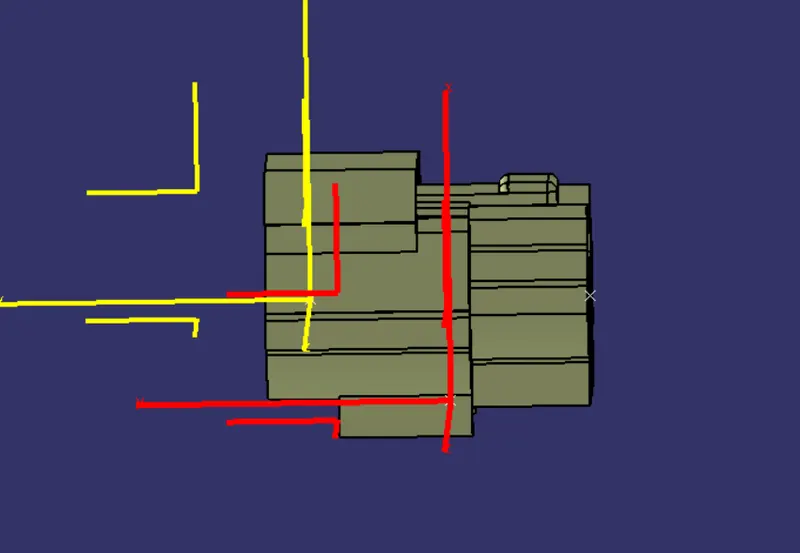

PROVIDE NECESSARY POINTS FOR MATING FACE AND BUNDLE FACE AND ALSO GIVE AXIS SYSTEM TO THE MATING FACE WHICH Y AXIS PERPENDICULAR TO THE MATING FACE AND X AXIS PERPENDICULAR TO THE LOCKING FACE

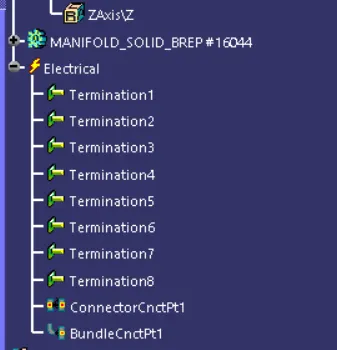

THEN DEFINING THE CONNECTER, CONNECTION POINT AND BUNDLOE CONNECTION POINT

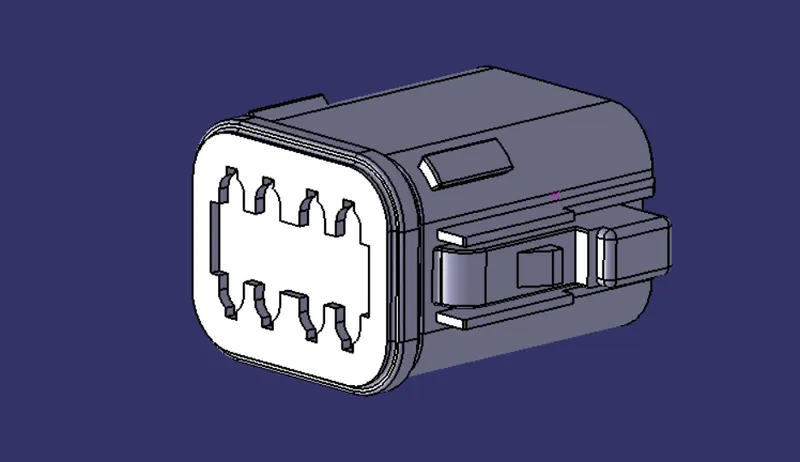

CONNECTOR PART 2

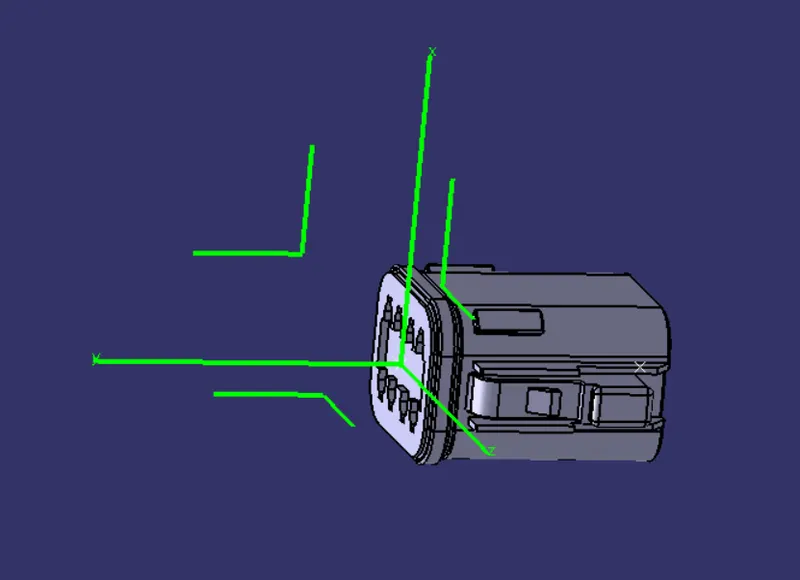

CREATE BUNDLE POINT, MATING POINT AND AXIS SYSTEM AND ALSO THE CAVITY POINT AND AXIS SYSTEM.

DEFINING THE CONNECTOR , CONNECTING POINT, BUNDLE POINT AND CAVITY POINT

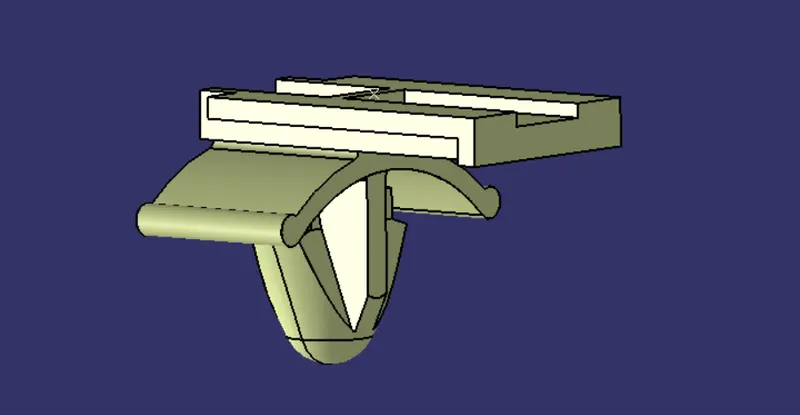

PART 3 MOUNTING PIN

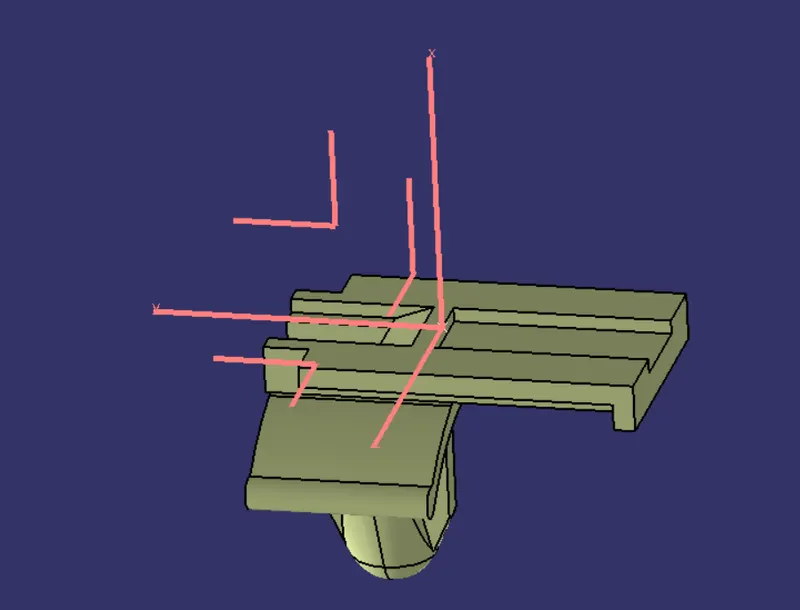

CAVITY POINT AND AXIS SYSTEM

CAVITY POINT IS USED TO MATE THE CONNECTOR WITH PINS

DEFINING THE PIN AND CAVITY POINT

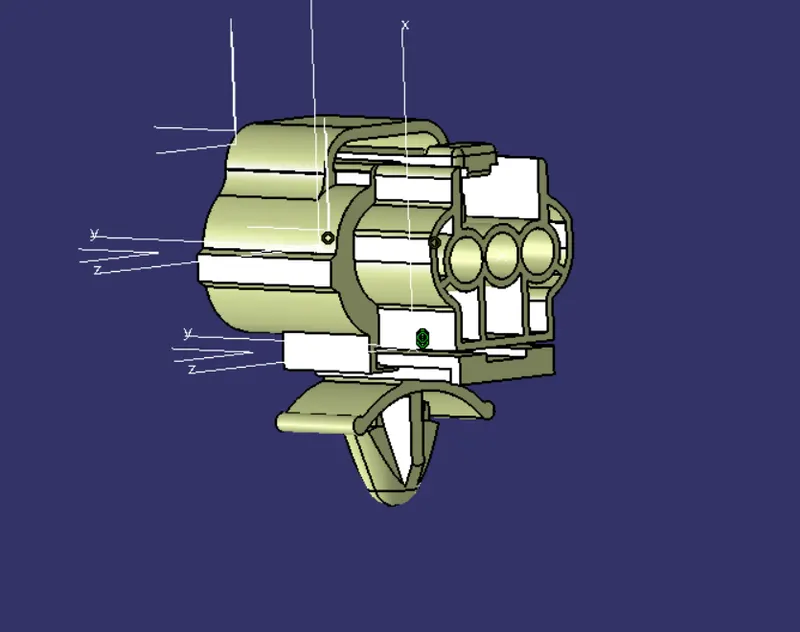

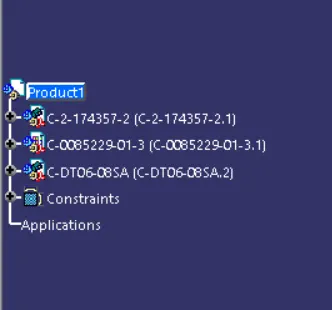

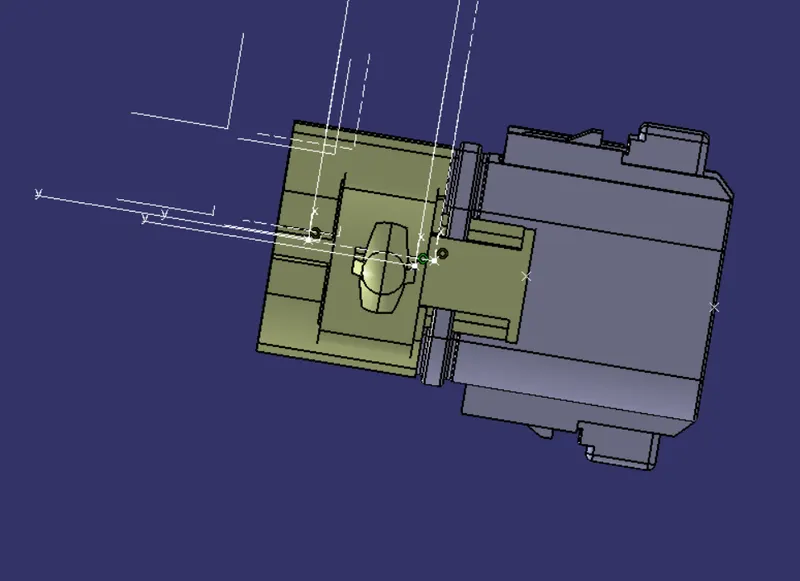

CONNECTOR ASSEMBLY

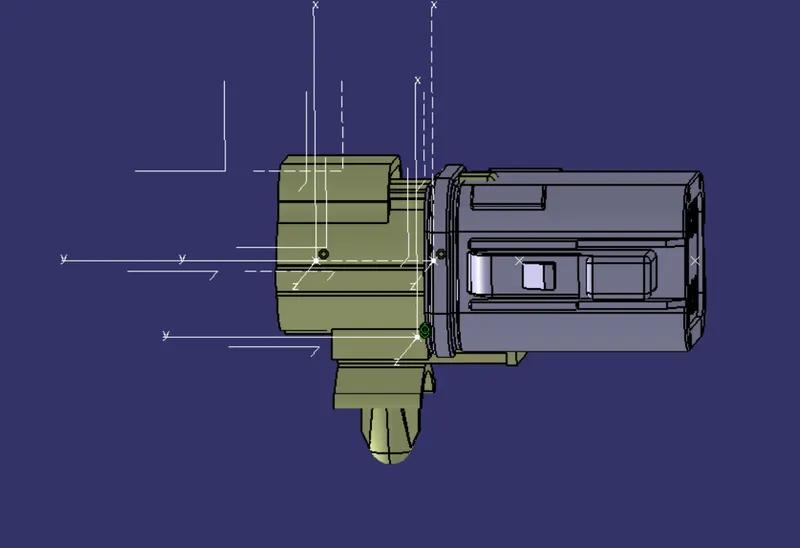

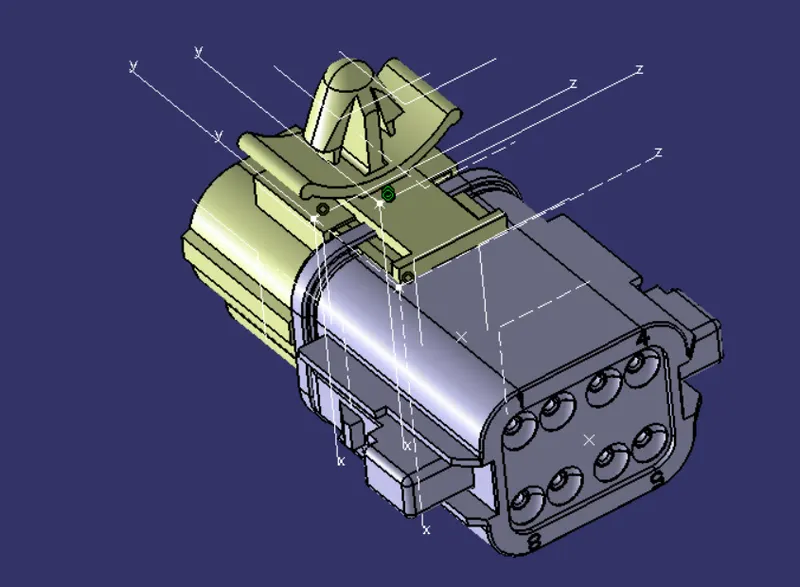

FINAL ASSEMBLY

NOTE:-HERE THE CONNECTORS HAVE DIFFERENT SET OF TERMINALS IN PRACTICAL IT CANT BE CONNECTED PROPERLY{ONE HAVE 3 TERMINALS AND THE OTHER HAVE 8 TERMINALS}
