Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

The aim is to Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.



1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)

2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)

3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)



DEFINIG ELECTRIC PARAMETER FLOW CHART

CONNECTOR DEFINATIONS IN CATIA V5

1. Deutsch DT06 – 08SA

Connector connection point:

Create midpoint on the contact face which will be normal to wire bunddle insertion.

Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,

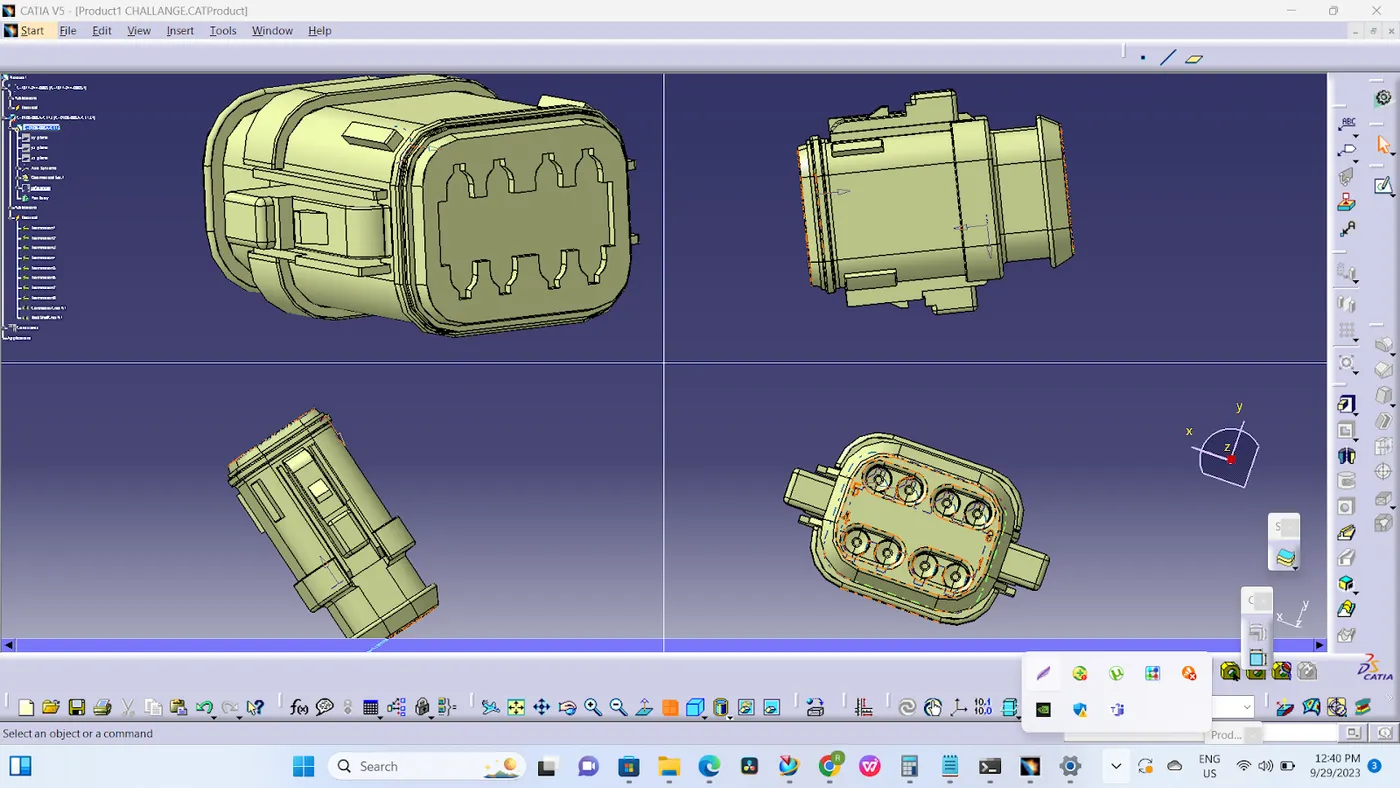

THE GIVEN PART DT06-08SA

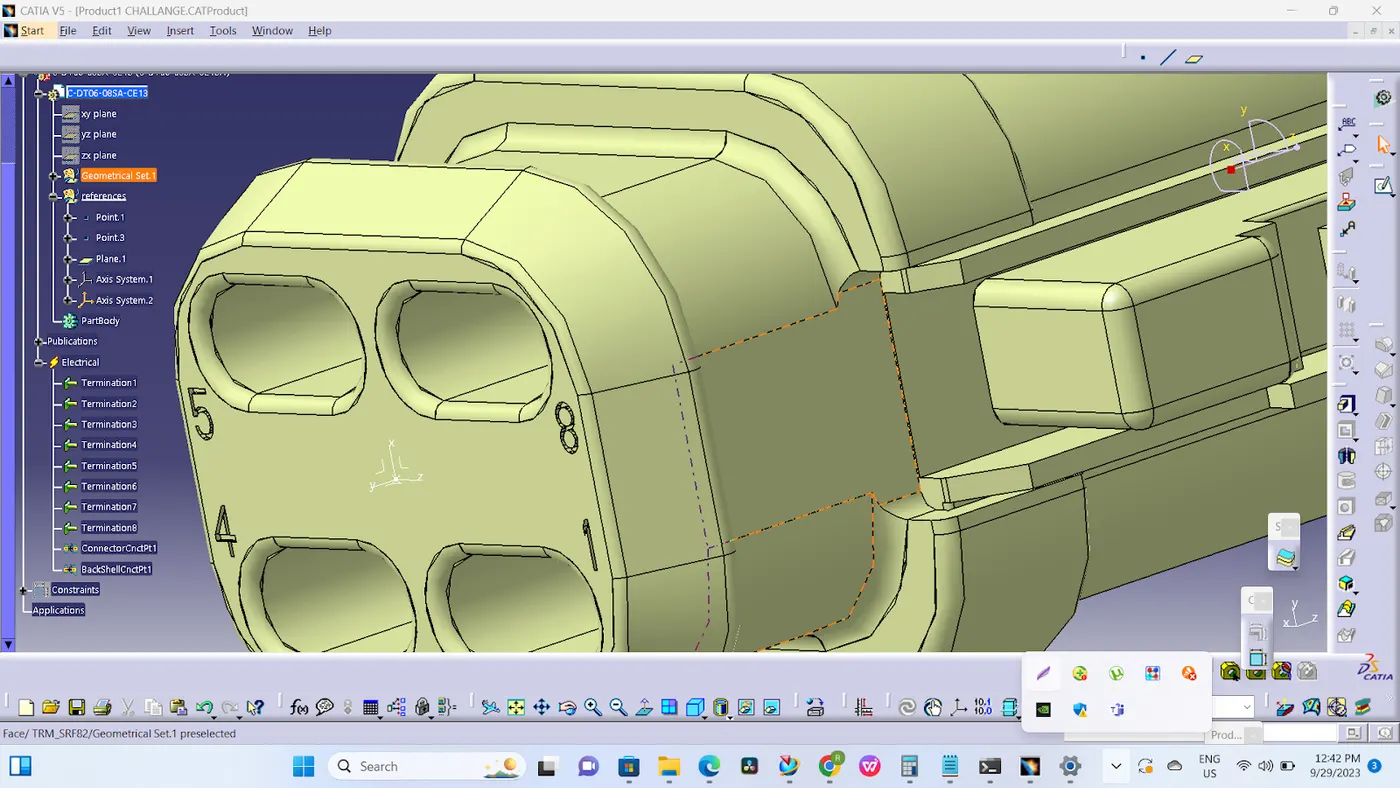

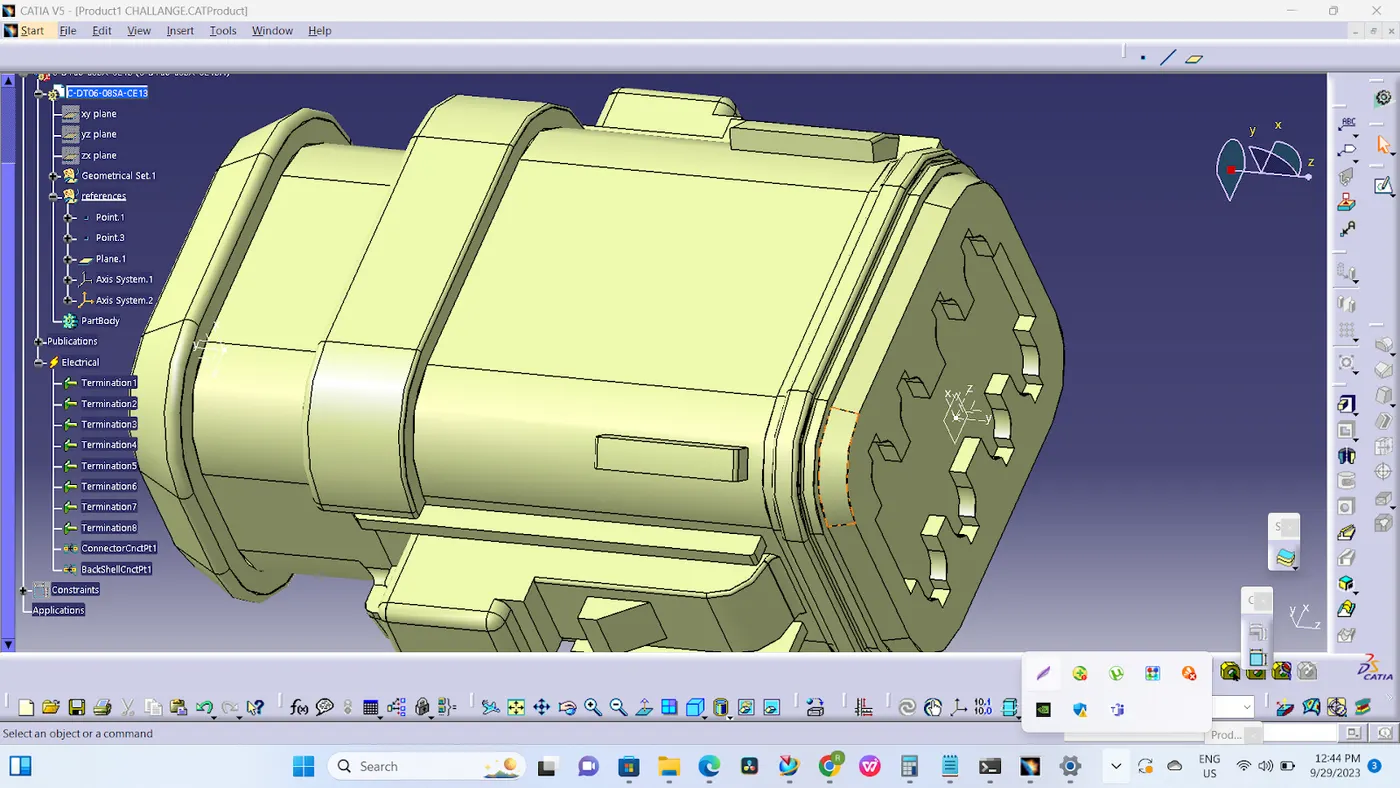

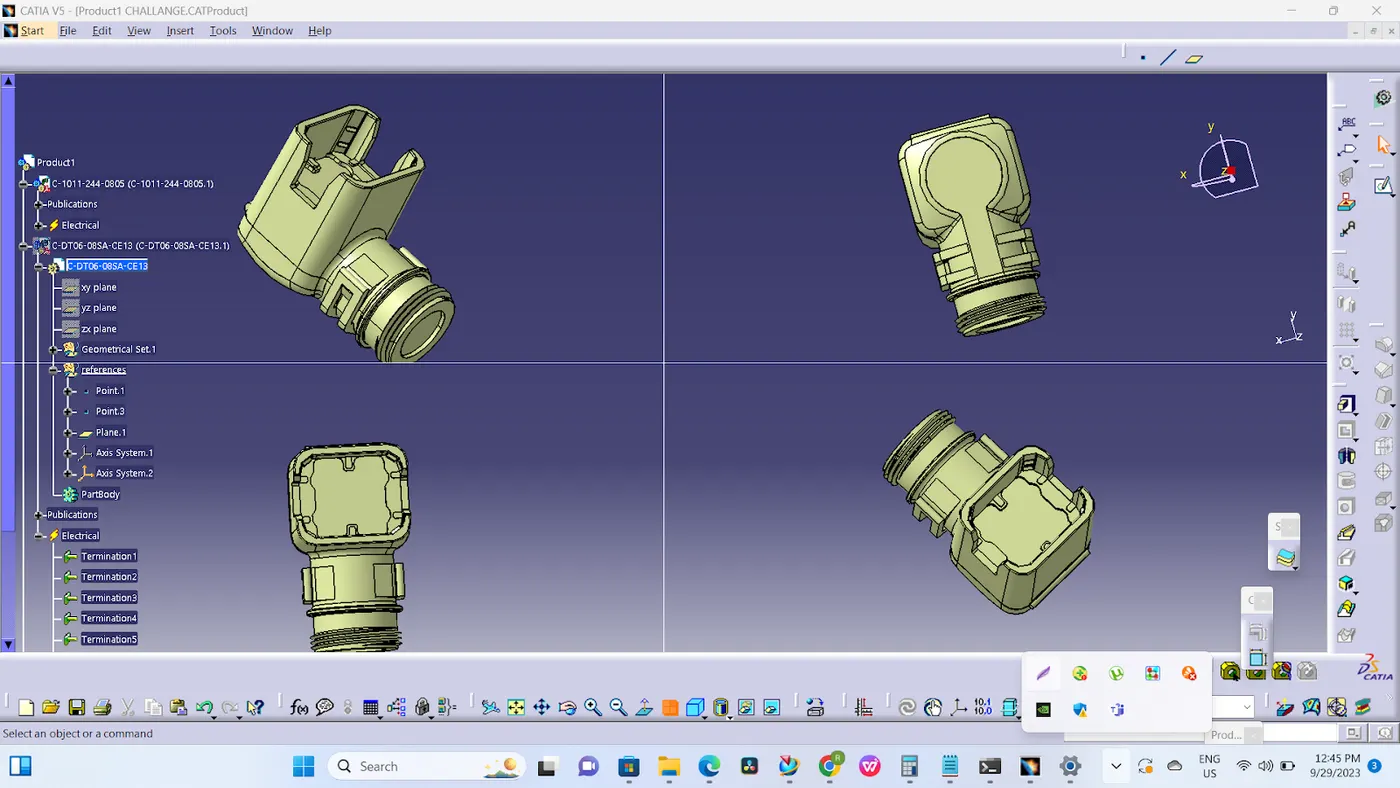

CREATE A POINT AT THE CENTER OF THE TERMINAL FACE WITHE THE POINT ,BETWEEN OPTION  AND USE AXIS ,Y TOWARD THE FACING DIRECTION AND Z ALONG CONNECTIONG CLIP DIRECTION AND X TOWARF UPWARD DIRECTION

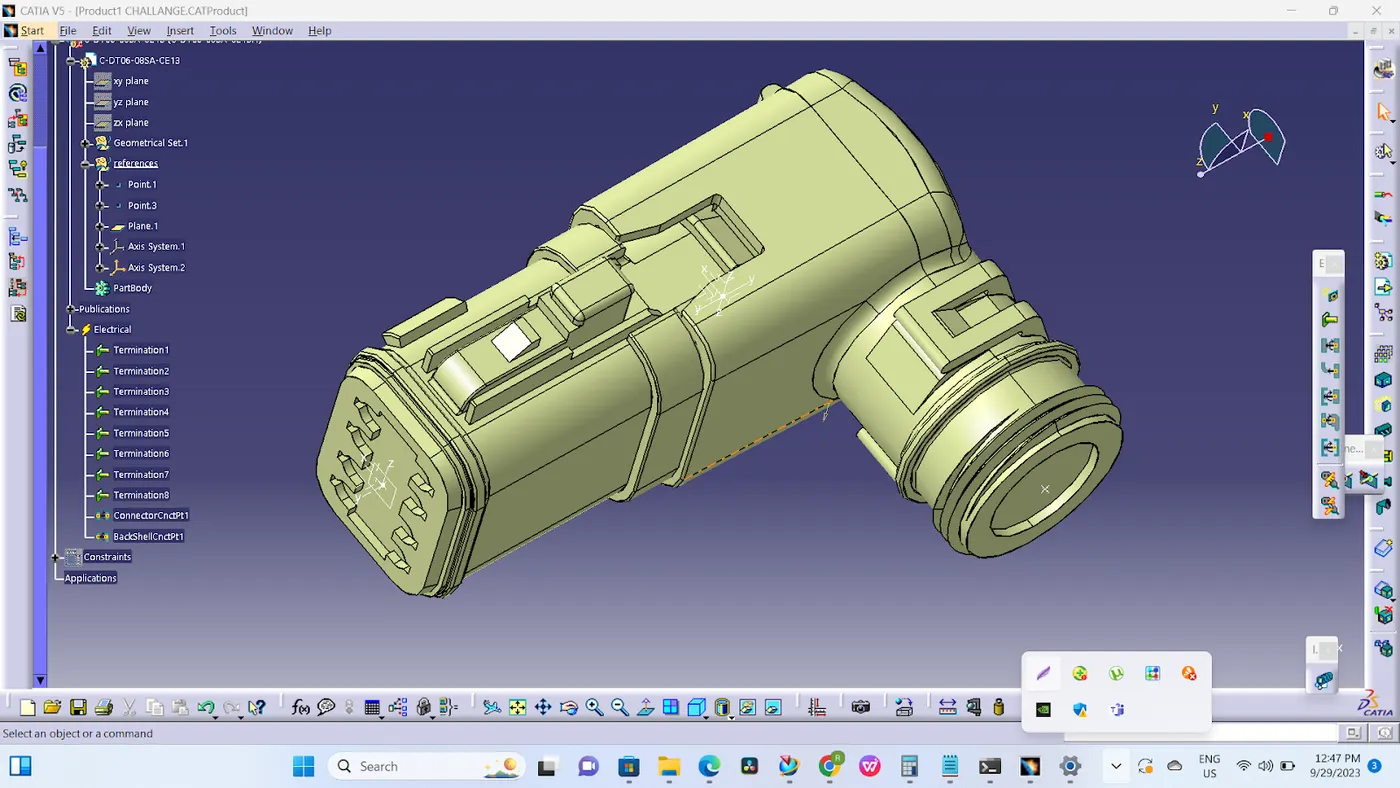

THE BELOW FACE SHOULD BE DEFINED AS BACKSHELL CONNECTION POINT

BELOW IS THE CONNECCTOR CONNECTION POINT

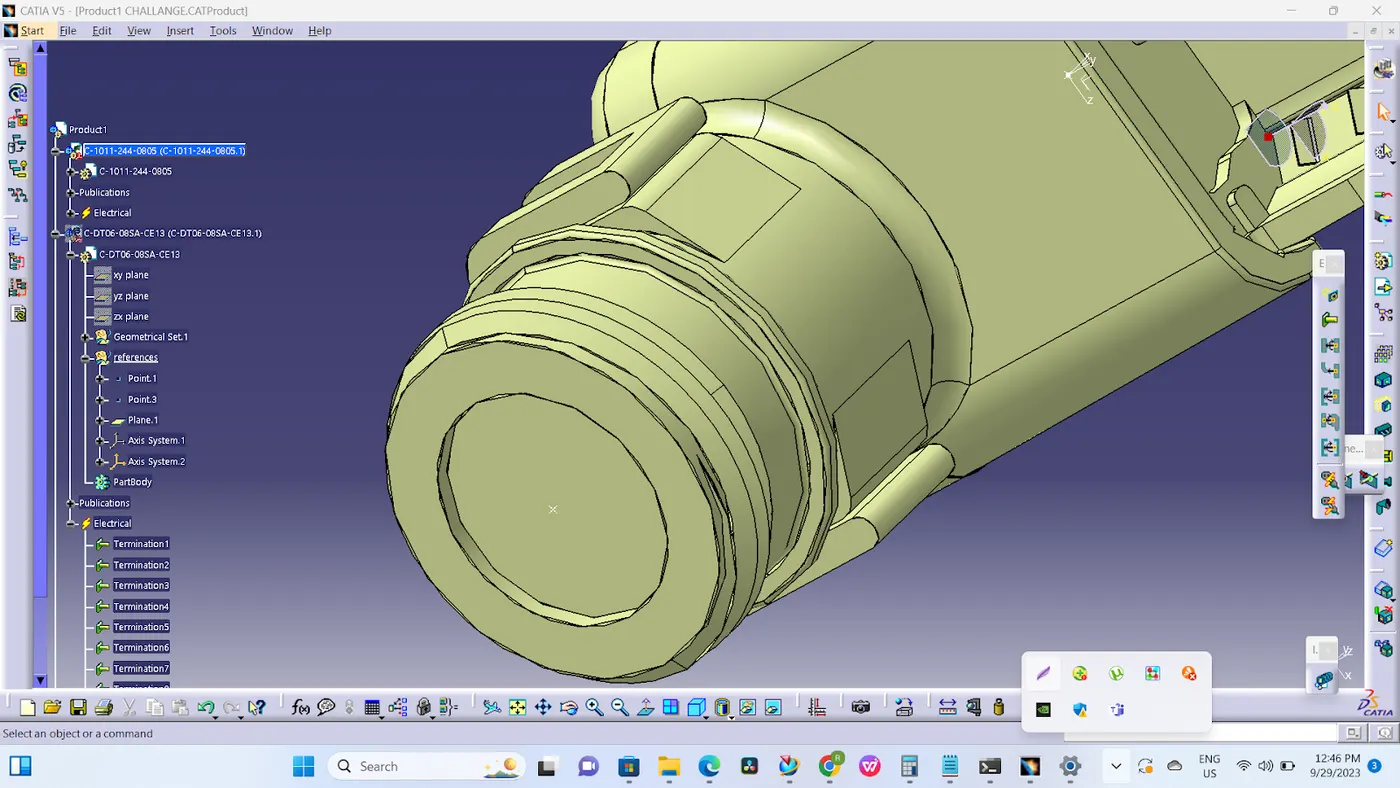

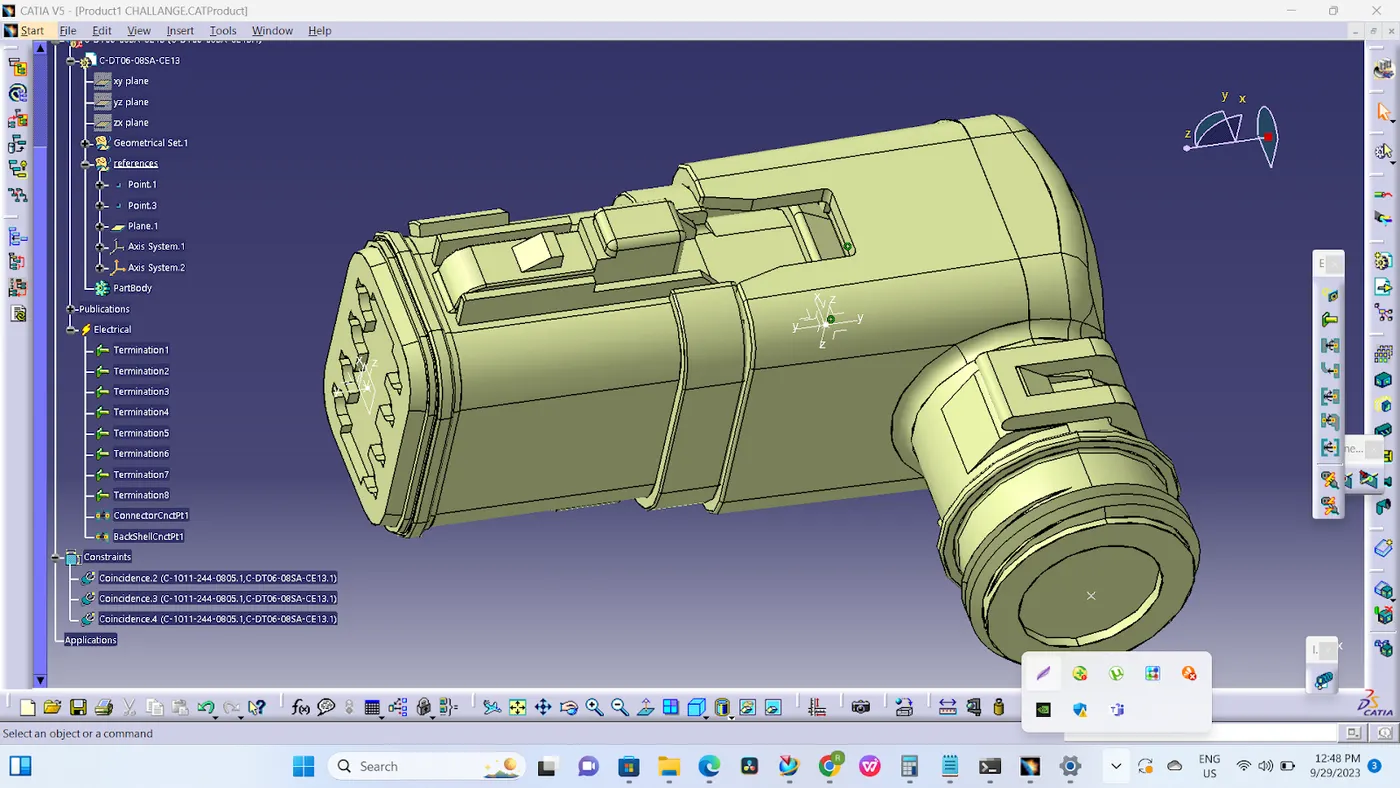

BELO IA THE BACKSHELL

CREATE A PONINT ,WHCH IS BUNDLE CONNECTION POINT

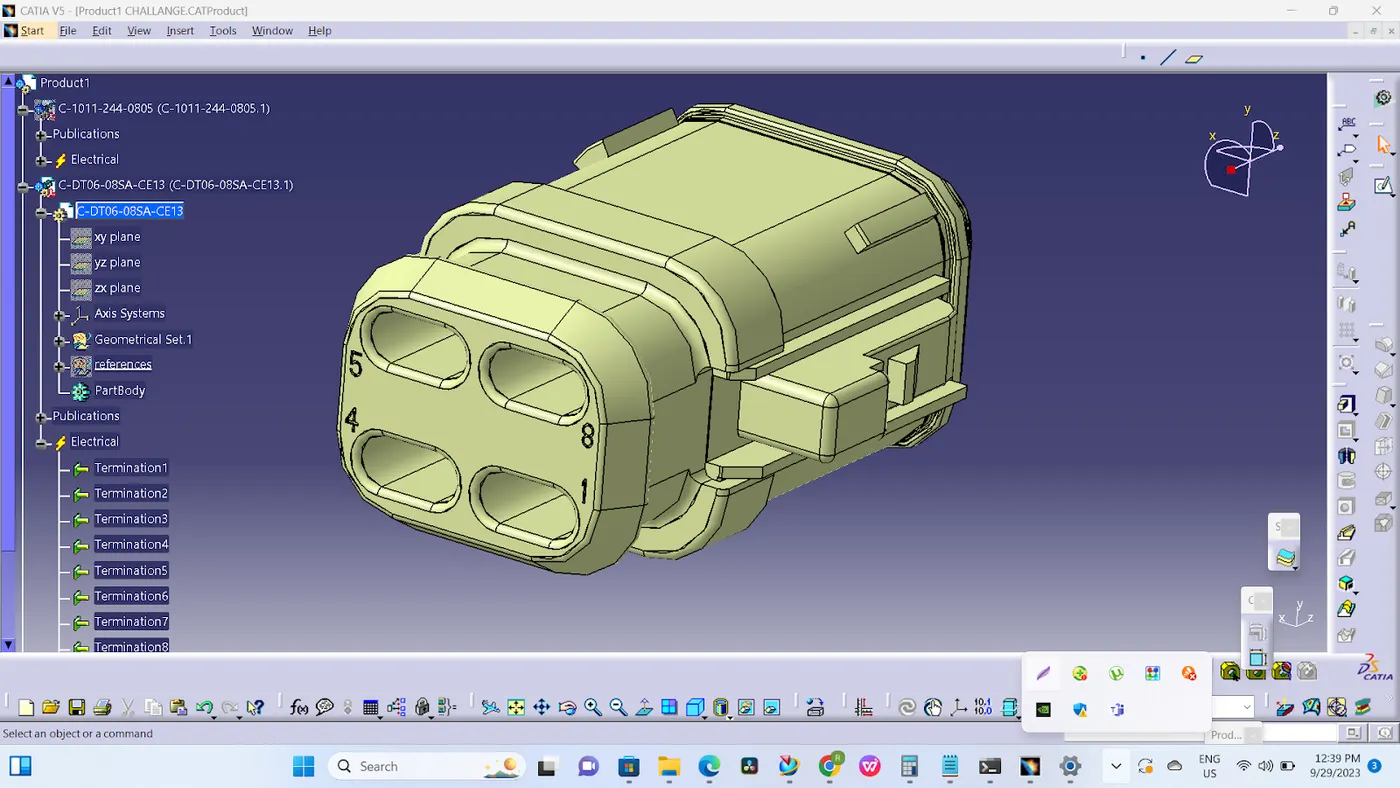

IN ASSEMBLY ,USE CONNECT OPTION AND SELECT THE  COMPONENTS

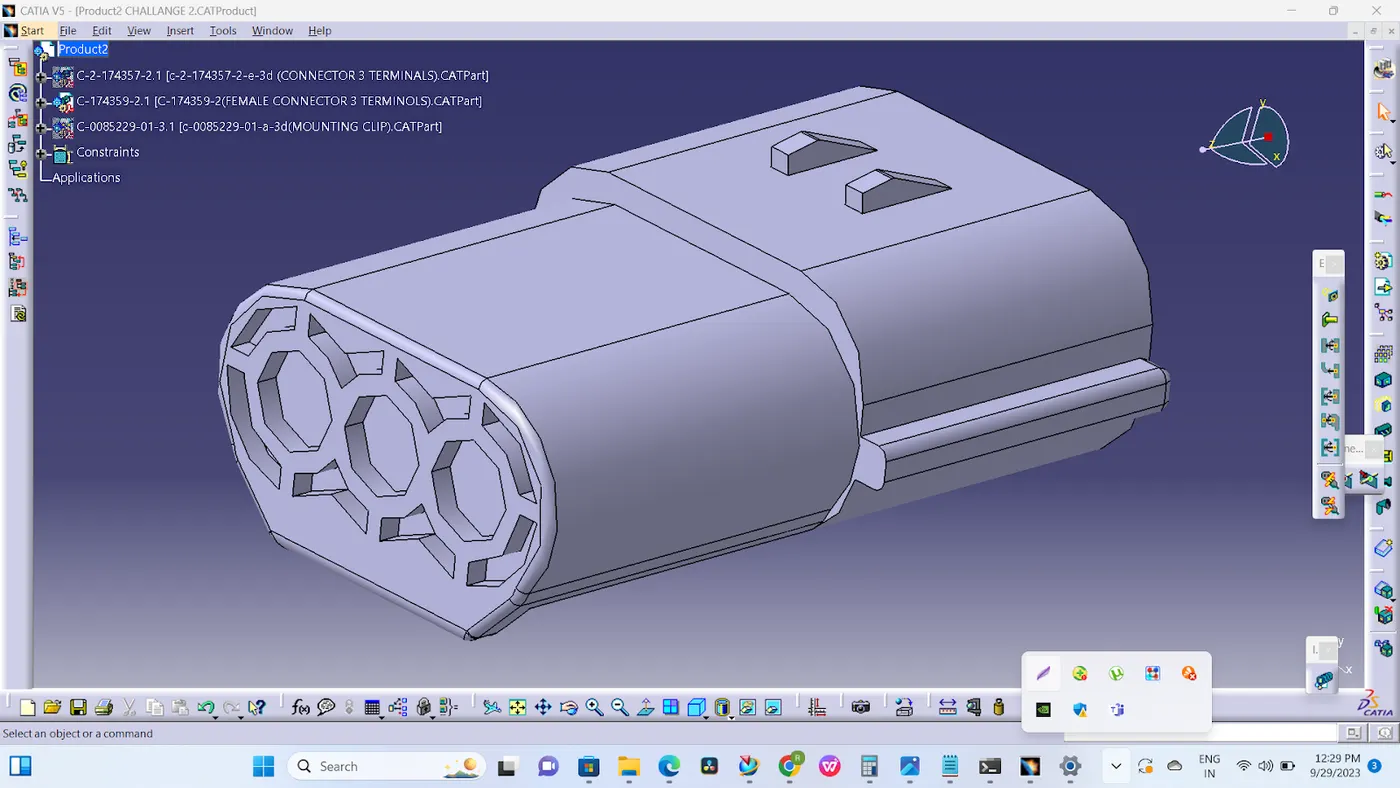

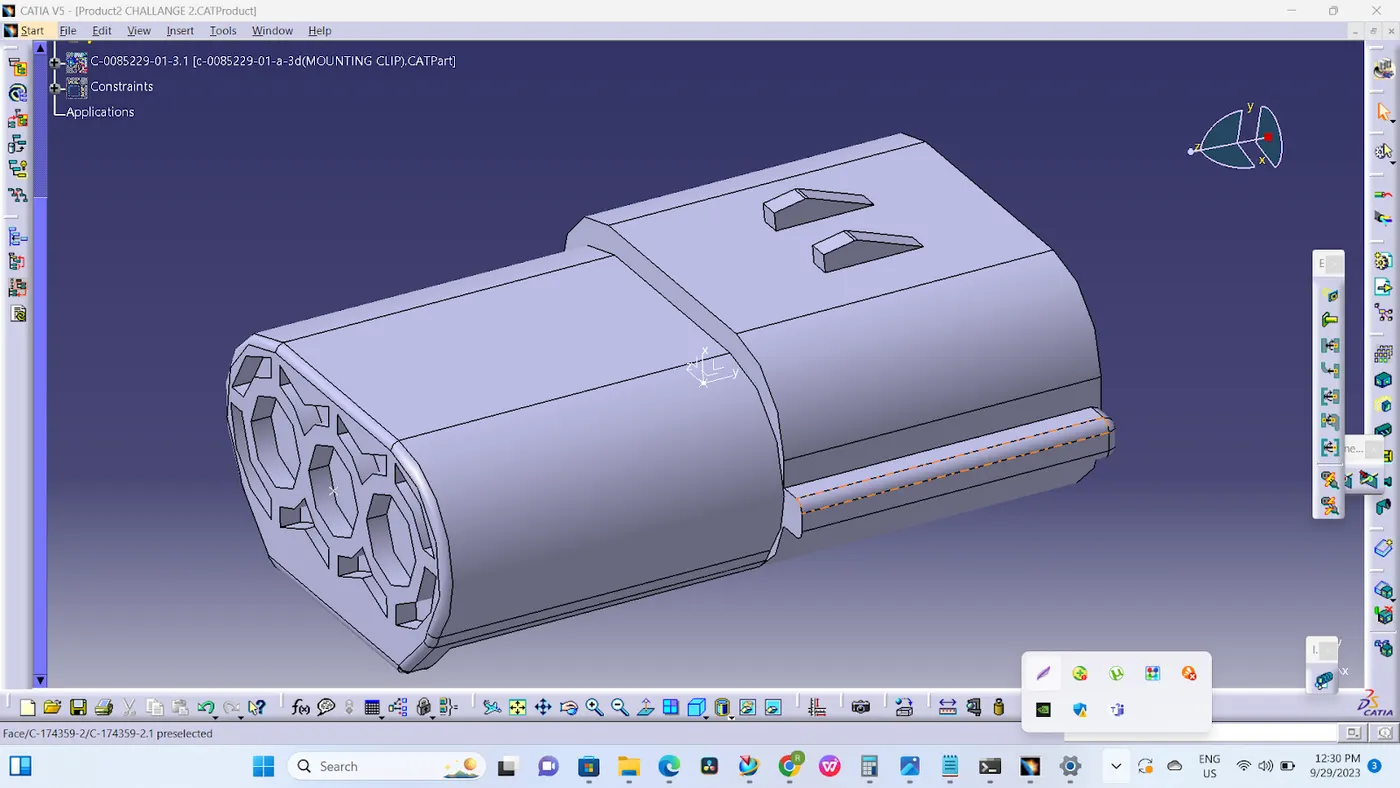

C-174359-2.1,THREE TERMINAL FEMALE CONNECTOR

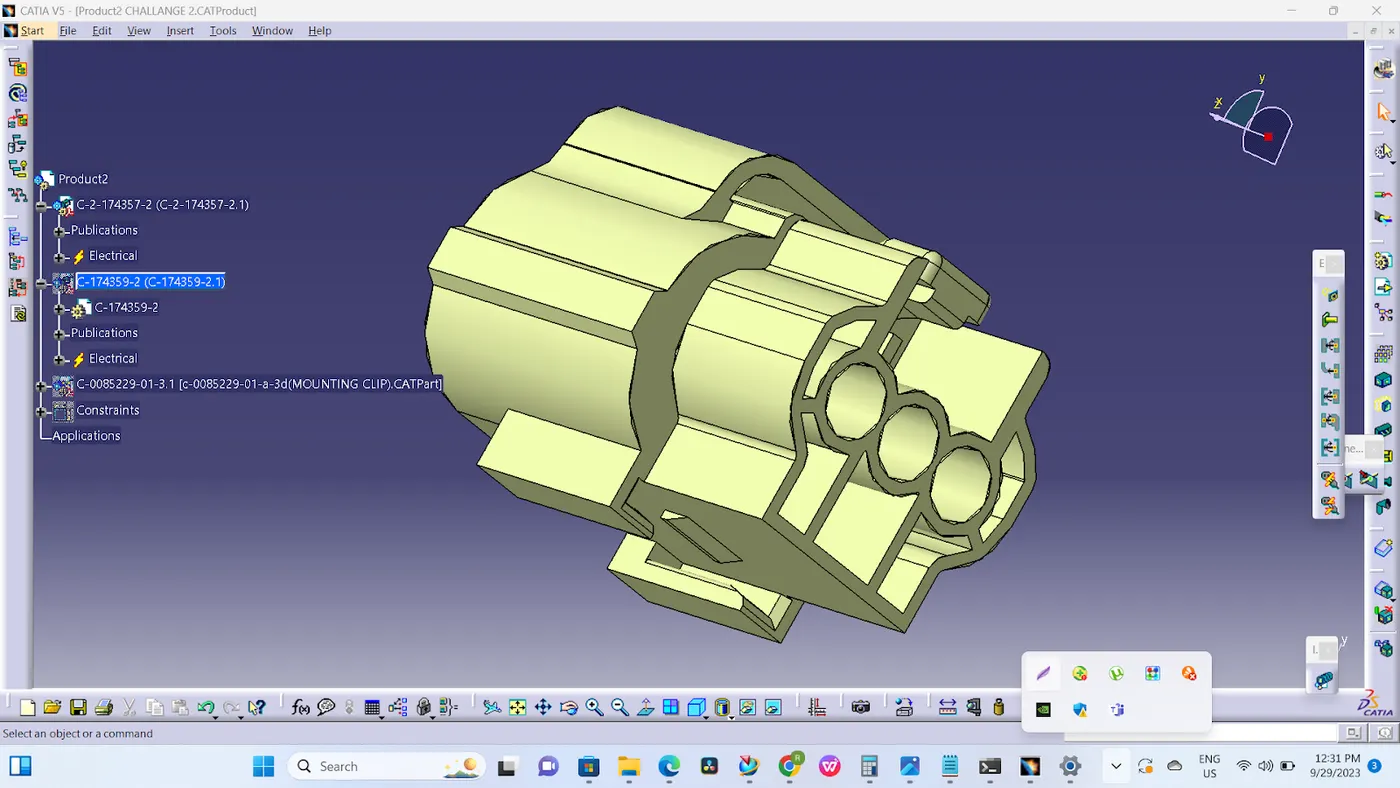

AS SHOWN IN THE FIG BELOW CREATE A POINT IN THE CENTER WITH PROPER LOCATION ANS THE AXIS AS WELL WITH CORRECT ORIENTATION AS PREVIOUSLY MENTIONED NEXT DEFINE IT AS CONNECTOR AND CONNECTOR CONNECTION POINT

Tyco 174357-2 :

• Create midpoint
• create Connector connection point
• create Connector connection axis system
• create cavity connection point
• create cavity connection axis system
• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point

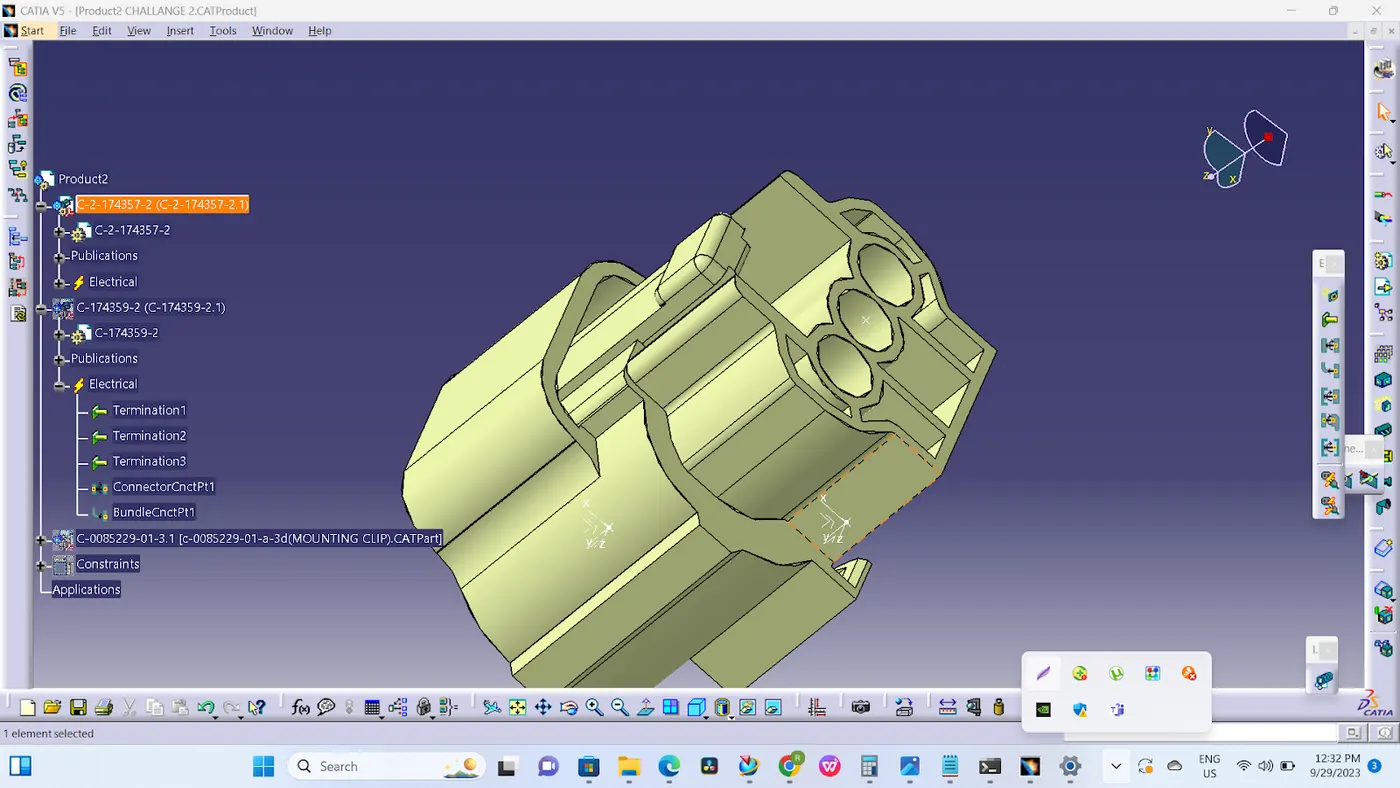

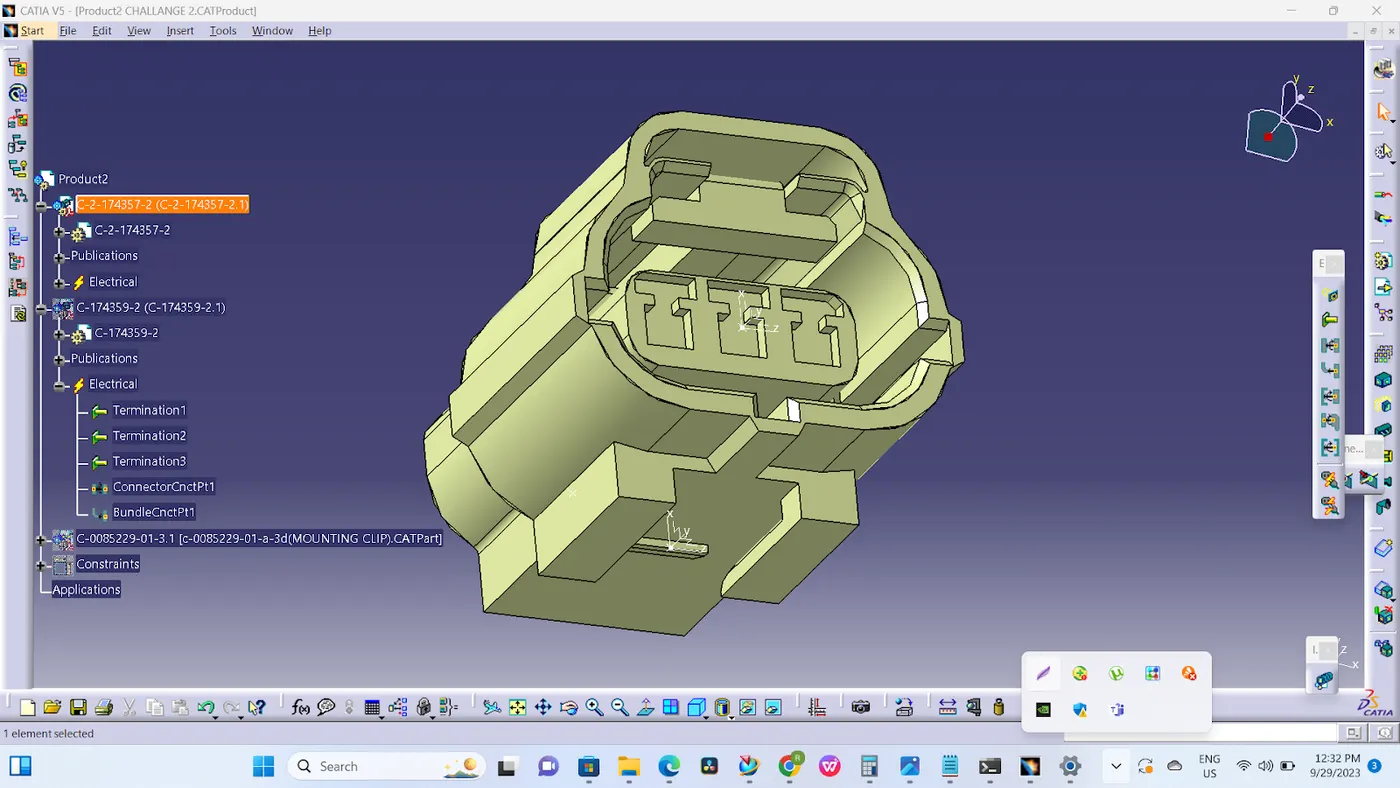

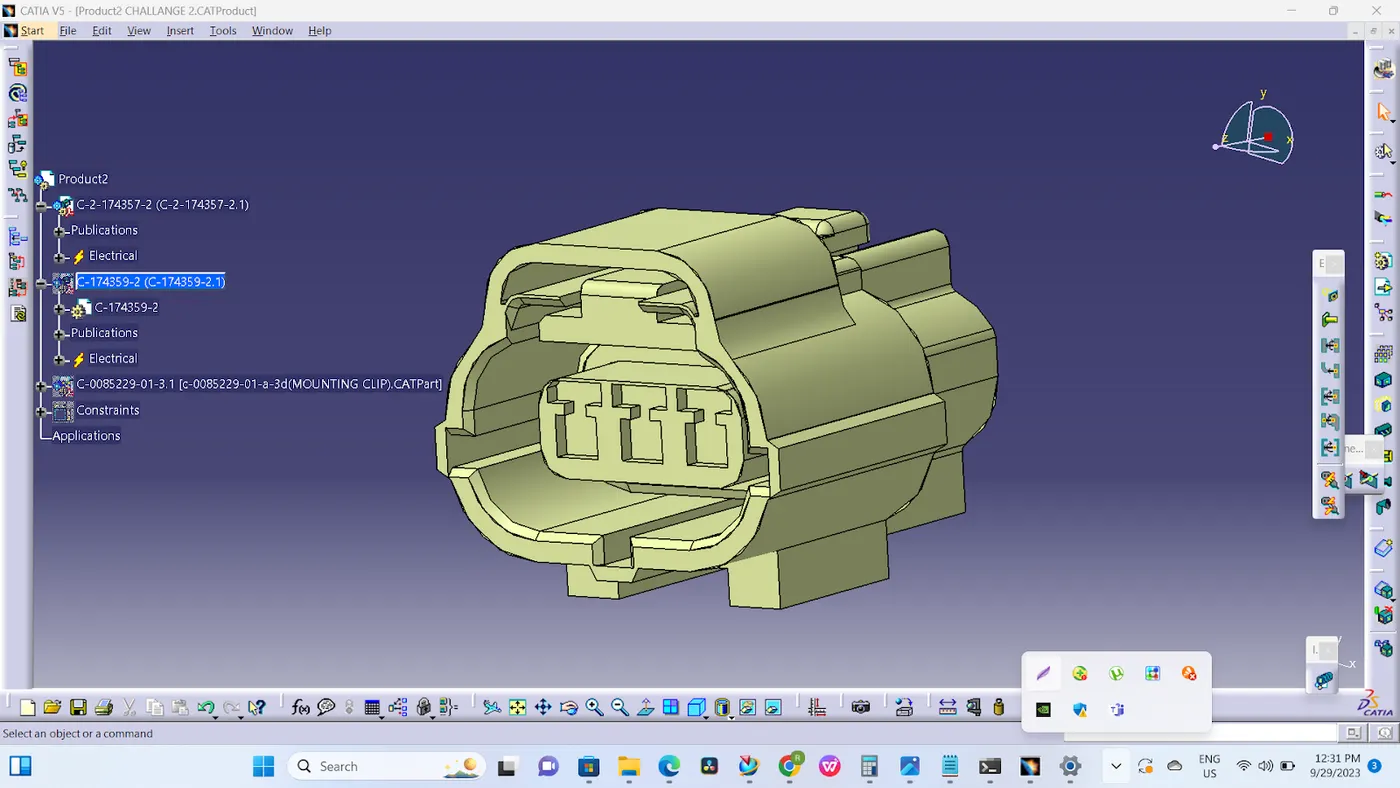

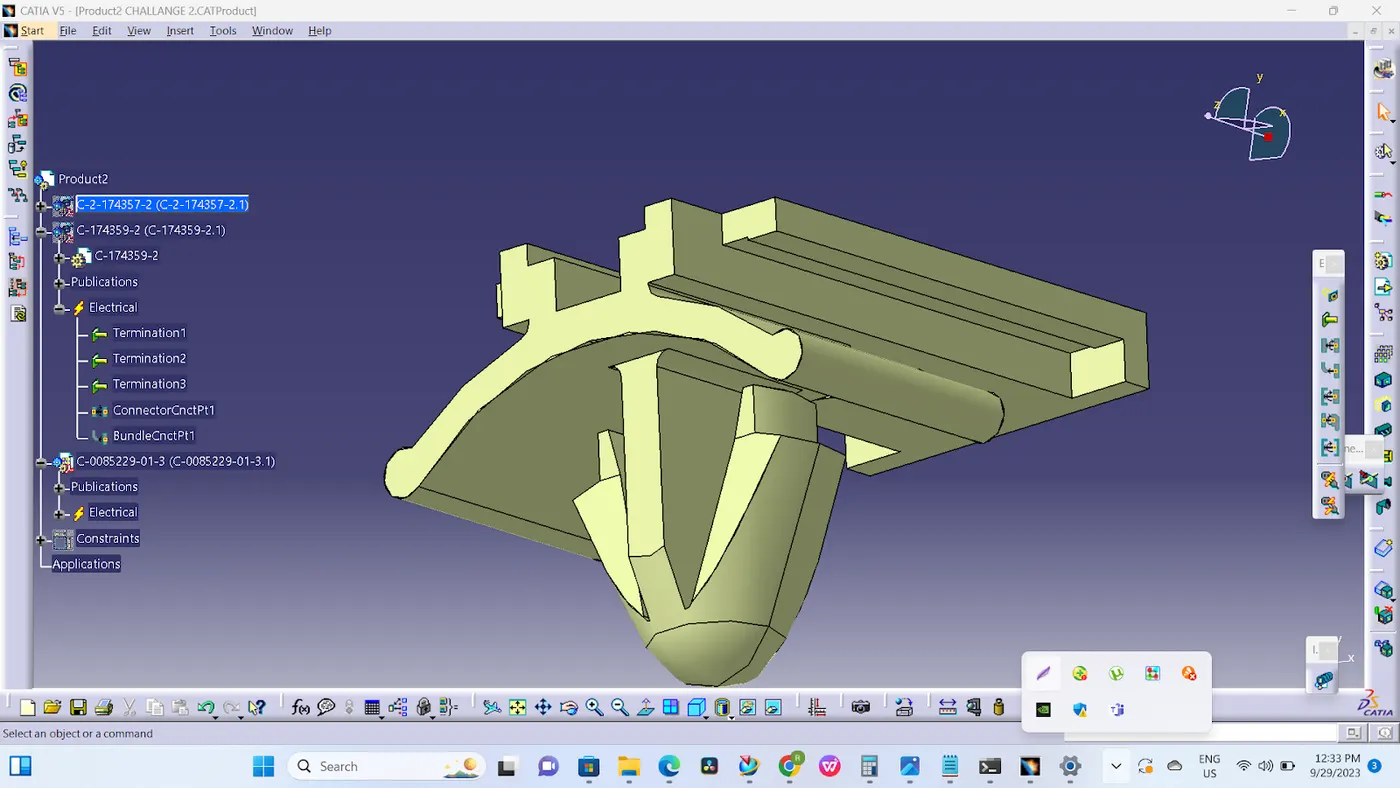

• FBELOW U CAN SEE THE POINT AND AXIS WERE CREATED FOR BOTH CONNECTOR CONNECTION POUNT AND FOR MOUNTING CLIPDEFINE BOTH CONNECTOR CONNECTION POINT AND BUNDLE CONNECTION POINT

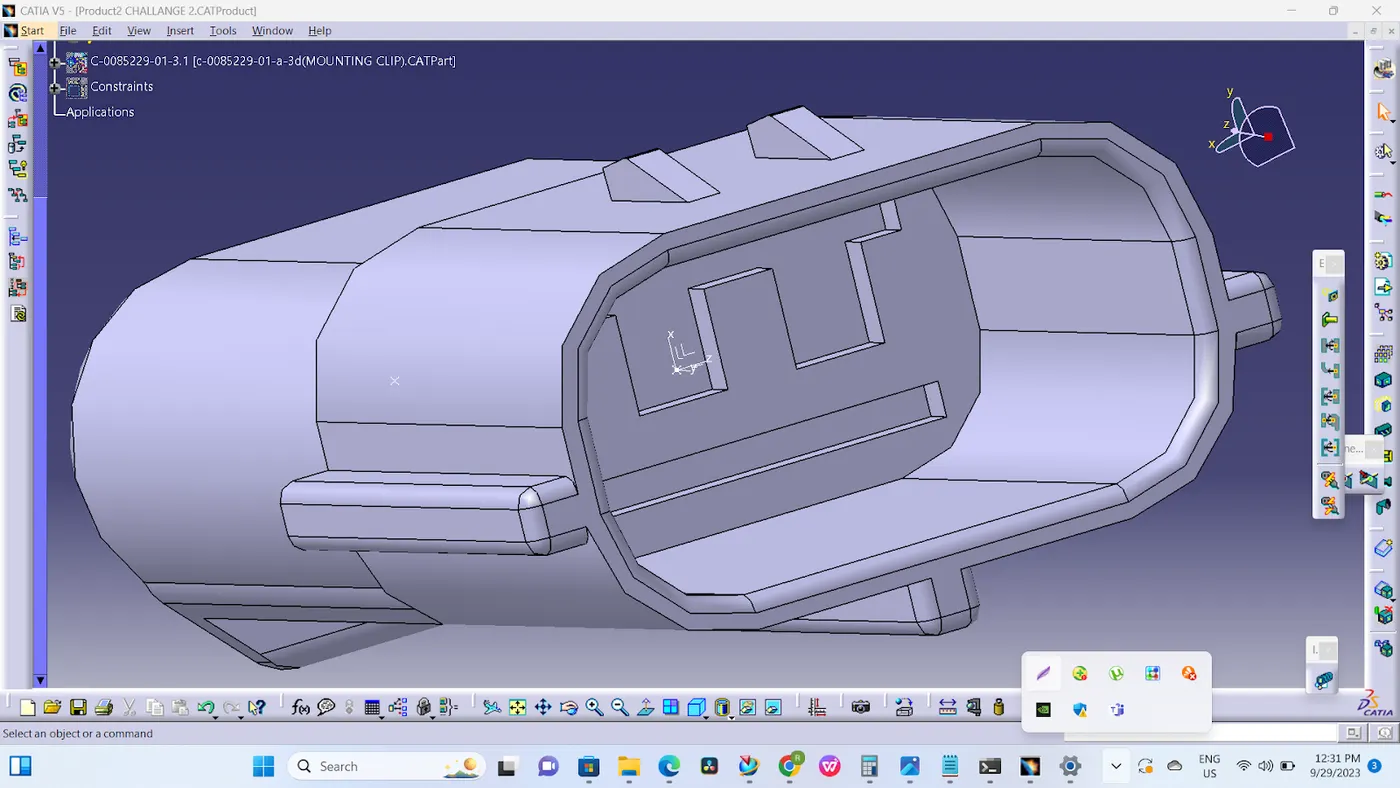

• BELOW IS THE MOUNTING CLIP Tyco 85229-1 :
  • Create midpoint
  • create cavity connection point
  • create cavity connection axis system and orientation should be same as in connector
  • Switch to Electric part design and define part as Mounting Equipment
  • Define cavity connection point

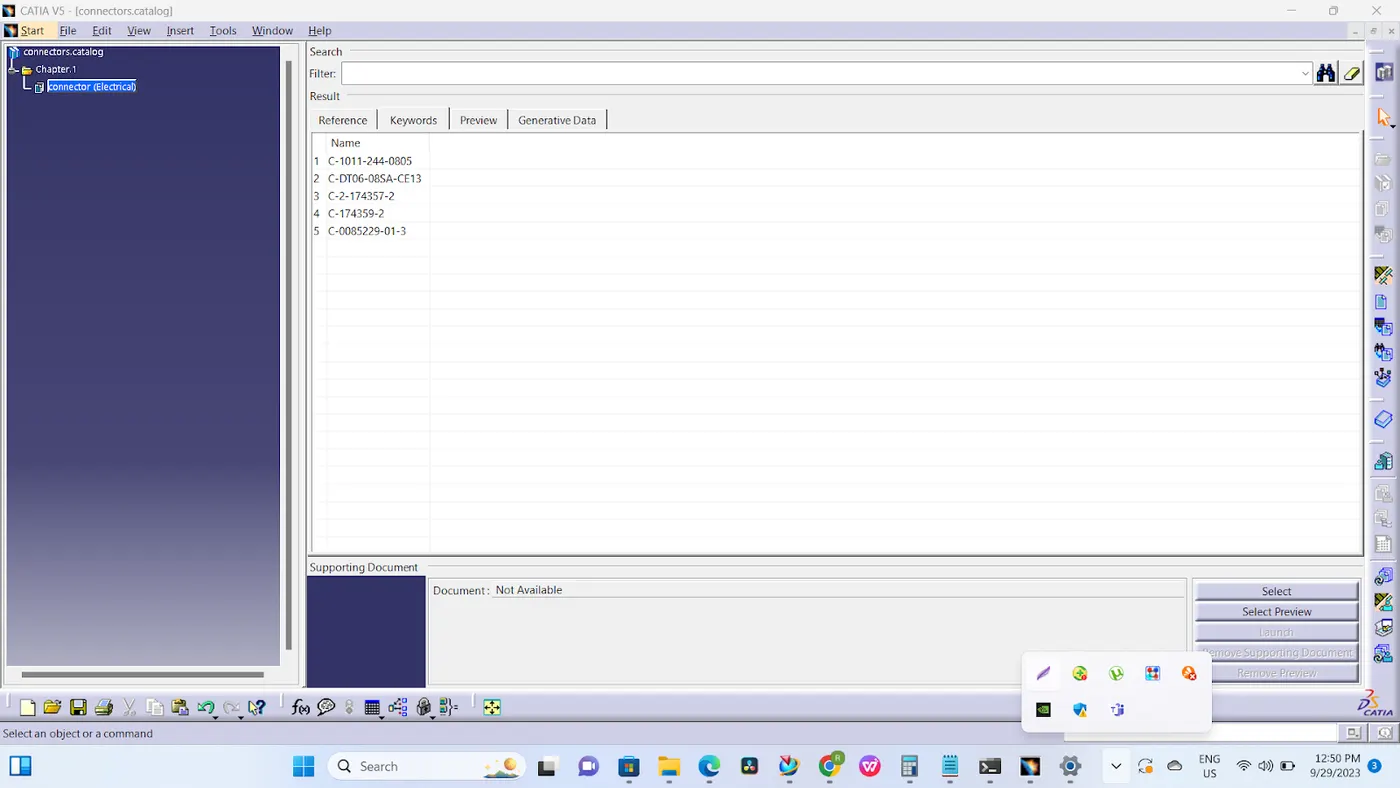

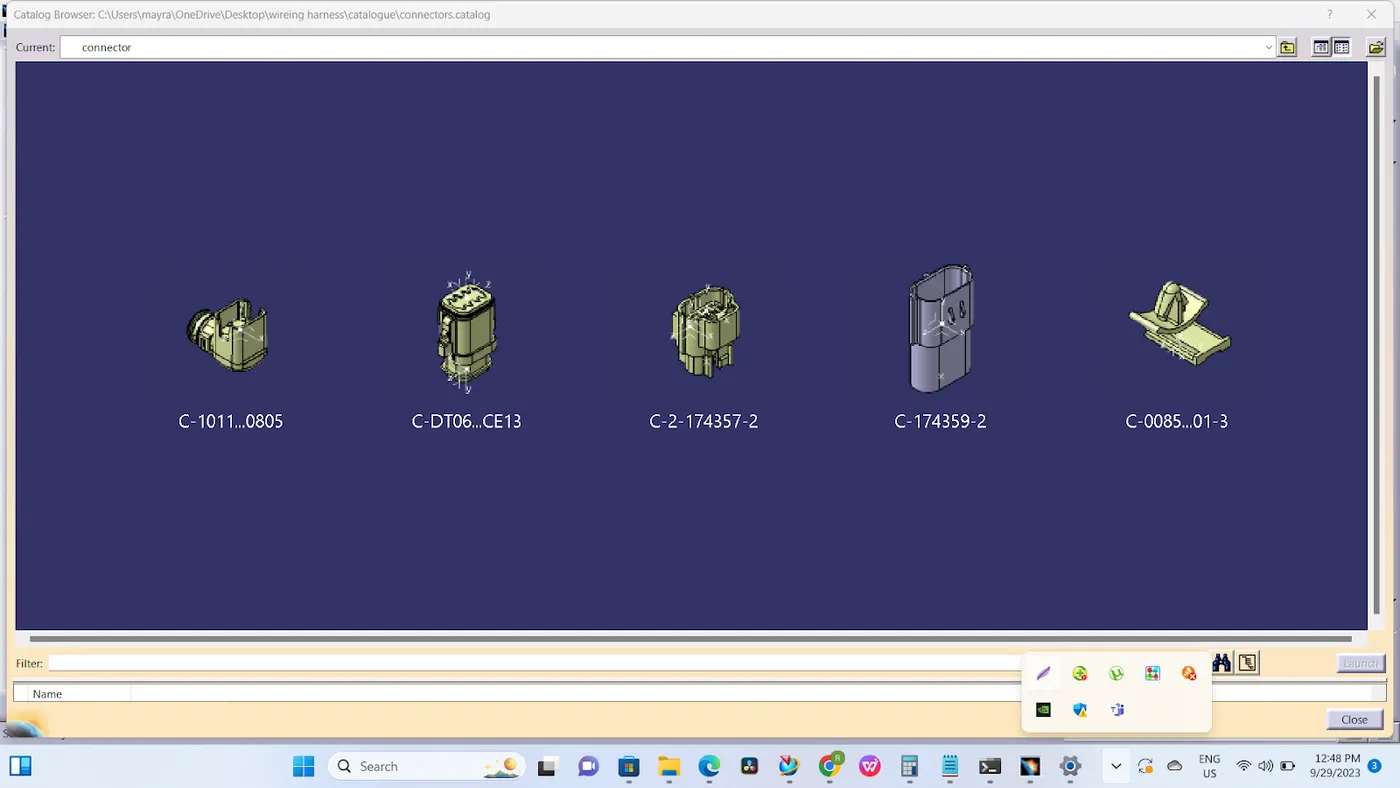

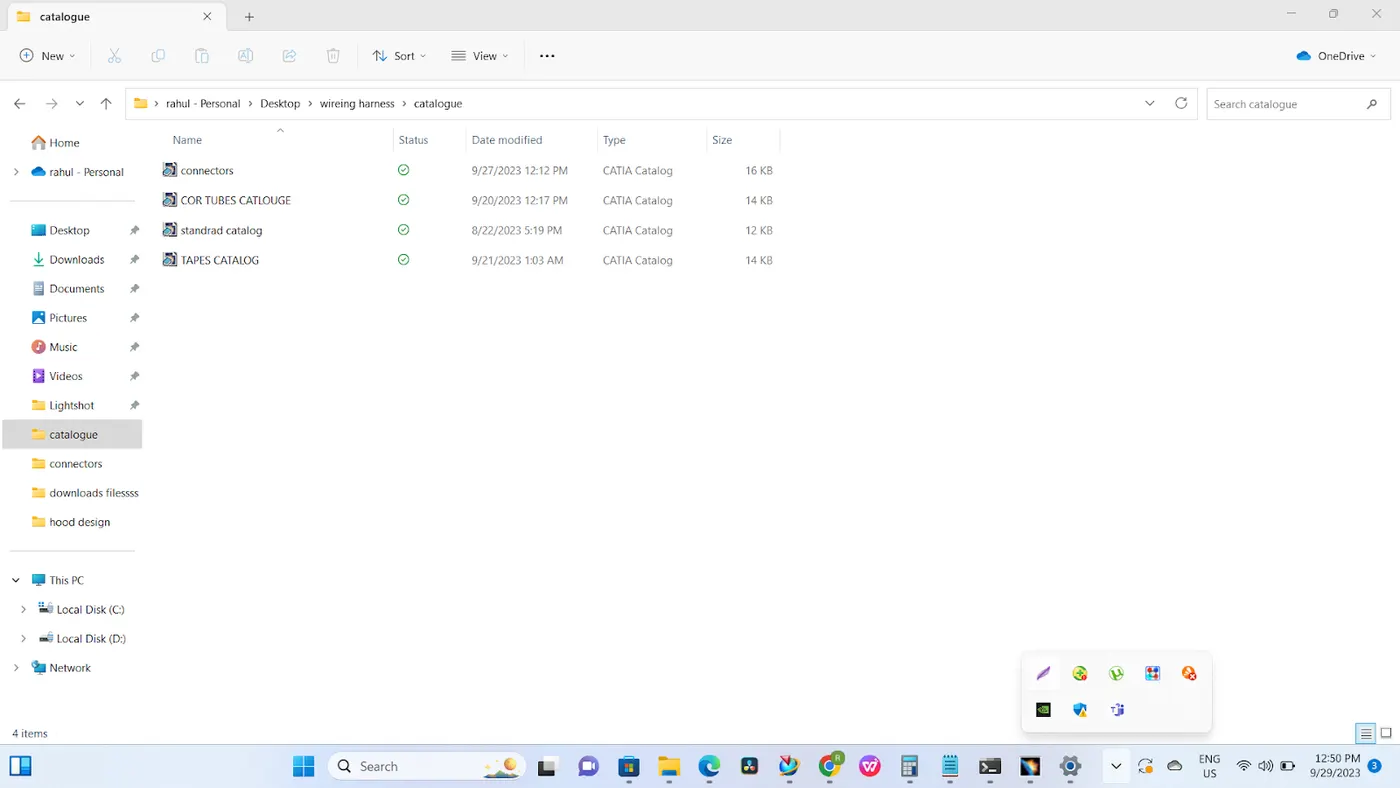

 CATALOG  IS CREATED FOR ABOVE ELECTRICALLY DEFINED PARTS
