Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Electrical Distribution System: Electrical Distribution System is Combination of bothb E cad & M cad. E/E architectute and Electrical Schematics comes under the E CAD, The Electrical Schematics drawing is the input to the M cad, Wiring Harness Routing and flattening Comes Under M CAD. Both E CAD and M Cad are Syncronized to create Build to Print Drawing(BTP). Here Wiring Harness Engineer Starts his work Parllel with the Electrical Schematics Using Previous data.

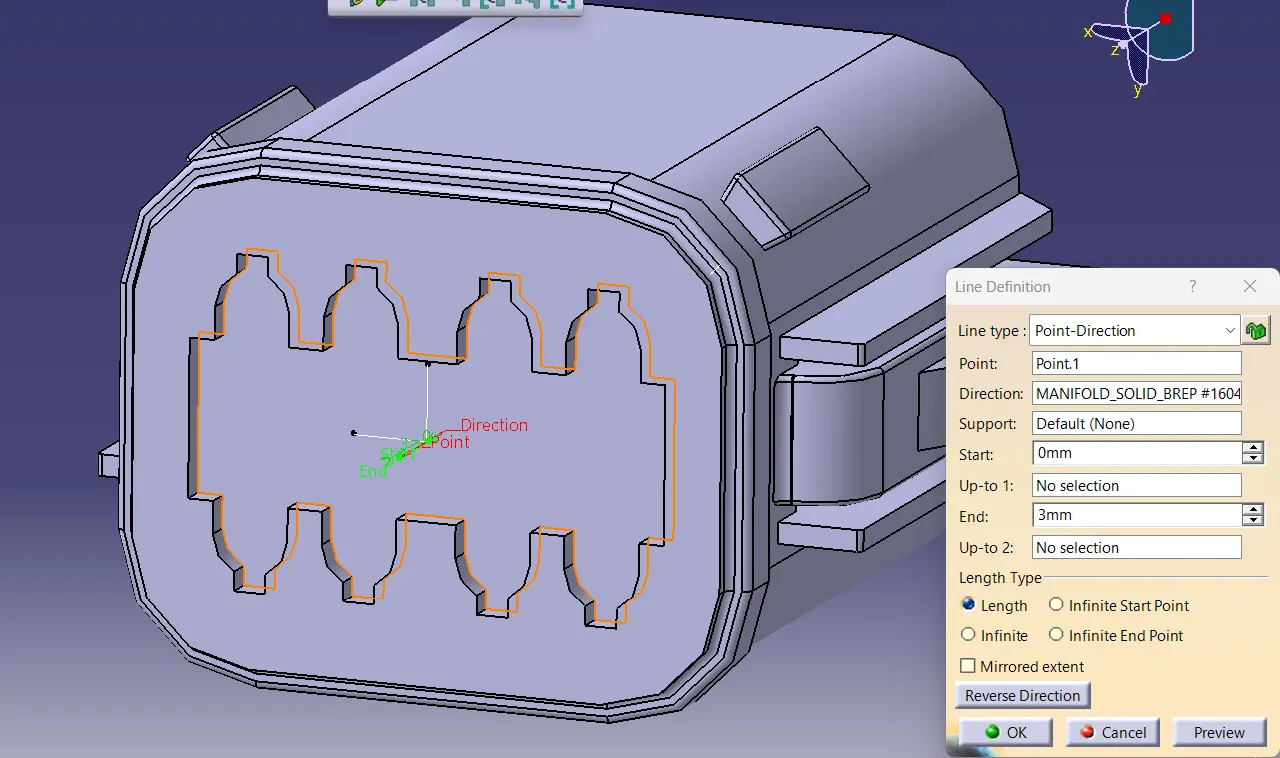

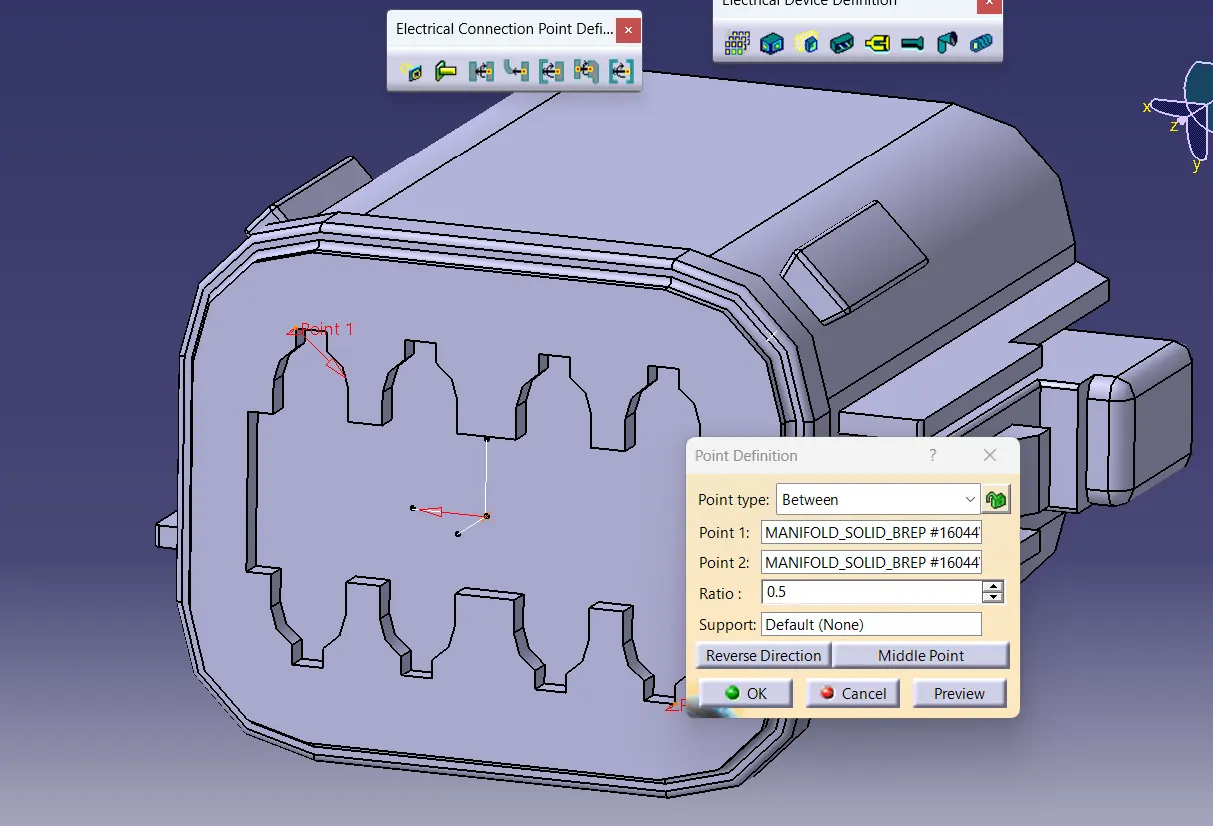

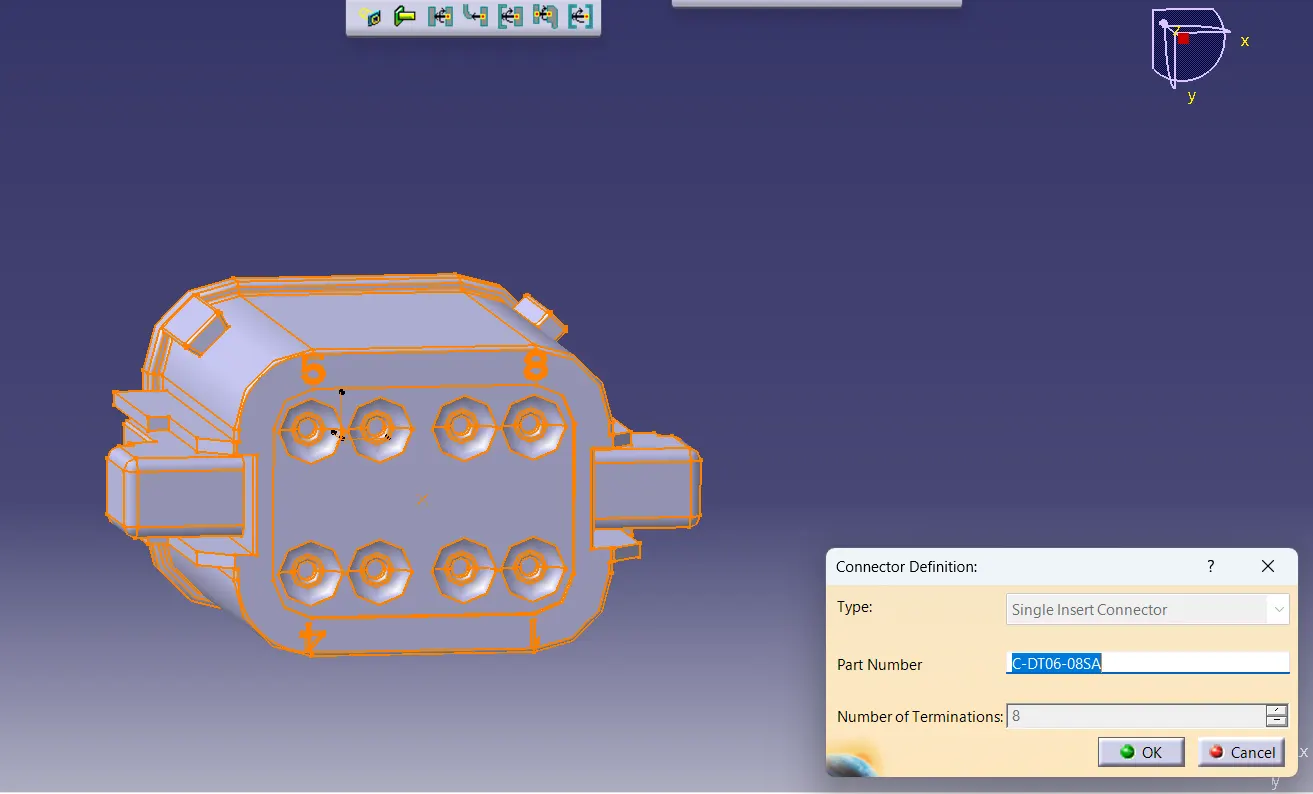

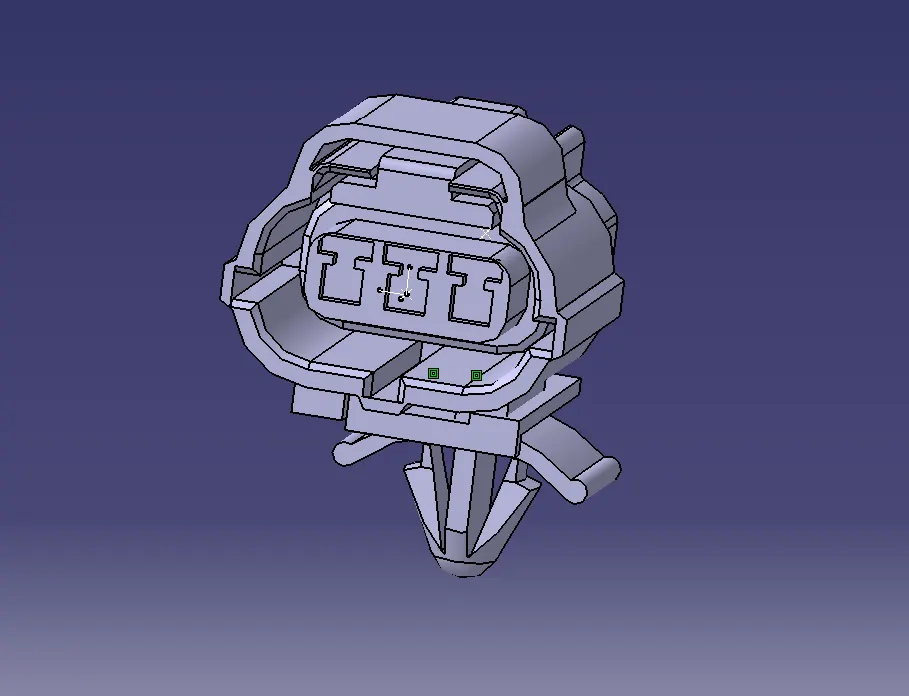

In This Challenge we are going to define the electrical components and Electical connection Points Points
