Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
A.I.M : Downloading the files form the te.com website and then defining the parts electrically and further creating a catalogue for the components.
REPORT :

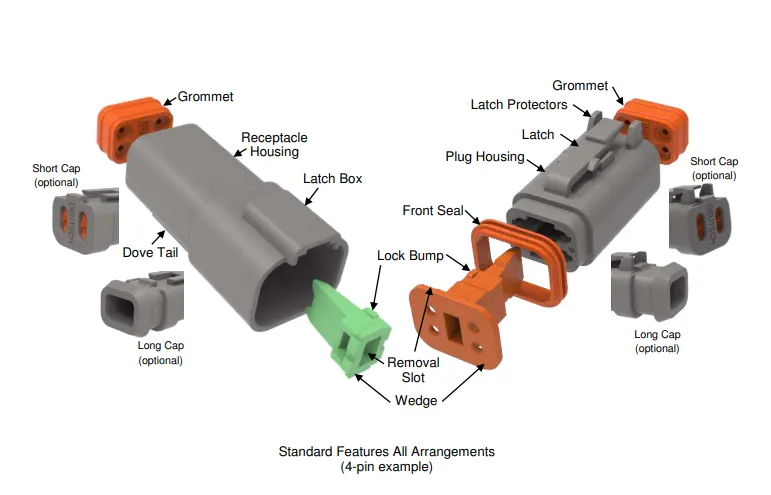

ABOUTDeutsch DT06 – 08SA :
This specification covers the requirements for application of DEUTSCH DT series connector system.The system features a plug and receptacle that offers 2, 3, 4, 6, 8, and 12-pin arrangements which accept DEUTSCH size 16 solid (machined) or stamped & formed contacts.The plug and receptacle each consist of a housing and secondary wedge lock. The secondary wedge lock is used to ensure that the contact is fully seated and secure in the connector. The connector and the secondary wedge lock are shipped separately. These connectors feature integral latch-style
mating. The 8 & 12 pin arrangements feature integral keying and are color-coded.Basic terms and features of this product are provided below. Pages 2 through 5 provide examples of additional features and modifications. 4 & 12 pin shown as example

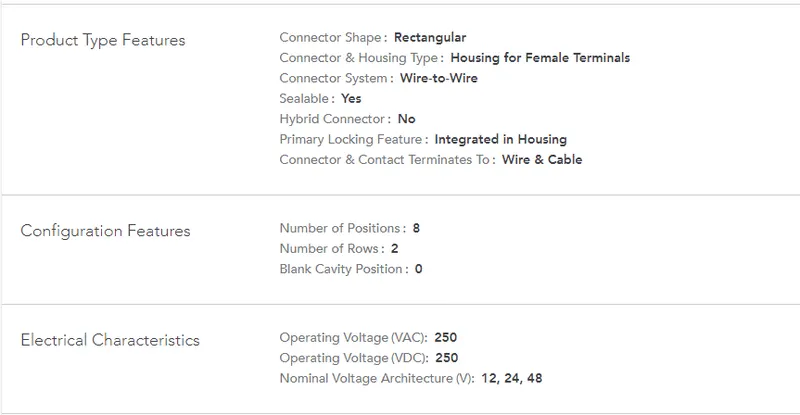

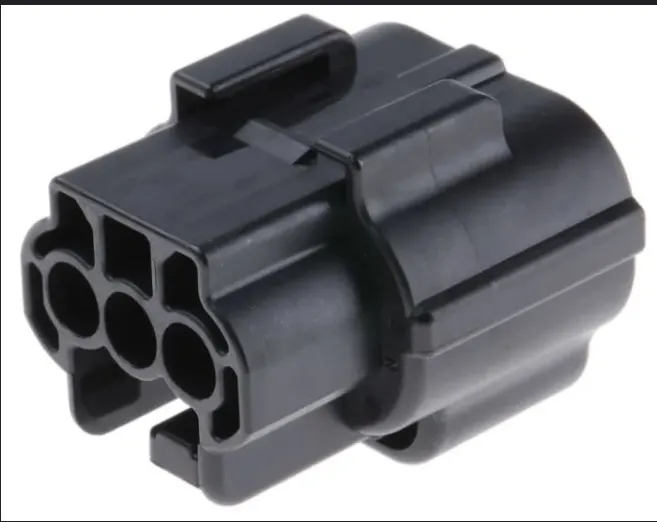

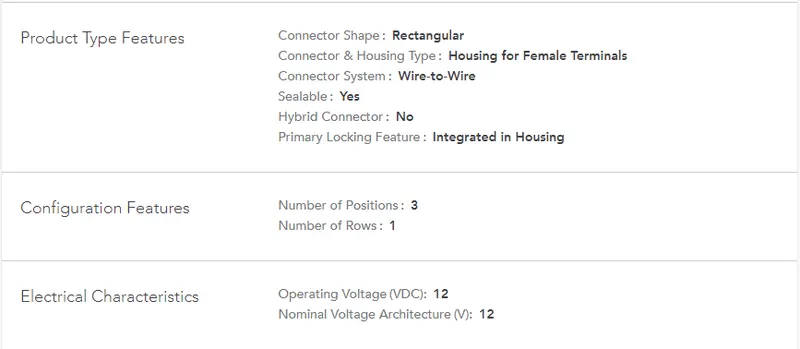

ABOUT Tyco 174357-2 :

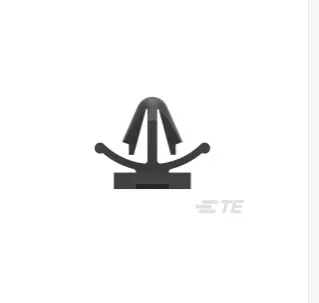

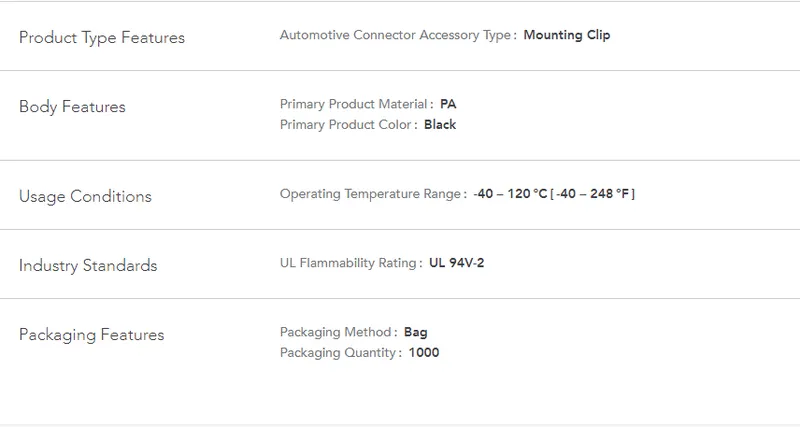

ABOUT Tyco 85229-1 :
STEP 1 : downloaded all the files from the te.com website.
STEP 2 : extracted all the files , and then open the step files in catia.
STEP 3 : converted all the step files in to part files and saved the file.
STEP 4 : defining the parts electrically ,first in the part workbench , created points for bundle connection , connector connection and cavity connection.
STEP 5 : created an axis system for the connector connection and cavity connection.
STEP 6 : after that , switched to electrical part design workbench , and then defined the connector with its respective number of terminals.
STEP 7 : defined bundle connection point , connector connection point , cavity connection point and saved the part files.

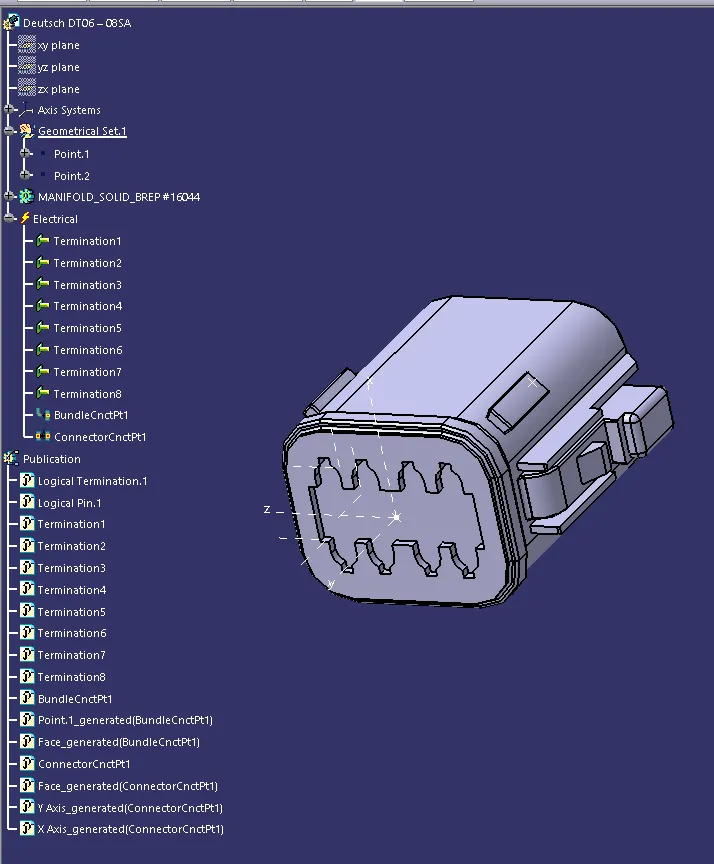

FOR Deutsch DT06 – 08SA :

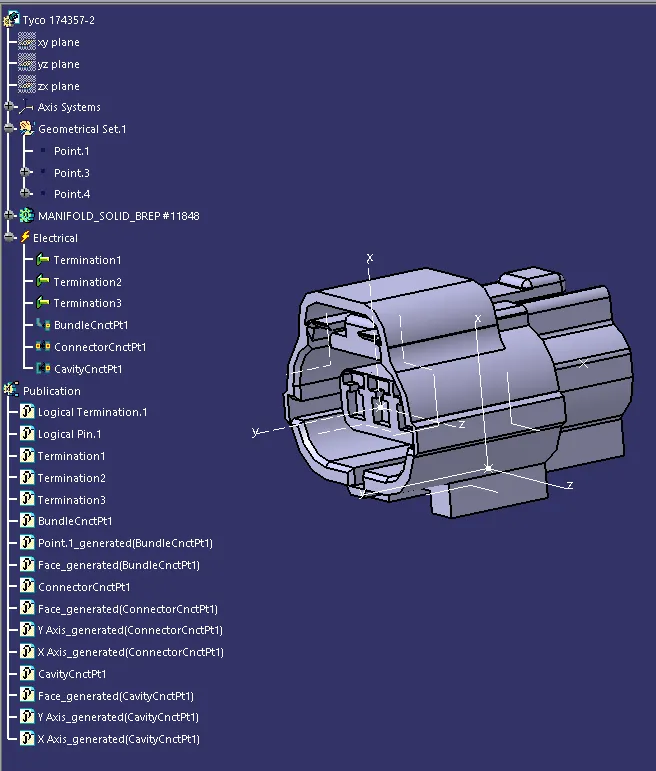

FOR Tyco 174357-2 :

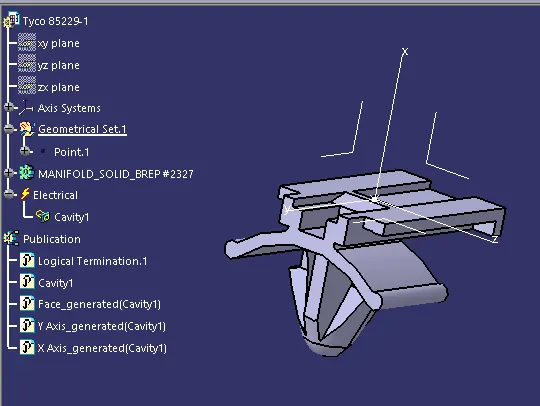

FOR Tyco 85229-1 :
STEP 8 : created two catalogue , one for connectors and another for mounting pins ,then stored the data of connectors and mounting pins in there respective catalogues.

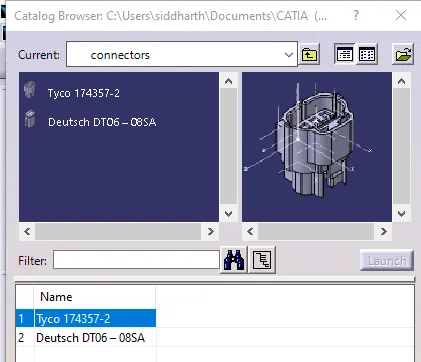

CATALOGUE FOR CONNECTORS :

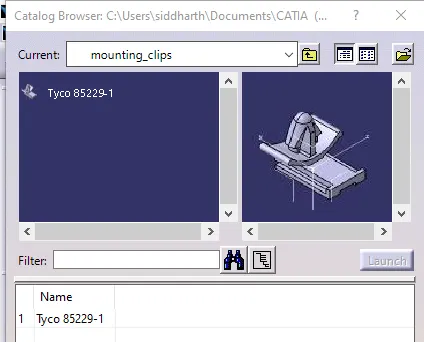

CATALOGUE FOR MOUNTING PINS :
