Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

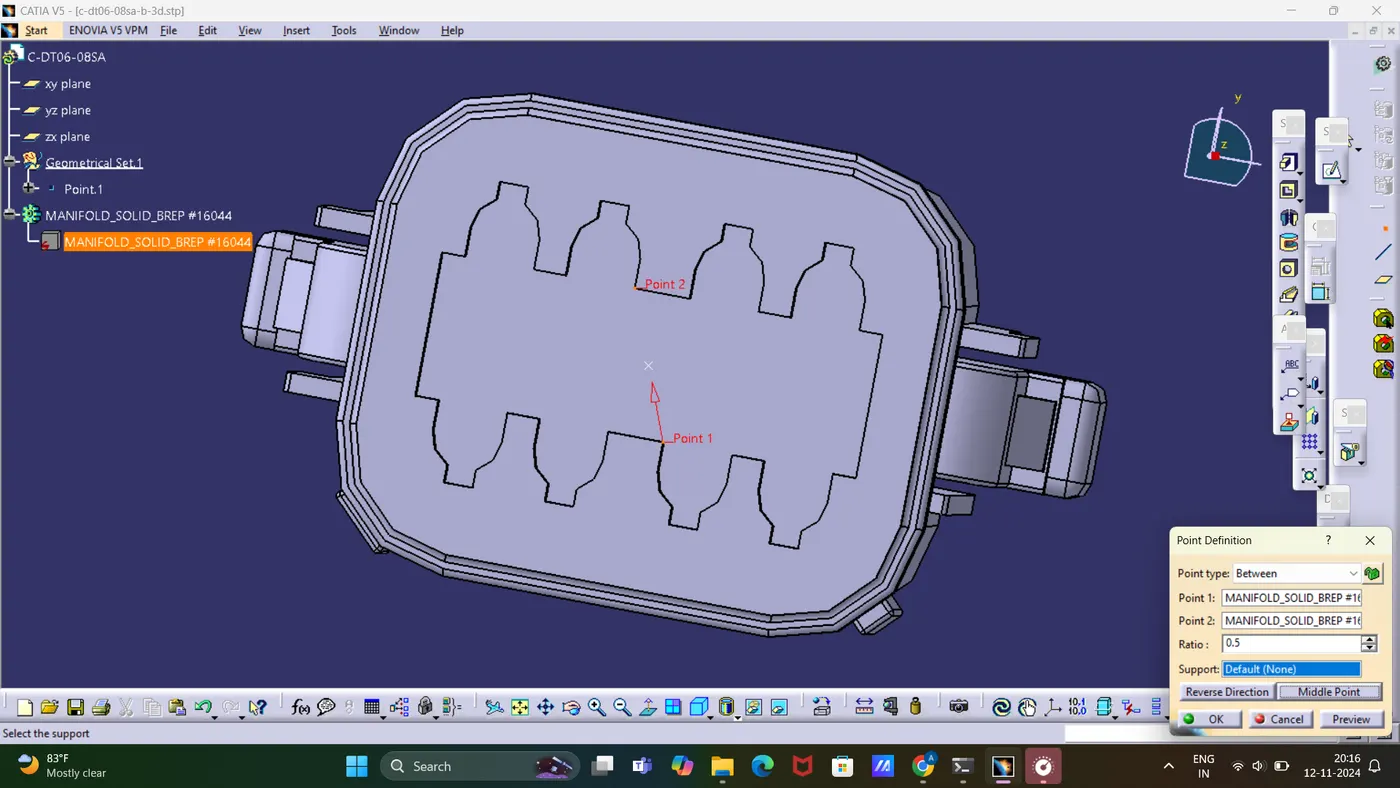

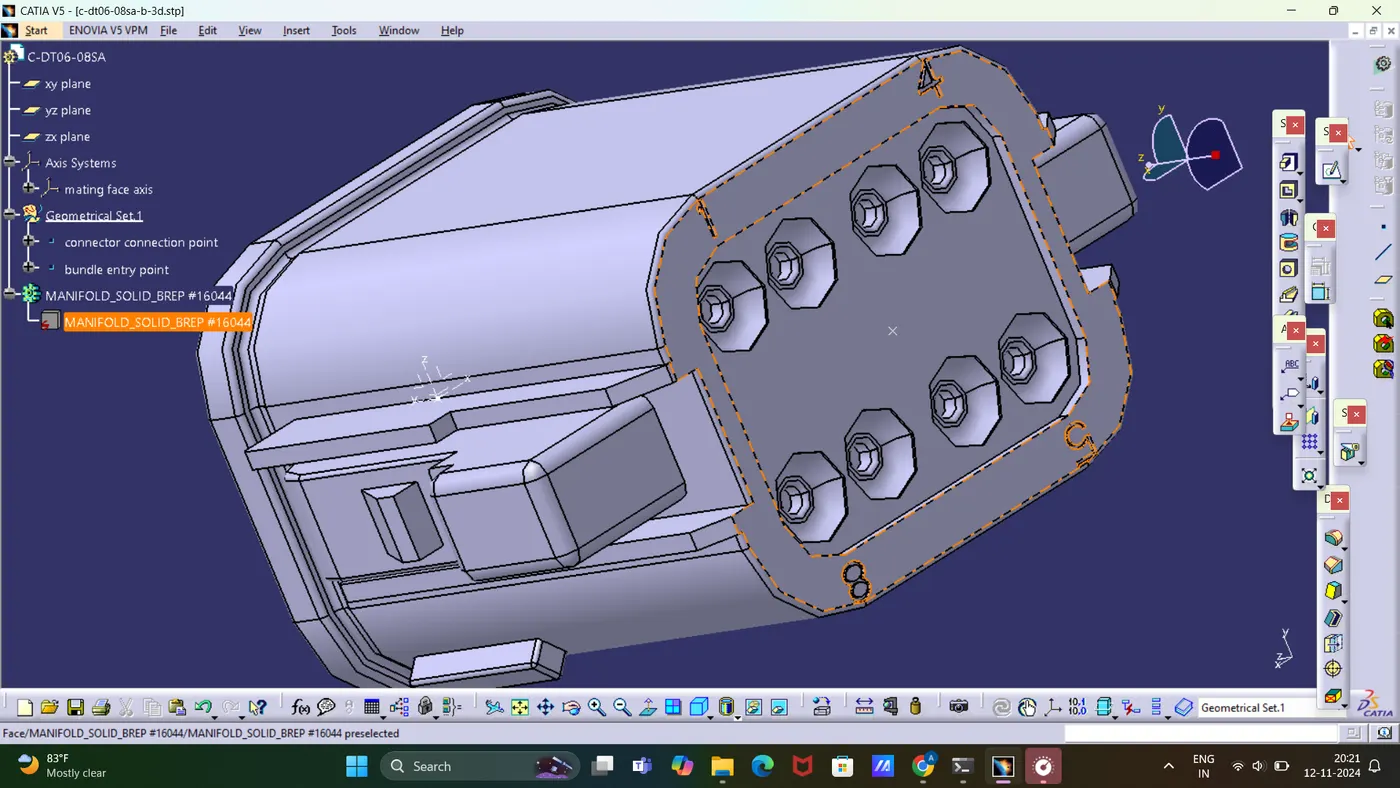

• FIRST CONNECTOR CONNECTION POINT CREATION AT MATING FACE OF CONNECTOR AND BUNDLE ENTRY POINT.
•
• AXIS CREATION SUCH THAT Y AXIS TOWARDS MATING FACE AND X AXIS TOWARSDS LOCKING
• GO ELECTRICAL PART DESIGN

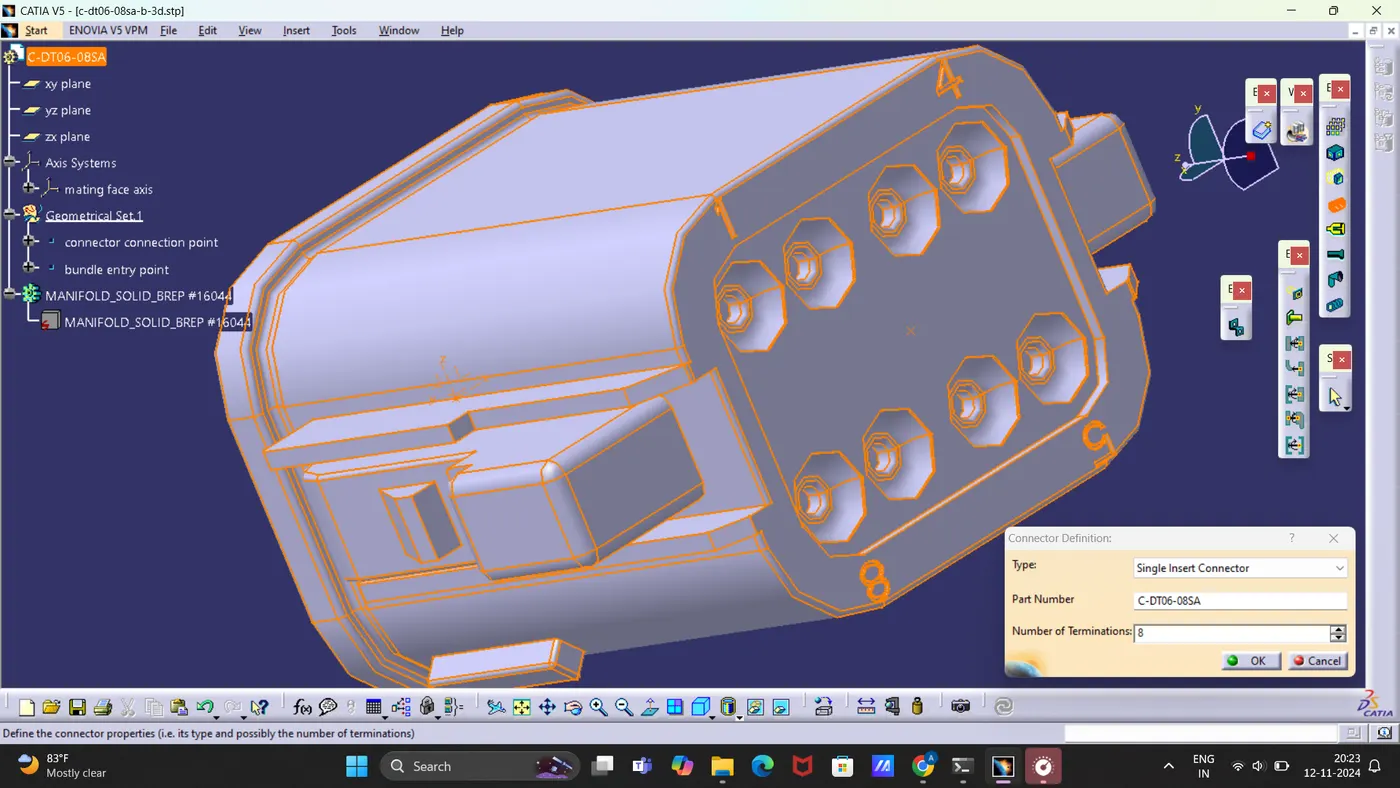

• DEFINE CONNECTOR WITH 8 TERMINATIONS.
•
• DEFINE MUNDLE CONECTION POINT
•
• DEFINE CONNECTOR CONNECTION POINT.
•

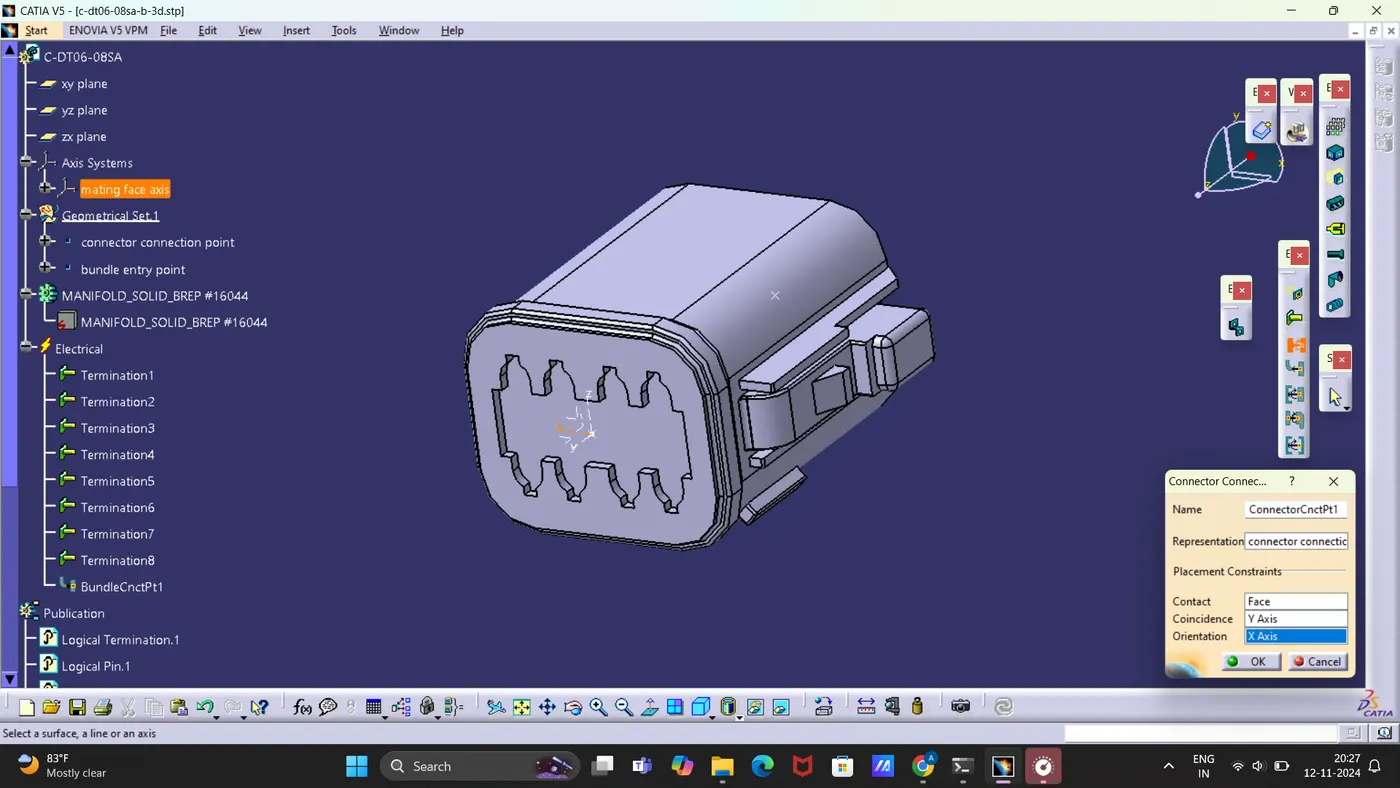

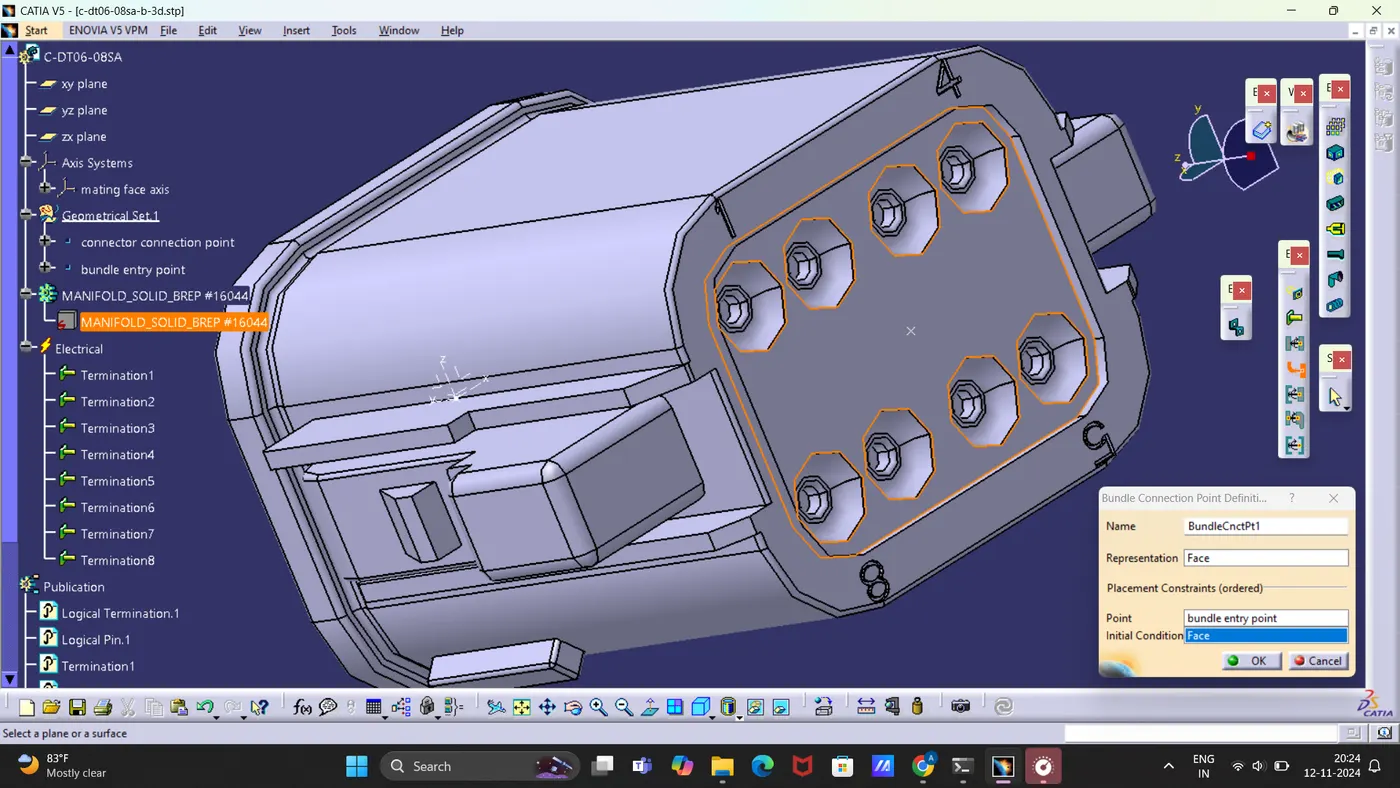

• CREATE BUNDLE CONNECTION POINT AND CONNECTOR CONNECTION POINT ON CONNECTOR CAVITY
• CREATE AXIS SYSTEM IN SAME ORIENTATION OF PREVIOUS CONNECTOR

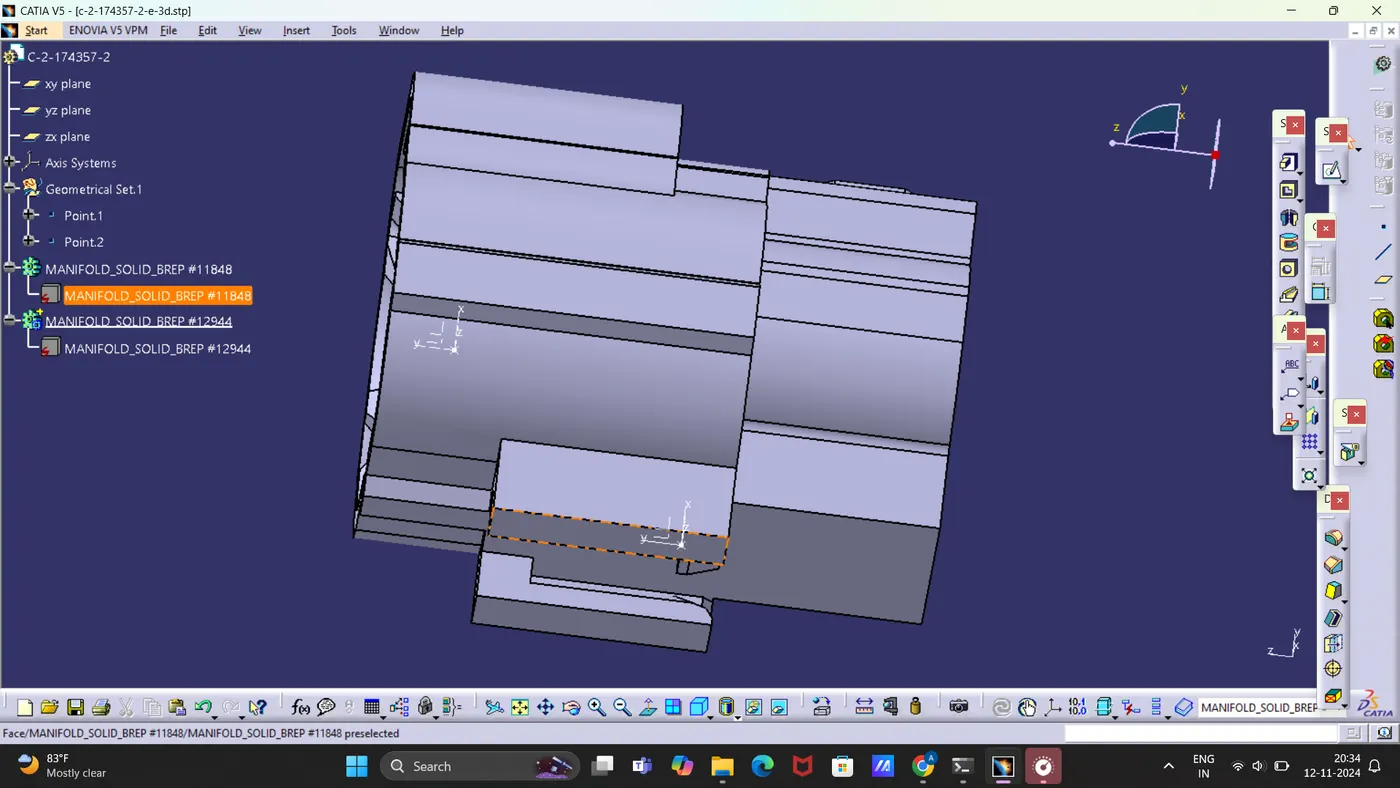

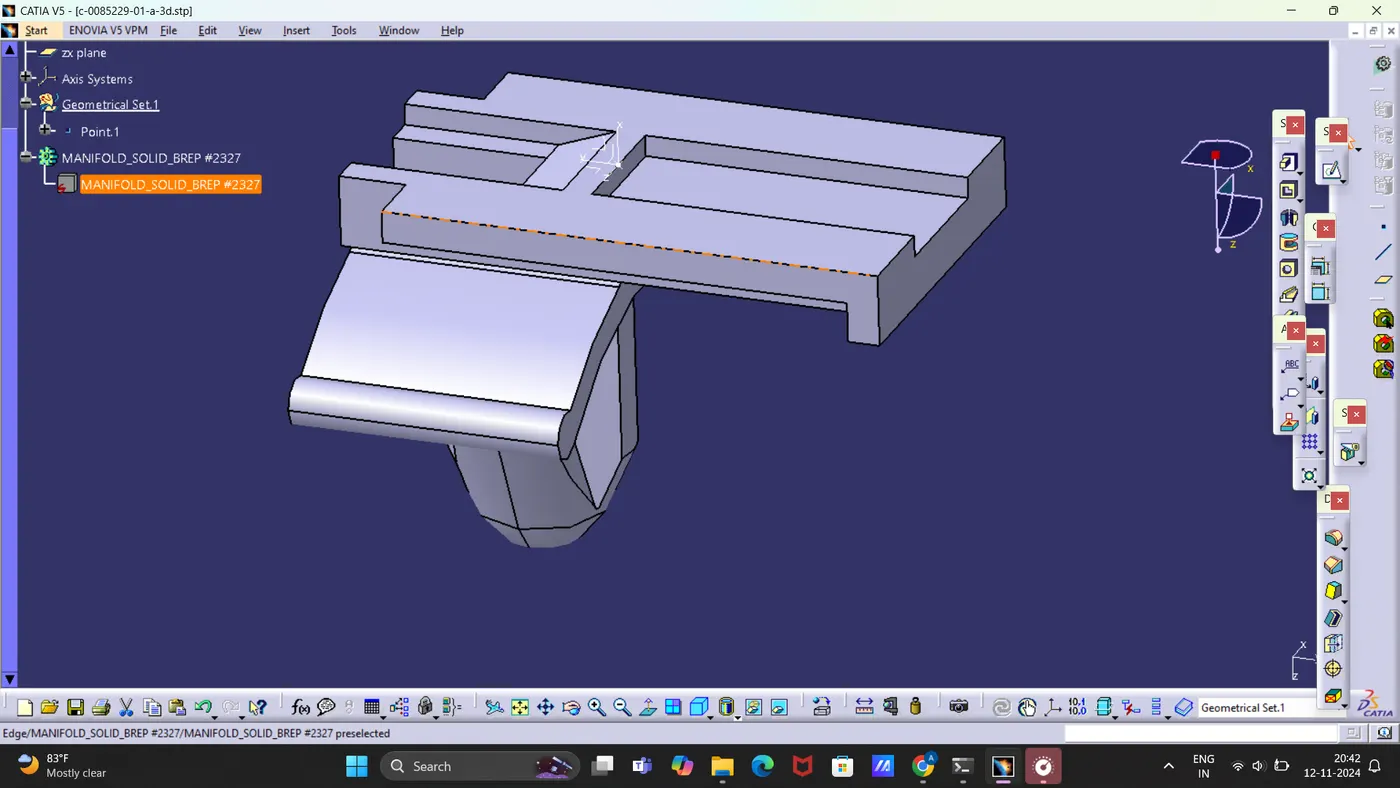

• CREATE A POINT AND AXIS ON CLIP PART WITH SAME ORIENTATION.
• GO TO ELECTRICAL PART DESIGN
•

•

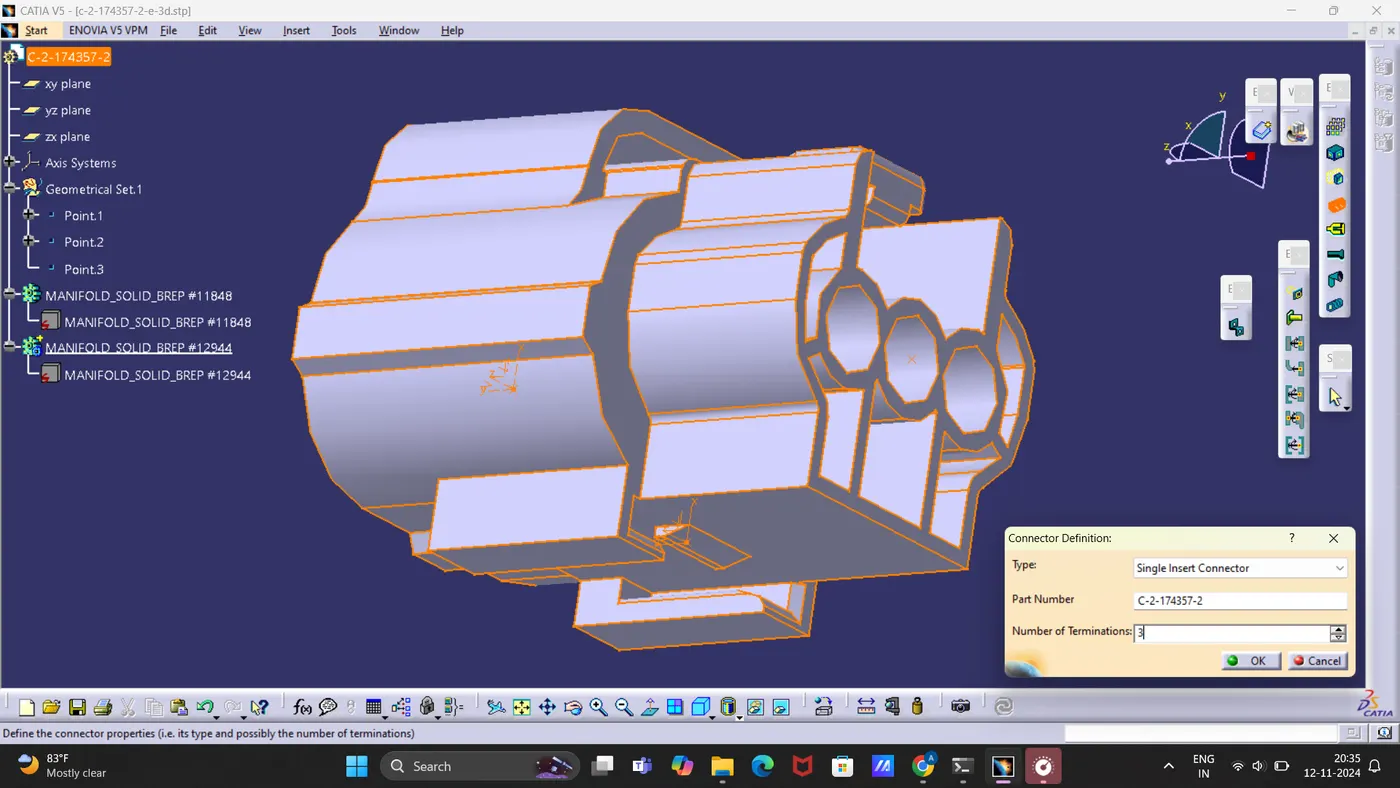

• DEFINE CONNECTOR WITH 3 TERMICATIONS
•
• DEFINE BUNDLE CONNECTION POINT, CONNECTOR CONNECTION POINT.

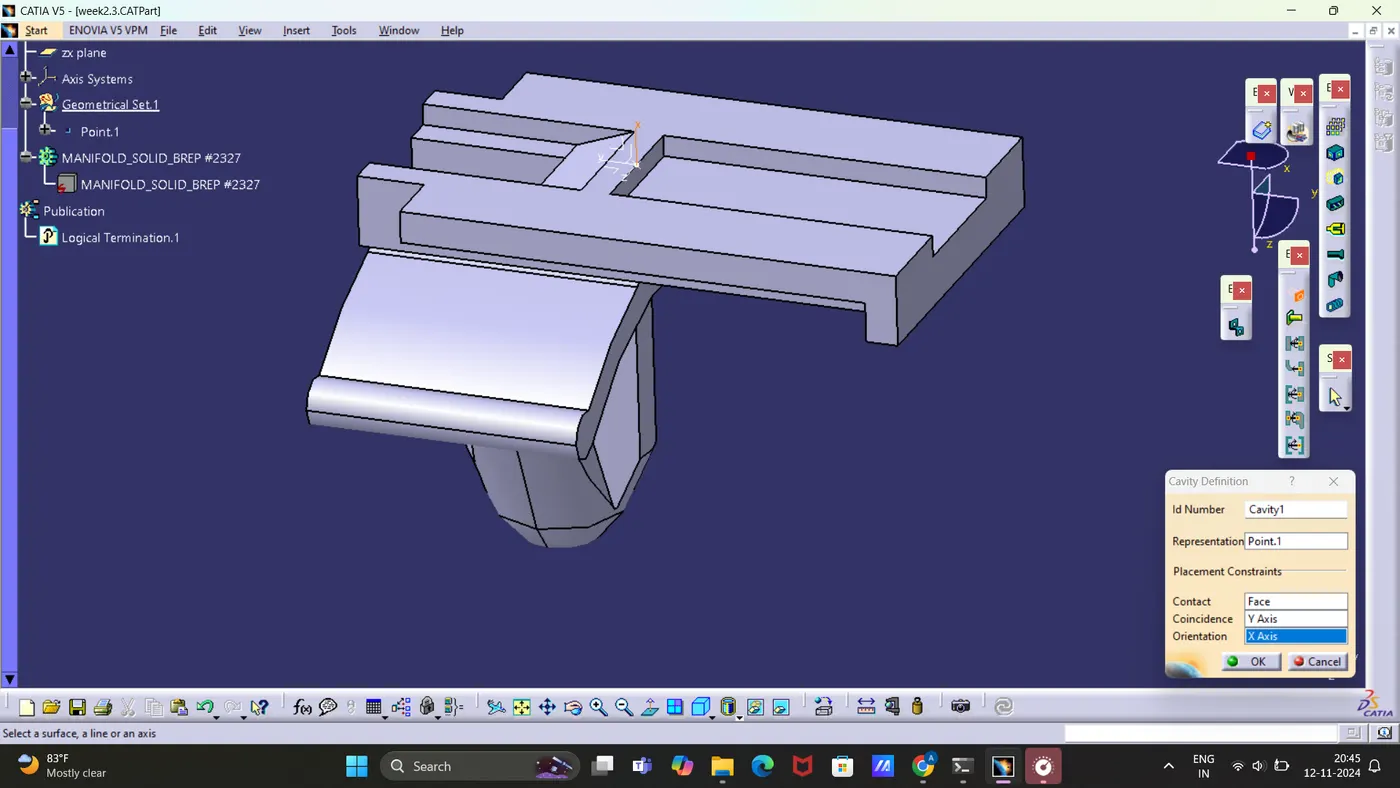

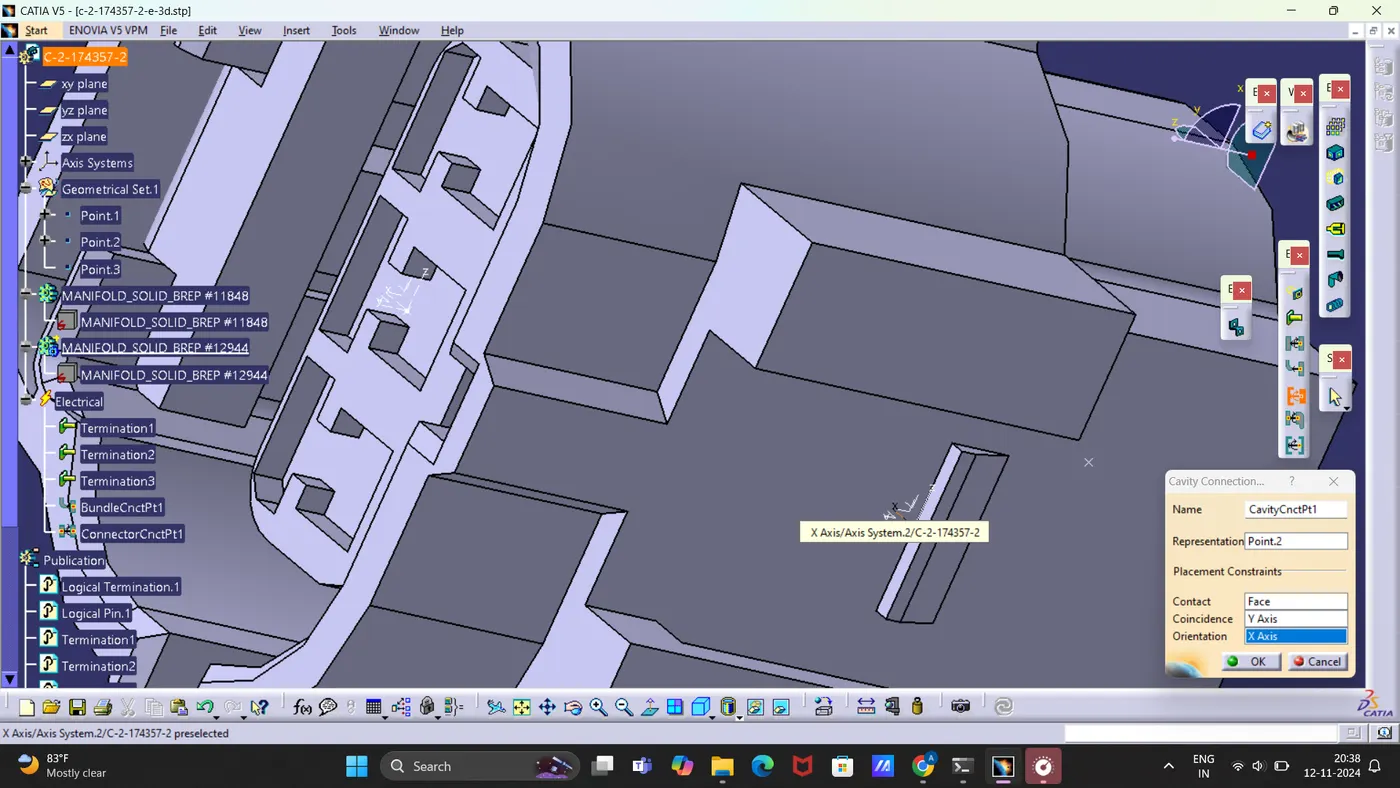

• SINCE THERE IS A CLIP LOCKING FEATURE DEFINE CAVITY CONNECTION POINT.

• OPEN THE CLIP, CREATE POINT ON EDGE OF MATING FACE AND AXIS CREATION WITH SAME ORIENTATION AS BEFORE.
•

GO TO ELECTRICAL PART DESIGN

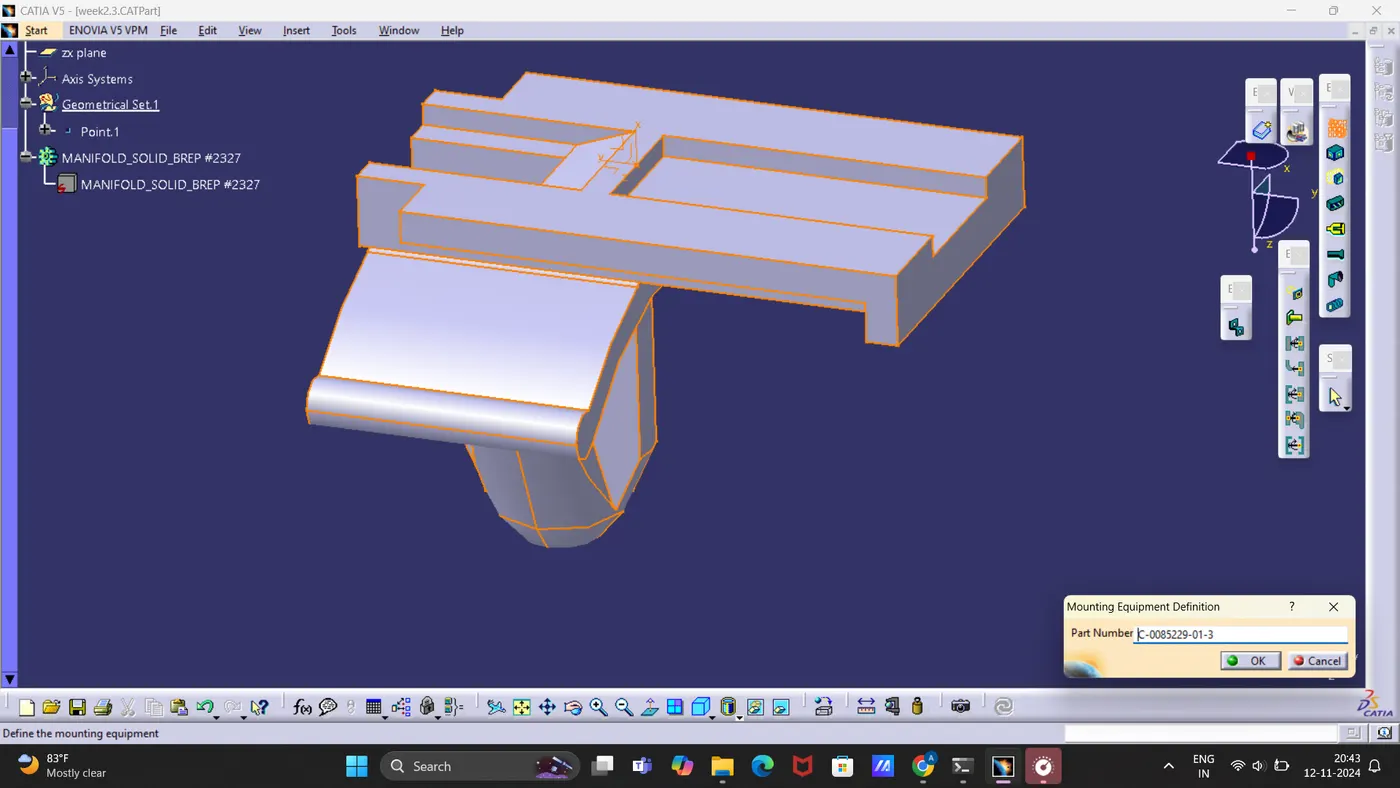

• DEFING MOUNTING EQUIPMENT
•
• DEFINE CAVITY
•
