Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

• The connector is first uploaded in the part design workbench

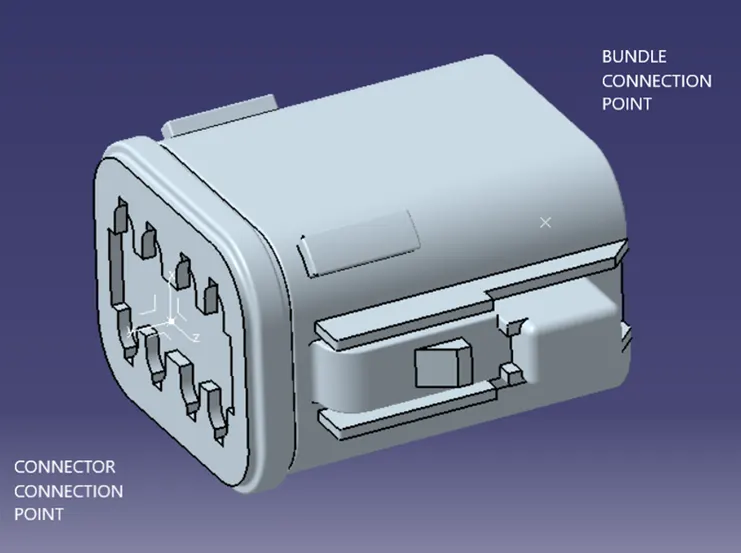

• We define the points for connector connection and bundle connection.

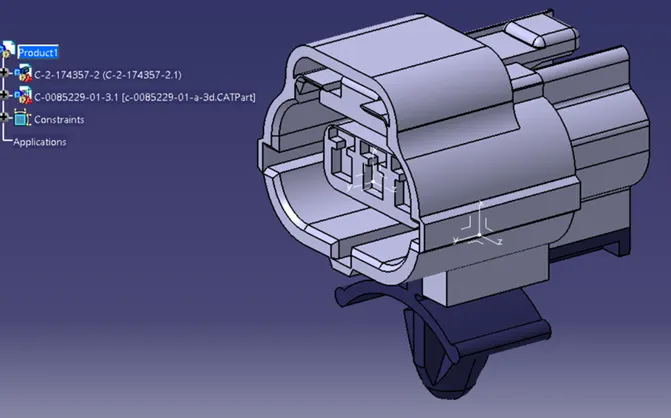

• The axis systems are placed on the connector connection and cavity connection points
• The orientation of the axis system is not specific, we just need to follow a similar orientation for all the parts.
• Here the y-axis is in the direction of the connection, z-axis along with the clip mounting and x-axis along bottom to top

• Now we define this part as an electrical element/connector, with the number of terminals.

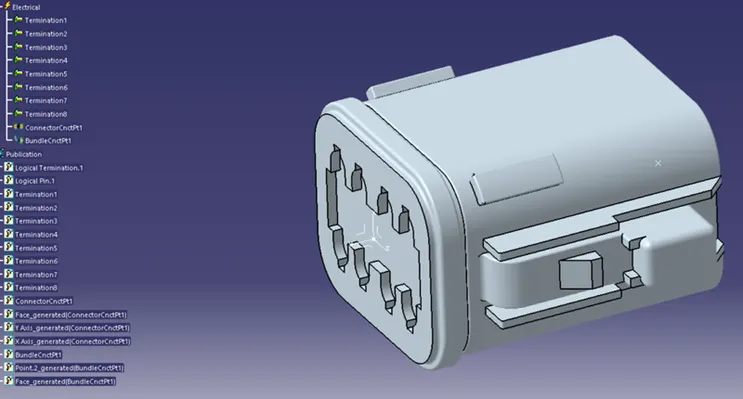

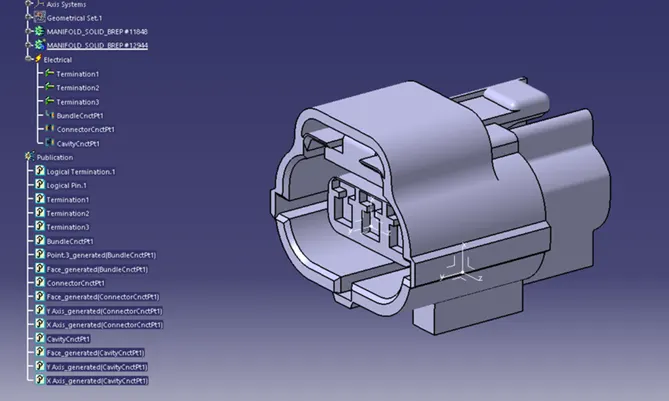

• Connector connection and bundle connection is defined in the electrical part design workbench.

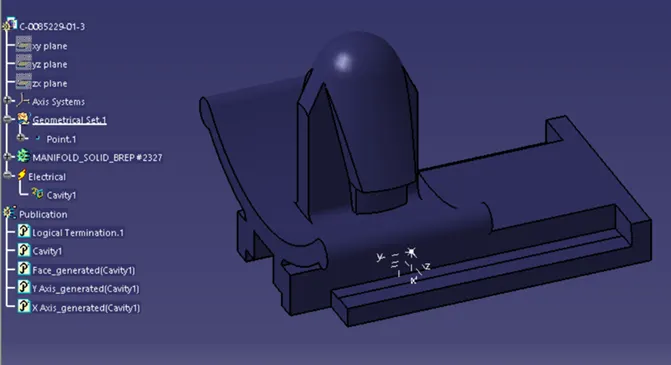

The clip should be defined as a cavity in the electrical part design workbench.
