  3. Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

                                                             Wiring harness design in CATIA V5  Download following connectors & Connector clip cad data from…

  • CATIA

  • Praveen kumar

    updated on 12 Jun 2023

                                                             Wiring harness design in CATIA V5

Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

  • Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
  • Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
  • Tyco 85229-1  (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header

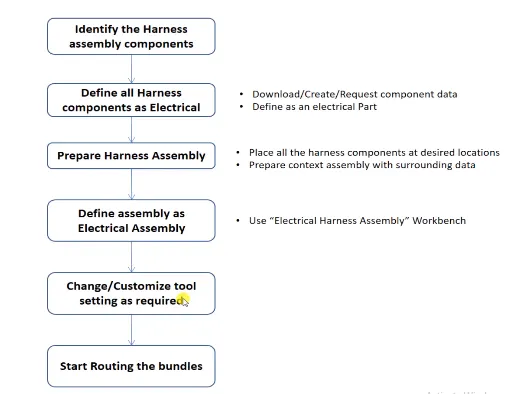

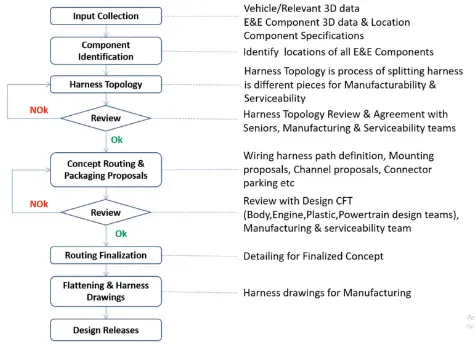

Wiring Harness Design Process

Wiring Harness  Routing Assembly

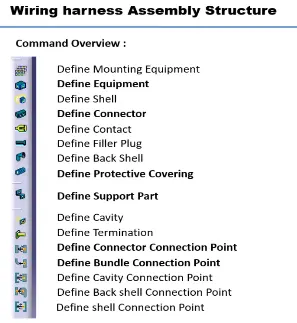

Wiring Harness Assembly Structure

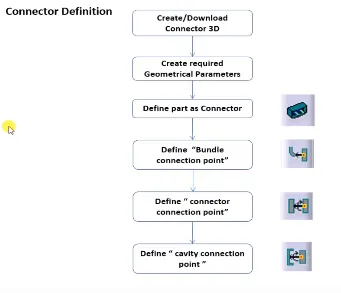

Connector defination



CONNECTOR DEFINATIONS IN CATIA V5

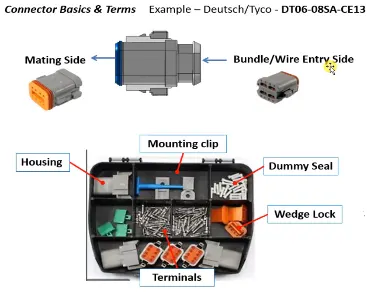

1. Deutsch DT06 – 08SA

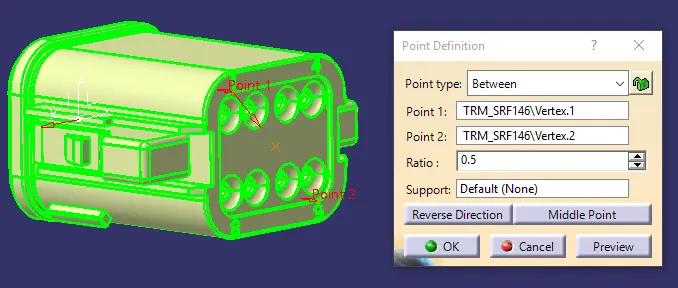

Connector connection point:

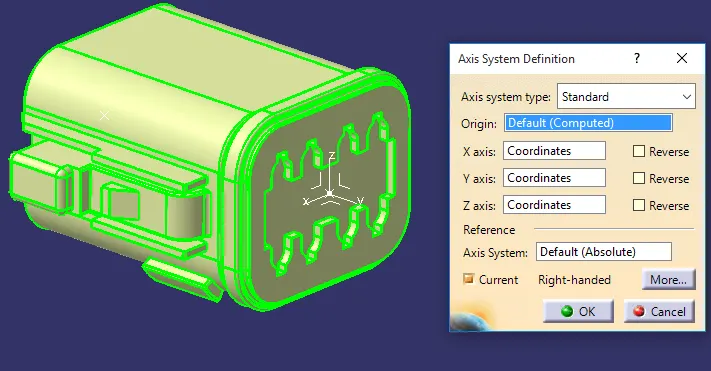

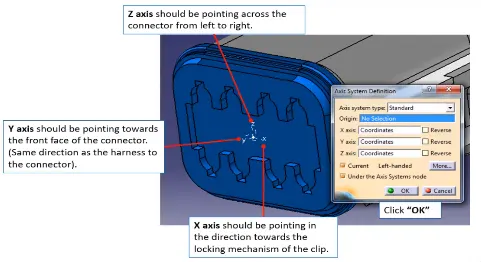

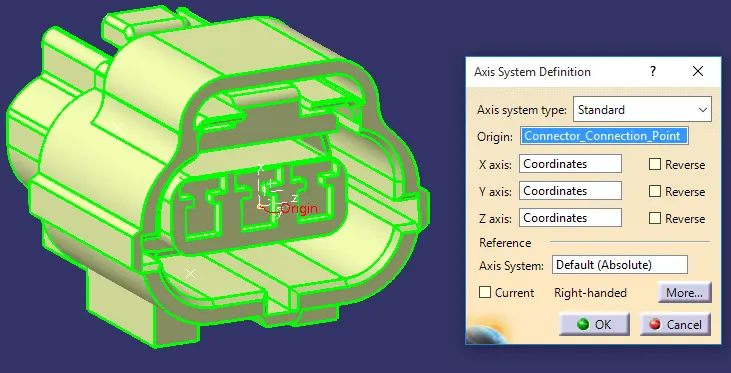

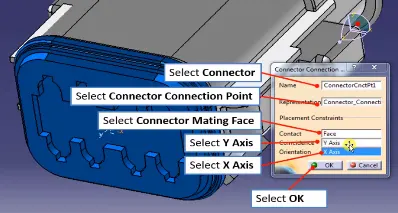

Connector connection Axis system :

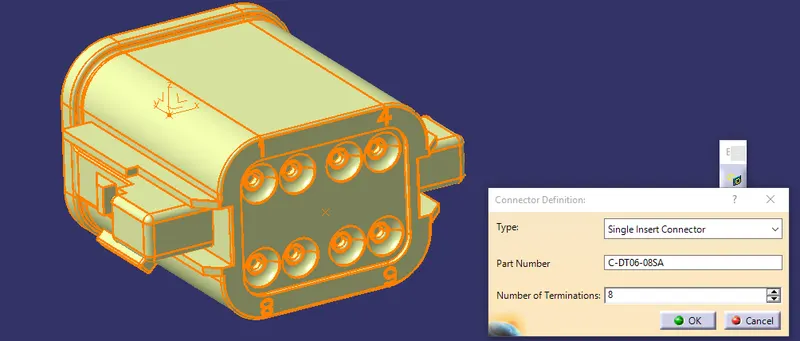

Connector Defanation :

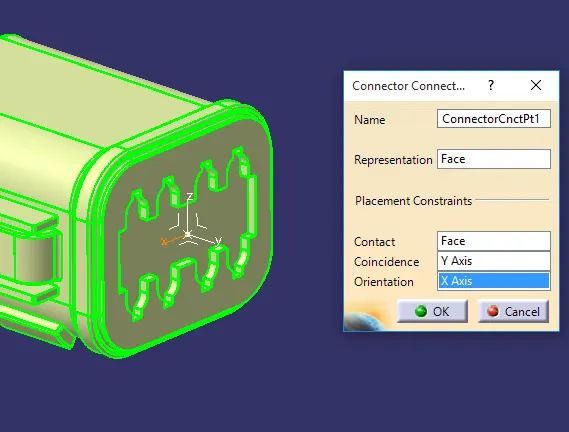

Connector connection Defanation :

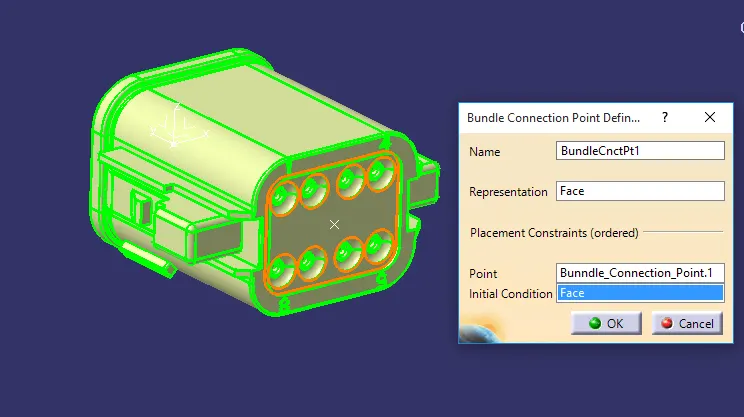

Bunndle connection point:

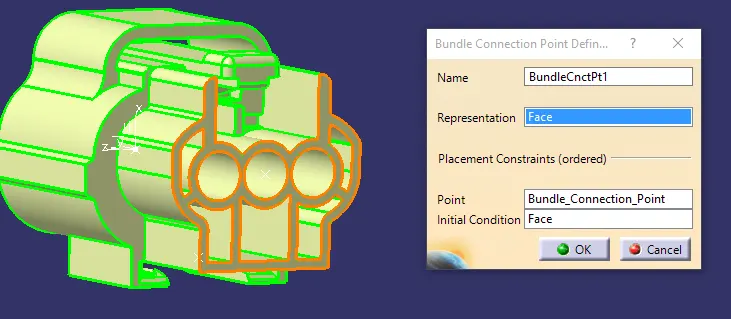

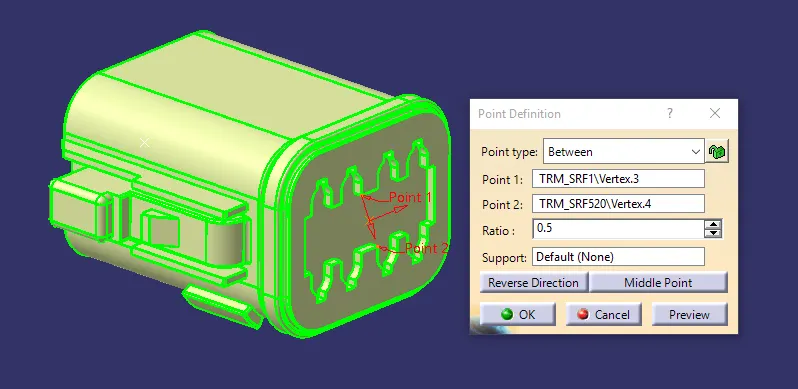

Bunndle Connection point Defination:



2.Tyco 174357-2 :

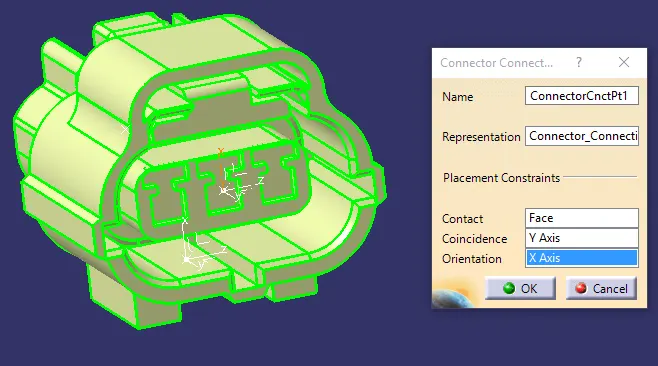

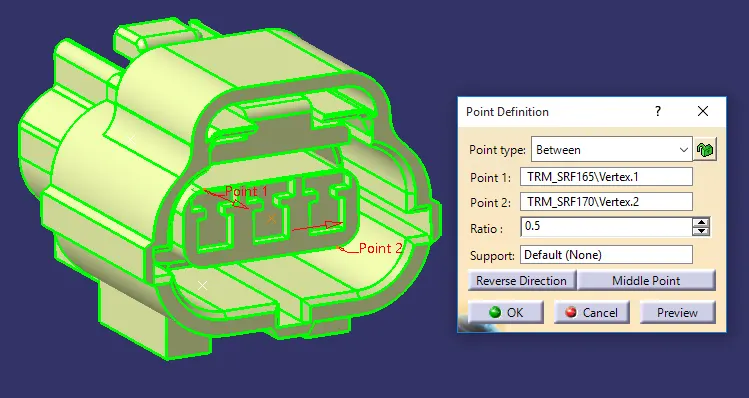

Connector connection point:

Connector connection Axis system :

Connector connection Defanation :



Bunndle connection point:

Bunndle Connection point Defination:

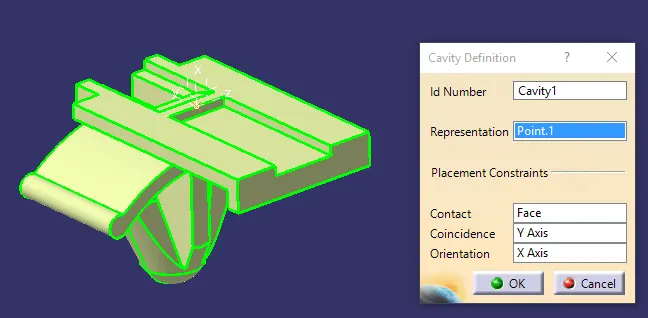

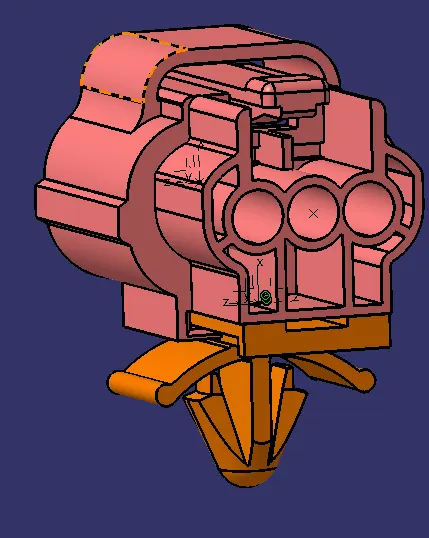

Cavity Connection Point:

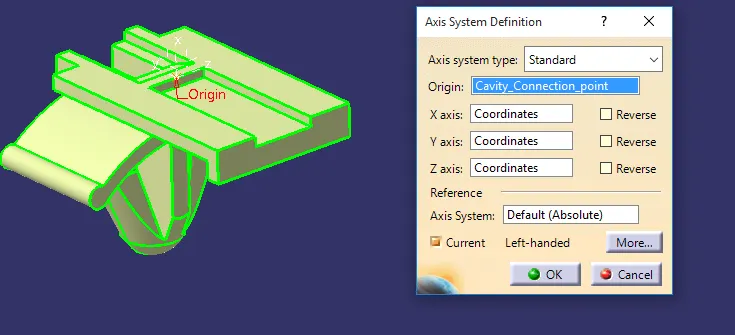

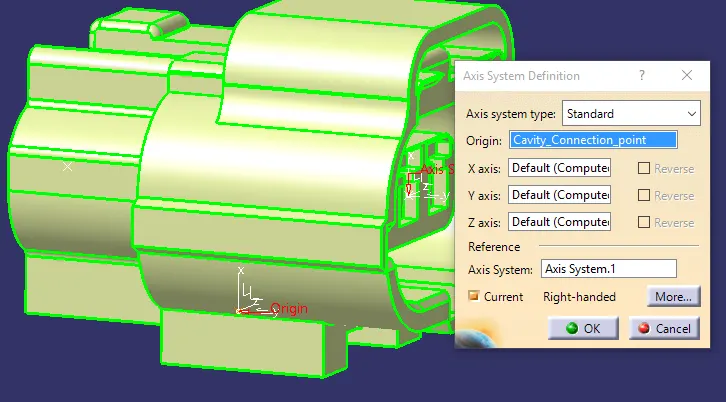

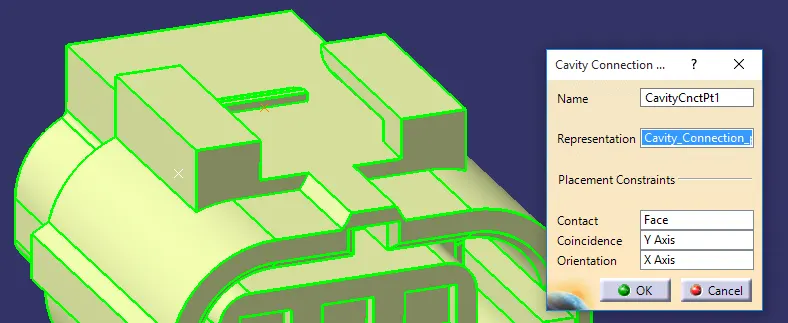

Cavity Connection Axis system :

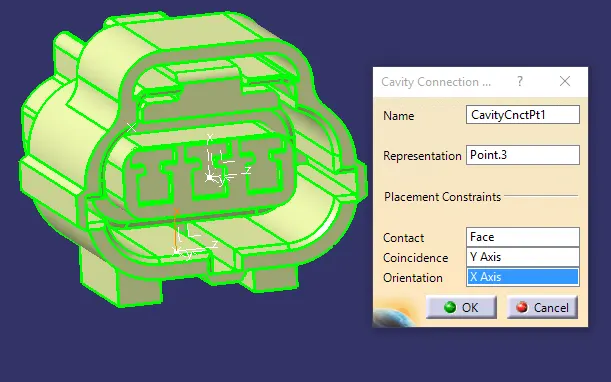

Cavity Connection point Defination:



3. Tyco 85229-1 :

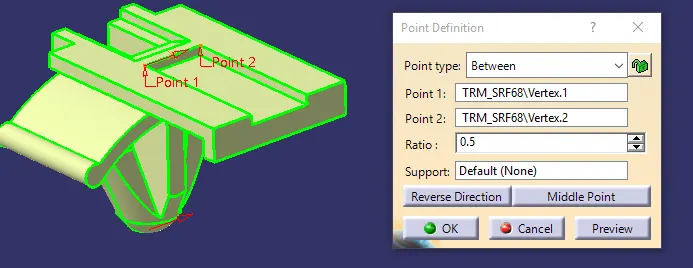

Cavity Connection point :

Cavity Connection Axis system :

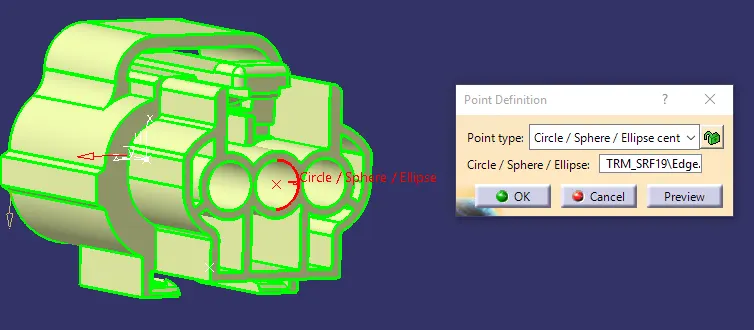

Cavity Connection point Defination:

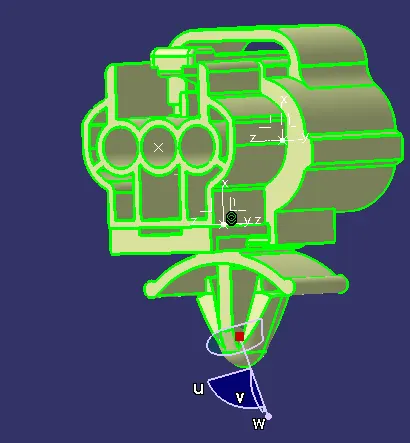

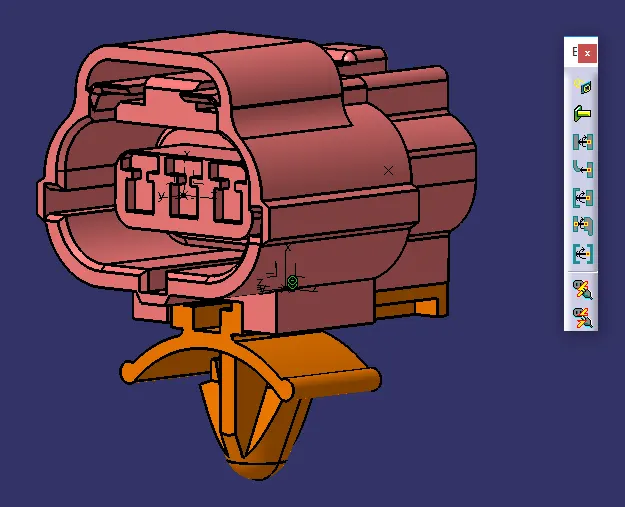

Finally assembled the connector and mounting clip using electrical assembly design in product workbench.
