Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
AIM:
Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.
- Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
- Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
- Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header
OBJECTIVES:
- To download the above CAD data of the parts from the given source.
- To define the Electrical properties correctly.
- To create catalogues of the components so that it can be used later.
CATALOGUE DOCUMENT:
- First a new 'catalogue document' is created and then add family is selected in order to add the group to the catalogue document.
- The name of the family is given as the 'connectors' and the catalogue document is saved in the desired folder.
- After defining the electrical properties, the components are saved in the catalogues so that it can be used in the feature without again defining the electrical properties.
PART - 1: DEUTSCH DT06 - 08SA:
To identify the Connector Side and the Bundle Side.

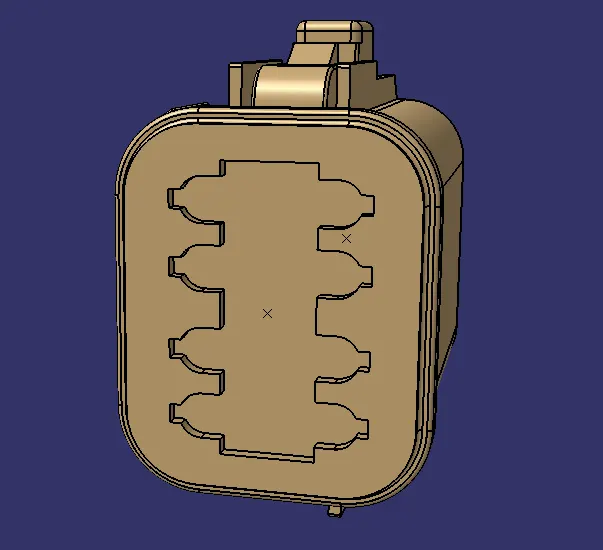

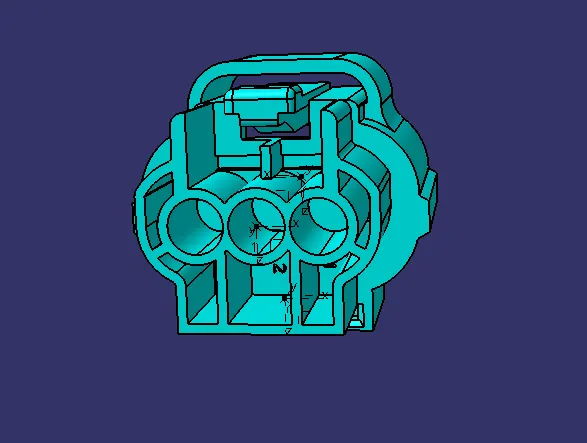

bundle side

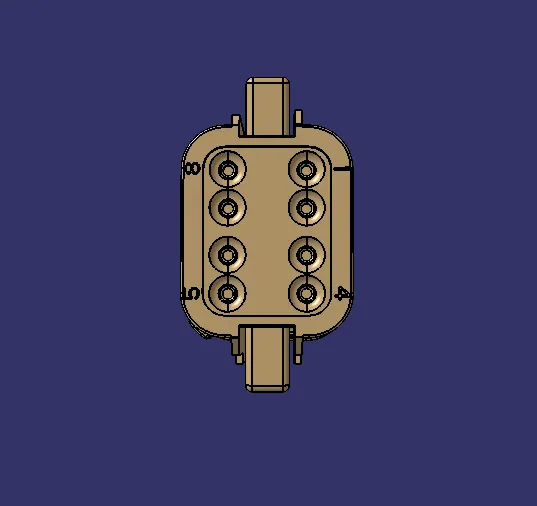

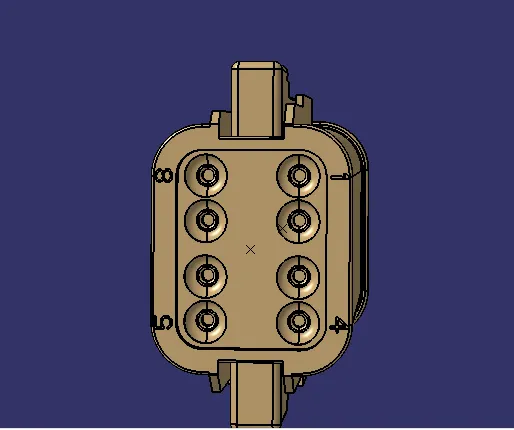

connector side

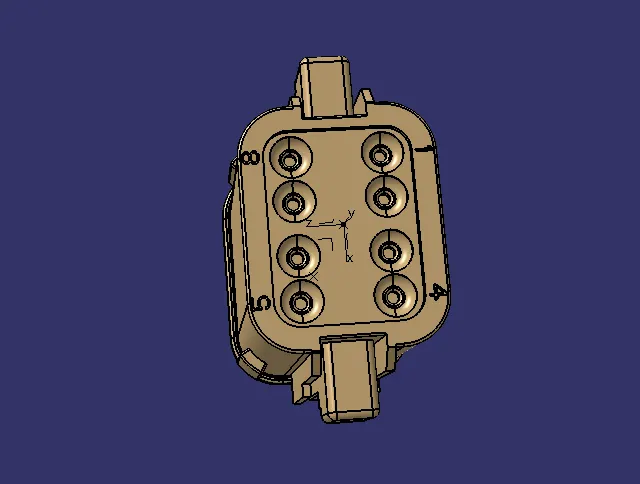

To create a mid-point on the bundle side in the Part Workbench to define the Bundle and connector connection properties. To create a mid-point at the Connector side in the Part Workbench. To create an axis system through the point.
Define the axis as:
X- axis - Towards the locking side
Y- Axis - Normal to the connector face

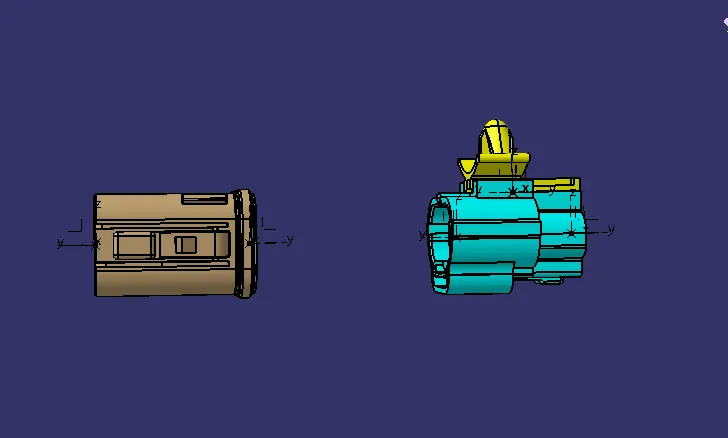

axis systems:
Go to the Electrical Part Design Workbench to define the Connector connection point and Bundle connection point.
First define the Connector and the number of Termination. Then define the Connector Connection Point. And then define the Bundle Connection Point.

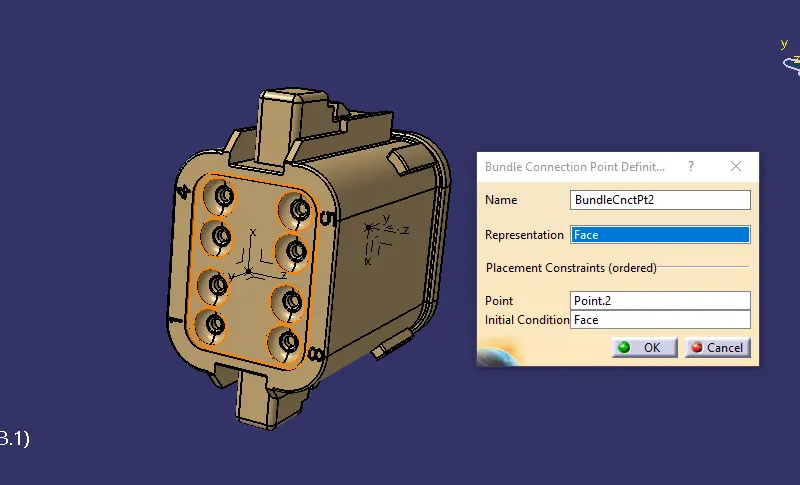

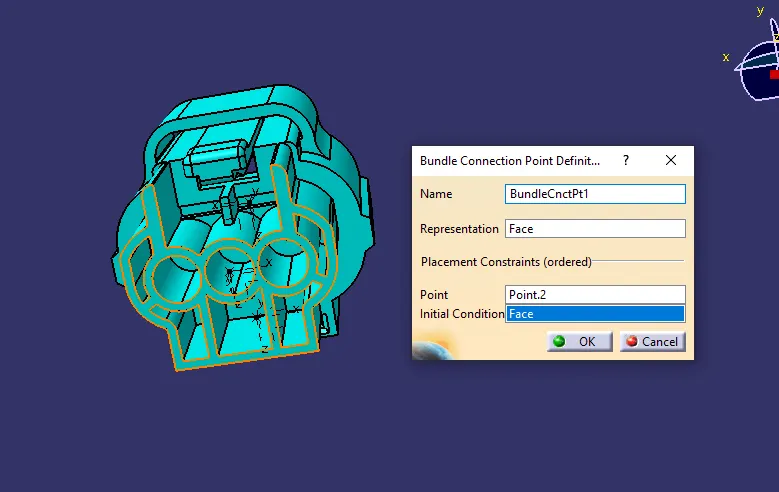

bundle connection point:

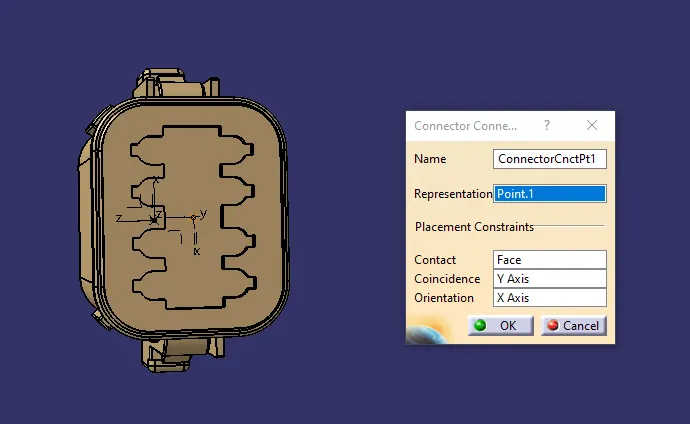

connector connection point:

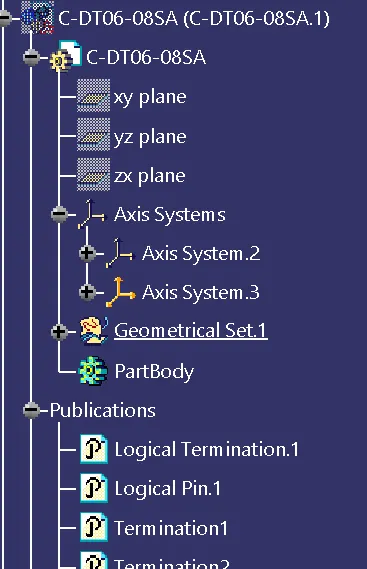

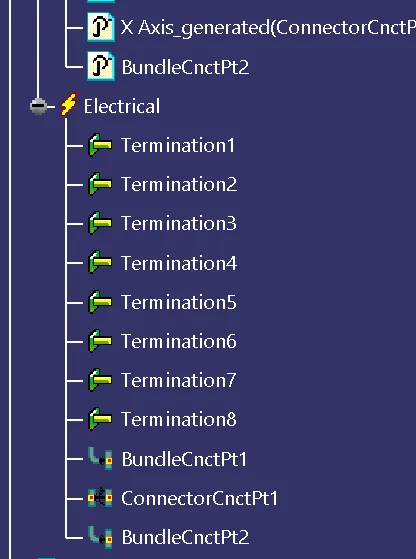

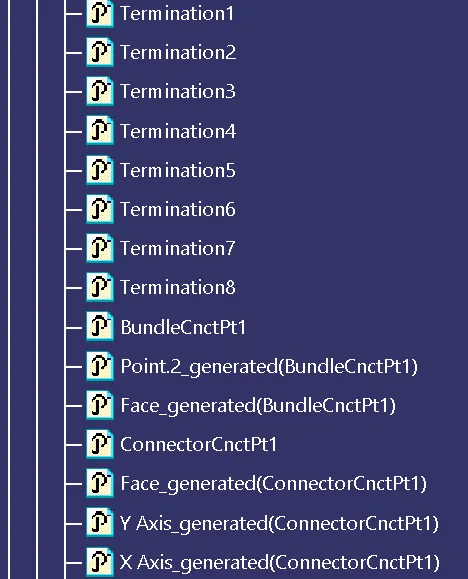

tree structure:
PART - 2: TYCO 174357 - 2:

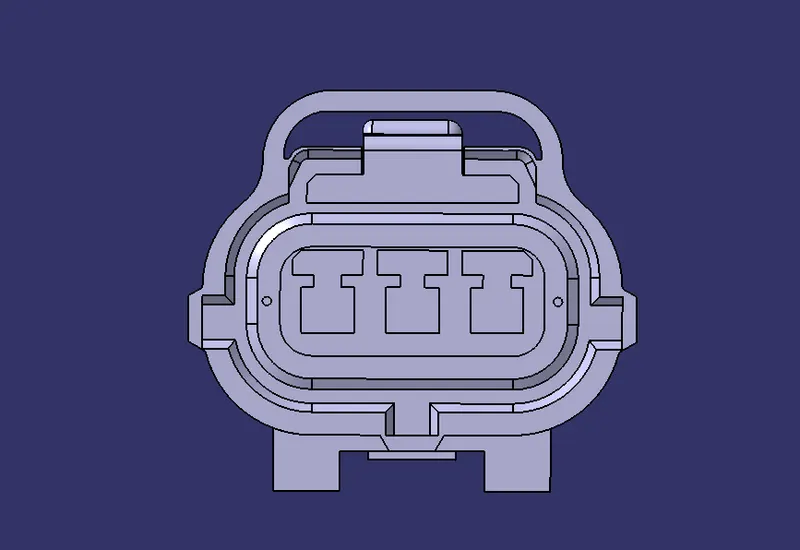

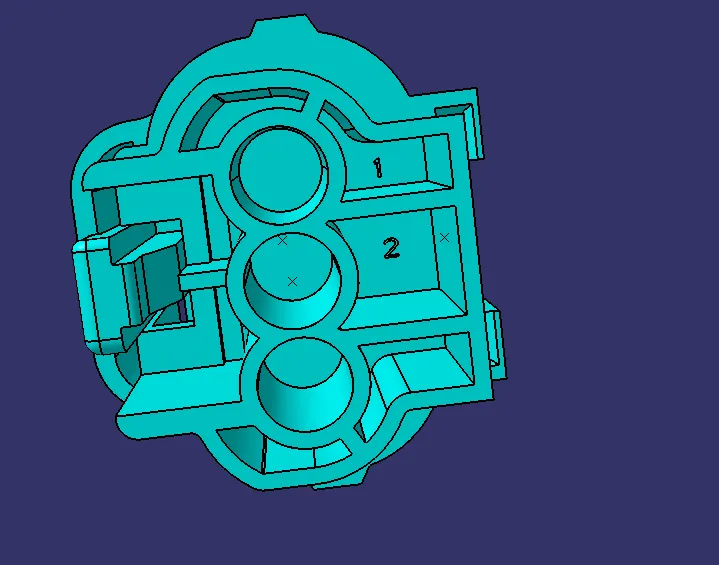

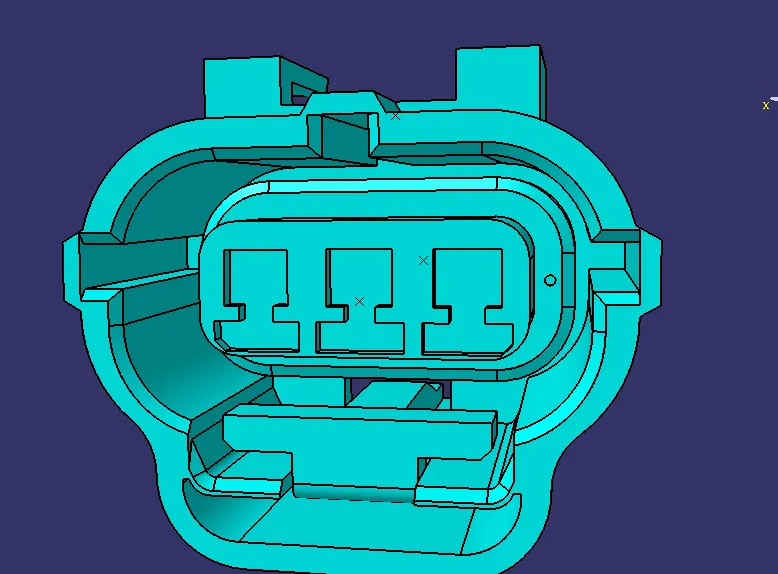

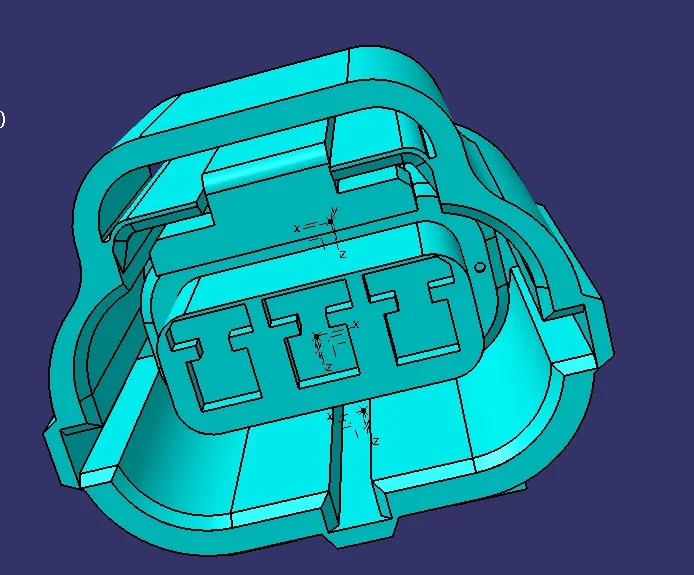

connector side:

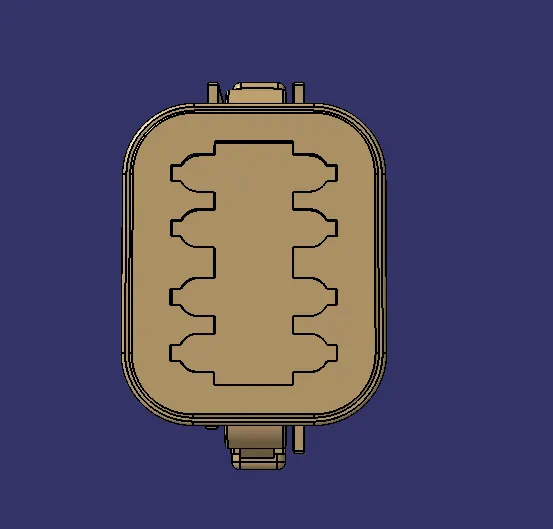

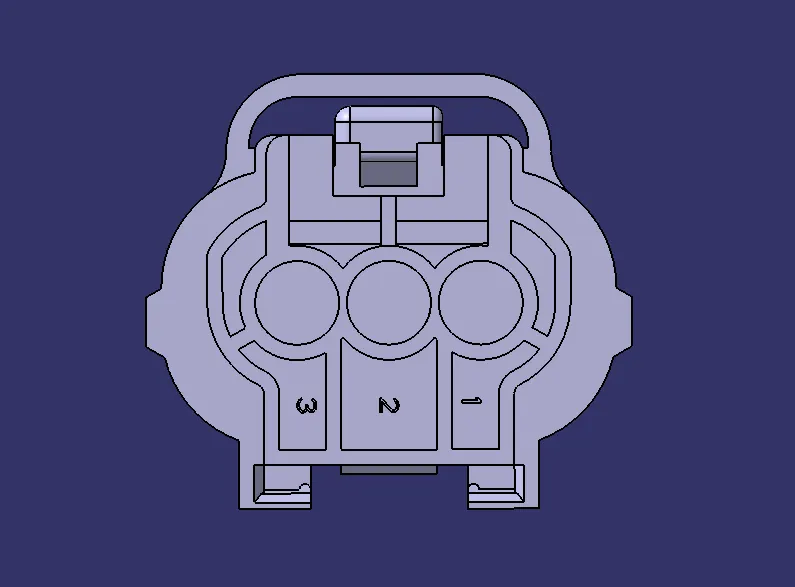

bundle side:
To create a mid-point on the bundle side in the Part Workbench to define the Bundle connection properties.

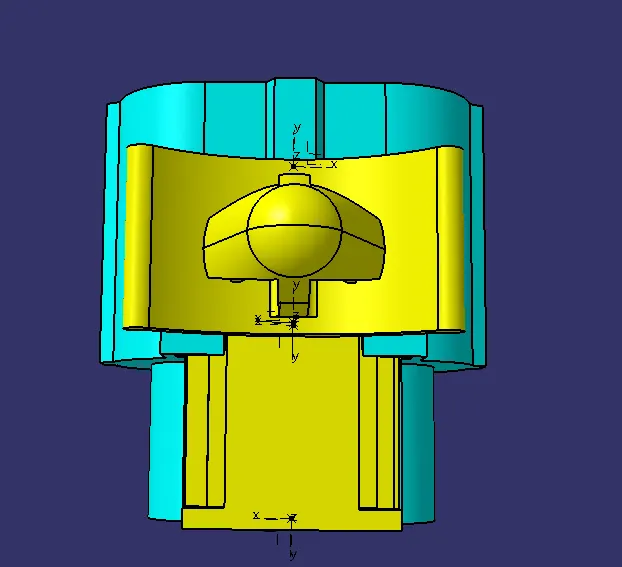

To create a mid-point at the Connector side in the Part Workbench. To create an axis system through the point.
Define the axis as:
- X- axis - Towards the locking side
- Y- Axis - Normal to the connector face

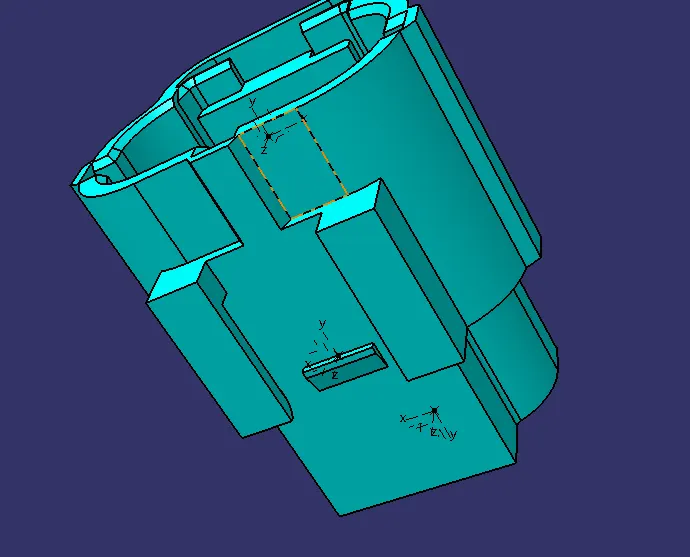

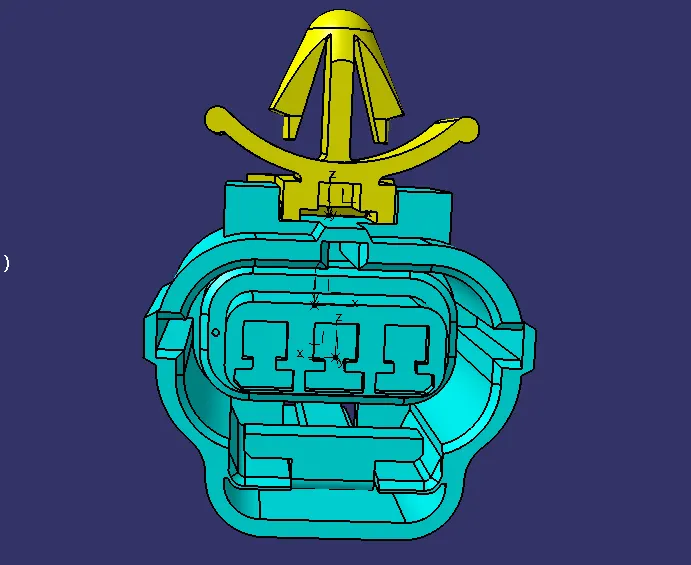

Create a point for the Mounting clip at the required cavity position and create an axis system through the point for the cavity clip.
Go to the Electrical Part Design Workbench to define the Connector connection point and Bundle connection point.
First define the Connector and the number of Termination.
Then define the Connector Connection Point.
And then define the Bundle Connection Point.
And then define the Cavity Connection point.

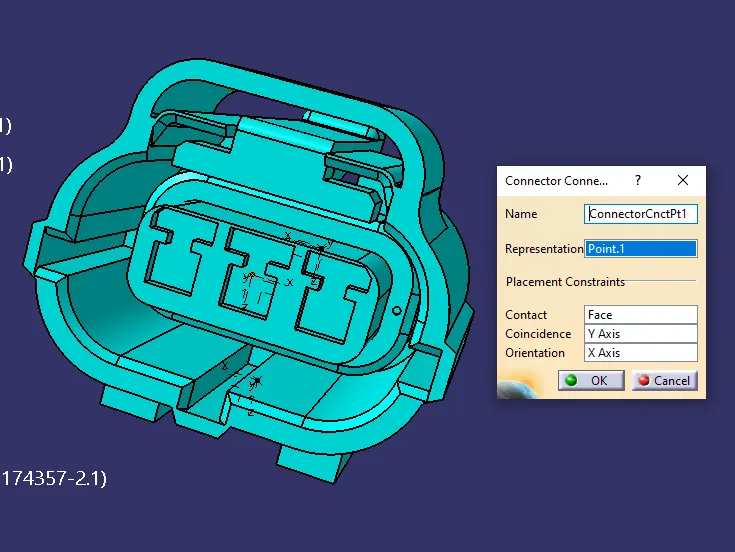

connector connection point:
bundle connection point:

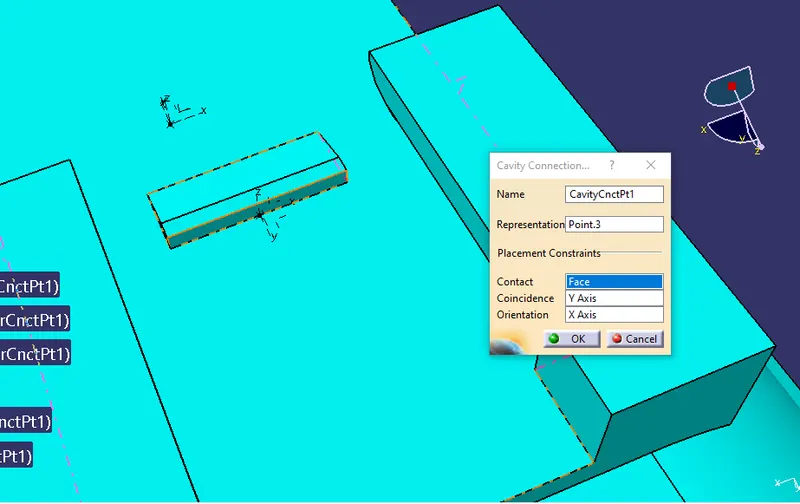

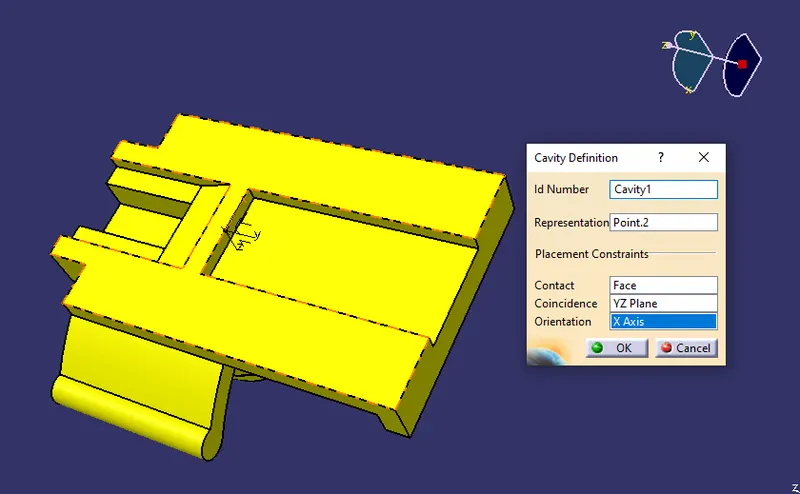

cavity connection point:

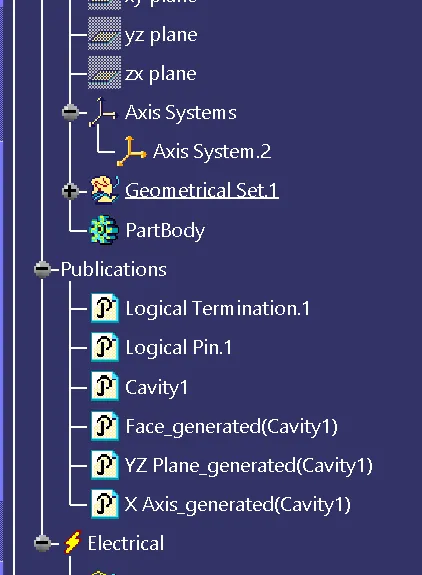

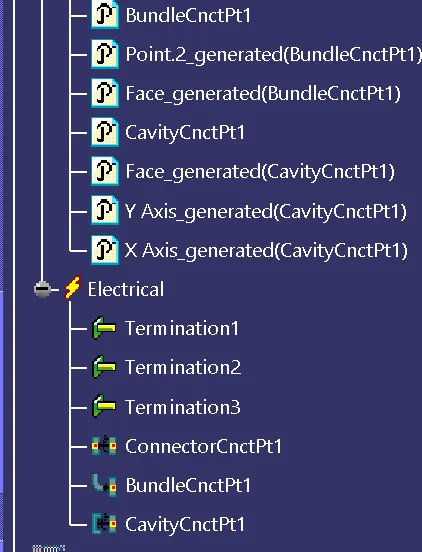

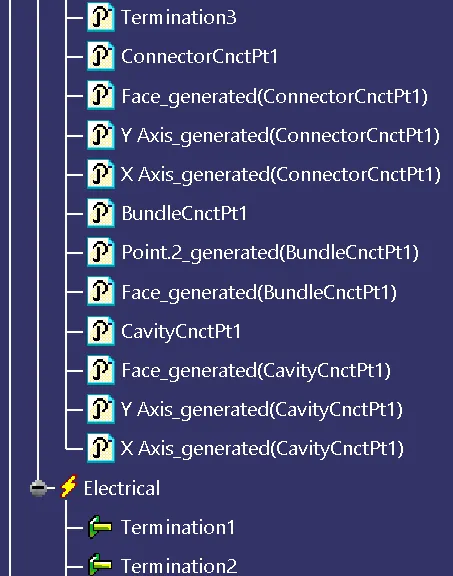

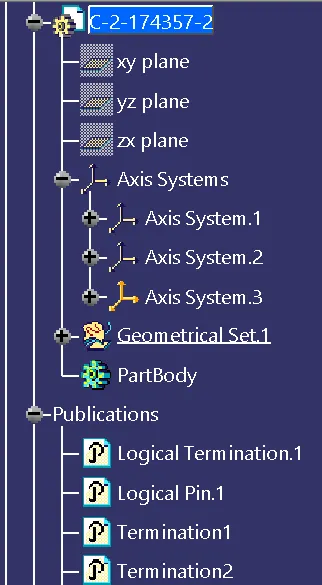

tree structure:

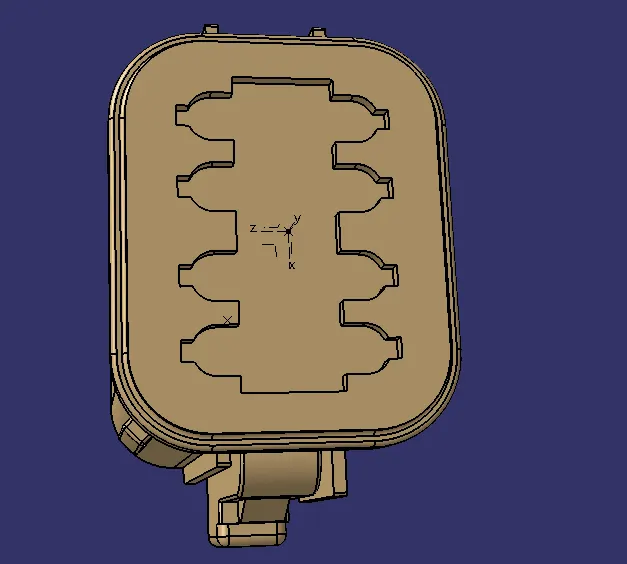

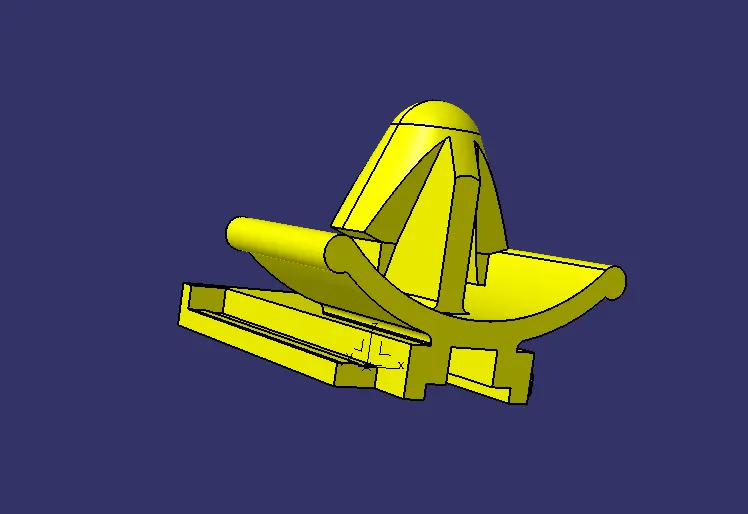

PART - 3: TYCO 85229 - 1:

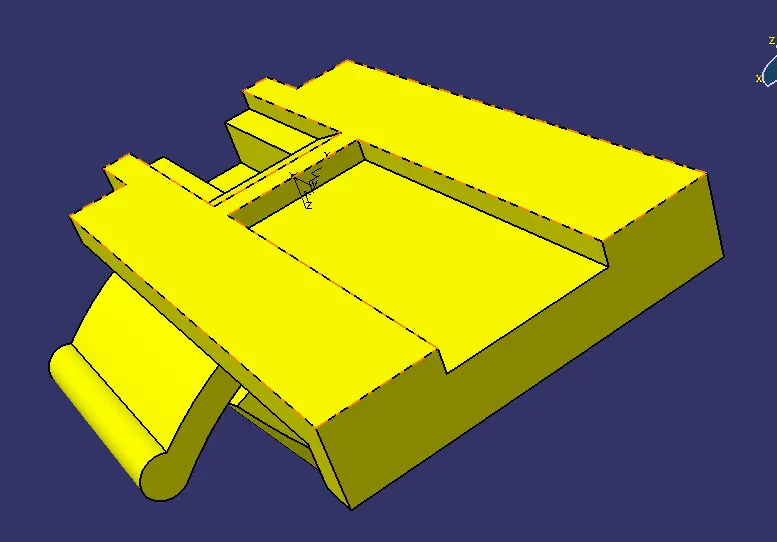

Create a mid-point at the location where the mounting equipment will be fitted with the connector.
Create an axis system through the point.
Define the axis as per the orientation defined in the connector in which the mounting equipment will be assembled.
Go to the Electrical Part Design Workbench to define the electrical properties. Define the object as the Mounting equipment. Then define the same as cavity.

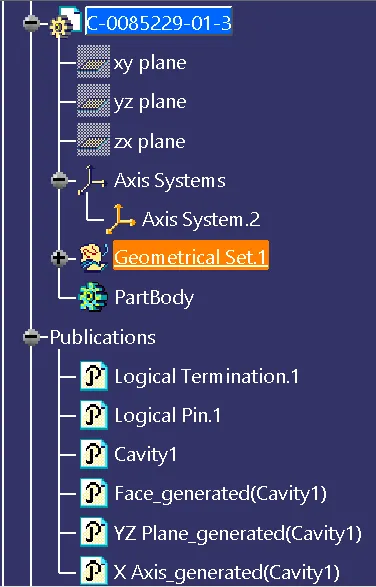

tree structure:
ELECTRICAL ASSEMBLY OF THE PART 1 AND PART 2:

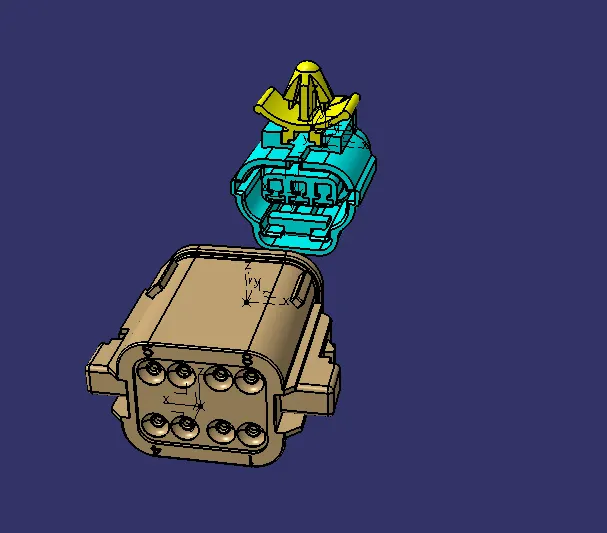

As all the Electrical properties have been correctly defined so we can just bring the components to the Electrical Assembly Workbench, align them and use the option Connect Electrical Devices and select the components.
when the connector female and male parts are not mating with each other, where these are different type of bundle entry points
CONCLUTION:
From the above assignment we learnt how to define a connector and a cavity and how to define different electrical properties. then how to assemble them into electrical alssembly.
