Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Q1. Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

AIM:-

Define given connectors & connector clip as an Electrical Connector and add their necessary properties using Electrical Part design workbench in CATIA V5

OBJECTIVE:-

The objective of this challange is to first, download the given files from TE.com then define them as an Electrical connector and give all the required electrical properties to them using the electrical part design workbench on CATIA V5.

These are the steps required to do this project-

1. Create the required geometrical parameters for connector
2. Create a bundle entry point
3. If connector accommodates clip then define a geometrical parameter for the clip
4. Define part as a connector or mounting equipment
5. Create bundle connection point
6. Create a connector connection point
7. Create a cavity connection point if there is a clip

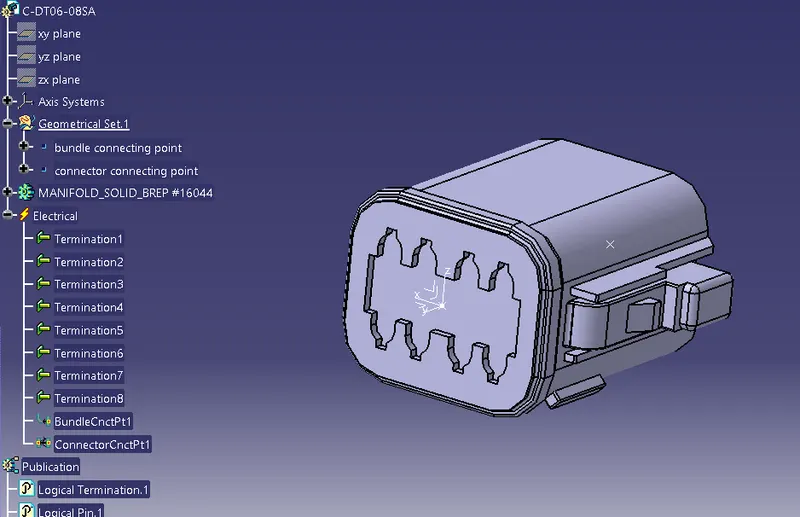

1.Deutsch DT06 – 08SA

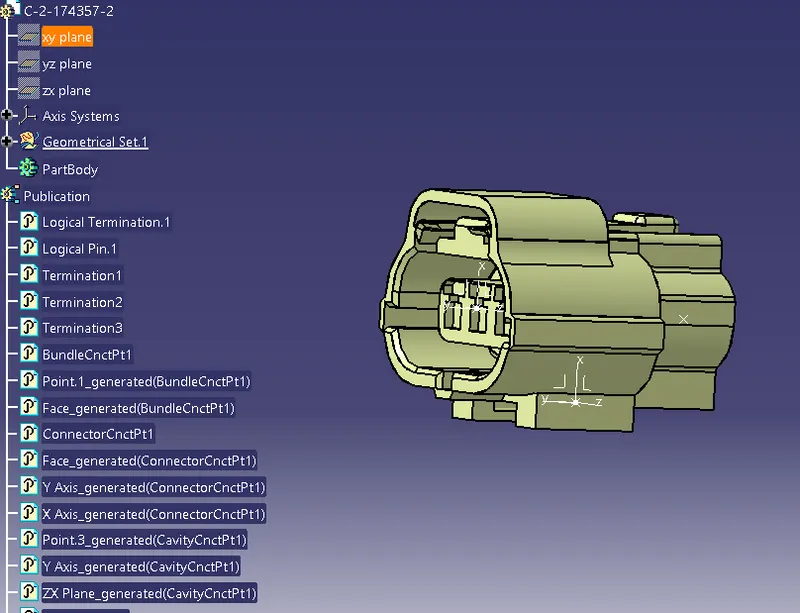

2.Tyco 174357-2

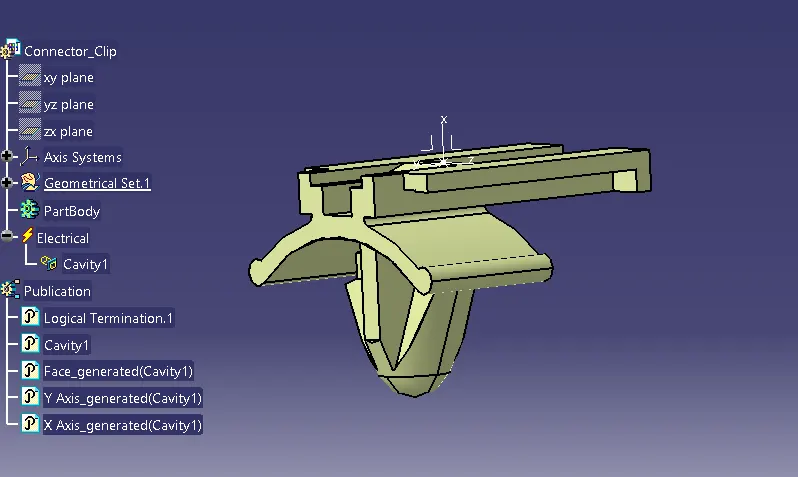

3.Tyco 85229-1

Above parts CAT file attached.

CONCLUSION:-

Both the connectors and the clip were defined as an electrical connector & electrical mounting equipment respectively.

All the necessary electrical & geometrical properties were given to the parts.
