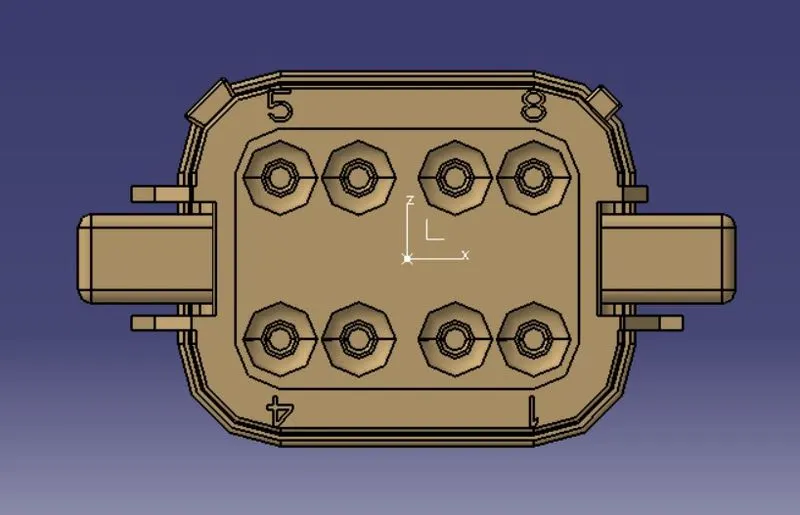

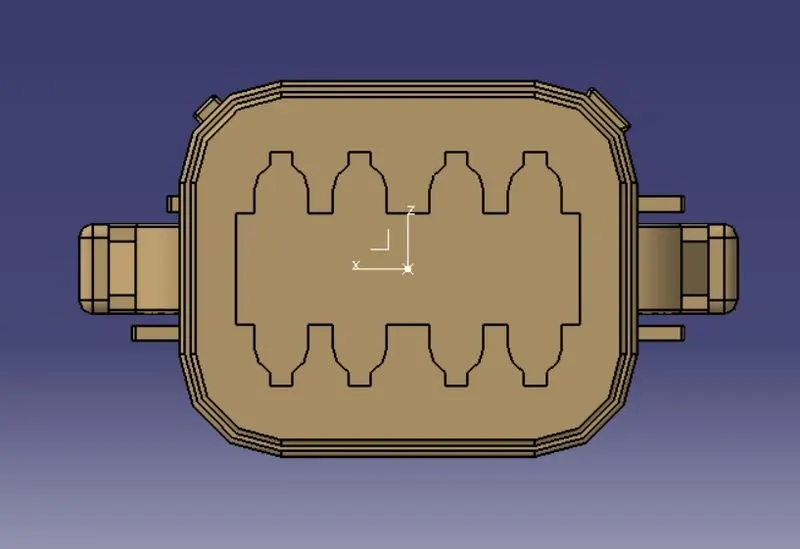

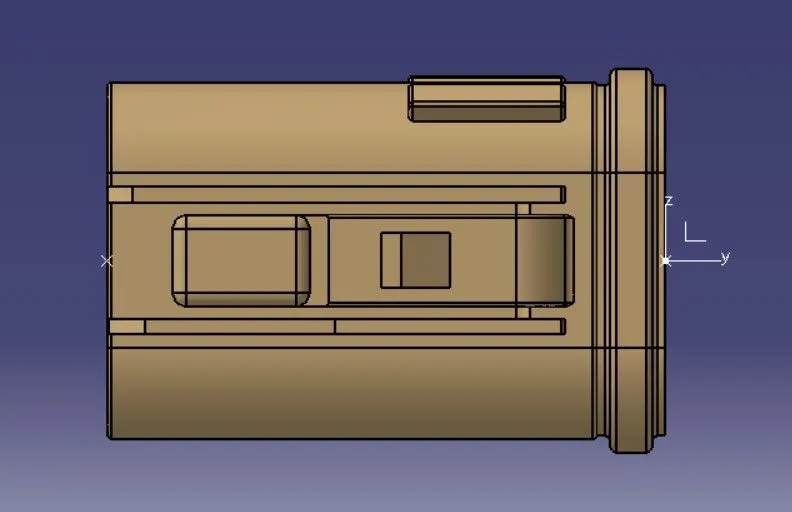

Deutsch DT06 – 08SA & properties:-
- TE Internal #: DT06-08SA
- Connector & Housing Type: Housing for Female Terminals
- Mating Pin Diameter: 1.59 mm [ .063 in]
- Connector System: Wire-to-Wire
- Number of Positions: 8
- Centreline (Pitch): 9.12 mm [ .359 in]
- Dim: 30.19 x 37.21 x 19.71.

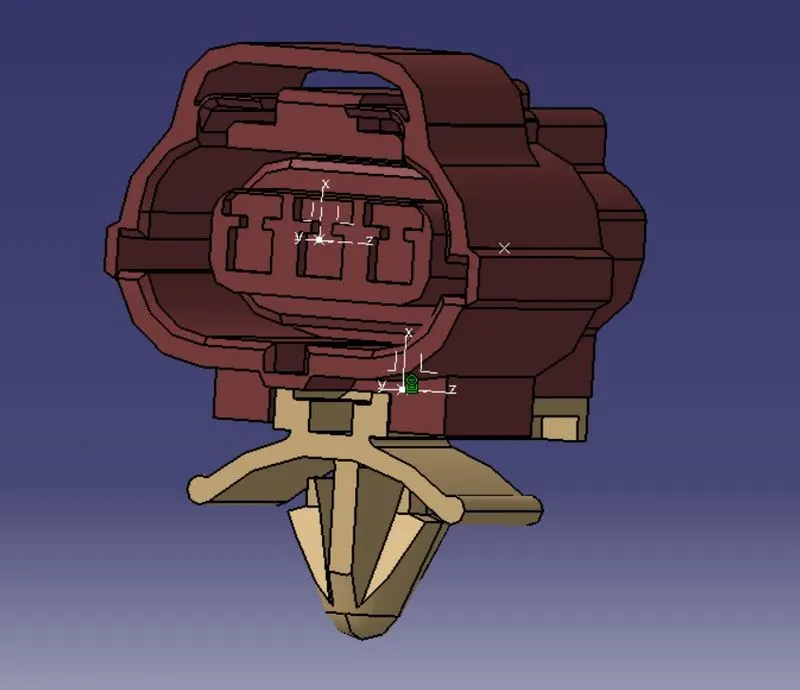

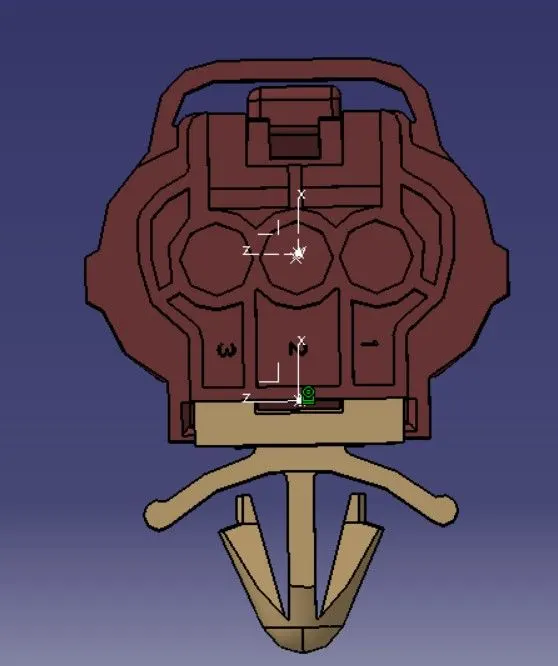

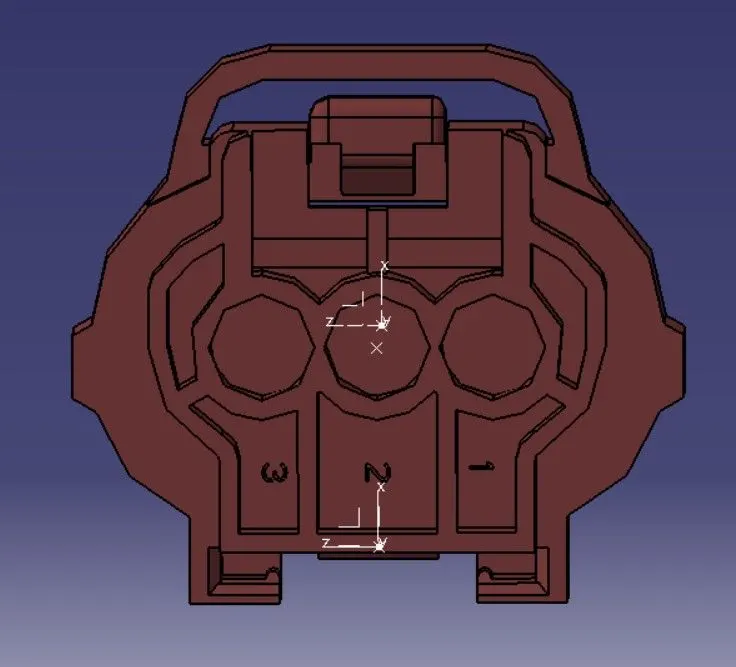

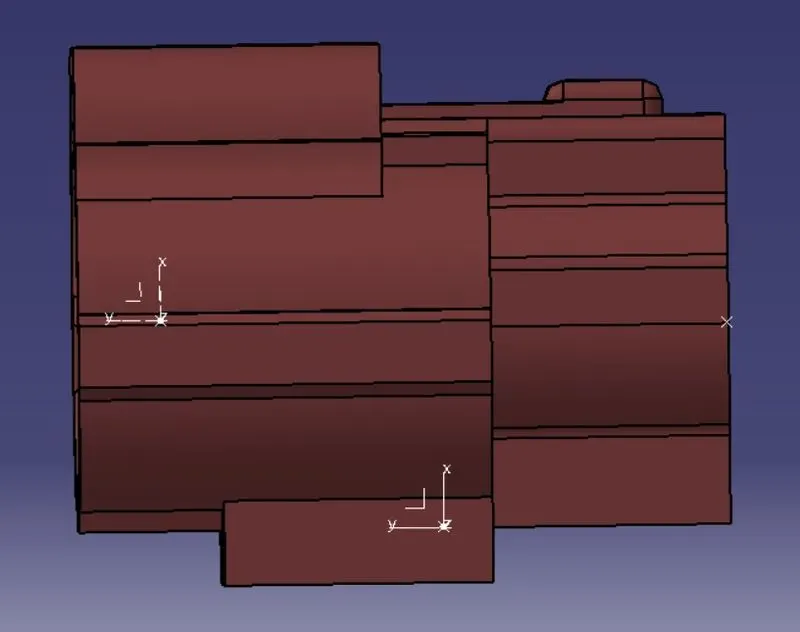

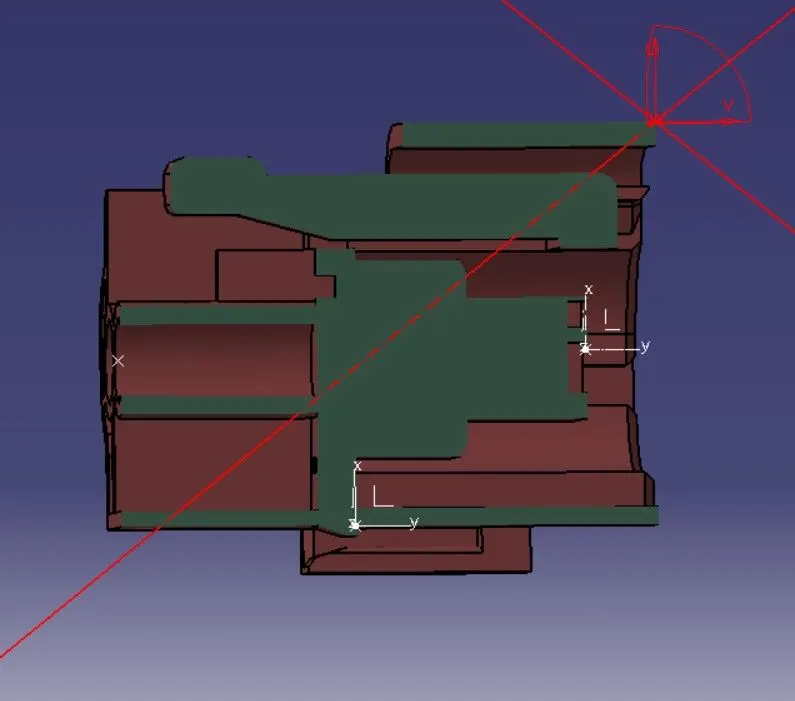

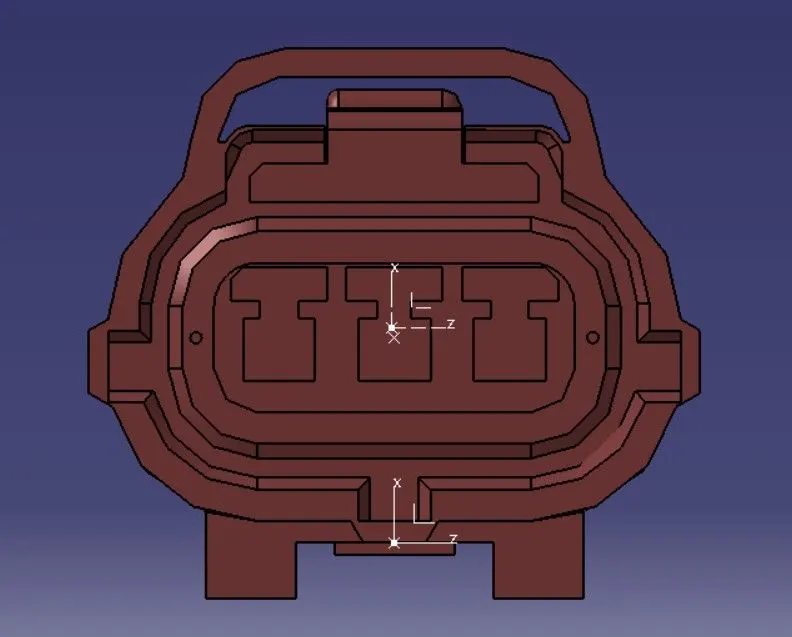

Tyco 174357-2 & properties:-
- TE Internal #: 2-174357-2
- Connector & Housing Type: Housing for Female Terminals
- Mating Tab Width: 1.8 mm [ .071 in]
- Connector System: Wire-to-Wire
- Number of Positions: 3
- Centreline (Pitch): 4.8 mm [ .189 in]
- Dim: 27.6 x 25.4 x 22.8.

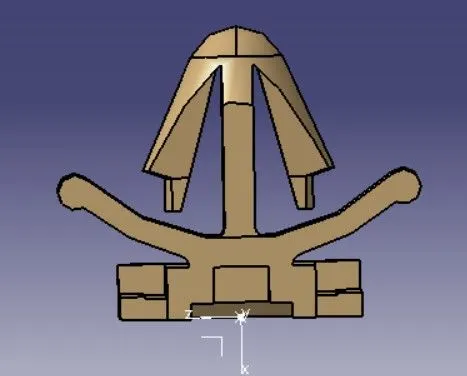

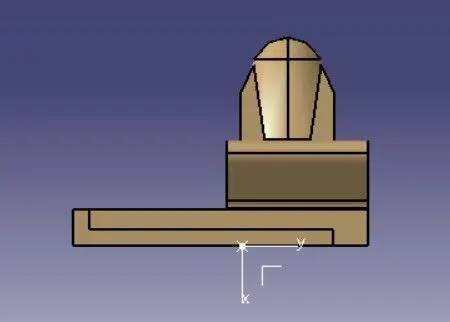

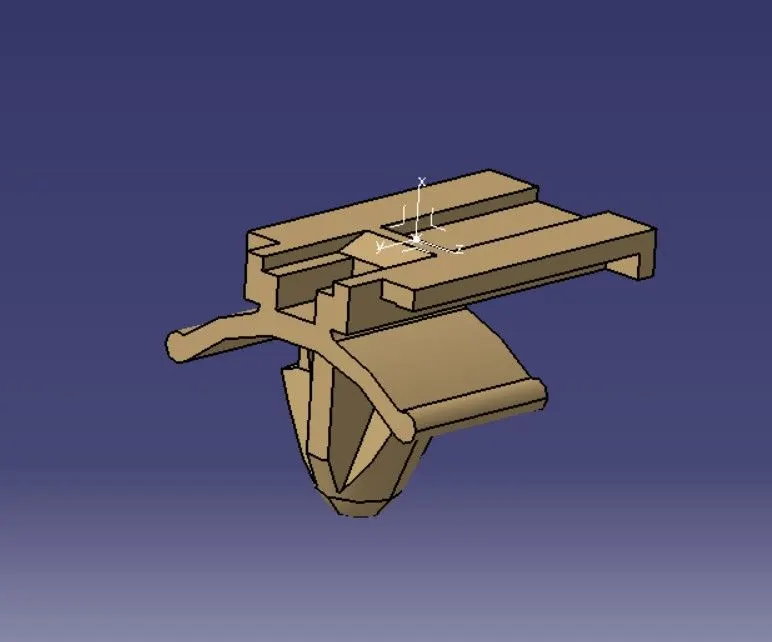

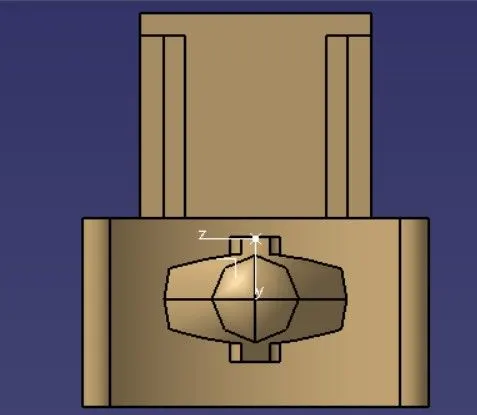

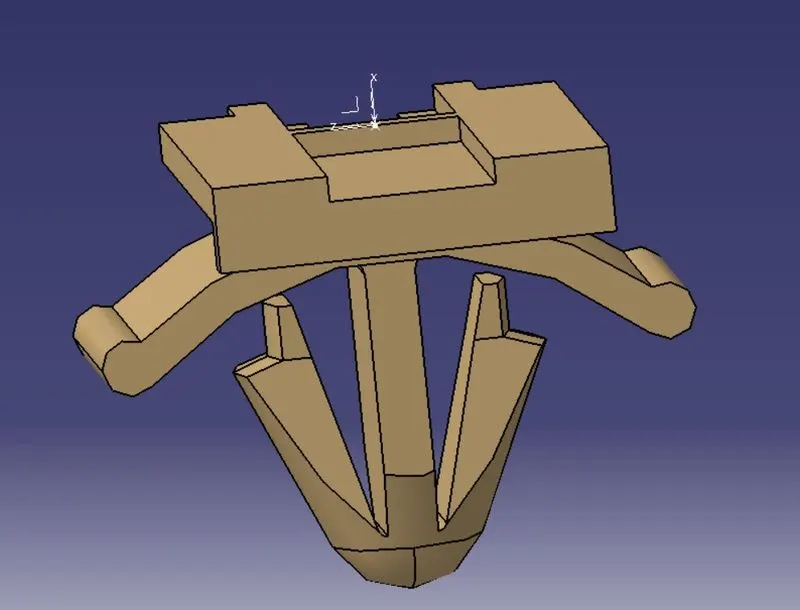

Tyco 85229-1 & properties:-
- TE Internal #: 85229-1
- Automotive Connector Accessory Type: Mounting Clip
- Primary Product Material: PA
- Primary Product Colour: Black
- Operating Temperature Range: -40 – 120 °C [ -40 – 248 °F]
- Dim: 21.4 x 12.6 x 15.1.
