Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

CONNECTOR:

Connectors are responsible to make contact between the wiring harness and components or between two different wiring harness assemblies by offering mechanical locking and sealing to the joints.

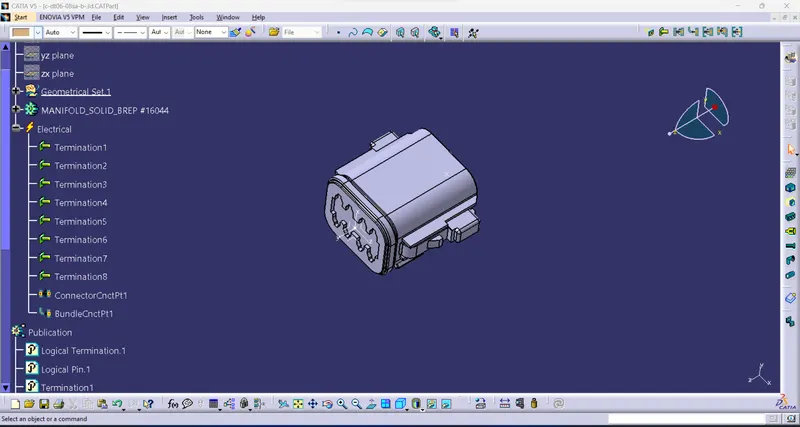

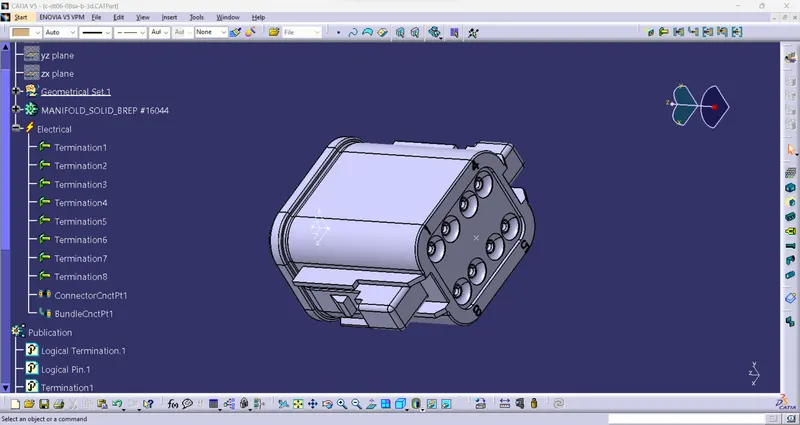

Deutsch DT06-08SA Connector:

The DT06-08SA is an 8-pole connector manufactured by Deutsch. This connector has two sides one side is the connector connecting side the other is the bundle entry side.

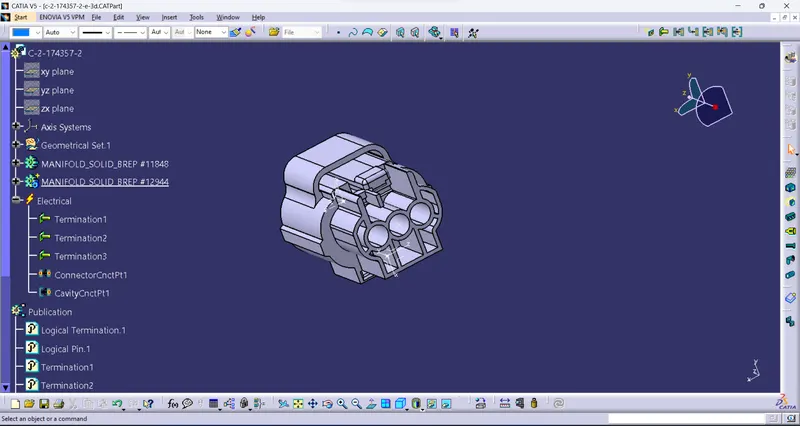

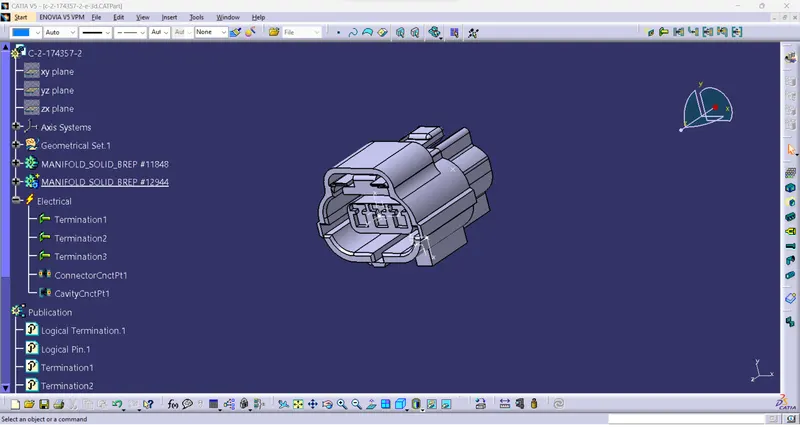

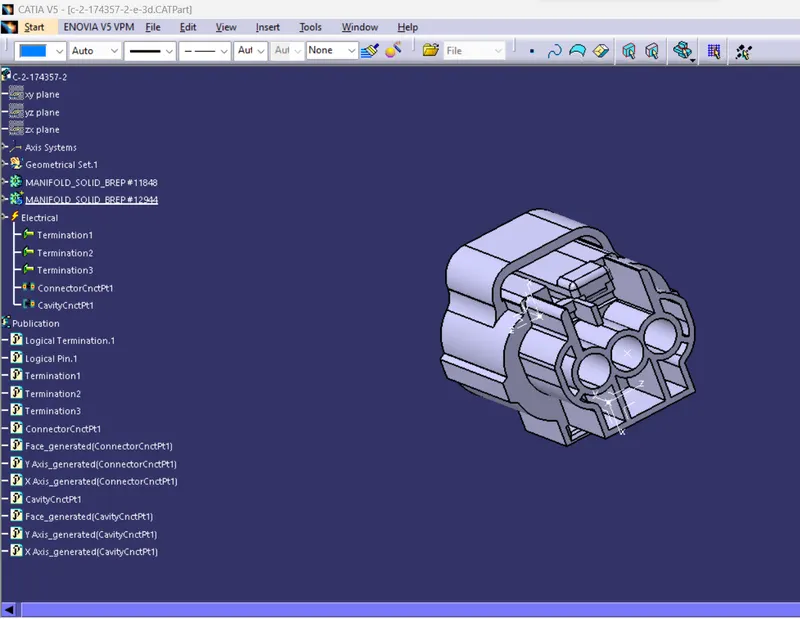

TE CONNECTOR:

2-174357-2 female end connector is a 3-pole connector manufactured by Tyco electronic

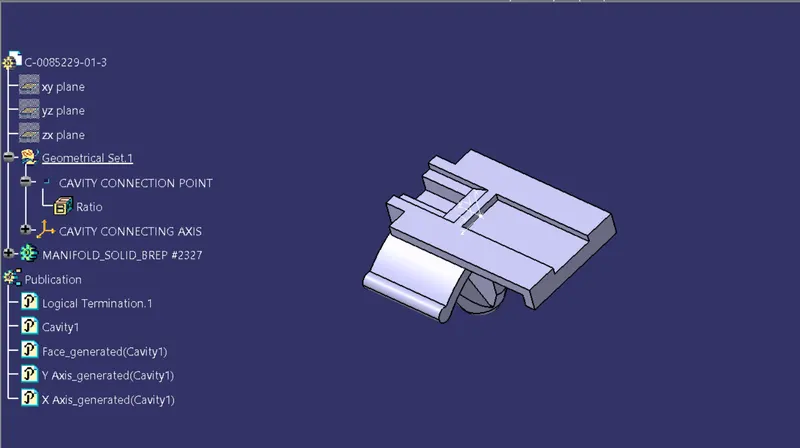

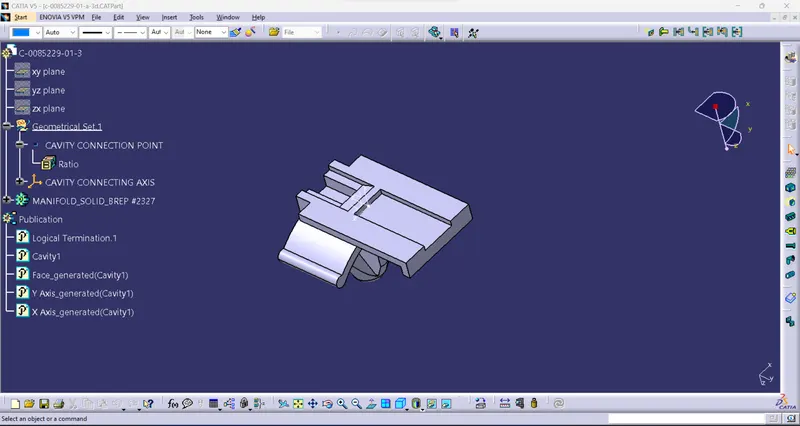

CONNECTOR CLIP:

85229-1 is Tyco 2-174357-2 female end connector clip. connector clip is used to mount the connector in automotive components.

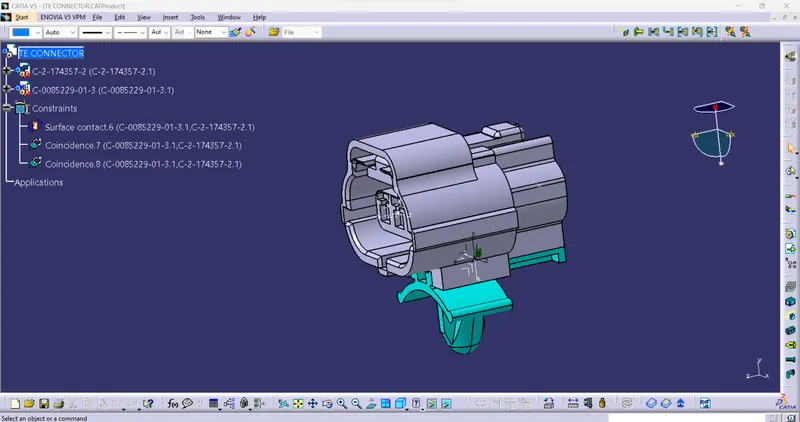

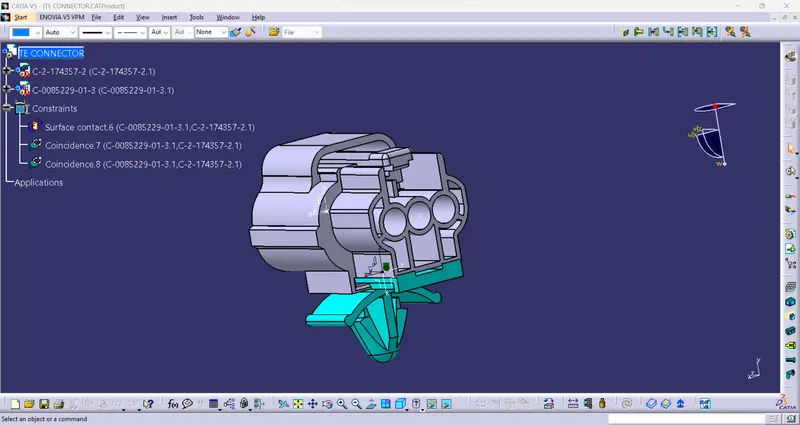

Electrical assembly:

Assemble connector with clip using "CONNECT ELECTRICAL DEVICES" commend usig cavity connecting point and define a cavity.

Tree:
