Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM

Use the provided link to get the connections and connector clip cad files, then describe it as an electrical connector using the Electrical Part Design Workbench. Give Connectors & Clip all the appropriate characteristics.

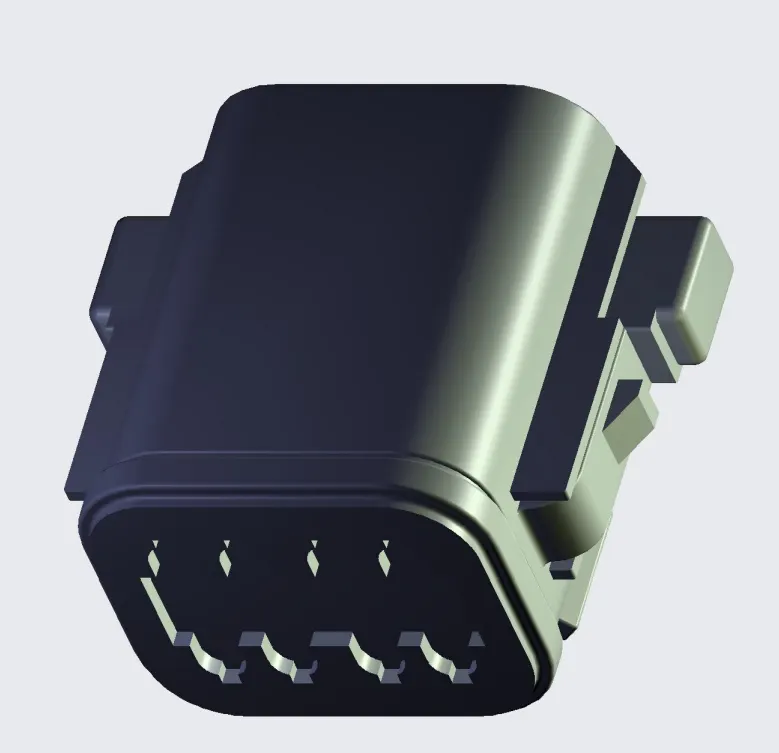

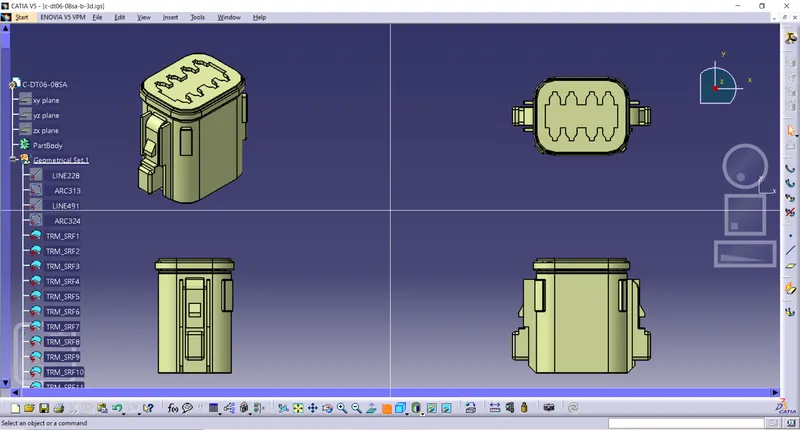

DT06-08SA Connector

Connector & Housing Type: Housing for Female Terminals

Mating Pin Diameter: 1.59 mm [ .063 in ]

Connector System: Wire-to-Wire

Number of Positions: 8

Centreline (Pitch) : 9.12 mm [ .359 in ]

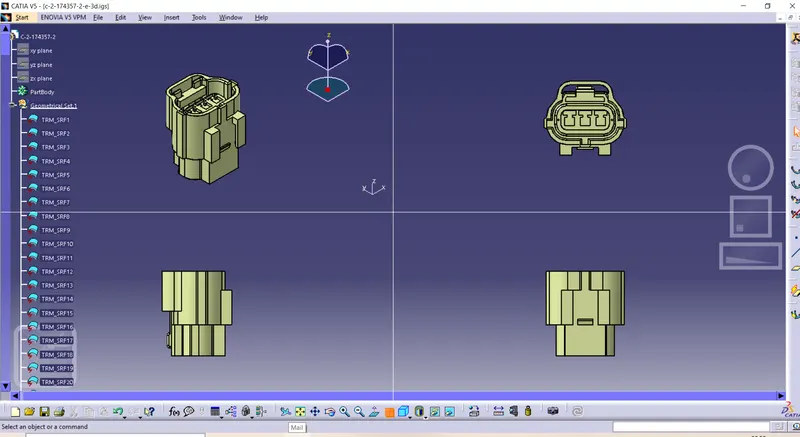

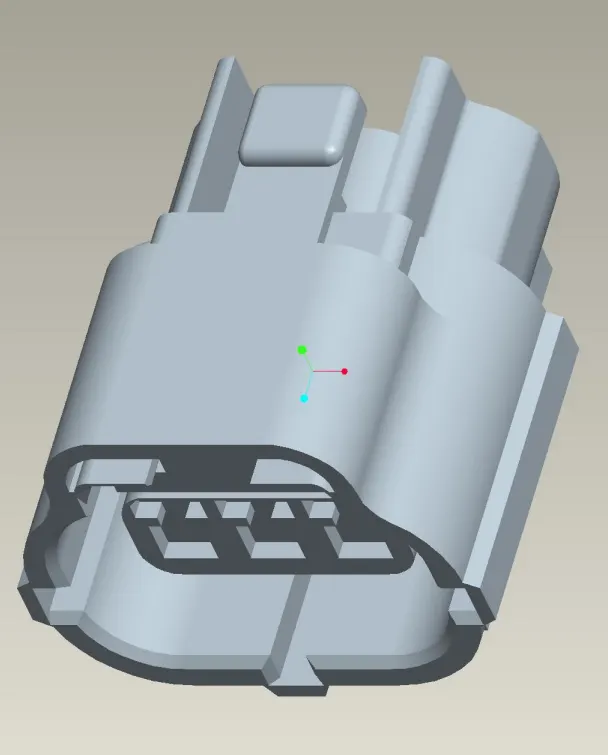

Tyco 174357-2 Connector

Connector & Housing Type: Housing for Female Terminals

Mating Tab Width: 1.8 mm [ .071 in ]

Connector System: Wire-to-Wire

Number of Positions: 3

Centreline (Pitch) : 4.8 mm [ .189 in ]

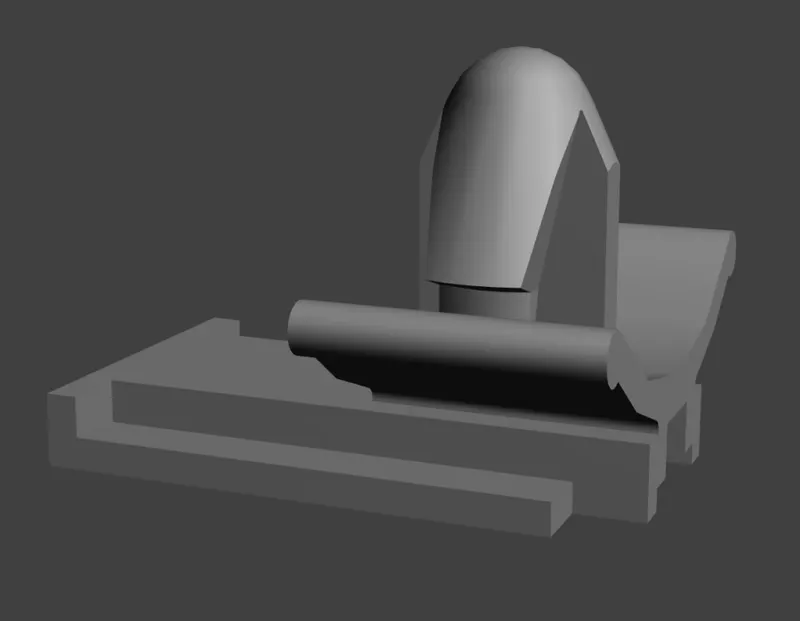

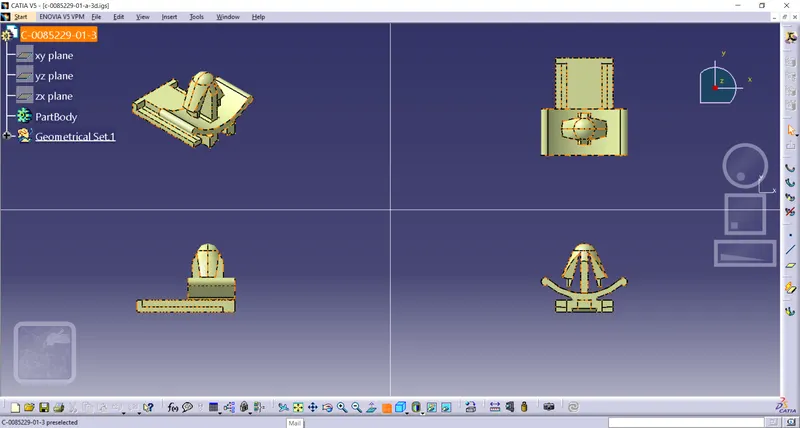

Tyco 85229-1 Connector

Automotive Connector Accessory Type: Mounting Clip

Primary Product Material: PA

Primary Product Colour: Black

Operating Temperature Range: -40 – 120 °C [ -40 – 248 °F ]
