Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
AIM:
Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.
CONNECTOR DEFINATIONS IN CATIA V5
1. Deutsch DT06 – 08SA
Connector connection point:

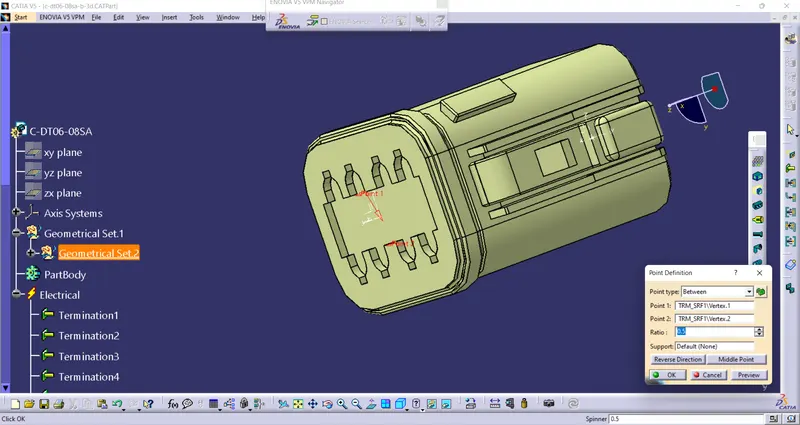

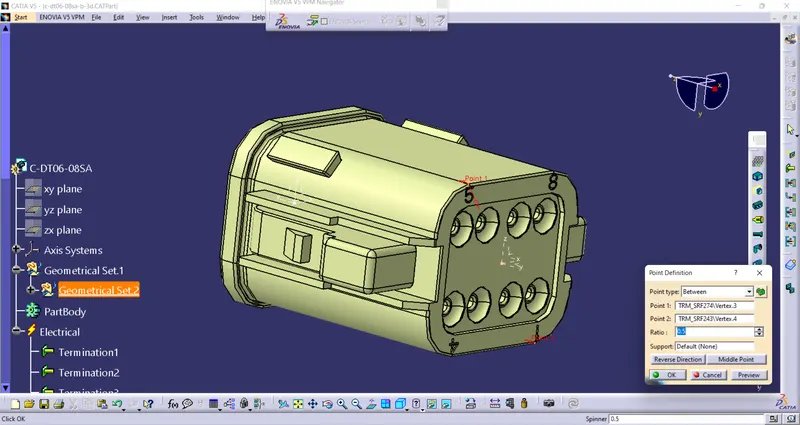

Create midpoint on contact, normal to wire bunddle insertion.

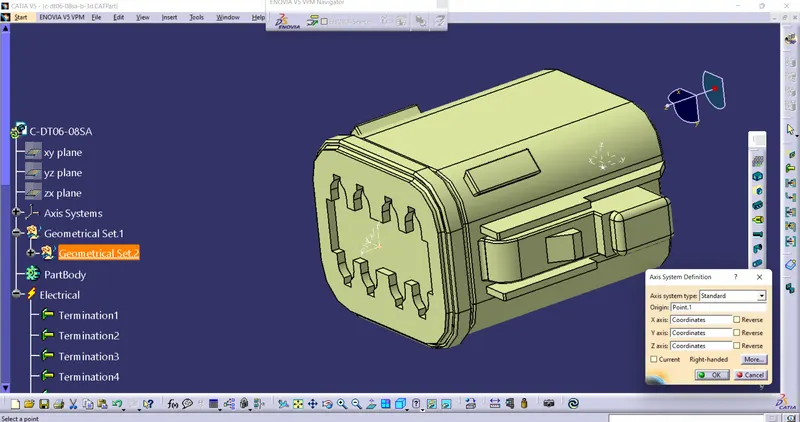

Craete an Axis System with respect to the created point and define the axis direction as shown below,
Bundle connection point:
Go to 'Electrical Part Design'

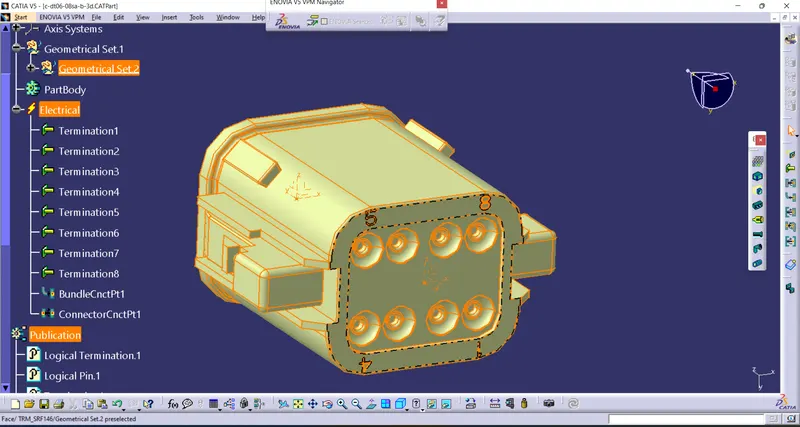

Define it as connector in catia, give the no. of terminations as 8 since there is 8 entry points.

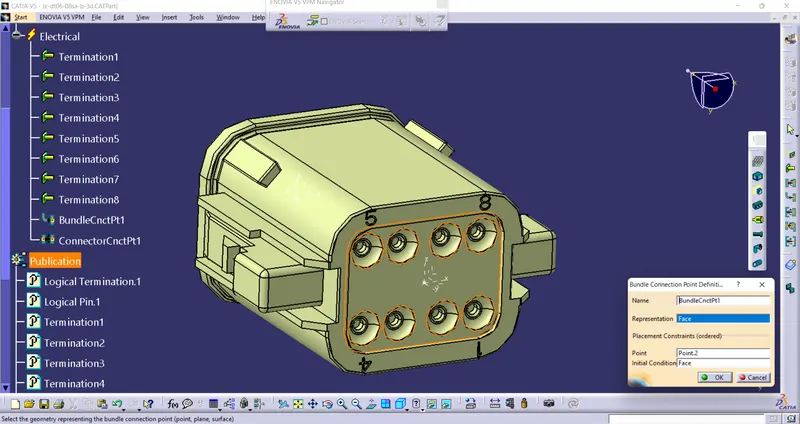

Define Bundle connection point

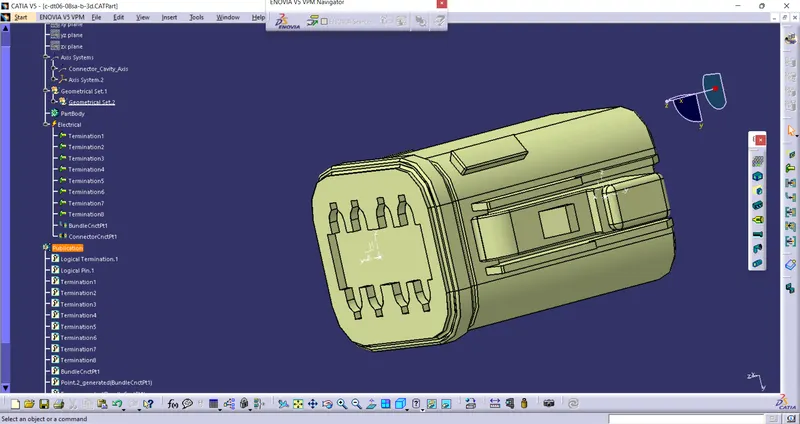

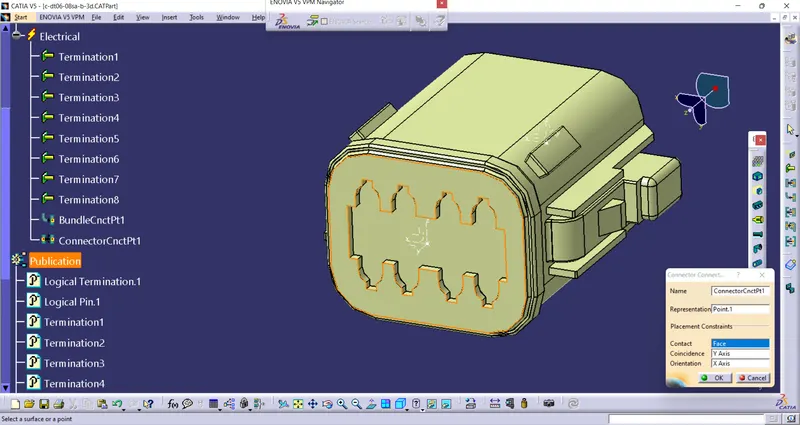

Define connector connection point

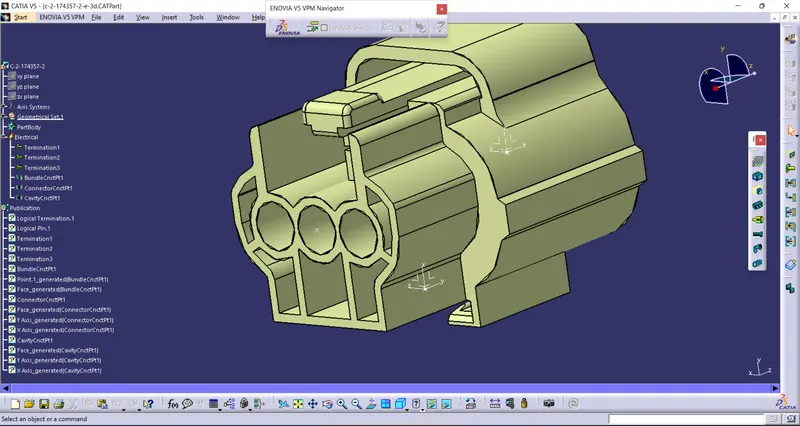

.Tyco 174357-2 :
- Create midpoint

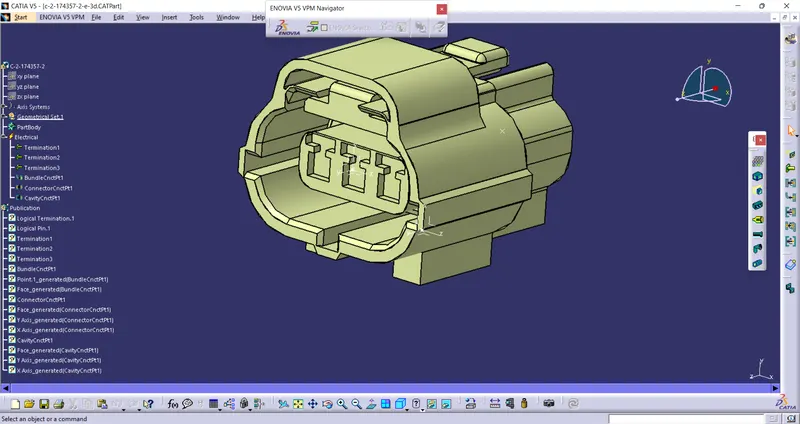

- Create Connector connection point
- Create Connector connection axis system

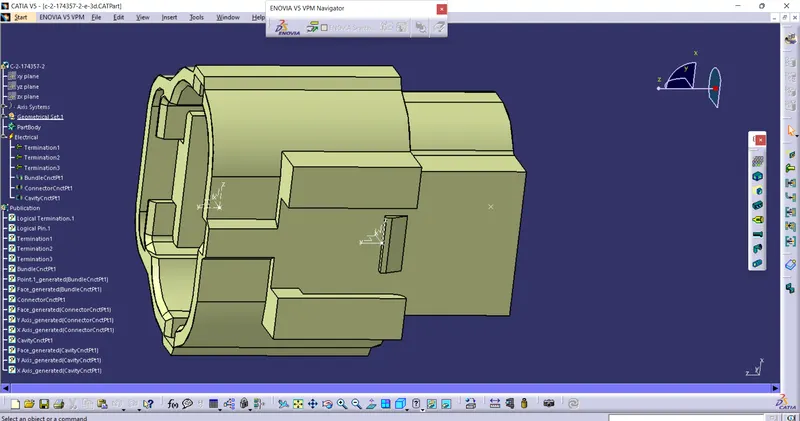

- Create cavity connection point
- Create cavity connection axis system
- Switch to Electric part design and define part as connector
- Define Connector connection point and cavity connection point
3. Tyco 85229-1 :
- Create midpoint

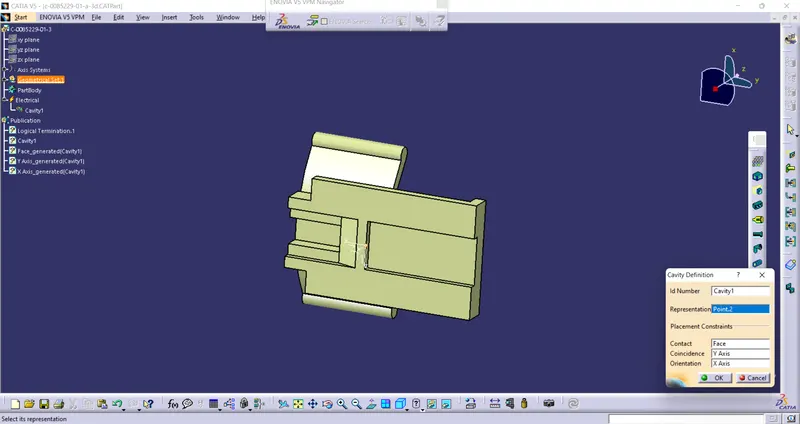

- create cavity connection point
- create cavity connection axis system and orientation should be same as in connector
- Switch to Electric part design and define part as Mounting Equipment
- Define cavity connection point
Elctric Assembly Design

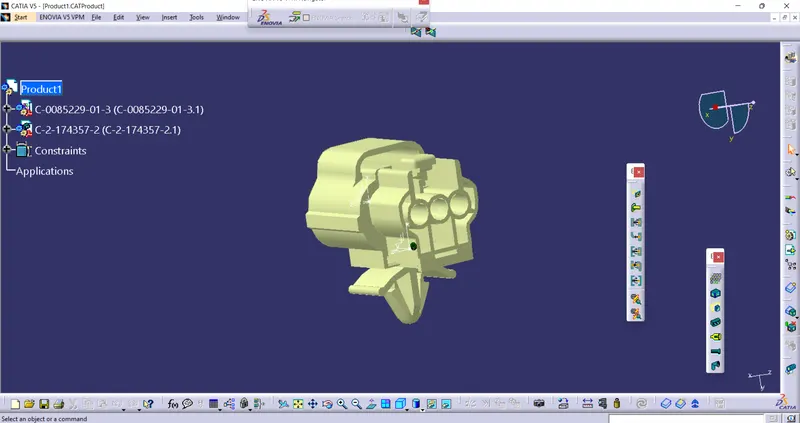

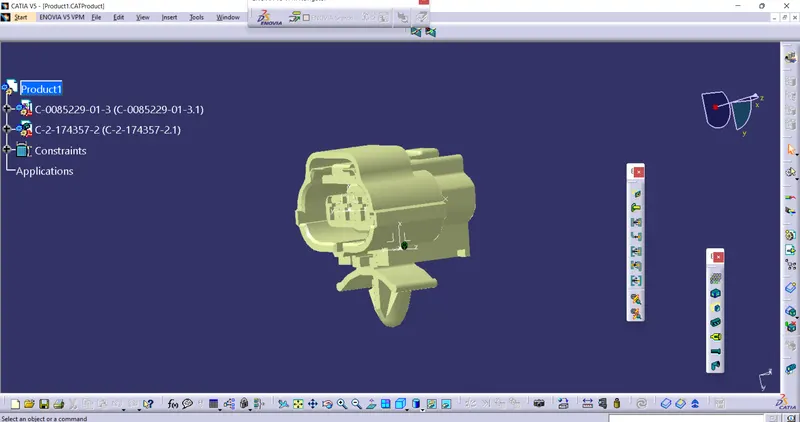

- Import Connector and cavity / mounting clip.
- Select Defing Eelectric connection
- select cavity and then connector.

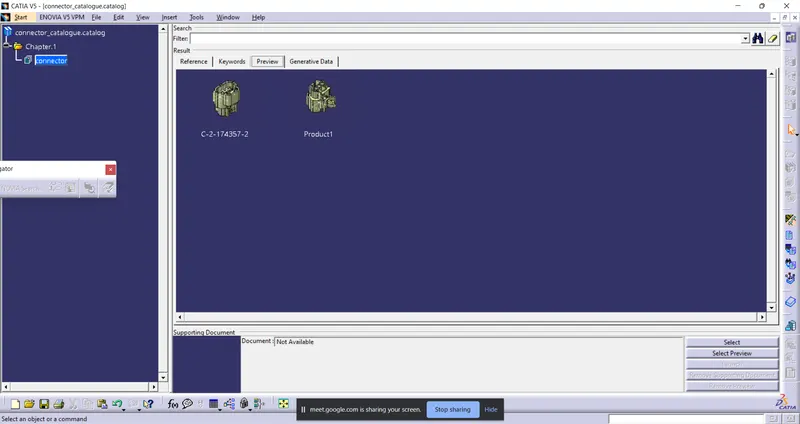

creation of catalogue
