Week 8 - Challenge 3 - Coin Holder Design

REPORT

DRAFT ANALYSIS

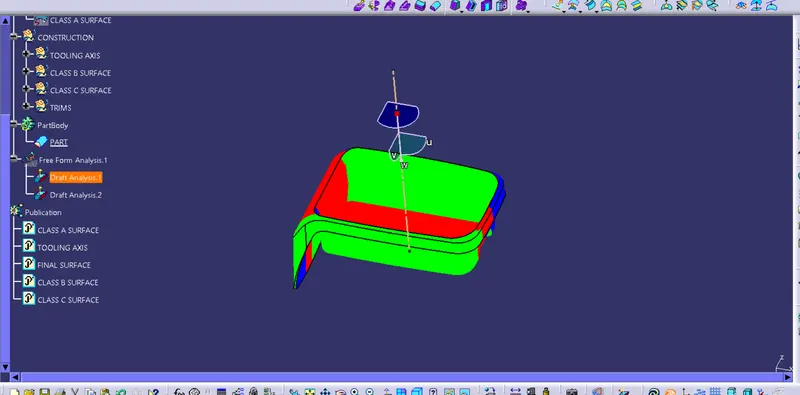

The draft analysis done on the Class A surface shows that the surface contains certain fases with a negative angle draft and some with zero degree draft and a few faces with draft angle more than 2 degree

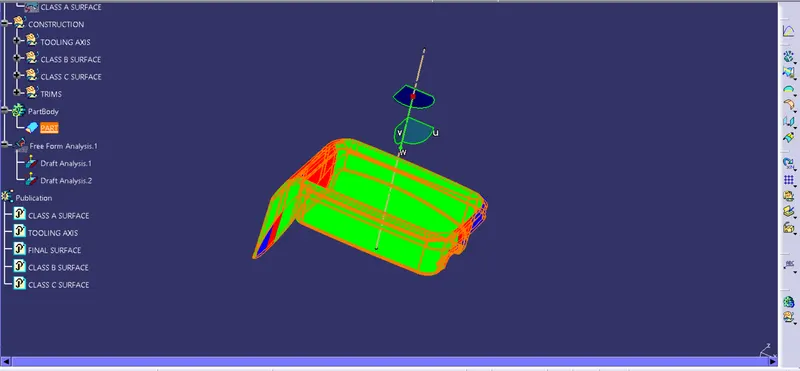

The draft analysis done on the final part shows that the surface contains certain fases with a negative angle draft and some with zero degree draft and a few faces with draft angle more than 2 degree

TOOLING AXIS CREATION

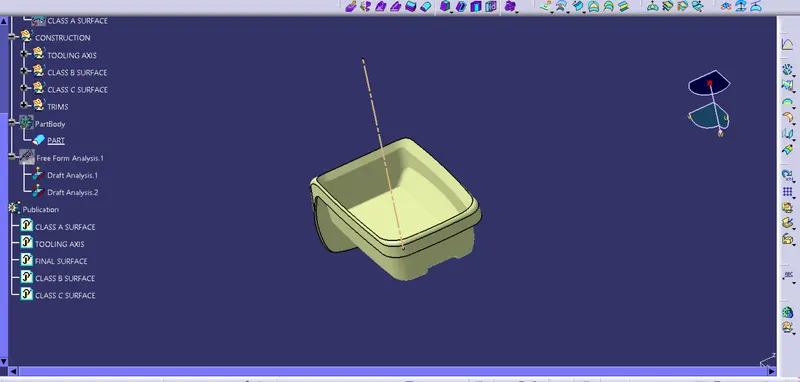

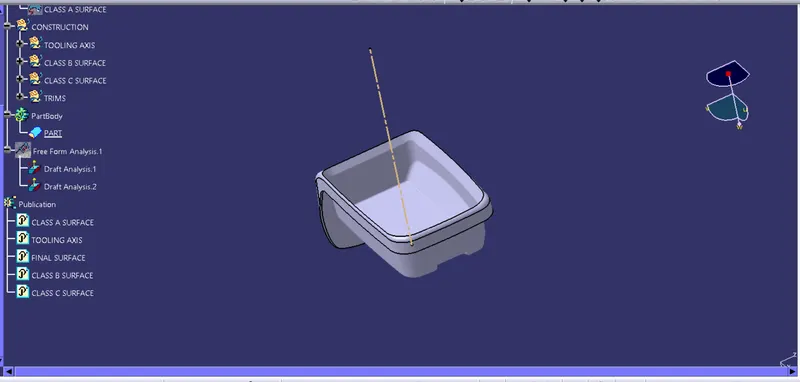

In this case the creation of tooling axis is simpler because we can identify it just by viewing the class a surface. Created the tooling axis on the middle of the base surface

pictures are given below
